System Demonstration Platform (SDP)

The System Demonstration Platform (SDP) is a collection of controller boards, interposer boards, and daughter boards used for easy, low cost evaluation of ADI components and reference circuits. It is a reusable platform where by a single controller board can be reused in various daughter board evaluation systems. Platform elements can also be used to build, demonstrate, and prototype embedded systems connected to daughter evaluation boards, through the use of interposer and 3rd party boards.

Reusing the SDP Controller

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require a SDP Controller. All SDP-S compatible daughter boards can be used with the SDP-B.

View Compatible Evaluation Boards

Controller Boards

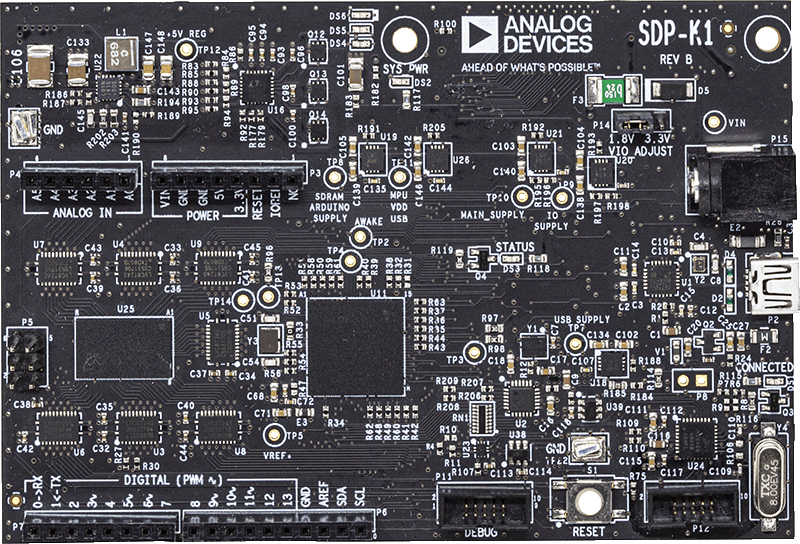

EVAL-SDP-CK1Z TOP
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Timers
  • QuadSPI
Connectors
  • 1 x 120 Pin SDP
  • Arduino headers
SDP-H1 - Angle View
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Asynchronous Parallel
  • PPI
  • Timers
  • LVDS
  • SE LVCMOS
Connectors
  • 1 x FMC LPC
  • 1 x 120 Pin SDP

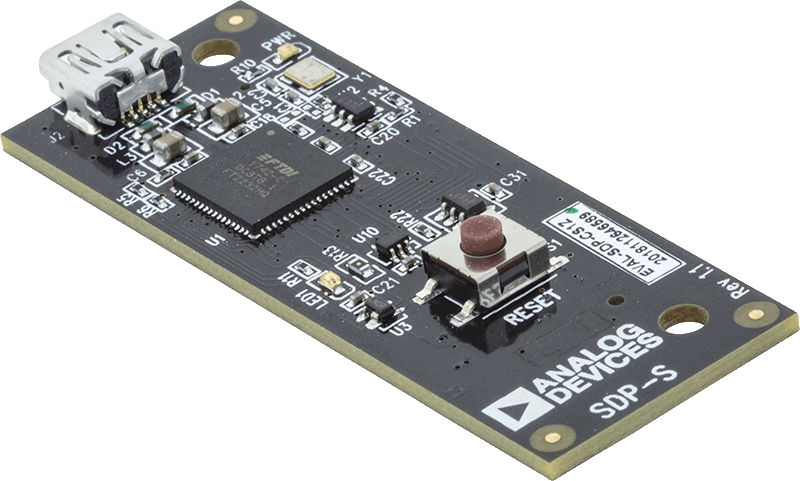

EVAL-SDP-CS1ZANGLE
Peripherals
  • GPIO
  • I2C
  • SPI
Connectors
  • 1 x 120 Pin SDP
EVAL-SDP-B - Top
Peripherals
  • GPIO
  • I2C
  • SPI
  • SPORT
  • Asynchronous Parallel
  • PPI
  • Timers

Connectors

  • 2 x 120 Pin SDP

Interposer Boards

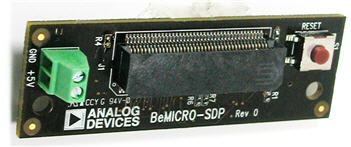

BeMicro SDK/SDP Interposer
Connect SDP daughter boards to Arrow's BeMicro SDK, the Cyclone IV based FPGA embedded development kit, with the BeMicro SDK/SDP Interposer.

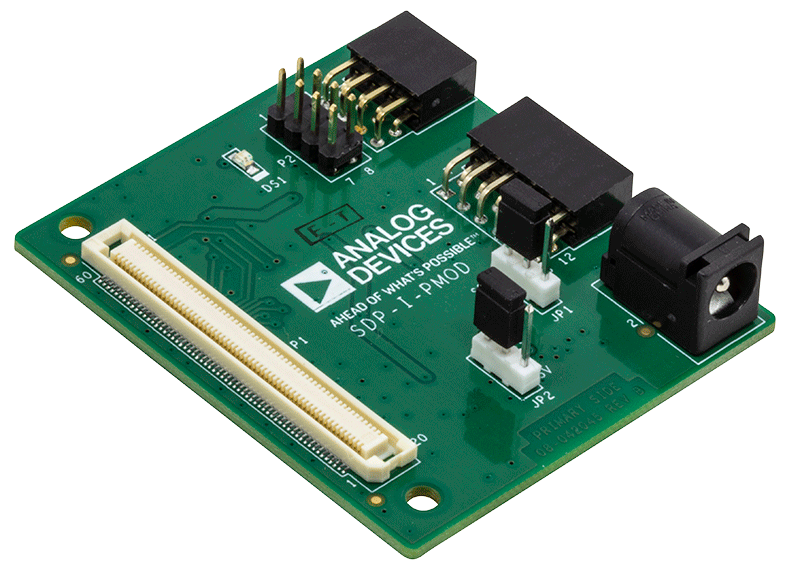

SDP-PMD-IB1Z Evaluation Board
SDP-I-PMOD
The SDP-I-PMD is be used to connect ADI PMOD boards directly to the System Demonstration Platform (SDP) controller boards.

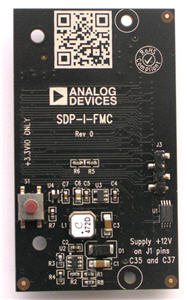

SDP-I-FMC
Connect SDP daughter board to Xilinx® FPGA evaluation boards (3.3VIO Only), with the SDP-I-FMC interposer board.


SDP_Breakout_Board_sm
Signal Monitoring
  • 120 Pin SDP Header
  • 120 Pin SDP Receptacle

Daughter Boards

daughter boards_sm
SDP Controller boards are used for product evaluation in data converters, RF IC's and Mems products. See the full list of compatible evaluation boards.
daughter boards_sm
SDP controller boards are used to evaluation reference circuits across all applications areas, Aerospace & Defense , Automotive, communications, Consumer, Energy, Healthcare, Instrumentation & Measurement, Motor and Power Control, Process Control & Industrial Automation.
View SDP Compatible Reference Circuits

COMPATIBLE PRODUCT EVALUATION BOARDS

The SDP controller boards were designed to be used in conjunction with various ADI component evaluation boards as part of a customer evaluation environment. The following evaluation boards are compatible with SDP controller boards.

Product (59)

Recommended Controller
µModule Buck Regulators (1)
X+
LTM8078:
Dual 1.4A, Single 2.8A Step-Down Silent Switcher μModule Regulator
SDP-H1
AD5755-1:

Quad Channel, 16-Bit, Serial Input, 4 mA to 20 mA and Voltage Output DAC, Dynamic Power Control, HART Connectivity

SDP-B
AD5755:
Quad Channel, 16-Bit, Serial Input, 4 mA to 20 mA and Voltage Output DAC, Dynamic Power Control
SDP-B
AD5735:
Quad-Channel, 12-Bit, Serial Input, 4 mA to 20 mA and Voltage Output DAC with Dynamic Power Control
SDP-B
AD5421:
16-Bit, Serial Input, Loop-Powered, 4mA to 20mA DAC
SDP-B
AD74115H:
Single-Channel, Software Configurable Input and Output with HART Modem
SDP-K1
AD74115:
Single-Channel, Software Configurable Input and Output
SDP-K1
AD7294-2:
12-Bit Monitor and Control System with Multichannel ADC, DACs, Temperature Sensor, and Current Sense
SDP-B
AD7292:
10-Bit Monitor & Control System with ADC, DACs, Temperature Sensor and GPIOs
SDP-B
ADXL357:

Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometers with Digital Output

SDP-B
ADXL355:
Low-Noise, Low-Drift, Low-Power, 3-Axis MEMS Accelerometers
SDP-B
ADM1185:
Quad Voltage Monitor and Sequencer
SDP-H1
AD590:
2-Terminal IC Temperature Transducer
SDP-S
AD590:
2-Terminal IC Temperature Transducer
SDP-K1
AD590:
2-Terminal IC Temperature Transducer
SDP-B
ADAS1000-4:
Low Power, 3-Electrode Electrocardiogram (ECG) Analog Front End with respiration measurement and pace detection
SDP-B
ADAS1000-3:
Low Power, 3-Electrode Electrocardiogram (ECG) Analog Front End
SDP-B
ADAS1000-2:
Low Power 5 electrode ECG Analog Front End Companion Chip
SDP-B
ADAS1000-1:
Low Power 5 electrode ECG Analog Front End
SDP-B
ADAS1000:
Low-Power, 5-Electrode Electrocardiogram (ECG) Analog Front End with respiration measurement and pace detection)
SDP-B
ADSP-BF609:
Blackfin Dual-Core Processor up to 1GHz with Hardware Support for HD Video Analytics
SDP-BREAKOUT-BOARD
ADSP-BF608:
Blackfin Dual-Core Processor up to 1GHz with Hardware Support for VGA Video Analytics
SDP-BREAKOUT-BOARD
ADSP-BF607:
Blackfin Dual-Core Processor up to 1GHz for High Performance Digital Signal Processing Applications
SDP-BREAKOUT-BOARD
ADSP-BF606:
Blackfin Dual-Core Processor up to 800 MHz for High Performance Digital Signal Processing Applications
SDP-BREAKOUT-BOARD
ADT7420:
±0.25°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-S
ADT7420:
±0.25°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-B
ADT7420:
±0.25°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-K1
AD5770R:
6-Channel, 14-Bit, Current Output DAC with On-Chip Reference, SPI Interface
SDP-B
ADL6337:
35 dB Gain, 500 MHz to 5200 MHz Transmit VGA
SDP-S
ADL6317:
Transmit VGA for Use with RF DACs and Transceivers
SDP-S
ADL6316:
500 MHz to 1000 MHz Transmit VGA for Use with RF DACs and Transceivers
SDP-S
ADA4961:
Low Distortion, 3.2 GHz, RF DGA
SDP-S
ADN2850:
Nonvolatile Memory, Dual 1024-Position Digital Resistor
SDP-B
AD8403:
4-Channel Digital Potentiometer
SDP-B
AD8402:
2-Channel Digital Potentiometer
SDP-B
AD8400:
Single-Channel Digital Potentiometer
SDP-B
AD5274:
256-Position, 1% Resistor Tolerance Error, I2C Interface and 50-TP Memory Digital Rheostat
SDP-B
AD5273:
64-Position, One-Time-Programmable (OTP) Digital Potentiometer
SDP-B
AD5272:
1024-Position, 1% Resistor Tolerance Error, Single Channel I2C Interface and 50-TP Memory Digital Rheostat
SDP-B
AD5271:
256-Position, 1% Resistor Tolerance Error, SPI Interface and 50-TP Memory Digital Rheostat
SDP-B
AD5270:
1024-Position, 1% Resistor Tolerance Error, SPI Interface and 50-TP Memory Digital Rheostat
SDP-B
AD5259:
Nonvolatile, I2C Compatible 256-Position, Digital Potentiometer
SDP-B
AD5258:
Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer
SDP-S
AD5254:
Quad 256-Position I2C Nonvolatile Memory, Digital Potentiometer
SDP-B
AD5253:
Quad 64-Position I2C Nonvolatile Memory Digital Potentiometer
SDP-B
AD5252:
I2C, Nonvolatile Memory, Dual 256-Position Digital Potentiometer
SDP-B
AD5251:
I2C, Nonvolatile Memory, Dual 64-Position Digital Potentiometer
SDP-B
AD5248:
256-Position Dual Channel I2C Compatible Digital Resistor
SDP-B
AD5247:
128-Position I2C®-Compatible Digital Potentiometer
SDP-S
AD5246:
128 Position I2C Compatible Programmable Resistor in SC70 Package
SDP-S
AD5245:
256 Position I2C Compatible Digital Potentiometer
SDP-B
AD5243:
256-Position Dual Channel I2C Compatible Digital Potentiometer
SDP-B
AD5242:
Dual-Channel, I2C Compatible, 256 Position, Digital Potentiometer
SDP-B
AD5241:
I2C Compatible Digital Potentiometer
SDP-B
AD5235:
Nonvolatile Memory, Dual 1024-Position Digital Potentiometer
SDP-B
AD5233:
Nonvolatile, Quad, 64-Position Digital Potentiometer
SDP-B
AD5232:
Nonvolatile Memory, Dual, 256-Position Digital Potentiometer
SDP-B
AD5228:
32-Position Manual Up/Down Control Potentiometer
SDP-B
AD5222:
Dual, Increment/Decrement Digital Potentiometer
SDP-B
AD5204:
4-Channel Digital Potentiometer
SDP-B
AD5173:
256-Position, One-Time Programmable, Dual Channel, I2C Digital Potentiometer
SDP-B
AD5172:
256-Position, One-Time Programmable, Dual Channel, I2C Digital Potentiometer
SDP-B
AD5171:
64 Position OTP Digital Potentiometer
SDP-S
AD5165:
256-Position, Ultralow Power 1.8 V Logic-Level Digital Potentiometer
SDP-B
AD5162:
256-Position Dual Channel SPI Digital Potentiometer
SDP-B
AD5161:
256 Position SPI/I2C Selectable Digital Potentiometer
SDP-B
AD5144A:
Quad Channel, 256-Position, I2C, Nonvolatile Digital Potentiometer
SDP-S
AD5144:
Quad Channel, 256-Position, I2C / SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5143:
Quad Channel, 256-Position, I2C, Nonvolatile Digital Potentiometer
SDP-S
AD5142A:
Dual Channel, 256-Position, I2C, Nonvolatile Digital Potentiometer
SDP-S
AD5142:
Dual Channel, 256-Position, SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5141:
Single Channel, 256-Position, I2C / SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5124:
Quad Channel, 128-Position, SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5123:
Quad Channel, 128-Position, I2C, Nonvolatile Digital Potentiometer
SDP-S
AD5122A:
Dual Channel, 128-Position, I2C, Nonvolatile Digital Potentiometer
SDP-S
AD5122:
Dual Channel, 128-Position, SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5121:
Single Channel, 128-Position, I2C / SPI, Nonvolatile Digital Potentiometer
SDP-S
AD5115:
Single Channel, 32-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
AD5114:
Single Channel, 32-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
AD5113:
Single Channel, 64-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
AD5112:
Single Channel, 64-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
AD5111:
Single Channel, 128-Position, Up/Down, ±8 % Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
AD5110:
Single Channel, 128-Position, I2C, ±8% Resistor Tolerance, Nonvolatile Digital Potentiometer
SDP-S
ADT7422:
±0.1°C Accuracy, 16-Bit, Digital I2C Temperature Sensor for VSM Applications
SDP-S
ADT7422:
±0.1°C Accuracy, 16-Bit, Digital I2C Temperature Sensor for VSM Applications
SDP-B
ADT7422:
±0.1°C Accuracy, 16-Bit, Digital I2C Temperature Sensor for VSM Applications
SDP-K1
ADT7410:
±0.5°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-B
ADT7410:
±0.5°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-S
ADT7410:
±0.5°C Accurate, 16-Bit Digital I2C Temperature Sensor
SDP-K1
ADT7320:
±0.25°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-S
ADT7320:
±0.25°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-B
ADT7320:
±0.25°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-K1
ADT7310:
±0.5°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-S
ADT7310:
±0.5°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-B
ADT7310:
±0.5°C Accurate, 16-Bit Digital SPI Temperature Sensor
SDP-K1
ADMV8913:

X Band, Digitally Tunable, High-Pass and Low-Pass Filter

SDP-S
ADMV8526:
1.25 GHz to 2.60 GHz Digitally Tunable Band-Pass Filter
SDP-S
AD9838:
11 mW Power, 2.3 V to 5.5 V, Complete DDS
SDP-B
AD9837:
Low Power, 8.5 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
SDP-B
AD9835:
50 MHz Direct Digital Synthesizer, Waveform Generator
SDP-B
AD9834:
20 mW Power, 2.3 V to 5.5 V, 75 MHz Complete DDS
SDP-S
AD9834:
20 mW Power, 2.3 V to 5.5 V, 75 MHz Complete DDS
SDP-B
AD9833:
Low Power, 12.65 mW, 2.3 V to 5.5 V, Programmable Waveform Generator
SDP-B
AD9832:
25 MHz Direct Digital Synthesizer Waveform Generator
SDP-B
AD9106:
Quad, Low Power, 12-Bit, 180 MSPS, Digital-to-Analog Converter and Waveform Generator
SDP-K1
AD9102:

Low Power, 14-Bit, 180 MSPS, Digital-to-Analog Converter and Waveform Generator

SDP-K1
ADG636:
1 pC Charge Injection, 100 pA Leakage, CMOS, ±5 V/+5 V/+3 V Dual SPDT Switch
SDP-H1
ADG1636:
1 Ω Typical On Resistance, ±5 V, +12 V, +5 V, and +3.3 V Dual SPDT Switches
SDP-H1
ADG1236:
Low Capacitance, Low Charge Injection, ±15 V/12 V iCMOS, Dual SPDT Switch
SDP-H1
ADG1209:
Low Capacitance, 4-Channel, ±15 V/+12 V iCMOS™ Multiplexer
SDP-H1
ADG1206:
Low Capacitance, 16-Channel, ±15 V/+12 V iCMOS Multiplexer
SDP-H1
AD3552R:
Dual Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC
SDP-H1
AD3551R:
Single Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC
SDP-H1
AD3542R:
Dual Channel, 12-/16-Bit, 16 MUPS, Multispan, Multi-IO SPI DAC
SDP-H1
AD3541R:
Single Channel, 12-/16-Bit, 16 MUPS, Multispan, Multi-IO SPI DAC
SDP-H1
LT3999:
Low Noise, 1A, 1MHz Push-Pull DC/DC Driver with Duty Cycle Control
SDP-H1
ADF5355:
Microwave Wideband Synthesizer with Integrated VCO
SDP-S
ADF4368:
Microwave Wideband Synthesizer with Integrated VCO
SDP-K1
ADF4368:
Microwave Wideband Synthesizer with Integrated VCO
SDP-S
ADF4355-3:

Microwave Wideband Synthesizer with Integrated VCO

SDP-S
ADF4355-2:
Microwave Wideband Synthesizer with Integrated VCO
SDP-S
ADF4196:
Low Phase Noise, Fast Settling 6 GHz PLL Frequency Synthesizer
SDP-S
ADF4193:
Low Phase Noise, Fast Settling PLL Frequency Synthesizer
SDP-S
ADF4157:
High Resolution 6 GHz Fractional-N Frequency Synthesizer
SDP-S
ADF4156:
6.2 GHz Fractional-N Frequency Synthesizer
SDP-S
ADF4154:
Fractional-N Frequency Synthesizer
SDP-S
ADF4153A:
Fractional-N Frequency Synthesizer
SDP-S
ADF4153:
Fractional-N Frequency Synthesizer
SDP-S
LTC6419:
Dual 10GHz GBW, 1.1nV/√Hz Differential Amplifier/ADC Driver
SDP-H1
ADA4945-1:
High Speed, ±0.1 µV/˚C Offset Drift, Fully Differential ADC Driver
SDP-H1
AD8475:
Precision, Selectable Gain, Fully Differential Funnel Amplifier
SDP-H1
LTC6269:
Dual 500MHz Ultra-Low Bias Current FET Input Op Amp
SDP-H1
ADA4807-2:

3.1 nV/√Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifier

SDP-H1
ADRF6850:
100 MHz to 1000 MHz Integrated Broadband Receiver
SDP-S
ADRF6755:
100 MHz TO 2400 MHz I/Q Modulator with Integrated Fractional-N PLL and VCO
SDP-S
ADA4254:
Zero Drift, High Voltage, Low Power, Programmable Gain Instrumentation Amplifier
SDP-S
ADF4118:
Single, Integer-N, 3.0 GHz PLL
SDP-S
ADF4117:
Single, Integer-N 1.2 GHz PLL
SDP-S
ADF4116:
Single, Integer-N 550 MHz PLL
SDP-S
ADF4113HV:
High Voltage Charge Pump, PLL Synthesizer
SDP-S
ADF4113:
Single, Integer-N 4.0 GHz PLL With Programmable Prescaler And Charge Pump
SDP-S
ADF4112:
Single, Integer-N 3.0 GHz PLL With Programmable Prescaler And Charge Pump
SDP-S
ADF4111:
Single, Integer-N, 1.2 GHz PLL With Programmable Prescaler And Charge Pump
SDP-S
ADF4110:
Single, Integer-N, 550 MHz PLL With Programmable Prescaler And Charge Pump
SDP-S
ADF4107:
7 GHz integer-N PLL
SDP-S
ADF4106:
6 GHz integer-N PLL
SDP-S
ADF4002:
Phase Detector / PLL Frequency Synthesizer
SDP-S
ADF4001:
200 MHz Clock Generator PLL
SDP-S
ADA4627-1:
36 V, 19 MHz, Low Noise, Low Bias Current, JFET Op Amp
SDP-H1
ADA4896-2:
1 nV/√Hz, Low Power, Rail-to-Rail Output Amplifiers
SDP-H1
OP2177:
Precision Low Noise, Low Input Bias Current Dual Operational Amplifier
SDP-H1
AD8031:
2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier
SDP-H1
ADA4571:
Integrated AMR Angle Sensor and Signal Conditioner
SDP-S
ADGM1144:
0 Hz/DC to 18 GHz, SP4T, MEMS Switch
SDP-B
ADGM1121:
0 Hz/DC to 18 GHz, DPDT, MEMS Switch
SDP-K1
ADGM1003:
0 Hz/DC to 16 GHz, SPDT MEMS Switches
SDP-B
ADGM1002:
0 Hz/DC to 20 GHz, SPDT MEMS Switches
SDP-B
ADGM1001:
0 Hz/DC to 34 GHz, SPDT MEMS Switches
SDP-B
ADF5901:

24 GHz VCO and PGA with 2-Channel PA Output

SDP-S
ADF5904:
4-Channel, 24 GHz, Receiver Downconverter
SDP-S
ADBMS6830B:
16-Channel Multicell Battery Monitor
SDP-K1
ADBMS2950B:
Battery Pack Monitor
SDP-K1
AD5697R:
Dual 12-Bit nanoDAC+™ with 2 ppm/°C Reference, I2C Interface
SDP-S
AD5696R:

Quad 16-Bit nanoDAC+ with 2 ppm/°C Reference, I2C Interface

SDP-S
AD5696:
Quad, 16-Bit nanoDAC+™ with I2C Interface
SDP-S
AD5695R:

Quad 14-Bit nanoDAC+ with 2 ppm/°C Reference, I2C Interface

SDP-S
AD5694R:
Quad, 12-Bit nanoDAC+ with 2 ppm/°C Reference, I2C Interface
SDP-B
AD5694R:
Quad, 12-Bit nanoDAC+ with 2 ppm/°C Reference, I2C Interface
SDP-S
AD5694:
Quad, 12-Bit nanoDAC+™ with I2C Interface
SDP-B
AD5694:
Quad, 12-Bit nanoDAC+™ with I2C Interface
SDP-S
AD5689R:
Dual, 16-Bit nanoDAC+ with 2 ppm/°C Reference, SPI Interface
SDP-S
AD5689:
Dual, 16-Bit nanoDAC+™ with SPI Interface
SDP-S
AD5687R:

Dual, 12-Bit nanoDAC+ with 2 ppm/°C Reference, SPI Interface

SDP-S
AD5687:
Dual, 12-Bit nanoDAC+™ with SPI Interface
SDP-S
AD5686R:
Quad, 16-Bit nanoDAC+™ with 2 ppm/°C On-Chip Reference and SPI Interface
SDP-S
AD5686:
Quad, 16-Bit nanoDAC+ with SPI Interface
SDP-S
AD5685R:
Quad, 14-Bit nanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface
SDP-S
AD5684R:
Quad, 12-Bit nanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface
SDP-B
AD5684R:
Quad, 12-Bit nanoDAC+ with 2 ppm/°C On-Chip Reference and SPI Interface
SDP-S
AD5684:
Quad, 12-Bit nanoDAC+ with SPI Interface
SDP-B
AD5684:
Quad, 12-Bit nanoDAC+ with SPI Interface
SDP-S
AD5676R:
Octal, 16-Bit nanoDAC+ with 2 ppm/°C Reference, SPI Interface
SDP-K1
AD5669R:
Octal, 16-bit, I2C Voltage Output denseDAC with 5 ppm/°C On-Chip Reference
SDP-B
AD5668:
Octal, 16-Bit, SPI Voltage Output denseDAC With 5 ppm/°C On-Chip Reference
SDP-B
AD5648:
Octal, 14-Bit, SPI Voltage Output denseDAC With 5 ppm/°C On-Chip Reference
SDP-B
AD5629R:
Octal, 12-bit, I2C Voltage Output denseDAC with 5 ppm/°C On-Chip Reference
SDP-B
AD5628:
Octal, 12-Bit, SPI Voltage Output denseDAC With 5 ppm/°C On-Chip Reference
SDP-B
AD7490:
16-Channel, 1 MSPS, 12-Bit ADC with Sequencer
SDP-B
AD7298:
8-Channel, 1MSPS, 12-Bit SAR ADC with Temperature Sensor
SDP-B
AD7291:
8-Channel, I2C, 12-Bit SAR ADC with Temperature Sensor
SDP-B
AD7195:
4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA and AC Excitation
SDP-K1
AD7195:
4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA and AC Excitation
SDP-B
AD7194:
8-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA
SDP-K1
AD7194:
8-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA
SDP-B
AD7193:
4-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA
SDP-B
AD7193:
4-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA
SDP-K1
AD7192:
4.8 kHz Ultra-Low Noise 24-Bit Sigma-Delta ADC with PGA
SDP-K1
AD7192:
4.8 kHz Ultra-Low Noise 24-Bit Sigma-Delta ADC with PGA
SDP-B
AD7190:
4.8 kHz Ultralow Noise 24-Bit Sigma-Delta ADC with PGA
SDP-B
AD7190:
4.8 kHz Ultralow Noise 24-Bit Sigma-Delta ADC with PGA
SDP-K1
AD7176-2:
24-Bit, 250 kSPS Sigma Delta ADC with 20 µs Settling
SDP-B
AD7175-2:
24-Bit, 250 kSPS, Sigma-Delta ADC with 20 µs Settling and True Rail-to-Rail Buffers
SDP-B
AD7173-8:

Low Power, 8-/16-Channel, 31.25 kSPS, 24-Bit, Highly Integrated Sigma-Delta ADC

SDP-B
AD7172-2:
Low Power, 24-Bit, 31.25 kSPS, Sigma-Delta ADC with True Rail-to-Rail Buffers
SDP-B
AD4131-8:
32 μA, Ultra Low Power, 16-Bit Sigma-Delta ADC with Integrated PGA
SDP-K1
AD4130-8:
32 μA, Ultra Low Power, 24-Bit Sigma-Delta ADC with Integrated PGA and FIFO
SDP-K1
AD5556:
Current-Output Parallel-Input, 14-Bit Digital-to-Analog Converter
SDP-B
AD5555:
Precision DUAL 16-Bit 14-Bit-DACs in Compact TSSOP Packages
SDP-B
AD5554:
Quad, Current-Output, Serial-Input 16-/14-Bit DACs
SDP-B
AD5553:
14-Bit DAC in µSOIC-8 Package
SDP-B
AD5546:
Current-Output Parallel-Input, 16-Bit Digital-to-Analog Converter
SDP-B
AD5545:
Precision DUAL 16-Bit and 14-Bit DACs in Compact TSSOP Packages
SDP-B
AD5544:
Quad, Current-Output, Serial-Input 16-/14-Bit DACs
SDP-B
AD5543:
16-Bit DAC in µSOIC-8 Package
SDP-B
AD5453:
14-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5452:
12-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5451:
10-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5450:
8-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5449:
Dual 12-Bit, High Bandwidth Multiplying DAC with Serial Interface
SDP-B
AD5446:
12-/14-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5445:
High Bandwidth 12-Bit Parallel Interface Multiplying D/A Converter
SDP-B
AD5444:
12-/14-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5443:
12-Bit High Bandwidth Multiplying DAC's with Serial Interface
SDP-S
AD5439:
Dual 10-Bit, High Bandwidth, Multiplying DAC with Serial Interface
SDP-B
AD5433:
High Bandwidth 10-Bit Parallel Interface Multiplying D/A Converter
SDP-B
AD5432:
10-Bit High Bandwidth Multiplying DACs with Serial Interface
SDP-S
AD5429:
Dual 8-Bit, High Bandwidth, Multiplying DAC with Serial Interface
SDP-B
AD5424:
High Bandwidth 8-Bit Parallel Interface Multiplying D/A Converter
SDP-B
AD5415:
Dual 12-Bit, High Bandwidth, Multiplying DAC with 4 Quadrant Resistors and Serial Interface
SDP-B
ADP7182:
–28 V, −200 mA, Low Noise, Linear Regulator
SDP-H1
ADF4378:
Microwave Wideband Synthesizer with Integrated VCO and Deterministic General-Purpose Pulse Retimer
SDP-K1
ADF4378:
Microwave Wideband Synthesizer with Integrated VCO and Deterministic General-Purpose Pulse Retimer
SDP-S
ADF4377:
Microwave Wideband Synthesizer with Integrated VCO
SDP-K1
ADF4377:
Microwave Wideband Synthesizer with Integrated VCO
SDP-S
LTC3556:
High Efficiency USB Power Manager with Dual Buck and Buck-Boost DC/DCs
SDP-K1
LT3032 Series:
Dual 150mA Positive/Negative Low Noise Low Dropout Linear Regulator
SDP-H1
LT1763:
500mA, Low Noise, LDO Micropower Regulators
SDP-K1
ADP7118:
20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
SDP-H1
ADP7112:
20 V, 200 mA, Low Noise, CMOS LDO Linear Regulator
SDP-H1
ADP7105:
20 V, 500 mA, Low Noise LDO Regulator with Soft Start
SDP-H1
ADP7104:
20 V, 500 mA, Low Noise, CMOS LDO
SDP-B
ADP1706:
1 A, Low Dropout, CMOS Linear Regulator
SDP-H1
ADP165:
Very Low Quiescent Current, 150 mA, with Output Discharge LDO Regulator
SDP-H1
ADP150:
Ultralow Noise, 150 mA CMOS Linear Regulator
SDP-H1
ADM7171:
6.5 V, 1 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO
SDP-H1
ADM7160:
Ultralow Noise, 200 mA, Linear Regulator
SDP-K1
ADM7154:
600 mA, Ultralow Noise, High PSRR, RF Linear Regulator
SDP-H1
ADP196:
5 V, 3 A Logic Controlled High-Side Power Switch
SDP-H1
ADA4841-1:
Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier
SDP-H1
AD8676:
Ultra Precision, 36 V, 2.8 nV/√Hz Dual RRO Op Amp
SDP-H1
LT5400:
Quad Matched Resistor Network
SDP-H1
ADAQ7768-1:
24-Bit Single Channel Precision μModule Data Acquisition System
SDP-H1
ADAQ4003:
18-Bit, 2 MSPS, μModule Data Acquisition Solution
SDP-H1
ADAQ23878:
18-Bit, 15 MSPS, μModule Data Acquisition Solution
SDP-H1
ADAQ23876:
16-Bit, 15 MSPS, μModule Data Acquisition Solution
SDP-H1
LTC2962:
±0.5% Accurate Quad Configurable Supervisor
SDP-H1
LTC4306:
4-Channel, 2-Wire Bus Multiplexer with Capacitance Buffering
SDP-K1
LTC6655:
0.25ppm Noise, Low Drift Precision References
SDP-H1
ADR4540:
Ultra-Low-Noise, High-Accuracy 4.096V Voltage Reference
SDP-H1
ADR4525:
Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference
SDP-K1
ADR444:
Ultralow Noise, LDO XFET® 4.096V Voltage Reference w/Current Sink and Source
SDP-H1
ADR421:
Ultraprecision, Low Noise, 2.500 V XFET® Voltage References
SDP-B
ADR130:
Precision Series Sub-Band Gap Voltage Reference
SDP-H1
ADR03:
Ultracompact, Precision 2.5 V Voltage Reference
SDP-H1
AD7768-4:
4-Channel, 24-Bit, Simultaneous Sampling ADC, Power Scaling, 110.8 kHz BW
SDP-H1
AD7768:
8-Channel, 24-Bit, Simultaneous Sampling ADC, Power Scaling, 110.8 kHz BW
SDP-H1
AD7761:
8-Channel, 16-Bit, Simultaneous Sampling ADC with Power Scaling, 110.8 kHz BW
SDP-H1
AD7658-1:
250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 12-Bit ADC
SDP-B
AD7658:
250 kSPS, 6-Channel,SimultaneousSampling, Bipolar 12-Bit A/D Converter
SDP-B
AD7657-1:
250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 14-Bit ADC
SDP-B
AD7656-1:
250 kSPS, 6-Channel, Simultaneous Sampling, Bipolar 16-Bit ADC
SDP-B
AD7656:
250 kSPS, 6-Channel, Simultaneous Sampling Bipolar 16-Bit ADC
SDP-B
AD7608:
8-Channel DAS with 18-Bit, Bipolar, Simultaneous Sampling ADC
SDP-B
AD7607:
8-Channel DAS with 14-Bit, Bipolar, Simultaneous Sampling ADC
SDP-B
AD7606-6:
6-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
SDP-B
AD7606-4:
4-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
SDP-B
AD7606:
8-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
SDP-B
AD7605-4:
4-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
SDP-B
AD7389-4:
Differential Input, Quad, Internal Reference Simultaneous Sampling, 16-Bit SAR ADC
SDP-H1
AD7388:
4-Channel, 4 MSPS, 12-Bit, Dual, Simultaneous Sampling SAR ADCs
SDP-H1
AD7387:
4-Channel, 4 MSPS, 14-Bit, Dual, Simultaneous Sampling SAR ADC
SDP-H1
AD7386:
4-Channel, 4 MSPS, 16-Bit Dual Simultaneous Sampling SAR ADC
SDP-H1
AD7384-4:
Pseudo Differential Input, Quad, 4 MSPS Simultaneous Sampling, 14-Bit, SAR ADC
SDP-H1
AD7383-4:
Pseudo Differential Input, Quad, 4 MSPS Simultaneous Sampling, 16-Bit, SAR ADC
SDP-H1
AD7381-4:
Differential Input, Quad,14-Bit, Simultaneous Sampling, SAR ADC
SDP-H1
AD7380-4:
Differential Input, Quad, External Reference Simultaneous Sampling, 16-Bit, SAR ADC
SDP-H1
AD7367:
True Bipolar Input, Dual 14-Bit, 2-Channel, Simultaneous Sampling SAR ADC
SDP-B
AD7366:
True Bipolar Input, Dual 12-Bit, 2-Channel, Simultaneous Sampling SAR ADC
SDP-B
AD7134:
24-Bit, 4-Channel Simultaneous Sampling 1.5 MSPS Precision Alias Free ADC
SDP-H1
AD4685:
500 kSPS, 4-Channel, 16-Bit Dual, Simultaneous Sampling SAR ADCs
SDP-H1
AD4684:
1 MSPS, 4-Channel, 16-Bit Dual, Simultaneous Sampling SAR ADCs
SDP-H1
LTC2378-20:
20-Bit, 1Msps, Low Power SAR ADC with 0.5ppm INL
SDP-H1
AD7989-5:
18-Bit, 500 kSPS PulSAR ADCs in MSOP/LFCSP
SDP-B
AD7989-1:

18-Bit, 100 kSPS PulSAR ADCs in MSOP/LFCSP

SDP-B
AD7988-5:
16-Bit Lower Power PulSAR ADCs in MSOP/LFCSP
SDP-B
AD7988-5:
16-Bit Lower Power PulSAR ADCs in MSOP/LFCSP
SDP-I-PMOD
AD7988-1:
16-Bit Lower Power PulSAR ADCs in MSOP/LFCSP
SDP-B
AD7988-1:
16-Bit Lower Power PulSAR ADCs in MSOP/LFCSP
SDP-I-PMOD
AD7984:
18-Bit, 1.33 MSPS PulSAR 10.5 mW ADC in MSOP/QFN
SDP-B
AD7984:
18-Bit, 1.33 MSPS PulSAR 10.5 mW ADC in MSOP/QFN
SDP-I-PMOD
AD7983:
16-Bit, 1.33 MSPS PulSAR ADC in MSOP/LFCSP
SDP-B
AD7983:
16-Bit, 1.33 MSPS PulSAR ADC in MSOP/LFCSP
SDP-I-PMOD
AD7982:
18-Bit, 1 MSPS PulSAR ADC in MSOP/LFCSP
SDP-B
AD7982:
18-Bit, 1 MSPS PulSAR ADC in MSOP/LFCSP
SDP-I-PMOD
AD7980:
16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP
SDP-I-PMOD
AD7980:
16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP
SDP-B
AD7961:
16-Bit, 5 MSPS PULSAR® Differential ADC
SDP-H1
AD7960:
18-Bit, 5 MSPS PULSAR® Differential ADC
SDP-H1
AD7946:
14-Bit, 500 kSPS PulSAR® ADC in MSOP
SDP-I-PMOD
AD7946:
14-Bit, 500 kSPS PulSAR® ADC in MSOP
SDP-B
AD7942:
14-Bit, 250 kSPS PulSAR®, Pseudo Differential ADC in MSOP/LFCSP
SDP-I-PMOD
AD7942:
14-Bit, 250 kSPS PulSAR®, Pseudo Differential ADC in MSOP/LFCSP
SDP-B
AD7940:
3 mW, 100 kSPS, 14-Bit ADC in 6-Lead SOT-23
SDP-B
AD7768-1:
DC to 204 kHz, Dynamic Signal Analysis, Precision 24-Bit ADC with Power Scaling
SDP-H1
AD7694:
250 kSPS 16-BIT PulSAR® A/D Converter in µSOIC
SDP-B
AD7693:
16-Bit, ±0.5 LSB, 500 kSPS PulSAR® Differential A/D Converter in MSOP/QFN
SDP-B
AD7693:
16-Bit, ±0.5 LSB, 500 kSPS PulSAR® Differential A/D Converter in MSOP/QFN
SDP-I-PMOD
AD7691:
18-Bit, 1.5 LSB INL, 250 kSPS PulSAR® Differential ADC in MSOP/QFN
SDP-I-PMOD
AD7691:
18-Bit, 1.5 LSB INL, 250 kSPS PulSAR® Differential ADC in MSOP/QFN
SDP-B
AD7690:
18-Bit, 1.5 LSB INL, 400 kSPS PulSAR® Differential ADC in MSOP/QFN
SDP-B
AD7690:
18-Bit, 1.5 LSB INL, 400 kSPS PulSAR® Differential ADC in MSOP/QFN
SDP-I-PMOD
AD7688:
500 kSPS 16- BIT Differential PulSAR® A/D Converter in µSOIC/QFN
SDP-B
AD7688:
500 kSPS 16- BIT Differential PulSAR® A/D Converter in µSOIC/QFN
SDP-I-PMOD
AD7687:
16-Bit, 1.5 LSB INL, 250 kSPS PulSAR™ Differential ADC in MSOP/QFN
SDP-B
AD7687:
16-Bit, 1.5 LSB INL, 250 kSPS PulSAR™ Differential ADC in MSOP/QFN
SDP-I-PMOD
AD7686:
500 kSPS 16-BIT PulSAR® A/D Converter in MSOP/QFN
SDP-B
AD7686:
500 kSPS 16-BIT PulSAR® A/D Converter in MSOP/QFN
SDP-I-PMOD
AD7685:
16-Bit, 250 kSPS PulSAR® ADC in MSOP/QFN
SDP-B
AD7685:
16-Bit, 250 kSPS PulSAR® ADC in MSOP/QFN
SDP-I-PMOD
AD7684:
16-Bit, 100 kSPS PulSAR®, Differential ADC in MSOP
SDP-B
AD7683:
100 kSPS 16-BIT PulSAR® A/D Converter in µSOIC/QFN
SDP-B
AD7492:
1MSPS, 4mW Internal Ref & Clk, 12-Bit Parallel ADC
SDP-B
AD7450A:
Differential Input, 1 MSPS, 12- (AD7450A) & 10-Bit (AD7440) ADCs
SDP-B
AD7276:

3 MSPS, 12-Bit ADC in 8-Lead MSOP and 6-Lead TSOT

SDP-B
AD7274:
3 MSPS 12-Bit A/D Converter in TSOT and MSOP Packages
SDP-B
AD7091R:
1 MSPS, Ultralow Power, 12-Bit ADC in 10-Lead LFCSP and MSOP
SDP-B
AD7091:
1 MSPS, Ultralow Power 12-Bit ADC in 8-Lead LFCSP
SDP-B
ADRF6658:
Wideband, Dual Rx Mixers with Integrated IF Amplifiers
SDP-S
AD5791:
1 ppm, 20-Bit, ±1 LSB INL, Voltage Output DAC
SDP-H1
AD5791:
1 ppm, 20-Bit, ±1 LSB INL, Voltage Output DAC
SDP-B
AD5790:
System Ready 20-Bit, ±2 LSB INL, Voltage Output DAC
SDP-B
AD5781:
True 18-Bit, Voltage Output DAC ±0.5 LSB INL, ±0.5 LSB DNL
SDP-B
AD5780:
System Ready, 18-Bit ±1 LSB INL, Voltage Output DAC
SDP-B
AD5760:
Ultra Stable 16-Bit ±0.5 LSB INL, Voltage Output DAC
SDP-B
AD5570:
True Accuracy, 16-Bit ±12 V/±15 V, Serial Input Voltage Output D/A Converter
SDP-S
AD5542A:
2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit nanoDAC™ in 10-lead LFCSP, 16-lead 3 mm x 3 mm LFCSP, and 16-lead TSSOP
SDP-B
AD5541A:
2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-/12-Bit nanoDAC™ in 8-lead 3 mm × 3 mm LFCSP
SDP-B
ADA4940-1:
Ultralow Power, Low Distortion ADC Driver
SDP-H1
AD5679R:
16-Channel, 12-/16-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-H1
AD5679R:
16-Channel, 12-/16-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-S
AD5679R:
16-Channel, 12-/16-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-B
AD5679:
16-Channel, 12-/16-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-B
AD5674R:
16-Channel, 12-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-B
AD5674:
16-Channel, 12-Bit nanoDAC+ with 2 ppm/°C Voltage Reference Temperature Coefficient, SPI Interface
SDP-B
LTC6820:
isoSPI Isolated Communications Interface
SDP-K1
ADBMS6822:
Single/Dual isoSPI Transceiver
SDP-K1
ADuM152N:

Robust 3.0 kV rms Five Channel Digital Isolators w/ Fail-Safe & 2 Reverse Channels

SDP-H1
ADuM120N:
3.0 kV rms, Dual-Channel Digital Isolators
SDP-H1
HMCAD1520:
High Speed Multi-Mode 8/12/14-Bit 1000/640/105 MSPS A/D Converter
SDP-H1
HMCAD1520:
High Speed Multi-Mode 8/12/14-Bit 1000/640/105 MSPS A/D Converter
SDP-S
HMCAD1520:
High Speed Multi-Mode 8/12/14-Bit 1000/640/105 MSPS A/D Converter
SDP-B
HMCAD1511:
High Speed Multi-Mode 8-Bit 1 GSPS A/D Converter
SDP-H1
HMCAD1511:
High Speed Multi-Mode 8-Bit 1 GSPS A/D Converter
SDP-S
HMCAD1511:
High Speed Multi-Mode 8-Bit 1 GSPS A/D Converter
SDP-B
AD9467:
16-Bit, 200 MSPS/250 MSPS Analog-to-Digital Converter
SDP-H1
AD9434:
12-Bit, 370 MSPS/500 MSPS, 1.8 V Analog-to-Digital Converter
SDP-H1
AD9434:
12-Bit, 370 MSPS/500 MSPS, 1.8 V Analog-to-Digital Converter
SDP-S
AD9434:
12-Bit, 370 MSPS/500 MSPS, 1.8 V Analog-to-Digital Converter
SDP-B
AD9265:
16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
SDP-H1
AD9265:
16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
SDP-S
AD9265:
16-Bit, 125 MSPS/105 MSPS/80 MSPS, 1.8 V Analog-to-Digital Converter
SDP-B
AD9788:
Dual 16-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-H1
AD9788:
Dual 16-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-S
AD9788:
Dual 16-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-B
AD9787:
Dual 14-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-H1
AD9787:
Dual 14-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-S
AD9787:
Dual 14-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-B
AD9785:
Dual 12-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-H1
AD9785:
Dual 12-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-S
AD9785:
Dual 12-Bit 800 MSPS DAC with Low Power 32-Bit Complex NCO
SDP-B
AD9783:
Dual 16-Bit, LVDS Interface 500 MSPS DAC
SDP-H1
AD9781:
Dual 14-Bit, LVDS Interface 500 MSPS DAC
SDP-H1
AD9780:
Dual 12-Bit, LVDS Interface 500 MSPS DAC
SDP-H1
AD9779A:
Dual, 16-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-H1
AD9779A:
Dual, 16-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-S
AD9779A:
Dual, 16-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-B
AD9778A:
Dual, 14-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-H1
AD9776A:
Dual, 12-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-H1
AD9776A:
Dual, 12-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-S
AD9776A:
Dual, 12-Bit, 1 GSPS, Digital-to-Analog Converter
SDP-B
AD9767:
14-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9767:
14-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-S
AD9767:
14-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-B
AD9765:
12-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9765:
12-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-S
AD9765:
12-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-B
AD9763:
10-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9763:
10-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-S
AD9763:
10-Bit, 125 MSPS Dual TxDAC+® Digital-to-Analog Converter
SDP-B
AD9748:
8-Bit, 210 MSPS TxDAC® D/A Converter
SDP-S
AD9748:
8-Bit, 210 MSPS TxDAC® D/A Converter
SDP-H1
AD9748:
8-Bit, 210 MSPS TxDAC® D/A Converter
SDP-B
AD9747:
Dual 16-Bit 250 MSPS Digital-to-Analog Converters
SDP-H1
AD9747:
Dual 16-Bit 250 MSPS Digital-to-Analog Converters
SDP-S
AD9747:
Dual 16-Bit 250 MSPS Digital-to-Analog Converters
SDP-B
AD9746:
Dual 14-Bit 250 MSPS Digital-to-Analog Converters
SDP-H1
AD9746:
Dual 14-Bit 250 MSPS Digital-to-Analog Converters
SDP-S
AD9746:
Dual 14-Bit 250 MSPS Digital-to-Analog Converters
SDP-B
AD9745:
Dual 12-Bit 250 MSPS Digital-to-Analog Converters
SDP-H1
AD9745:
Dual 12-Bit 250 MSPS Digital-to-Analog Converters
SDP-S
AD9745:
Dual 12-Bit 250 MSPS Digital-to-Analog Converters
SDP-B
AD9744:
14-Bit, 210 MSPS TxDAC® D/A Converter
SDP-H1
AD9744:
14-Bit, 210 MSPS TxDAC® D/A Converter
SDP-S
AD9744:
14-Bit, 210 MSPS TxDAC® D/A Converter
SDP-B
AD9743:
Dual 10-Bit 250 MSPS Digital-to-Analog Converters
SDP-H1
AD9743:
Dual 10-Bit 250 MSPS Digital-to-Analog Converters
SDP-S
AD9743:
Dual 10-Bit 250 MSPS Digital-to-Analog Converters
SDP-B
AD9742:
12-Bit, 210 MSPS TxDAC® D/A Converter
SDP-H1
AD9742:
12-Bit, 210 MSPS TxDAC® D/A Converter
SDP-S
AD9742:
12-Bit, 210 MSPS TxDAC® D/A Converter
SDP-B
AD9741:
Dual 8-Bit 250 MSPS Digital-to-Analog Converters
SDP-H1
AD9741:
Dual 8-Bit 250 MSPS Digital-to-Analog Converters
SDP-S
AD9741:
Dual 8-Bit 250 MSPS Digital-to-Analog Converters
SDP-B
AD9740:
10-Bit, 210 MSPS TxDAC® D/A Converter
SDP-H1
AD9740:
10-Bit, 210 MSPS TxDAC® D/A Converter
SDP-B
AD9740:
10-Bit, 210 MSPS TxDAC® D/A Converter
SDP-S
AD9739A:
14-Bit, 2.5 GSPS, RF Digital-to-Analog Converter
SDP-H1
AD9739:

14-Bit, 2.5 GSPS, RF Digital-to-Analog Converter

SDP-H1
AD9737A:
11-Bit, 2.5 GSPS, RF Digital-to-Analog Converter
SDP-H1
AD9736:
14-Bit, 1200 MSPS DACs
SDP-H1
AD9735:
12-Bit, 1200 MSPS DACs
SDP-H1
AD9734:
10-Bit, 1200 MSPS DACs
SDP-H1
AD9717:
Dual, 14-Bit Low Power Digital-to-Analog Converters
SDP-H1
AD9717:
Dual, 14-Bit Low Power Digital-to-Analog Converters
SDP-B
AD9717:
Dual, 14-Bit Low Power Digital-to-Analog Converters
SDP-S
AD9716:
Dual, 12-Bit Low Power Digital-to-Analog Converters
SDP-H1
AD9716:
Dual, 12-Bit Low Power Digital-to-Analog Converters
SDP-B
AD9716:
Dual, 12-Bit Low Power Digital-to-Analog Converters
SDP-S
AD9715:
Dual, 10-Bit Low Power Digital-to-Analog Converters
SDP-H1
AD9715:
Dual, 10-Bit Low Power Digital-to-Analog Converters
SDP-B
AD9715:
Dual, 10-Bit Low Power Digital-to-Analog Converters
SDP-S
AD9714:
Dual, 8-Bit Low Power Digital-to-Analog Converters
SDP-H1
AD9714:
Dual, 8-Bit Low Power Digital-to-Analog Converters
SDP-B
AD9714:
Dual, 8-Bit Low Power Digital-to-Analog Converters
SDP-S
AD9709:
8-Bit, 125 MSPS Dual TxDAC+ Digital-to-Analog Converter
SDP-H1
AD9709:
8-Bit, 125 MSPS Dual TxDAC+ Digital-to-Analog Converter
SDP-B
AD9709:
8-Bit, 125 MSPS Dual TxDAC+ Digital-to-Analog Converter
SDP-S
AD9707:
14-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-H1
AD9707:
14-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-B
AD9707:
14-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-S
AD9706:
12-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-H1
AD9706:
12-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-B
AD9706:
12-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-S
AD9705:
10-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-H1
AD9705:
10-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-B
AD9705:
10-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-S
AD9704:
8-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-H1
AD9704:
8-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-B
AD9704:
8-Bit, 175 MSPS TxDAC Digital-to-Analog Converter
SDP-S
AD9148:
Quad 16-Bit,1GSPS DAC TxDAC+ Digital-to-Analog Converter
SDP-H1
AD9148:
Quad 16-Bit,1GSPS DAC TxDAC+ Digital-to-Analog Converter
SDP-S
AD9148:
Quad 16-Bit,1GSPS DAC TxDAC+ Digital-to-Analog Converter
SDP-B
AD9146:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9146:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-S
AD9146:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-B
AD9142A:
Dual, 16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-H1
AD9142A:
Dual, 16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-S
AD9142A:
Dual, 16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-B
AD9139:
16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-H1
AD9139:
16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-S
AD9139:
16-Bit, 1600 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-B
AD9125:
Dual, 16-Bit, 1000 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9125:
Dual, 16-Bit, 1000 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-S
AD9125:
Dual, 16-Bit, 1000 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-B
AD9122:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-H1
AD9122:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-S
AD9122:
Dual, 16-Bit, 1230 MSPS, TxDAC+® Digital-to-Analog Converter
SDP-B
AD9121:
Dual, 14-Bit, 1230 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-H1
AD9121:
Dual, 14-Bit, 1230 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-S
AD9121:
Dual, 14-Bit, 1230 MSPS, TxDAC+ Digital-to-Analog Converter
SDP-B
AD9117:
Dual Low Power, 14-Bit TxDAC Digital-to-Analog Converters
SDP-H1
AD9117:
Dual Low Power, 14-Bit TxDAC Digital-to-Analog Converters
SDP-S
AD9117:
Dual Low Power, 14-Bit TxDAC Digital-to-Analog Converters
SDP-B
AD9116:
Dual Low Power, 12-Bit TxDAC Digital-to-Analog Converters
SDP-H1
AD9116:
Dual Low Power, 12-Bit TxDAC Digital-to-Analog Converters
SDP-S
AD9116:
Dual Low Power, 12-Bit TxDAC Digital-to-Analog Converters
SDP-B
AD9115:
Dual Low Power, 10-Bit TxDAC Digital-to-Analog Converters
SDP-H1
AD9115:
Dual Low Power, 10-Bit TxDAC Digital-to-Analog Converters
SDP-S
AD9115:
Dual Low Power, 10-Bit TxDAC Digital-to-Analog Converters
SDP-B
AD9114:
Dual Low Power, 8-Bit TxDAC Digital-to-Analog Converters
SDP-H1
AD9114:
Dual Low Power, 8-Bit TxDAC Digital-to-Analog Converters
SDP-S
AD9114:
Dual Low Power, 8-Bit TxDAC Digital-to-Analog Converters
SDP-B
AD2S1210:
Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator
SDP-B
AD2S1205:
12-Bit R/D Converter with Reference Oscillator
SDP-B
AD2S1200:
12-Bit R/D Converter with Reference Oscillator
SDP-B
MAX32670:
High-Reliability, Ultralow-Power Microcontroller Powered by Arm Cortex-M4 Processor with FPU for Industrial and IoT
SDP-K1

COMPATIBLE CIRCUITS FROM THE LAB™ EVALUATION BOARDS

The SDP controller boards were designed to be used in conjunction with various Circuits from the Lab™ evaluation boards. The following Circuits from the Lab™ evaluation boards are compatible with SDP controller boards.

Circuit from the Lab (8)

Recommended Controller
Aerospace and Defense Systems (7)
X+
CN0365:
16-Bit, 600 kSPS, Low Power Data Acquisition System for High Temperature Environments
SDP-B
CN0365:
16-Bit, 600 kSPS, Low Power Data Acquisition System for High Temperature Environments
SDP-I-PMOD
CN0301:
Universal LVDT Signal Conditioning Circuit
SDP-B
CN0288:
LVDT Signal Conditioning Circuit
SDP-B
CN0276:
High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter
SDP-B
CN0178:
Software-Calibrated, 50 MHz to 9 GHz, RF Power Measurement System
SDP-B
CN0150:
Software Calibrated, 1 MHz to 8 GHz, 60 dB RF Power Measurement System Using the AD8318 Logarithmic Detector
SDP-B
CN0274:
Ultralow Power Standalone Motion Switch
SDP-S
CN0372:

Ultralow Power, General-Purpose, Multichannel Data Acquisition System with Energy Harvesting Circuit and Alert Function

SDP-I-PMOD
CN0349:
Fully Isolated Conductivity Measurement Data Acquisition System
SDP-I-PMOD
CN0321:
Fully Isolated, Single Channel Voltage and 4 mA to 20 mA Output with HART
SDP-B
CN0241:
High-Side Current Sensing with Input Overvoltage Protection
SDP-B
CN0235:
Fully Isolated Lithium Ion Battery Monitoring and Protection System
SDP-B
CN0235:
Fully Isolated Lithium Ion Battery Monitoring and Protection System
SDP-S
CN0209:
Fully Programmable Universal Analog Front End for Process Control Applications
SDP-B
CN0198:
5 V Regulator Supplies High Transient Current for Dynamic Power Controlled DAC
SDP-B
CN0189:
Tilt Measurement Using a Dual Axis Accelerometer
SDP-B
CN0188:
Low Cost, Level Shifted Low Side Current Monitor for Negative High Voltage Rails
SDP-B
CN0187:
Crest Factor, Peak, and RMS RF Power Measurement Circuit Optimized for High Speed, Low Power, and Single 3.3 V Supply
SDP-B
CN0150:
Software Calibrated, 1 MHz to 8 GHz, 60 dB RF Power Measurement System Using the AD8318 Logarithmic Detector
SDP-B
CN0370:

16-Bit, Single-Supply LED Current Driver with Less than ±1 LSB Integral and Differential Nonlinearity

SDP-I-PMOD
CN0355:
Low Power, Temperature Compensated Bridge Signal Conditioner and Driver
SDP-I-PMOD
CN0349:
Fully Isolated Conductivity Measurement Data Acquisition System
SDP-I-PMOD
CN0346:
Relative Humidity Measurement System
SDP-I-PMOD
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-B
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-I-PMOD
CN0321:
Fully Isolated, Single Channel Voltage and 4 mA to 20 mA Output with HART
SDP-B
CN0308:
Powering an ECG Front End in Battery Powered Patient Monitoring Applications
SDP-B
CN0306:
16-Bit, 100k SPS Low Power Data Acquisition System Optimized for Sub-Nyquist Input Signals Up to 1 kHz
SDP-B
CN0290:
Extending the Low Frequency Range of a High Performance Phase Locked Loop
SDP-S
CN0287:
Isolated 4-Channel, Thermocouple/RTD Temperature Measurement System with 0.5°C Accuracy
SDP-B
CN0276:
High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter
SDP-B
CN0274:
Ultralow Power Standalone Motion Switch
SDP-S
CN0254:
16-Bit, 250 kSPS 8-Channel, Single Supply, Isolated Data Acquisition System
SDP-B
CN0253:
A Robust, Low Power, Battery Monitoring Circuit Front End
SDP-B
CN0234:
Single Supply, Micropower Toxic Gas Detector Using an Electrochemical Sensor
SDP-B
CN0218:
500 V Common-Mode Voltage Current Monitor
SDP-B
CN0216:
Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers
SDP-B
CN0209:
Fully Programmable Universal Analog Front End for Process Control Applications
SDP-B
CN0206:
Thermocouple Temperature Measurement System with Less Than 500 μA Current Drain
SDP-B
CN0204:
Flexible, High Voltage, High Accuracy, Low Drift PLC/DCS Analog Output Module
SDP-B
CN0202:
Flexible, High Accuracy, Low Drift, PLC/DCS Analog Output Module
SDP-B
CN0189:
Tilt Measurement Using a Dual Axis Accelerometer
SDP-B
CN0172:
3-Channel Thermocouple Temperature Measurement System with 0.25 ° C Accuracy
SDP-B
CN0586:
Precision High Voltage Bipolar Analog Output Module
SDP-K1
CN0384:
Completely Integrated Thermocouple Measurement System using a Low Power, Precision, 24-Bit, Sigma-Delta ADC
SDP-B
CN0354:
Low Power Multichannel Thermocouple Measurement System with Cold Junction Compensation
SDP-I-PMOD
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-B
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-I-PMOD
CN0254:
16-Bit, 250 kSPS 8-Channel, Single Supply, Isolated Data Acquisition System
SDP-B
CN0218:
500 V Common-Mode Voltage Current Monitor
SDP-B
CN0216:
Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers
SDP-B
CN0206:
Thermocouple Temperature Measurement System with Less Than 500 μA Current Drain
SDP-B
CN0203:
Flexible PLC/DCS Analog Output Module Using Only Two Analog Components
SDP-B
CN0179:
4-20 mA Low Power, 14-Bit, Process Control Current Loop Transmitter
SDP-I-PMOD
CN0586:
Precision High Voltage Bipolar Analog Output Module
SDP-K1
CN0384:
Completely Integrated Thermocouple Measurement System using a Low Power, Precision, 24-Bit, Sigma-Delta ADC
SDP-B
CN0383:
Completely Integrated 2-Wire, 3-Wire, or 4-Wire RTD Measurement System Using a Low Power, Precision, 24-Bit Σ-Δ ADC
SDP-B
CN0372:

Ultralow Power, General-Purpose, Multichannel Data Acquisition System with Energy Harvesting Circuit and Alert Function

SDP-I-PMOD
CN0370:

16-Bit, Single-Supply LED Current Driver with Less than ±1 LSB Integral and Differential Nonlinearity

SDP-I-PMOD
CN0350:

12-Bit, 1 MSPS, Single-Supply, Two-Chip Data Acquisition System for Piezoelectric Sensors

SDP-B
CN0350:

12-Bit, 1 MSPS, Single-Supply, Two-Chip Data Acquisition System for Piezoelectric Sensors

SDP-I-PMOD
CN0348:
16-Bit Single-Supply Buffered Voltage Output Digital-to Analog Conversion with Less Than ±1 LSB Integral and Differential Nonlinearity
SDP-B
CN0346:
Relative Humidity Measurement System
SDP-I-PMOD
CN0337:
12-Bit, 300 kSPS, Single-Supply, Fully Isolated RTD Temperature Measurement System with 3-Wire Compensation
SDP-I-PMOD
CN0336:
12-Bit, 300 kSPS, Single-Supply, Fully Isolated, Data Acquisition System for 4-20 mA Inputs
SDP-I-PMOD
CN0335:
12-Bit, 300 kSPS, Single-Supply, Fully Isolated, Data Acquisition System for ±10 V Inputs
SDP-I-PMOD
CN0318:
16-Bit, Linear, Ultra Stable, Low Noise, Bipolar ±10 V DC Voltage Source
SDP-B
CN0312:
Dual-Channel Colorimeter with Programmable Gain Transimpedance Amplifiers and Synchronous Detectors
SDP-B
CN0310:
24-Bit, 250 kSPS Single-Supply Data Acquisition System
SDP-B
CN0308:
Powering an ECG Front End in Battery Powered Patient Monitoring Applications
SDP-B
CN0306:
16-Bit, 100k SPS Low Power Data Acquisition System Optimized for Sub-Nyquist Input Signals Up to 1 kHz
SDP-B
CN0287:
Isolated 4-Channel, Thermocouple/RTD Temperature Measurement System with 0.5°C Accuracy
SDP-B
CN0277:
18-Bit, 5 MSPS, Data Acquisition System Optimized for AC Performance
SDP-H1
CN0272:
2 MHz Bandwidth PIN Photodiode Preamp with Dark Current Compensation
SDP-B
CN0271:
Thermocouple Temperature Measurement System with Amplifier - Based Cold Junction Compensation
SDP-B
CN0269:
18-Bit, 1.33 MSPS, 16-Channel Data Acquisition System
SDP-B
CN0255:
16-Bit, 100 kSPS, Single Supply, Low Power Data Acquisition System
SDP-B
CN0254:
16-Bit, 250 kSPS 8-Channel, Single Supply, Isolated Data Acquisition System
SDP-B
CN0251:
24-Bit, 4.7 Hz, 4-Channel Analog Data Acquisiton System
SDP-B
CN0247:
12-Bit ,1 MSPS, Single-Supply, Low Power Data Acquisition System
SDP-B
CN0240:
Bidirectional Isolated High-Side Current Sense with 270 V Common-Mode Rejection
SDP-B
CN0229:
4-Channel, Flexible, Configurable, Voltage, and Current Output Circuit for I/O Card and PLC Applications
SDP-B
CN0216:
Precision Weigh Scale Design Using the AD7791 24-Bit Sigma-Delta ADC with External ADA4528-1 Zero-Drift Amplifiers
SDP-B
CN0204:
Flexible, High Voltage, High Accuracy, Low Drift PLC/DCS Analog Output Module
SDP-B
CN0202:
Flexible, High Accuracy, Low Drift, PLC/DCS Analog Output Module
SDP-B
CN0194:
Galvanically Isolated, 2-Channel, 16-Bit, Simultaneous Sampling, Daisy-Chained Data Acquisition System
SDP-B
CN0191:
20-Bit, Linear, Low Noise, Precision, Bipolar ±10V DC Voltage Source
SDP-B
CN0172:
3-Channel Thermocouple Temperature Measurement System with 0.25 ° C Accuracy
SDP-B
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-B
CN0326:
Isolated Low Power pH Monitor with Temperature Compensation
SDP-I-PMOD
CN0301:
Universal LVDT Signal Conditioning Circuit
SDP-B
CN0288:
LVDT Signal Conditioning Circuit
SDP-B
CN0276:
High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter
SDP-B
CN0290:
Extending the Low Frequency Range of a High Performance Phase Locked Loop
SDP-S
CN0187:
Crest Factor, Peak, and RMS RF Power Measurement Circuit Optimized for High Speed, Low Power, and Single 3.3 V Supply
SDP-B
CN0178:
Software-Calibrated, 50 MHz to 9 GHz, RF Power Measurement System
SDP-B
