Features
- 16-bit resolution INL of ±1 LSB (B Grade)
- 2 mA full-scale current ± 20%, with VREF = ±10 V
- 0.9 μs settling time to ±0.1%
- 12 MHz multiplying bandwidth
- Midscale glitch of −1 nV-sec
- Midscale or zero-scale reset
- Four separate, 4-quadrant multiplying reference inputs
- Compact 28-lead SSOP and 32-lead LFCSP
- See data sheet for additional features
AD5544-EP supports defense and aerospace applications (AQEC standard)
- Download AD5544-EP Data Sheet (pdf)
- Military temperature range (−55°C to +125°C)
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/12663 DSCC Drawing Number
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD5544/AD5554 quad, 16-/14-bit, current output, digital-to-analog converters (DACs) are designed to operate from 2.7 V to 5.5 V supply range.
The applied external reference input voltage (VREFX) determines the full-scale output current. Integrated feedback resistors (RFB) provide temperature-tracking, full-scale voltage outputs when combined with an external I-to-V precision amplifier.
A double-buffered serial data interface offers high speed, 3-wire, SPI- and microcontroller-compatible inputs using serial data in (SDI), a chip select (CS), and clock (CLK) signals. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. A common, level-sensitive, load DAC strobe (LDAC) input allows the simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to 0 at system turn-on. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.
The AD5544 is packaged in the compact 28-lead SSOP and 32-lead LFCSP. The AD5554 is packaged in the compact 28-lead SSOP.
Applications
- Automatic test equipment
- Instrumentation
- Digitally controlled calibration
6
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5544
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
Application Note
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
3
User Guide
2
602 kB
Application Note
1
HTML
Documentation
Data Sheet 2
User Guide 1
Application Note 1
Solutions Bulletin & Brochure 2
Analog Dialogue 1
Webcast 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5544ACPZ-1-RL7 |
32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
|
|
|
| AD5544ARSZ |
28-Lead SSOP
|
|
|
| AD5544ARSZ-REEL7 |
28-Lead SSOP
|
|
|
| AD5544BRSZ |
28-Lead SSOP
|
|
|
| AD5544BRSZ-REEL7 |
28-Lead SSOP
|
|
- AD5544ACPZ-1-RL7
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.85mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5544ARSZ
- Pin/Package Drawing
-
28-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5544ARSZ-REEL7
- Pin/Package Drawing
-
28-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5544BRSZ
- Pin/Package Drawing
-
28-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5544BRSZ-REEL7
- Pin/Package Drawing
-
28-Lead SSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 10, 2014
- 14_0005
Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select LFCSP Products
Jan 14, 2014
- 13_0231
Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.
AD5544ACPZ-1-RL7
PRODUCTION
Jul 19, 2011
- 11_0135
AD5544/AD5554 Data Sheet Specification Change
AD5544ACPZ-1-RL7
PRODUCTION
AD5544ARSZ
PRODUCTION
AD5544ARSZ-REEL7
PRODUCTION
AD5544BRSZ
PRODUCTION
AD5544BRSZ-REEL7
PRODUCTION
Oct 19, 2010
- 10_0002
Halogen Free Material Change for SSOP Products Assembled at Amkor
AD5544ARSZ
PRODUCTION
AD5544ARSZ-REEL7
PRODUCTION
AD5544BRSZ
PRODUCTION
AD5544BRSZ-REEL7
PRODUCTION
Sep 9, 2009
- 07_0083
Polyimide Change
AD5544ARSZ
PRODUCTION
Aug 19, 2009
- 07_0024
Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
AD5544ARSZ
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 10, 2014
- 14_0005
Assembly Transfer to Amkor Philippines and Test Transfer to STATS ChipPAC China of Select LFCSP Products
Jan 14, 2014
- 13_0231
Assembly Transfer of Select 4x4 and 5x5mm LFCSP Products to STATS ChipPAC China.
AD5544ACPZ-1-RL7
PRODUCTION
Jul 19, 2011
- 11_0135
AD5544/AD5554 Data Sheet Specification Change
AD5544ACPZ-1-RL7
PRODUCTION
AD5544ARSZ
PRODUCTION
AD5544ARSZ-REEL7
PRODUCTION
AD5544BRSZ
PRODUCTION
AD5544BRSZ-REEL7
PRODUCTION
Oct 19, 2010
- 10_0002
Halogen Free Material Change for SSOP Products Assembled at Amkor
AD5544ARSZ
PRODUCTION
AD5544ARSZ-REEL7
PRODUCTION
AD5544BRSZ
PRODUCTION
AD5544BRSZ-REEL7
PRODUCTION
Sep 9, 2009
- 07_0083
Polyimide Change
Aug 19, 2009
- 07_0024
Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
AD5544ARSZ
PRODUCTION
Evaluation Kits 1

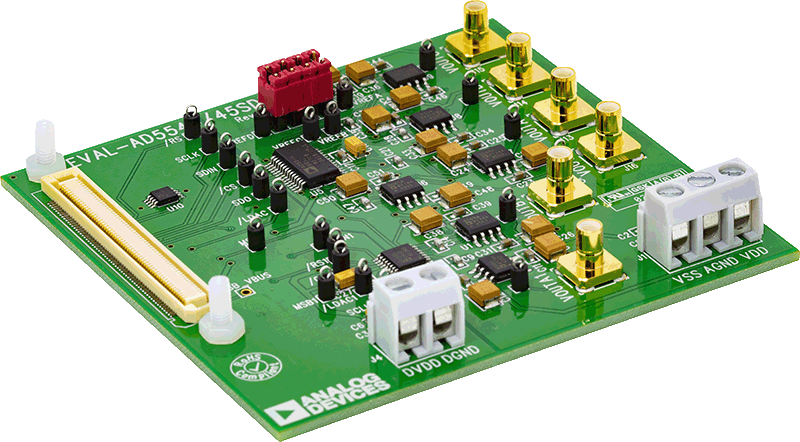

EVAL-AD5544
AD5544 Evaluation Board
Product Detail
The AD5544 quad, 16-bit, current output, digital-to-analog converter (DAC) is designed to operate in a 2.7 V to 5.5 V supply range. But this voltage is limited up to 3.3 V due to EVAL-SDP-CB1Z restrictions.
The applied external reference input voltage (VREFx) determines the full-scale output current. Integrated feedback resistors (RFBx) provide temperature-tracking, full-scale voltage outputs when combined with an external I-to-V precision amplifier.
A double-buffered serial data interface offers high speed, 3-wire, SPI- and microcontroller-compatible inputs using serial data in (SDI), chip select (CS), and clock (CLK) signals. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. A common, level-sensitive, load DAC strobe (LDAC) input allows the simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to 0 at system turn on. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0 or to half-scale code when MSB = 1.
The AD5544 is packaged in a compact 28-lead SSOP. The EV-AD5544 board is used in conjunction with the EVAL-SDP-CB1Z system demonstration platform (SDP) board available from Analog Devices, Inc., which is purchased separately from the evaluation board. The USB-to-SPI communication to the AD5544 is completed using this Blackfin®-based demonstration board. The software offers a waveform generator.
