ADR444
Ultralow Noise, LDO XFET® 4.096V Voltage Reference w/Current Sink and Source
Top
Alternative Parts
Overview
Features and Benefits
- Ultralow noise (0.1 Hz to 10 Hz)
- ADR440: 1 μV p-p
- ADR441: 1.2 μV p-p
- ADR443: 1.4 μV p-p
- ADR444: 1.8 μV p-p
- ADR445: 2.25 μV p-p
- Superb temperature coefficient
- A Grade: 10 ppm/°C
- B Grade: 3 ppm/°C
- Low dropout operation (supply voltage headroom): 500 mV
- Input range: (VOUT + 500 mV) to 18 V
- High output source and sink current
- +10 mA and −5 mA, respectively
- Wide temperature range: −40°C to +125°C
Product Details
The ADR440/ADR441/ADR443/ADR444/ADR445 series is a family of XFET® voltage references featuring ultralow noise, high accuracy, and low temperature drift performance. Using Analog Devices, Inc., patented temperature drift curvature correction and XFET (eXtra implanted junction FET) technology, voltage change vs. temperature nonlinearity in the ADR440/ADR441/ADR443/ADR444/ADR445 is greatly minimized.
The XFET references offer better noise performance than buried Zener references, and XFET references operate off low supply voltage headroom (500 mV). This combination of features makes the ADR440/ADR441/ADR443/ADR444/ADR445 family ideally suited for precision signal conversion applications in high-end data acquisition systems, optical networks, and medical applications.
The ADR440/ADR441/ADR443/ADR444/ADR445 family has the capability to source up to 10 mA of output current and sink up to −5 mA. It also comes with a trim terminal to adjust the output voltage over a 0.5% range without compromising performance.
The ADR440/ADR441/ADR443/ADR444/ADR445 family is available in 8-lead MSOP and narrow SOIC packages and offered in two electrical grades. All versions are specified over the extended industrial temperature range of −40°C to +125°C.
Applications
- Precision data acquisition systems
- High resolution data converters
- Battery-powered instrumentation
- Portable medical instruments
- Industrial process control systems
- Precision instruments
- Optical control circuits
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

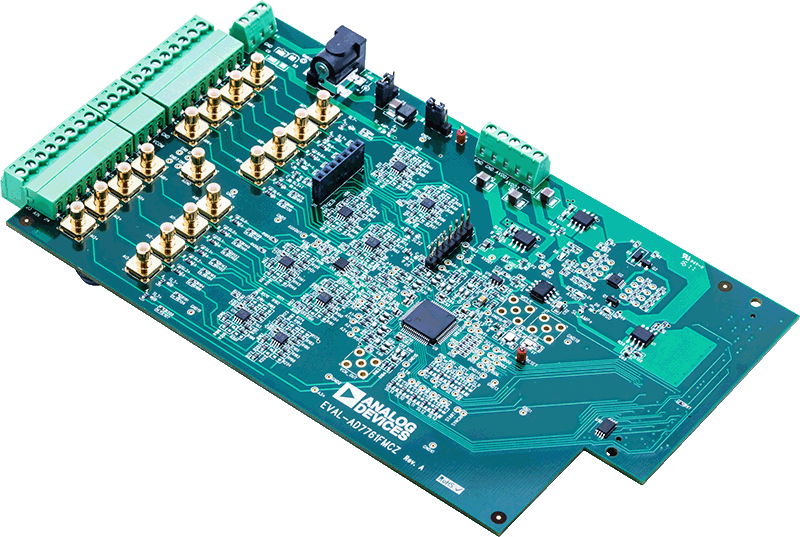

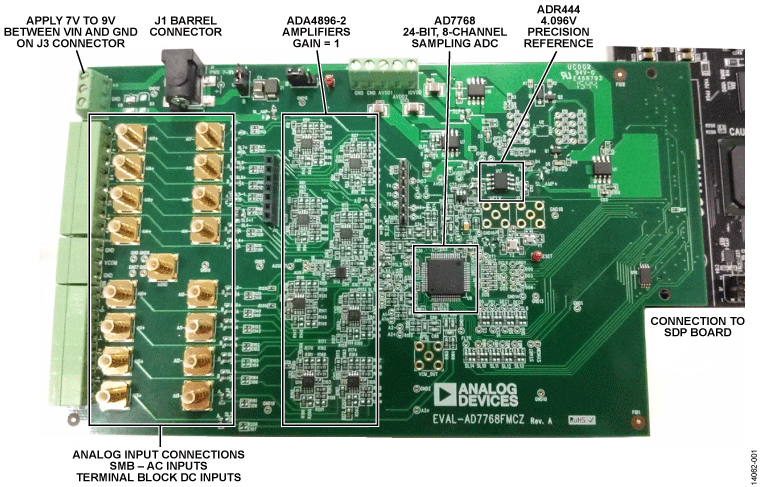

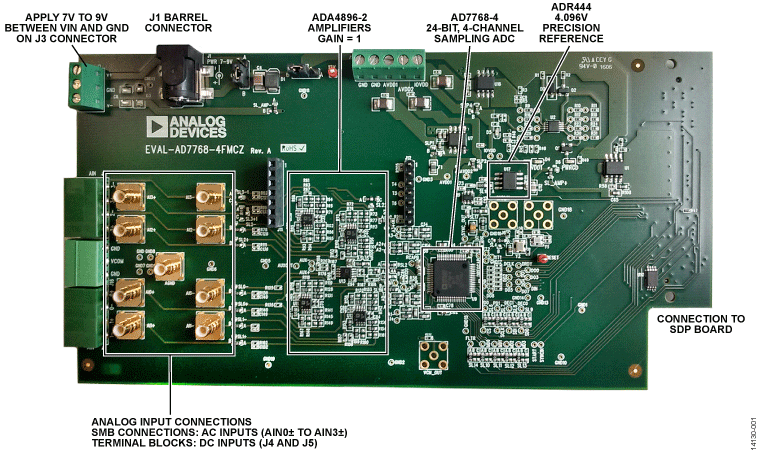

Evaluation Kits (3)
Documentation & Resources
-
FAQs7/26/2017
-
CN-0251: A Flexible 4-Channel Analog Front End for Wide Dynamic Range Signal Conditioning12/30/2013PDF253 kB
-
CN0269: 18-Bit, 1.33 MSPS, 16-Channel Data Acquisition System11/20/2013PDF1177 kB
-
CN0202: Flexible, High Accuracy, Low Drift, PLC/DCS Analog Output Module6/5/2012PDF192 kB
-

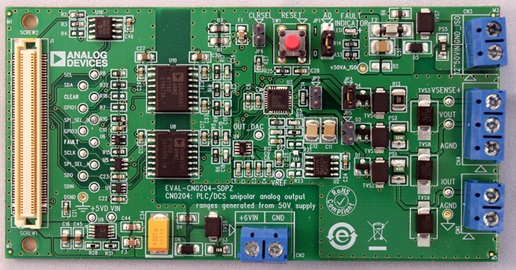

CN-0204: Flexible, High Voltage, High Accuracy, Low Drift PLC/DCS Analog Output Module1/31/2012PDF221 kB
-
CN-0157: 24-Bit, 4-Channel, High Dynamic Range, 156 kSPS per Channel Simultaneous Sampling Data Acquisition System4/28/2011PDF251 kB
-
CN-0143: Single-Ended-to-Differential Converters for Voltage Output and Current Output DACs Using the AD8042 Op Amp11/16/2010PDF197 kB
Reference Designs (6)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADR444ARMZ | Material Declaration | Reliability Data | 8-Lead MSOP | |
| ADR444ARMZ-REEL7 | Material Declaration | Reliability Data | 8-Lead MSOP | |
| ADR444ARZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| ADR444ARZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| ADR444BRZ | Material Declaration | Reliability Data | 8-Lead SOIC | |
| ADR444BRZ-REEL7 | Material Declaration | Reliability Data | 8-Lead SOIC | |
| Wafer Fabrication Data |
