Features and Benefits

  • RMS noise: 11 nV @ 4.7 Hz (gain = 128)
  • 15.5 noise-free bits @ 2.4 kHz (gain = 128)
  • Up to 22 noise-free bits (gain = 1)
  • Offset drift: 5 nV/°C
  • Gain drift: 1 ppm/°C
  • Specified drift over time
  • 2 differential/4 pseudo differential input channels
  • Automatic channel sequencer
  • Programmable gain (1 to 128)
  • See data sheet for additional features

Product Details

The AD7192 is a low noise, complete analog front end for high precision measurement applications. It contains a low noise, 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC). The on-chip low noise gain stage means that signals of small amplitude can be interfaced directly to the ADC.

The device can be configured to have two differential inputs or four pseudo differential inputs. The on-chip channel sequencer allows several channels to be enabled, and the AD7192 sequentially converts on each enabled channel. This simplifies communication with the part. The on-chip 4.92 MHz clock can be used as the clock source to the ADC or, alternatively, an external clock or crystal can be used. The output data rate from the part can be varied from 4.7 Hz to 4.8 kHz.

The device has two digital filter options. The choice of filter affects the rms noise/noise-free resolution at the programmed output data rate, the settling time, and the 50 Hz/60 Hz rejection. For applications that require all conversions to be settled, the AD7192 includes a zero latency feature.

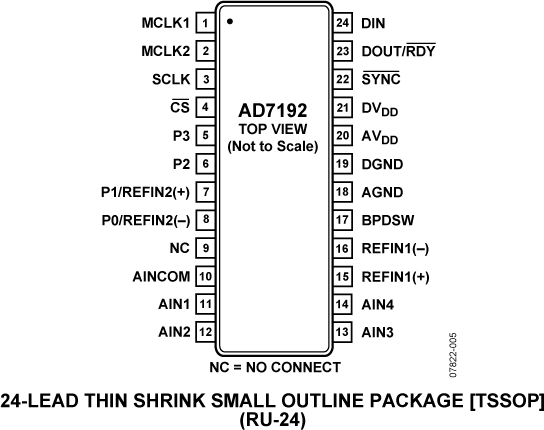

The part operates with a power supply from 3 V to 5.25 V. It consumes a current of 4.35 mA. It is housed in a 24-lead TSSOP package.


  • Weigh scales
  • Strain gage transducers
  • Pressure measurement
  • Pressure measurement
  • Temperature measurement
  • Chromatography
  • PLC/DCS analog input modules
  • Data acquisition
  • Medical and scientific instrumentation

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

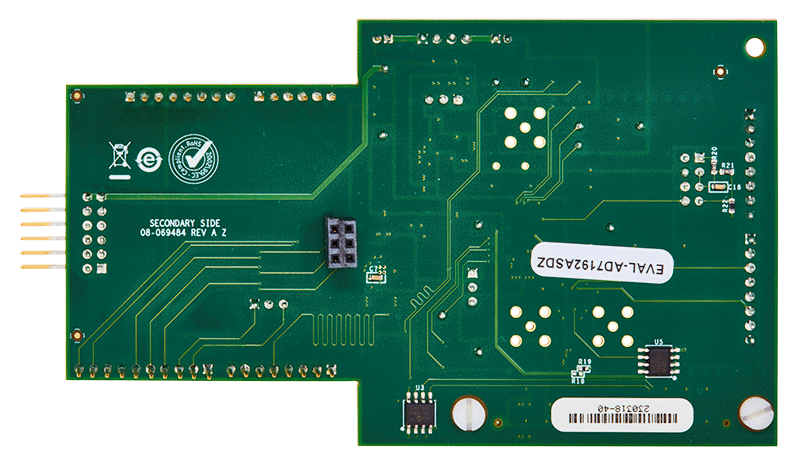

Evaluation Kits (1)

Documentation & Resources

  • View All (18)
  • Data Sheets (1)
  • Application Notes (5)
  • User Guides (1)
  • Frequently Asked Questions (1)
  • Tutorials (1)
  • Circuit Note (3)
  • Technical Articles (3)
  • Videos (3)
  • Application Notes
    Frequently Asked Questions

    Tools & Simulations

    Virtual Eval - BETA

    Virtual Eval is a web application to assist designers in product evaluation of ADCs, DACs, and other ADI products. Using detailed models on Analog’s servers, Virtual Eval simulates crucial part performance characteristics within seconds. Configure operating conditions such as input tones and external jitter, as well as device features like gain or digital down-conversion. Performance characteristics include noise, distortion, and resolution, FFTs, timing diagrams, response plots, and more.


    IBIS Models

    Design Tools

    AD7190/AD7192 Digital Filter Models

    These tools show the response of the digital filter section of the AD71xx and AD77xx devices based on input parameters.

    Reference Designs (3)

    Product Recommendations

    AD7192 Companion Parts

    Recommended Precision Driver Amplifiers

    • For low noise and low power applications: ADA4051-2.
    • For higher supply voltages up to +-8V: AD8639.
    • For more precision and great temperature dirft specs: AD8539.

    Recommended Precision References

    • For low noise and low power applications: ADR421.
    • For high current output applications, try the ADR431.: ADR431.

    Recommended Digital Isolators

    • For isolated data and power: ADUM3470.

    Recommended Linear Regulators

    • For powering the separate AVdd and DVdd supplies: ADP3303.
