AD8226

Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 11
1ku List Price Starting From $1.29
Features
  • Gain set with 1 external resistor
    • Gain range: 1 to 1000
  • Input voltage goes below ground
  • Inputs protected beyond supplies
  • Very wide power supply range
    • Single supply: 2.2 V to 36 V
    • Dual supplies: ±1.35 V to ±18 V
  • Bandwidth (G = 1): 1.5 MHz
  • CMRR (G = 1): 90 dB minimum for BR models
  • Input noise: 22 nV/√Hz
  • Typical supply current: 350 μA
  • Specified temperature: −40°C to +125°C
  • 8-lead SOIC and MSOP packages
Additional Details
show more Icon

The AD8226 is a low cost, wide supply range instrumentation amplifier that requires only one external resistor to set any gain between 1 and 1000.

The AD8226 is designed to work with a variety of signal voltages. A wide input range and rail-to-rail output allow the signal to make full use of the supply rails. Because the input range also includes the ability to go below the negative supply, small signals near ground can be amplified without requiring dual supplies. The AD8226 operates on supplies ranging from ±1.35 V to ±18 V for dual supplies and 2.2 V to 36 V for single supply.

The robust AD8226 inputs are designed to connect to real-world sensors. In addition to its wide operating range, the AD8226 can handle voltages beyond the rails. For example, with a ±5 V supply, the part is guaranteed to withstand ±35 V at the input with no damage. Minimum as well as maximum input bias currents are specified to facilitate open wire detection.

The AD8226 is perfect for multichannel, space-constrained industrial applications. Unlike other low cost, low power instrumentation amplifiers, the AD8226 is designed with a minimum gain of 1 and can easily handle ±10 V signals. With its MSOP package and 125°C temperature rating, the AD8226 thrives in tightly packed, zero airflow designs.

The AD8226 is available in 8-lead MSOP and SOIC packages, and is fully specified for −40°C to +125°C operation.

For a device with a similar package and performance as the AD8226 but with gain settable from 5 to 1000, consider using the AD8227.

Applications

  • Industrial process controls
  • Bridge amplifiers
  • Medical instrumentation
  • Portable data acquisition
  • Multichannel systems
  • Part Models 11
    1ku List Price Starting From $1.29

    close icon
    Documentation

    Documentation

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    AD8226ARMZ
    • HTML
    • HTML
    AD8226ARMZ-R7
    • HTML
    • HTML
    AD8226ARMZ-RL
    • HTML
    • HTML
    AD8226ARZ
    • HTML
    • HTML
    AD8226ARZ-R7
    • HTML
    • HTML
    AD8226ARZ-RL
    • HTML
    • HTML
    AD8226BRMZ
    • HTML
    • HTML
    AD8226BRMZ-R7
    • HTML
    • HTML
    AD8226BRMZ-RL
    • HTML
    • HTML
    AD8226BRZ
    • HTML
    • HTML
    AD8226BRZ-R7
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Apr 4, 2023

    - 22_0142

    Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Sep 23, 2019

    - 19_0206

    AD8226 Die and Data Sheet Revision

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    Aug 11, 2015

    - 15_0161

    AD8226, AD8227: Addition of Polyimide Alignment Target

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Sep 21, 2012

    - 12_0227

    Datasheet Specifications Improvement on AD8226

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    May 15, 2012

    - 10_0006

    Halogen Free Material Change for mini SOIC Products

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    Sep 24, 2009

    - 09_0200

    Addition of Polyimide layer on AD8226, and AD8227.

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Apr 4, 2023

    - 22_0142

    arrow down

    Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Sep 23, 2019

    - 19_0206

    arrow down

    AD8226 Die and Data Sheet Revision

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    Aug 11, 2015

    - 15_0161

    arrow down

    AD8226, AD8227: Addition of Polyimide Alignment Target

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Sep 21, 2012

    - 12_0227

    arrow down

    Datasheet Specifications Improvement on AD8226

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    May 15, 2012

    - 10_0006

    arrow down

    Halogen Free Material Change for mini SOIC Products

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    Sep 24, 2009

    - 09_0200

    arrow down

    Addition of Polyimide layer on AD8226, and AD8227.

    AD8226ARMZ

    PRODUCTION

    AD8226ARMZ-R7

    PRODUCTION

    AD8226ARMZ-RL

    PRODUCTION

    AD8226ARZ

    PRODUCTION

    AD8226ARZ-R7

    PRODUCTION

    AD8226ARZ-RL

    PRODUCTION

    AD8226BRMZ

    PRODUCTION

    AD8226BRMZ-R7

    PRODUCTION

    AD8226BRMZ-RL

    PRODUCTION

    AD8226BRZ

    PRODUCTION

    AD8226BRZ-R7

    PRODUCTION

    Software & Part Ecosystem

    Software & Part Ecosystem

    Evaluation Kit

    Evaluation Kits 1

    reference details image

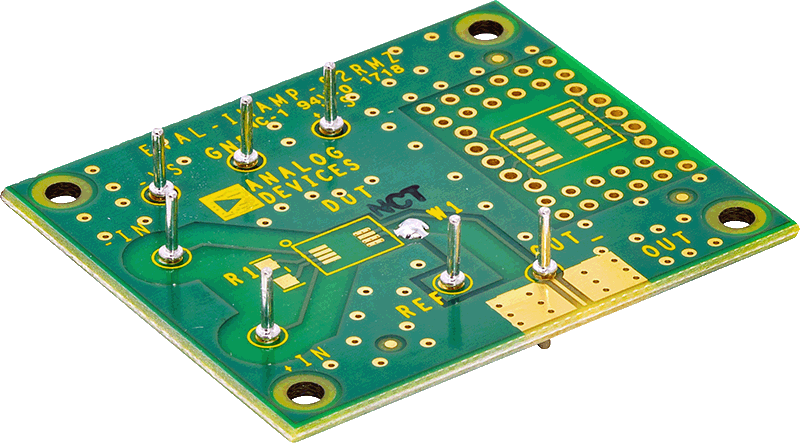

    EVAL-INAMP

    AD62x, AD822x, AD842x Series InAmp Evaluation Board

    zoom

    EVAL-INAMP

    AD62x, AD822x, AD842x Series InAmp Evaluation Board

    AD62x, AD822x, AD842x Series InAmp Evaluation Board

    Product Detail

    Analog Devices provides a line of evaluation boards designed to help users evaluate our instrumentation amplifiers in 8 pin packages. Access the user guide UG-261.

    This user guide describes three generic evaluation boards that can be used to evaluate many of Analog Devices instrumentation amplifiers. For information on the performance of a specific instrumentation amplifier, see the data sheet for that instrumentation amplifier.

    • 3 generic, easy-to-use evaluation boards
      • Shipped with an assortment of Analog Devices in-amps
      • Solder in the in-amp to be tested
      • Test pins already populated
      • Decoupling capacitors already populated
    • EVAL-INAMP-62RZ board: Compatible with AD620, AD621, AD622, AD623, AD627, AD8223, AD8225,  LT1167, LT1168 and LT6370 in SOIC or PDIP
    • EVAL-INAMP-82RZ board: Compatible with AD8221, AD8226, AD8227, AD8228, AD8229, AD8421, AD8428, and AD8429 in SOIC package
    • EVAL-INAMP-82RMZ board: Compatible with AD8220, AD8221, AD8226, AD8227, AD8228, AD8236, and AD8421 in MSOP package
    Tools & Simulations

    Tools & Simulations 4

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    Reference Designs

    Reference Designs 4

    Pressure Sensor Signal Conditioning Circuit

    Flexible, 4 mA-to-20 mA Pressure Sensor Transmitter with Voltage or Current Drive

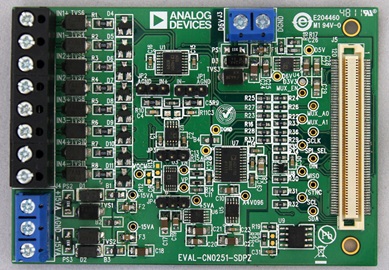

    Flexible Analog Front-End Circuit for Wide Industrial Range Signal Conditioning

    24-Bit, 4.7 Hz, 4-Channel Analog Data Acquisiton System

    Robust Loop Powered Pressure Sensor Signal Conditioning Circuit

    Flexible, 4 mA-to-20 mA, Loop-Powered Pressure Sensor Transmitter with Voltage or Current Drive

    zoomopens a dialog

    CN0289

    Flexible, 4 mA-to-20 mA, Loop-Powered Pressure Sensor Transmitter with Voltage or Current Drive

    CN0289

    Circuits from the lab

    tooltip Info:Circuits from the lab
    Flexible, 4 mA-to-20 mA, Loop-Powered Pressure Sensor Transmitter with Voltage or Current Drive

    Features and Benefits

    • Loop powered 4-20mA transmitter
    • Voltage or current drive
    • Optimized for pressure sensors
    View Detailed Reference Design external link
