ADP1720

50 mA, High Voltage, Micropower Linear Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 9
1ku List Price Starting From $0.75
Features
  • Wide input voltage range: 4 V to 28 V
  • Maximum output current: 50 mA
  • Low light load current:
    28 μA at 0 μA load
    35 μA at 100 μA load
  • Low shutdown current: 0.7 μA
  • Low dropout voltage: 275 mV @ 50 mA load
  • See data sheet for additional features

ADP1720-EP supports defense and aerospce applications (AQEC standard)

  • Download ADP1720-EP Data Sheet (pdf)
  • Enhanced processing (EP) for −55°C to +125°C operation
  • V62/12648 DSCC Drawing Number
Additional Details
show more Icon

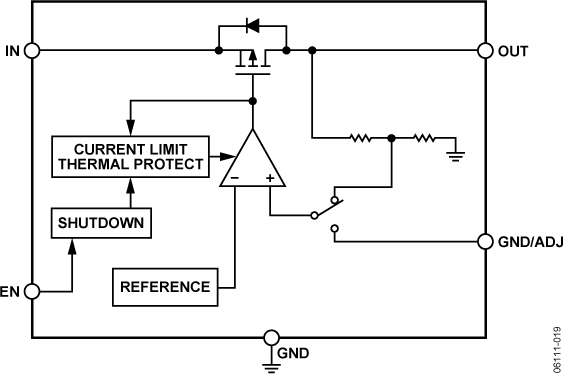

The ADP1720 is a high voltage, micropower, low dropout linear regulator. Operating over a very wide input voltage range of 4 V to 28 V, the ADP1720 can provide up to 50 mA of output current. With just 28 μA of quiescent supply current and a micropower shutdown mode, this device is ideal for applications that require low quiescent current.

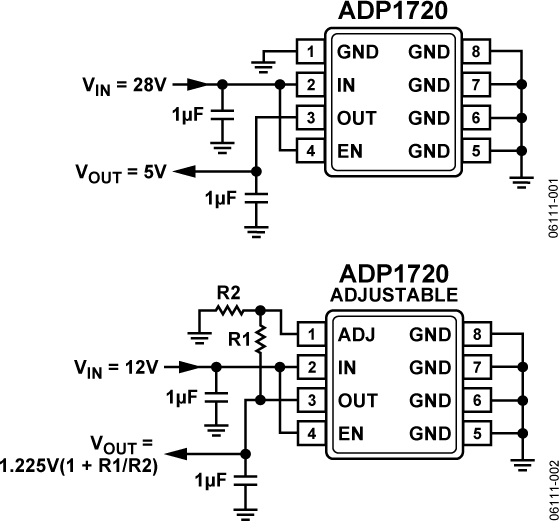

The ADP1720 is available in fixed output voltages of 3.3 V and 5.0 V. An adjustable version is also available, which allows the output to be set anywhere between 1.225 V and 5.0 V. An enable function that allows external circuits to turn on and turn off the ADP1720 output is available. For automatic startup, the enable (EN) pin can be connected directly to the input rail.

The ADP1720 is optimized for stable operation with small 1 μF ceramic output capacitors, allowing for good transient performance while occupying minimal board space.

The ADP1720 operates from –40°C to +125°C and uses current limit protection and thermal overload protection circuits to prevent damage to the device in adverse conditions.

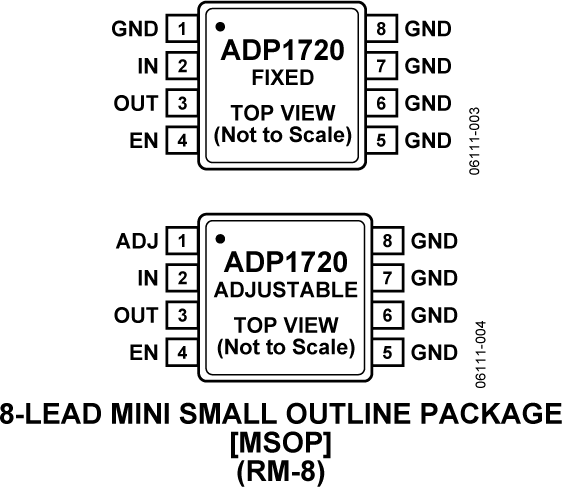

Available in a small thermally enhanced MSOP package, the ADP1720 provides a compact solution with low thermal resistance.

Applications

  • DC-to-DC post regulation
  • PCMCIA regulation
  • Keep-alive power in portable equipment
  • Industrial applications
Part Models 9
1ku List Price Starting From $0.75

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP1720ARMZ-3.3-R7
  • HTML
  • HTML
ADP1720ARMZ-5-R7
  • HTML
  • HTML
ADP1720ARMZ-R7
  • HTML
  • HTML
ADP1720TRMZ-EP
  • HTML
  • HTML
ADP1720TRMZ-EP-R7
  • HTML
  • HTML
ADP1720TRMZ3.3-EP
  • HTML
  • HTML
ADP1720TRMZ3.3EPR7
  • HTML
  • HTML
ADP1720TRMZ5-EP
  • HTML
  • HTML
ADP1720TRMZ5-EP-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 26, 2015

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

Dec 21, 2009

- 06_0159

Qualification of 8" S6 wafer fab process at Analog Devices, Limerick, Ireland.

ADP1720ARMZ-3.3-R7

PRODUCTION

ADP1720ARMZ-5-R7

PRODUCTION

ADP1720ARMZ-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 26, 2015

- 15_0176

arrow down

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

Dec 21, 2009

- 06_0159

arrow down

Qualification of 8" S6 wafer fab process at Analog Devices, Limerick, Ireland.

ADP1720ARMZ-3.3-R7

PRODUCTION

ADP1720ARMZ-5-R7

PRODUCTION

ADP1720ARMZ-R7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-ADP1720

ADP1720 Evaluation Board

zoom

EVAL-ADP1720

ADP1720 Evaluation Board

ADP1720 Evaluation Board

Product Detail

These evaluation boards are used to demonstrate the functionality of the ADP1720 linear regulators.

Simple device measurements such as line and load regulation, dropout, and ground current can be demonstrated with just a single voltage supply, a voltmeter, a current meter, and load resistors.
