ADCMP350
Comparator & 0.6V Reference in 4-SC70 w/ Open-Drain Active-Low Output
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Comparators with 0.6 V on-chip references
- Output stages:
- Open-drain active-low (ADCMP350)
- Open-drain active-high (ADCMP354)
- Push-pull active-high (ADCMP356)
- High voltage (up to 22 V) tolerance on VIN and open-drain output pins
- Low power consumption (10 μA)
- 10 nA input bias current
- 15 mV hysteresis
- 5 μs propagation delay
- Specified over −40°C to +125°C temperature range

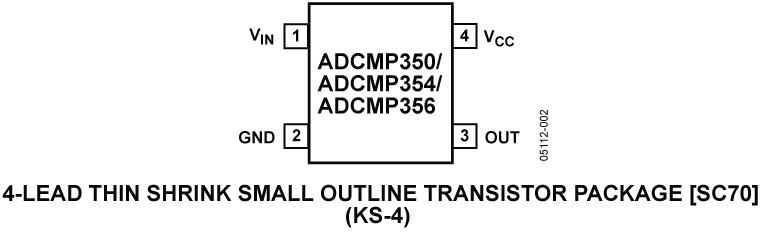

- 4-lead SC70 package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

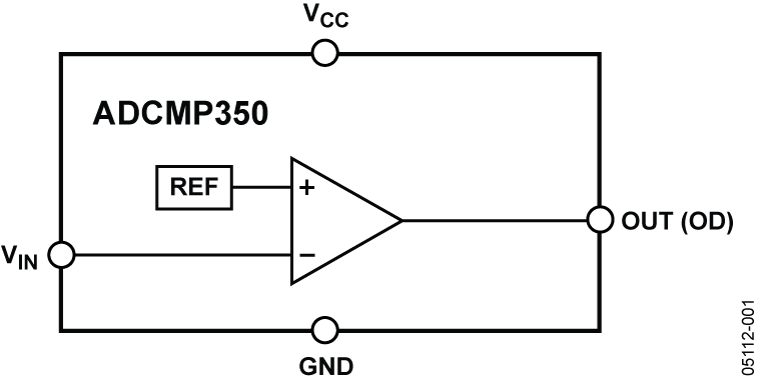

The ADCMP350/ADCMP354/ADCMP356 parts are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltages of up to 22 V on the input of all devices and the output of the open-drain devices. High performance over the −40°C to +125°C temperature range makes them suitable for use in automotive and other thermally harsh applications, while low power consumption and space-efficient SC70 packaging make them ideal for battery-powered portable equipment.
Applications- Voltage detectors
- Microprocessor systems
- Computers
- Battery monitors
- Intelligent instruments
- Portable equipment
