AD8275

G = 0.2, Level Translation, 16-Bit ADC Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $1.88
Features
  • Translates ±10V to +4V
  • Drives 16-bit SAR ADCs
  • Small MSOP Package
  • Input overvoltage: +40 V to −35 V (VS = 5 V)
  • Fast settling time: 450 ns to 0.001%
  • Rail-to-rail output
  • Wide Supply Operation: +3.3V to +15V
  • High CMRR: 80 dB
  • Low gain drift: 1 ppm/°C
  • Low offset drift: 2.5 μV/°C
Additional Details
show more Icon

The AD8275 is a G=0.2 difference amplifier that can be used to translate +/-10V signals to a +4V level. It solves the problem typically encountered in industrial and instrumentation where +/-10V signals must be interfaced to a single supply 4V or 5V ADC. The AD8275 interfaces the two signal levels, simplifying design.

The AD8275 has fast settling time of 450 ns and low distortion, making it suitable for driving medium speed successive approximation (SAR) ADCs. Its wide input voltage range and rail-torail outputs make it an easy to use building block. Single-supply operation reduces the power consumption of the amplifier and helps to protect the ADC from overdrive conditions.

Internal, matched, precision laser-trimmed resistors ensure low gain error, low gain drift of 1 ppm/°C (maximum), and high common-mode rejection of 80 dB. Low offset and low offset drift, combined with its fast settling time, make the AD8275 suitable for a variety of data acquisition applications where accurate and quick capture is required.

The AD8275 can be used as an analog front end, or it can follow buffers to level translate high voltages to a voltage range accepted by the ADC. In addition, the AD8275 can be configured for differential outputs if used with a differential ADC.

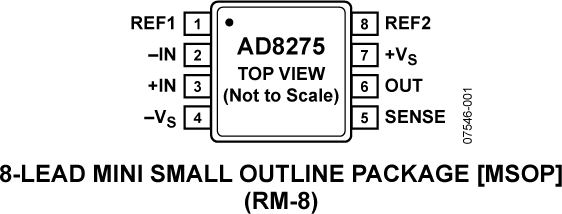

The AD8275 is available in a space-saving, 8-lead MSOP and is specified for performance over the −40°C to +85°C temperature range.

Applications

  • Level Translator
  • ADC Driver
  • Instrumentation Amplifier Building Block
  • Automated test equipment
  • Part Models 5
    1ku List Price Starting From $1.88

    close icon
    Documentation

    Documentation

    Video

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    AD8275ARMZ
    • HTML
    • HTML
    AD8275ARMZ-R7
    • HTML
    • HTML
    AD8275ARMZ-RL
    • HTML
    • HTML
    AD8275BRMZ
    • HTML
    • HTML
    AD8275BRMZ-R7
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Jun 12, 2023

    - 22_0142

    Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

    AD8275ARMZ

    PRODUCTION

    AD8275ARMZ-R7

    PRODUCTION

    AD8275ARMZ-RL

    PRODUCTION

    AD8275BRMZ

    PRODUCTION

    AD8275BRMZ-R7

    PRODUCTION

    Oct 26, 2015

    - 15_0176

    Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

    AD8275ARMZ

    PRODUCTION

    AD8275ARMZ-R7

    PRODUCTION

    AD8275ARMZ-RL

    PRODUCTION

    AD8275BRMZ

    PRODUCTION

    AD8275BRMZ-R7

    PRODUCTION

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Jun 12, 2023

    - 22_0142

    arrow down

    Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

    AD8275ARMZ

    PRODUCTION

    AD8275ARMZ-R7

    PRODUCTION

    AD8275ARMZ-RL

    PRODUCTION

    AD8275BRMZ

    PRODUCTION

    AD8275BRMZ-R7

    PRODUCTION

    Oct 26, 2015

    - 15_0176

    arrow down

    Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

    AD8275ARMZ

    PRODUCTION

    AD8275ARMZ-R7

    PRODUCTION

    AD8275ARMZ-RL

    PRODUCTION

    AD8275BRMZ

    PRODUCTION

    AD8275BRMZ-R7

    PRODUCTION

    Software & Part Ecosystem

    Software & Part Ecosystem

    Reference Designs

    Reference Designs 3

    Universal Programmable Analog Front End for Process Control Applications

    Fully Programmable Universal Analog Front End for Process Control Applications

    zoomopens a dialog

    CN0209

    Fully Programmable Universal Analog Front End for Process Control Applications

    CN0209

    Circuits from the lab

    tooltip Info:Circuits from the lab
    Fully Programmable Universal Analog Front End for Process Control Applications

    Features and Benefits

    • Complete Analog front end for Process Control
    • Inputs include RTD, thermocouple, 4-20 mA, +/- 10V
    • Easily switch between the various input types
    View Detailed Reference Design external link

    Design & Integration Tools

    pdf icon

    zip

    1003 kB

    High Performance Analog Front for Industrial Process Control

    High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

    zoomopens a dialog

    CN0225

    High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

    CN0225

    Circuits from the lab

    tooltip Info:Circuits from the lab
    High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

    Features and Benefits

    • Analog front end for +/- 10V inputs
    • High common mode rejection
    • 16 bit resolution
    • Board space reduction
    View Detailed Reference Design external link

    Design & Integration Tools

    pdf icon

    zip

    1747 kB

    EVAL-CN0352-EB1Z_IO, Li-ion Battery Charging and Discharging Controlling Circuit

    Cost Effective, Multichannel Lithium Ion Battery Testing System

    zoomopens a dialog

    CN0352

    Cost Effective, Multichannel Lithium Ion Battery Testing System

    CN0352

    Circuits from the lab

    tooltip Info:Circuits from the lab
    Cost Effective, Multichannel Lithium Ion Battery Testing System

    Features and Benefits

    • Expandable 8-Channel Lithium Ion Battery Tester
    • Integrated Fast Charging/Discharging Battery Management
    • Precision Analog Microcontroller for Data Acquisition and Control
    View Detailed Reference Design external link

    Design & Integration Tools

    pdf icon

    ZIP

    15.04 M
