AD7687

16-Bit, 1.5 LSB INL, 250 kSPS PulSAR Differential ADC in MSOP/QFN

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $14.01
Features
  • 16-bit resolution with no missing codes
  • Throughput: 250 kSPS
  • INL: ±0.4 LSB typ, ±1.5 LSB max (±23 ppm of FSR)
  • Dynamic range: 96.5 dB
  • SNR: 95.5 dB at 20 kHz
  • THD: −118 dB at 20 kHz
  • True differential analog input range:
    ±VREF
    0 V to VREF with VREF up to VDD on both inputs
  • Single-supply 2.3 V to 5.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface
  • No pipeline delay
  • Refer to data sheet for additional features.
Additional Details
show more Icon

The AD76871 is a 16-bit, charge redistribution, successive approximation, analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.3 V to 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes, an internal conversion clock, and a versatile serial interface port. The device also contains a low noise, wide bandwidth, short aperture delay track-and-hold circuit. On the CNV rising edge, the AD7687 the samples the voltage difference between IN+ and IN− pins, which can range from −VREF to +VREF. The reference voltage, VREF, is applied externally and can be set up to the supply voltage.

The power consumption of the device scales linearly with throughput.

The SPI-compatible serial interface also features the ability to daisy-chain several ADCs on a single 3-wire bus and provides an optional BUSY indicator by means of the SDI pin. It is compatible with 1.8 V, 2.5 V, 3 V, or 5 V logic using the separate supply VIO.

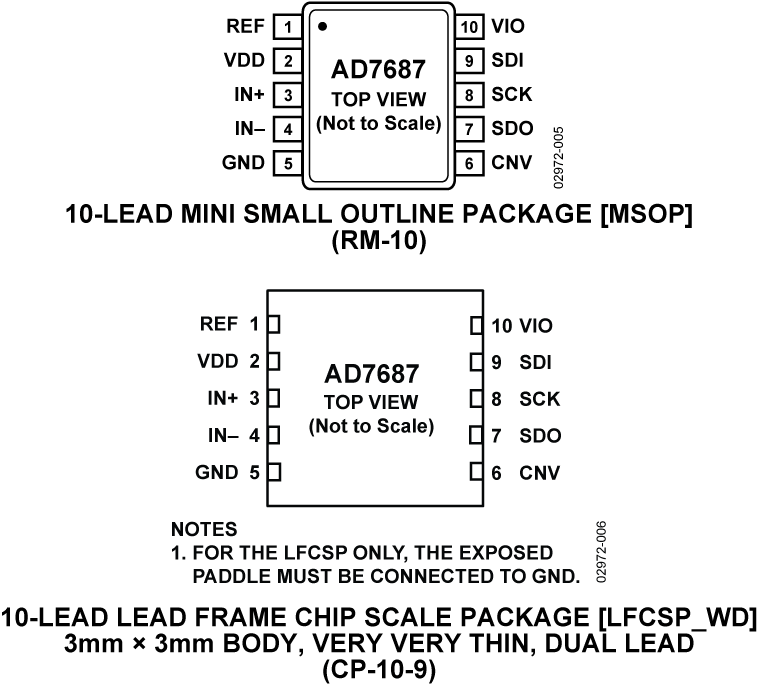

The AD7687 comes in a 10-lead MSOP or a 10-lead LFCSP with operation specified from −40°C to +85°C.

APPLICATIONS

  • Battery-powered equipment
  • Data acquisitions
  • Instrumentation
  • Medical instruments
  • Process controls
Part Models 3
1ku List Price Starting From $14.01

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7687BCPZRL7
  • HTML
  • HTML
AD7687BRMZ
  • HTML
  • HTML
AD7687BRMZRL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 2, 2024

- 23_0143

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

Jul 5, 2022

- 21_0271

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 2, 2024

- 23_0143

arrow down

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

Jul 5, 2022

- 21_0271

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

reference details image

EVAL-AD7687-PMDZ

16-Bit, 250 kSPS PulSAR® ADC PMOD Evaluation Board

zoom

EVAL-AD7687-PMDZ

16-Bit, 250 kSPS PulSAR® ADC PMOD Evaluation Board

16-Bit, 250 kSPS PulSAR® ADC PMOD Evaluation Board

Features and Benefits

  • 16-Bit Analog to Digital Converters
  • 250 kSPS
  • Unipolar, Differential Input
  • Standard SPI PMOD header/pin out
  • Connectable to 3rd Party FPGA and MCU Platforms

Product Detail

The PMOD-compatible evaluation/prototyping board is a small form factor, low-cost analog-to-digital conversion option. When prototyping, this board is used in conjunction with your favorite MCU or FPGA development board which has the SPI PMOD peripheral connector. Direct electrical and physical connection will enable you to quickly develop software for your system.

This board can also be operated as an evaluation board using the System Demonstration Platform (EVAL-SDP-CB1Z) and an adaptor board (SDP-PMD-IB1Z). When operated with the System Demonstration Platform, a LabView software GUI is provided enabling the user to perform analysis of the ADC's performance.

reference details image

EVAL-AD7687

AD7687 Evaluation Kit

zoom

EVAL-AD7687

AD7687 Evaluation Kit

Product Detail

The EVAL-AD7687SDZ is a fully featured evaluation kit for the AD7687. This board operates in standalone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.

Tools & Simulations

Tools & Simulations 2

Reference Designs

Reference Designs 1

High Performance Analog Front for Industrial Process Control

High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

zoomopens a dialog

CN0225

High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

CN0225

Circuits from the lab

tooltip Info:Circuits from the lab
High Impedance, High CMR, ±10 V Analog Front End Signal Conditioner for Industrial Process Control and Automation

Features and Benefits

  • Analog front end for +/- 10V inputs
  • High common mode rejection
  • 16 bit resolution
  • Board space reduction
View Detailed Reference Design external link
