AD8031

PRODUCTION

2.7 V, 800 µA, 80 MHz Rail-to-Rail I/O Single Amplifier

Data Sheet (Rev. G) Product Selection Table

Part Models: 9
1ku List Price: Starting From $1.41

Viewing:

Overview

Low power
Supply current 800 µA/amplifier
Fully specified at +2.7 V, +5 V and ±5 V supplies
High speed and fast settling on 5 V
80 MHz, –3 dB bandwidth (G = +1)
30 V/µs slew rate
125 ns settling time to 0.1%
Output current: 15 mA
High grade option
V_OS (maximum) = 1.5 mV
Rail-to-rail input and output
No phase reversal with input
0.5 V beyond supplies
Input CMVR extends beyond rails by 200 mV
Output swing to within 20 mV of either rail
Low distortion
–62 dB @ 1 MHz, VO = 2 V p-p
–86 dB @ 100 kHz, VO = 4.6 V p-p

The AD8031 (single) is a single supply voltage feedback amplifier that features high speed performance with 80 MHz of small signal bandwidth, 30 V/µs slew rate and 125 ns settling time. This performance is possible while consuming less than 4.0 mW of power from a single +5 V supply. This feature increases the operation time of high speed, battery-powered systems without compromising dynamic performance.

The AD8031 has true single supply capability with rail-to-rail input and output characteristics and is specified for +2.7 V, +5 V, and ±5 V supplies. The input voltage range can extend to 500 mV beyond each rail. The output voltage swings to within 20 mV of each rail providing the maximum output dynamic range.

The AD8031 also offers excellent signal quality for only 800 µA of supply current per amplifier; THD is -62 dBc with a 2 V p-p, 1 MHz output signal, and -86 dBc for a 100 kHz, 4.6 V p-p signal on +5 V supply. The low distortion and fast settling time make it ideal as a buffer to single supply ADCs.

Operating on supplies from +2.7 V to +12 V and dual supplies up to ±6 V, the AD8031 is ideal for a wide range of applications, from battery operated systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation. The AD8031 is available in 8-lead PDIP, 8-lead SOIC_N and 5-lead SOT-23 packages and operates over the industrial temperature range of -40°C to +85°C.

AD8032 - Dual Amplifier

Part Models: 9
1ku List Price: Starting From $1.41

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8031ANZ	8-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031ARTZ-R2	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031ARTZ-REEL7	5-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031ARZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031BNZ	8-Lead PDIP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031BRZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8031BRZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 19, 2009 - 07_0024 Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad
		Material_Report Material_Report Parts List PCN07_0024_Form Qual Data
AD8031ANZ	PRODUCTION
AD8031BNZ	PRODUCTION
Oct 11, 2022 - 22_0253 Addition of UTAC Thailand as an Alternate Assembly Site for SOT23, SC70 and TSOT Packages/Devices
		PCN22_0253_Form Material_Report Detailed Change Description Qualification Results Summary
AD8031ARTZ-REEL7	PRODUCTION
Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
AD8031ARTZ-REEL7	PRODUCTION	Material_Report PCN10_0009_Form SOT23 Qualification Data

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADA4807-1	RECOMMENDED FOR NEW DESIGNS	3.1 nV/√Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifier

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8031

VRMS/dBm/dBu/dBV calculators

A utility to convert between standard units of power measurement and signal strength.

Open Tool

Power Dissipation vs Die Temp

This tool estimates die temperature and power dissipation based on the supply voltages, ambient temperature, load characteristics, and package thermal data.

Open Tool

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

Signal Chain Designer

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

SPICE Model 1

AD8031 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

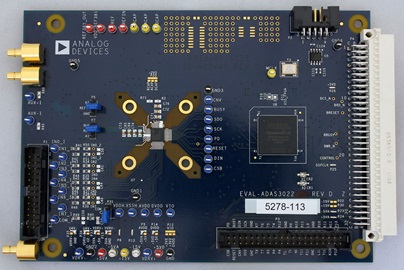

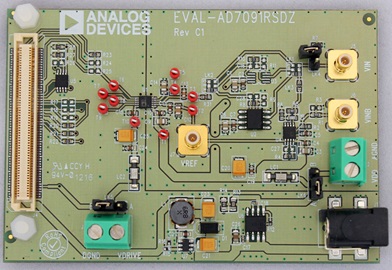

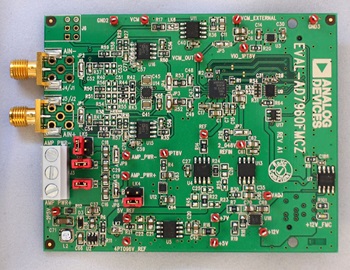

Evaluation Kits

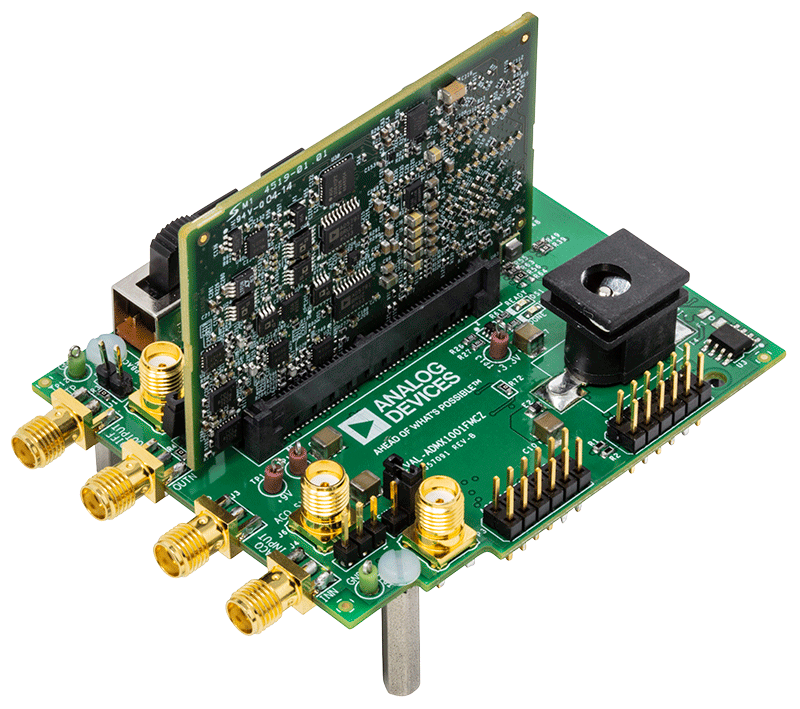

Ultra-low Distortion Signal Generator Measurement Module

Buy Now View Details

Features and Benefits

Ultra-low distortion, high-resolution source
- DC, 50Hz to 40kHz Frequency Range
- Proprietary digital pre-distortion (DPD) algorithm
- –130dBc THD @ 1kHz (typ.)
- Arbitrary waveform generation (AWG) with on-board pattern memory
- Differential (balanced) output up to 3.6VRMS
Fast pattern switching between multiple stored waveforms
Small form-factor (60mm x 40mm)
Low power, 1W typ. (quiescent)
SPI interface for integration into test and measurement systems

Product Details

The ADMX1002 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. With an easy-to-use SPI interface and small-form factor, the ADMX1002 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

High-end audio test
Analog-to-digital converter characterization and test
Sensor and transducer test
Frequency response and network analysis
ATE

Resources

User Guide: ADMX1002, Ultra-low Distortion and Low Noise Signal Generator
4/16/2021

Software

ADMX100X Graphical User Interface (GUI)
9.35 M

Ultra-low Distortion Signal Generator Measurement Module with Fully Differential Input Acquisition Channel

Buy Now View Details

Features and Benefits

Ultra-low distortion, high-resolution source
- DC, 50Hz to 40kHz Frequency Range
- Proprietary digital pre-distortion (DPD) algorithm
- –130dBc THD @ 1kHz (typ.)
- Arbitrary waveform generation (AWG) with on-board pattern memory
- Differential (balanced) output up to 3.5VRMS
- Fast pattern switching between multiple stored waveforms
Fully Differential input Acquisition Channel
Small form-factor (60mm x 40mm)
Low power, 1W typ. (quiescent)
SPI interface for integration into test and measurement systems

Product Details

The ADMX1001 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator with an acquisition channel. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. The signal generator and the acquisition channel can be individually controlled using separate, easy to use, SPI interfaces - combined with the module's small-form factor, the ADMX1001 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

High-end audio test
Analog-to-digital converter characterization and test
Sensor and transducer test
Frequency response and network analysis
ATE

Resources

User Guide: ADMX1002, Ultra-low Distortion and Low Noise Signal Generator
4/16/2021

Software

ADMX100X Graphical User Interface (GUI)
9.35 M

Universal Evaluation Board for Single High Speed Operational Amplifiers

Buy Now View Details

Features and Benefits

Enables quick breadboarding/prototyping
User defined circuit configuration
Edge mounted Subminiature Version A (SMA) connector
provisions Easy connection to test equipment and other circuits

Product Details

The Universal Single High Speed Amplifier Evaluation Boards are bare boards that enable users to quickly prototype a variety of amplifier circuits, which minimizes risk and reduces time to market. These boards are all RoHs Compliant. See ordering guide below on what board to order by lead count and package.
