AD8031/AD8032: 2.7V, 800 μA, 80 MHz Rail-to-Rail I/O Amplifiers Data Sheet (Rev. G)9/28/2006PDF423 kB
Alternative Parts
Overview
Features and Benefits
- Low power
Supply current 800 µA/amplifier
Fully specified at +2.7 V, +5 V and ±5 V supplies - High speed and fast settling on 5 V
80 MHz, –3 dB bandwidth (G = +1)
30 V/µs slew rate
125 ns settling time to 0.1% - Low distortion
–62 dB @ 1 MHz, VO = 2 V p-p
–86 dB @ 100 kHz, VO = 4.6 V p-p - Rail-to-rail input and output
No phase reversal with input
0.5 V beyond supplies
Input CMVR extends beyond rails by 200 mV
Output swing to within 20 mV of either rail - Output current: 15 mA
- High grade option
VOS (maximum) = 1.5 mV
Product Details
The AD8032 (dual) is a single supply voltage feedback amplifier that features high speed performance with 80 MHz of small signal bandwidth, 30 V/µs slew rate and 125 ns settling time. This performance is possible while consuming less than 4.0 mW of power from a single +5 V supply. This feature increases the operation time of high speed, battery-powered systems without compromising dynamic performance.
The AD8032 has true single supply capability with rail-to-rail input and output characteristics and is specified for +2.7 V, +5 V, and ±5 V supplies. The input voltage range can extend to 500 mV beyond each rail. The output voltage swings to within 20 mV of each rail providing the maximum output dynamic range.
The AD8032 also offers excellent signal quality for only 800 µA of supply current per amplifier; THD is -62 dBc with a 2 V p-p, 1 MHz output signal, and -86 dBc for a 100 kHz, 4.6 V p-p signal on +5 V supply. The low distortion and fast settling time makes it ideal as a buffer to single supply ADCs.
Operating on supplies from +2.7 V to +12 V and dual supplies up to ±6 V, the AD8032 is ideal for a wide range of applications, from battery operated systems with large bandwidth requirements to high speed systems where component density requires lower power dissipation. The AD8032 is available in 8-lead PDIP, 8-lead SOIC_N, and 8-lead MSOP packages and operates over the industrial temperature range of -40°C to +85°C.
AD8031 - Single Amplifier
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
AN-357: Operational Integrators2/14/2015PDF272 kB
-
AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps2/14/2015PDF55 kB
-
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications (Rev. 0)2/14/2015PDF166 kB
-
AN-356: User's Guide to Applying and Measuring Operational Amplifier Specifications2/14/2015PDF538 kB
-
AN-417: Fast Rail-to-Rail Operational Amplifiers Ease Design Constraints in Low Voltage High Speed Systems10/1/1996
-
UG-886: Universal Evaluation Board for Dual High Speed Op Amps Offered in 8-Lead MSOP10/26/2015PDF155 K
-
UG-128: Universal Evaluation Board for Dual High Speed Op Amps in SOIC Packages4/19/2010PDF208 kB
-
MT-053: Op Amp Distortion: HD, THD, THD + N, IMD, SFDR, MTPR2/14/2015PDF104 kB
-
MT-052: Op Amp Noise Figure: Don't Be Misled2/14/2015PDF60 kB
-
MT-050: Op Amp Total Output Noise Calculations for Second-Order System2/14/2015PDF38 kB
-
MT-049: Op Amp Total Output Noise Calculations for Single-Pole System2/14/2015PDF40 kB
-
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth2/14/2015PDF81 kB
-
MT-047: Op Amp Noise2/14/2015PDF72 kB
-
MT-060: Choosing Between Voltage Feedback and Current Feedback Op Amps2/14/2015PDF62 kB
-
MT-059: Compensating for the Effects of Input Capacitance on VFB and CFB Op Amps Used in Current-to-Voltage Converters2/14/2015PDF69 kB
-
MT-033: Voltage Feedback Op Amp Gain and Bandwidth2/14/2015PDF251 kB
-
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps2/14/2015PDF66 kB
-
MT-056: High Speed Voltage Feedback Op Amps2/3/2009PDF109 kB
-
MT-032: Ideal Voltage Feedback (VFB) Op Amp12/11/2008PDF65 kB
-
SAR ADC & Driver Quick-Match Guide9/13/2013PDF251 kB
-
High Speed Amplifiers Selection Table2/27/2008PDF77 kB
-

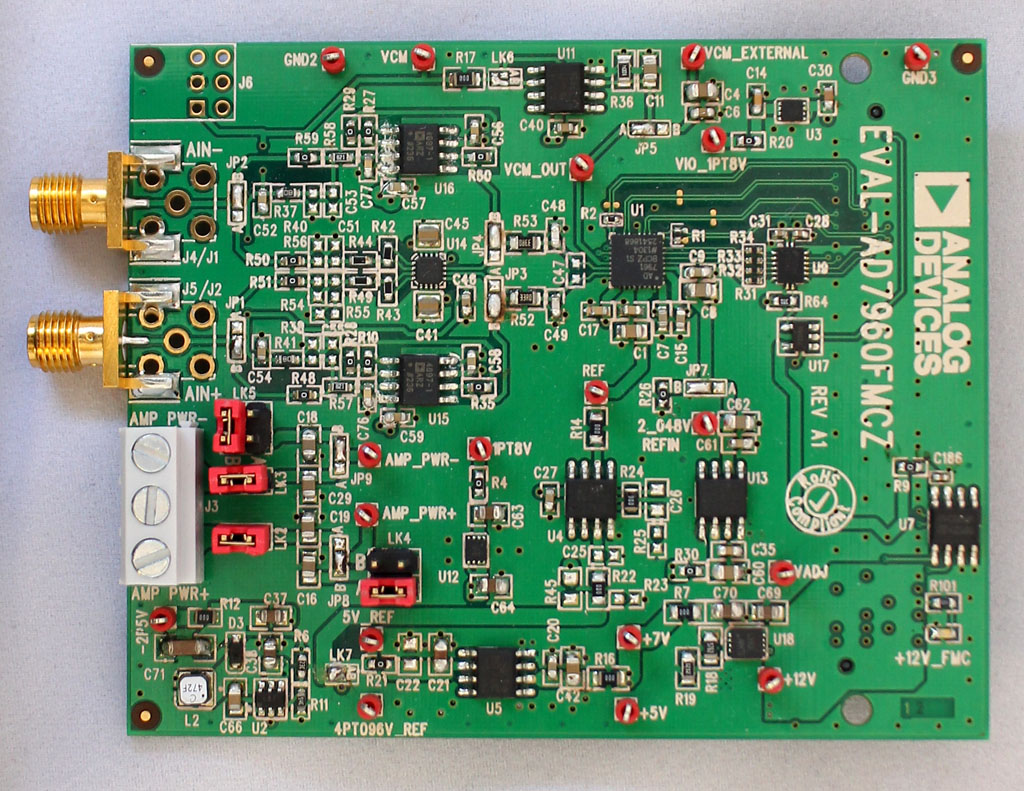

CN0277: High-Precision, 18-Bit, 5 MSPS, Low Power Data Acquisition Signal-Chain12/30/2013PDF220 kB
-
