Overview
Features and Benefits
- Throughput: 5 MSPS
- 18-bit resolution with no missing codes
- SNR 99 dB
- INL +/-0.8 LSB
- DNL +/-0.5 LSB
- True differential analog input voltage range: ±4.096 V or ±5 V
- Low power dissipation (39 mW)
- SAR architecture
- External reference options
- Serial LVDS interface

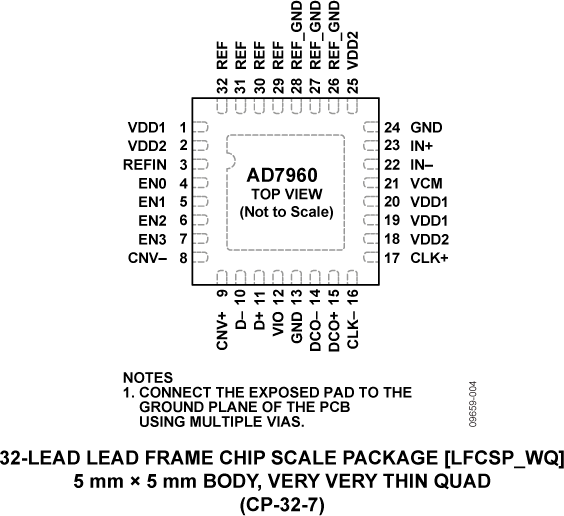

- 32-lead, 5mm × 5mm LFCSP (QFN)
- See datasheet for more details
Product Details

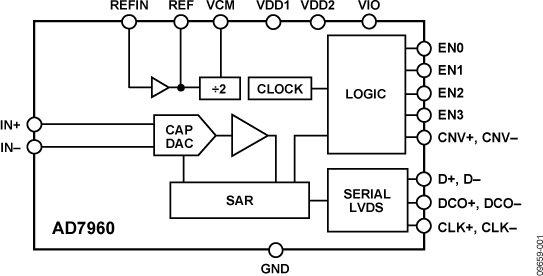

The AD7960 is an 18-bit, 5 MSPS charge redistribution successive approximation (SAR), analog-to-digital converter (ADC). The SAR architecture allows unmatched performance both in noise and in linearity. The AD7960 contains a low power, high speed, 18-bit sampling ADC, an internal conversion clock and an internal reference buffer. On the CNV± edge, the AD7960 samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and 4.096 V/5 V. The reference voltage is applied to the part externally. All conversion results are available on a single LVDS self-clocked or echo-clocked serial interface.
The AD7960 is available in a 32-lead LFCSP (QFN) with operation specified from −40°C to +85°C.
APPLICATIONS
- Digital imaging systems
Digital X-rays
Computed tomography
IR cameras - MRI gradient control
- High speed data acquisition
- Spectroscopy
- Test equipment
Product Categories
Markets and Technologies
EDN 2013 Hot product in the Analog Category
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
High Performance Data Converters for Medical Imaging Systems2/1/2019 Analog Dialogue
-
Analyzing and Solving Fixed Frequency Spur Issues in High Precision ADC Signal Chains4/1/2017 Analog Dialogue
-
Selecting an ADC driver to achieve optimized signal chain performance7/13/2015
-
Increase Dynamic Range of SAR ADCs Using Oversampling6/1/2015
-
Get ADC Data Beyond the Data Sheet5/1/2015
-
Demystifying High-Performance Multiplexed Data-Acquisition Systems7/1/2014 Analog Dialogue
-
Let's Compare SAR & Δ-Σ Converters for a Mux'd DAS (Planet Analog, 12/2013)1/11/2014
-
• Part 1
-
• Part 2
-
• Part 3
-
• Part 4
-
• Part 5
-
Successive-Approximation ADCs: Ensuring a Valid First Conversion12/1/2013 Analog Dialogue
-
Which Is Better: SAR or Delta-Sigma ADCs10/24/2013
-
Imaging Improvements: High performance data acquisition system enhances images for digital X-ray and MRI10/1/2013
-
High-Performance Data-Acquisition System Enhances Images for Digital X-Ray and MRI10/1/2013 Analog Dialogue
-
Choosing Analog ICs11/1/2014
-
I Grew Up in the 80s and Survived!10/1/2014
-
ADCs for High Dynamic Range – Successive-Approximation or Sigma-Delta?9/1/2014
Software & Systems Requirements
Tools & Simulations
Precision ADC Driver Tool
The Precision ADC Driver Tool is a web application that simulates the performance of precision ADC and driver combinations. Potential issues with driver selection, kickback settling, and distortion are flagged, and design tradeoffs can be quickly evaluated. Simulations and calculations include system noise, distortion, and settling of the ADC input
IBIS Model
Reference Designs (2)
Product Recommendations
AD7960 Companion Parts
Recommended External Voltage References for the AD7960
- For low drift, low noise and high accuracy: ADR444, ADR445, ADR4550, ADR4540.
- For driving the voltage reference input: AD8031.
Recommended Low Dropout Regulators and Switchers for the AD7960
Recommended Driver Amplifiers for the AD7960
- For high frequency, low noise, low distortion applications: ADA4899-1, ADA4897-1, ADA4932-1.
