ADP160

Ultra Low Quiescent Current 150 mA, CMOS Linear Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 23
1ku List Price Starting From $0.40
Features
  • Ultralow quiescent current:
    IQ = 560 nA with 0 μA load
    IQ = 860 nA with 1 μA load
  • Stable with 1 μF ceramic input and output capacitors
  • Maximum output current: 150 mA
  • Input voltage range: 2.2 V to 5.5 V
  • Low shutdown current: < 50 nA typical
  • Low dropout voltage: 195 mV @ 150 mA load
  • Initial accuracy: ±1%
  • Accuracy over line, load, and temperature: ±3.5%
  • 15 fixed output voltage options: 1.2 V to 4.2 V
  • Adjustable output available
  • PSRR performance of 72 dB @ 100 Hz
  • See data sheet for additional features
  • Logic-control enable

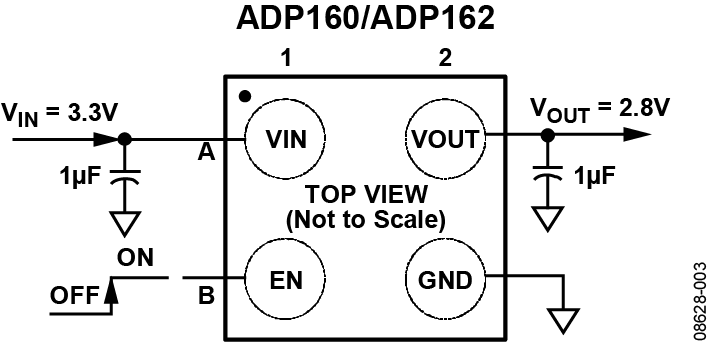

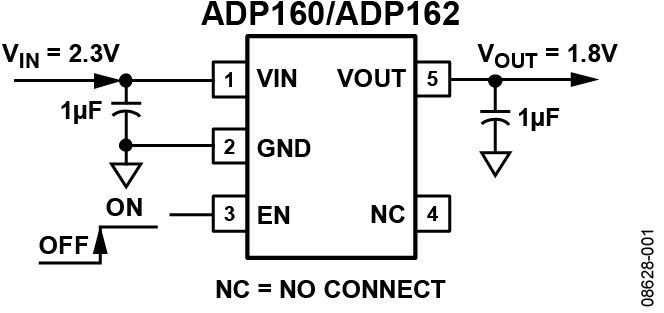

Additional Details
show more Icon

The ADP160 / ADP161 / ADP162 / ADP163 are ultralow quiescent current, low dropout, linear regulators that operate from 2.2 V to 5.5 V and provide up to 150 mA of output current. The low 195 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.

The ADP16x are specifically designed for stable operation with tiny 1 μF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.

The ADP160 is available in 15 fixed output voltage options, ranging from 1.2 V to 4.2 V. The ADP160 / ADP161 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP162 is identical to the ADP160 but does not include the output discharge function. The ADP161and ADP163 are available as a adjustable output voltage regulators. They are only available in a 5-lead TSOT package. The ADP163 is identical to the ADP161 but does not include the output discharge function.

Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP160 and ADP162 are available in a tiny 5-lead TSOT and a 4-ball, 0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.

APPLICATIONS

  • Mobile phones
  • Digital cameras and audio devices
  • Portable and battery-powered equipment
  • Post dc-to-dc regulation
  • Portable medical devices
Part Models 23
1ku List Price Starting From $0.40

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP160ACBZ-1.2-R7
  • HTML
  • HTML
ADP160ACBZ-1.5-R7
  • HTML
  • HTML
ADP160ACBZ-1.8-R7
  • HTML
  • HTML
ADP160ACBZ-2.1-R7
  • HTML
  • HTML
ADP160ACBZ-2.3-R7
  • HTML
  • HTML
ADP160ACBZ-2.5-R7
  • HTML
  • HTML
ADP160ACBZ-2.7-R7
  • HTML
  • HTML
ADP160ACBZ-2.75-R7
  • HTML
  • HTML
ADP160ACBZ-2.8-R7
  • HTML
  • HTML
ADP160ACBZ-2.85-R7
  • HTML
  • HTML
ADP160ACBZ-3.0-R7
  • HTML
  • HTML
ADP160ACBZ-3.3-R7
  • HTML
  • HTML
ADP160ACBZ-4.2-R7
  • HTML
  • HTML
ADP160AUJZ-1.2-R7
  • HTML
  • HTML
ADP160AUJZ-1.5-R7
  • HTML
  • HTML
ADP160AUJZ-1.8-R7
  • HTML
  • HTML
ADP160AUJZ-2.3-R7
  • HTML
  • HTML
ADP160AUJZ-2.5-R7
  • HTML
  • HTML
ADP160AUJZ-2.7-R7
  • HTML
  • HTML
ADP160AUJZ-2.8-R7
  • HTML
  • HTML
ADP160AUJZ-3.0-R7
  • HTML
  • HTML
ADP160AUJZ-3.3-R7
  • HTML
  • HTML
ADP160AUJZ-4.2-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2024

- 24_0012

Addition of Analog Devices, Ireland as an Alternate Fab Site 0.35um Process

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.3-R7

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.7-R7

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.3-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.7-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Apr 2, 2012

- 11_0284

Die rev. to ADP160/161/162/163

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.3-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.7-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Feb 28, 2012

- 11_0175

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

Jul 2, 2010

- 10_0167

Addition of reel supplier ePAK for WLCSP products at JCAP

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 9, 2024

- 24_0012

arrow down

Addition of Analog Devices, Ireland as an Alternate Fab Site 0.35um Process

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.3-R7

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.7-R7

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.3-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.7-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Apr 2, 2012

- 11_0284

arrow down

Die rev. to ADP160/161/162/163

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.3-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.7-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Feb 28, 2012

- 11_0175

arrow down

Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

Jul 2, 2010

- 10_0167

arrow down

Addition of reel supplier ePAK for WLCSP products at JCAP

ADP160ACBZ-1.2-R7

PRODUCTION

ADP160ACBZ-1.5-R7

ADP160ACBZ-1.8-R7

PRODUCTION

ADP160ACBZ-2.1-R7

PRODUCTION

ADP160ACBZ-2.5-R7

PRODUCTION

ADP160ACBZ-2.75-R7

PRODUCTION

ADP160ACBZ-2.8-R7

PRODUCTION

ADP160ACBZ-2.85-R7

PRODUCTION

ADP160ACBZ-3.0-R7

PRODUCTION

ADP160ACBZ-3.3-R7

PRODUCTION

ADP160ACBZ-4.2-R7

ADP160AUJZ-1.2-R7

PRODUCTION

ADP160AUJZ-1.5-R7

PRODUCTION

ADP160AUJZ-1.8-R7

PRODUCTION

ADP160AUJZ-2.5-R7

PRODUCTION

ADP160AUJZ-2.8-R7

PRODUCTION

ADP160AUJZ-3.0-R7

PRODUCTION

ADP160AUJZ-3.3-R7

PRODUCTION

ADP160AUJZ-4.2-R7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

EVAL-ADP160

ADP160 Evaluation Board

zoom

EVAL-ADP160

ADP160 Evaluation Board

ADP160 Evaluation Board

Features and Benefits

  • Two fully assembled and tested evaluation boards per kit
  • Full set of IC voltage options in each kit
  • 3 samples of each IC voltage option packed in separate antistatic bags
  • Kit allows the user to quickly evaluate all IC voltage options
  • Only need to order one kit per product family

Product Detail

This product has individual evaluations boards at specific voltages or with specific features as well as the RedyKit™. The RedyKit simplifies product evaluation by providing two assembled and tested evaluation boards, plus a full set of product (voltage) options for an IC regulator. All the IC options come sorted and stored in the kit with the Analog Devices part number clearly printed on each antistatic zip-top bag.

Simple device measurements such as line and load regulation, dropout, and ground current can be demonstrated with just a single voltage supply, a voltmeter, a current meter, and load resistors.

reference details image

EVAL-WSN

Wireless Sensor Network (WSN) Development Kits for Your IoT Solutions

zoom

EVAL-WSN

Wireless Sensor Network (WSN) Development Kits for Your IoT Solutions

Wireless Sensor Network (WSN) Development Kits for Your IoT Solutions

Features and Benefits

Wireless Sensor Network Development Kit – Bunch Version includes:
  • Two Multi-Sensor Node Boards which include the following components
    • ADuCRF101 Integrated TRx + ARM Cortex M3 MCU
    • ADT75 Temperature Sensor
    • ADXL362 Ultra-low Power Triple Axis Accelerometer
    • Humidity & Temperature Sensor (Sensirion SHT21)
    • Photodiode + Ambient Light Sensor (Avago APDS-9005)
    • Passive Infrared Sensor (Panasonic EKMB1201112)
    • ADP160 Power Management device
    • General Purpose Input Connector for other sensors (supports both analog and digital
    • CR2032 Coin cell battery
    • Form factor: 60mm x 33mm (2.4" x 1.3")
  • One Gateway Node
    • ADuCRF101 Integrated TRx + ARM Cortex M3 MCU development system
  • One Emulator Platform for development and debugging

Wireless Sensor Network Development Kit – Cluster Version includes:
  • Three Multi-Sensor Node Boards which include the following components
    • ADF7024 Sub-GHz ISM band Transceiver
    • 16-bit MCU (RL78-G13)
    • ADT75 Temperature Sensor
    • ADXL362 Ultra-low Power Triple Axis Accelerometer
    • Humidity & Temperature Sensor (Sensirion SHT21)
    • Photodiode + Ambient Light Sensor (Avago APDS-9005)
    • Passive Infrared Sensor (Panasonic EKMB1201112)
    • ADP160 Power Management device
    • General Purpose Input Connector for other sensors (support both analog and digital)
    • CR2032 Coin cell battery
    • Form factor: 60mm x 33mm (2.4" x 1.3")
  • One Emulator Platform for development and debugging

Product Detail

The Wireless Sensor Network (WSN) demo platform is a flexible, modular system for evaluating all aspects of a WSN. It offers both an out-of-the-box demonstration system, and can also be used as a development platform. It contains all of the hardware and software necessary to implement a plug-and-play WSN. The hardware includes a base station node along with multiple sensor nodes that support many different sensors. The system is flexible in that sensors can be connected in any combination to any of the sensor nodes. The out-of-the-box utility of the WSN development kits significantly reduces the time and effort required to move a customer’s design from proof-of-concept phase to production release through the marriage of three Multi-Sensor Node Boards, a gateway connector, an emulator platform, and a full featured software package.
Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Reference Designs

Reference Designs 1

Portable RF Power Meter Evaluation Board Measurement Setup

Battery or USB Powered 9 kHz to 6 GHz RMS Power Measurement System
