ADL5904

DC to 6 GHz, 45 dB TruPwr Detector with Envelope Threshold Detection

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 1
1ku List Price Starting From $2.84
Features
  • RMS and envelope threshold detection
  • Broad input frequency range: dc to 6 GHz
  • RF input range: 45 dB (−30 dBm to +15 dBm)
  • RMS linear in decibel output, scaled 36.5 mV/dB
  • Input envelope threshold detection and latching
  • Programmable threshold and latch reset function
  • Fast response time: 12 ns from RFIN to Q/Q latch
  • All functions temperature and supply stable
  • Operates at 3.3 V from −40°C to +105°C
  • Low power: 3.5 mA
  • Power-down capability to 100 μA
  • 16-lead, 3 mm × 3 mm LFCSP package
Additional Details
show more Icon

The ADL5904 is a dual-function radio frequency (RF) TruPwr™ detector that operates from dc to 6 GHz. It provides rms power measurement along with a programmable envelope threshold detection function.

The rms power measurement function has a 45 dB detection range, nominally from −30 dBm to +15 dBm. The rms power measurement function features low power consumption and an intrinsically ripple free error transfer function.

The envelope threshold detection function compares the voltage from an internal envelope detector with a user defined input voltage. When the voltage from the envelope detector exceeds the user defined threshold voltage, an internal comparator captures and latches the event to a set/reset (SR) flip flop. The response time from the RF input signal exceeding the user programmed threshold to the output latching is 12 ns. The latched event is held on the flip-flop until a reset pulse is applied.

The RF input of the ADL5904 is dc-coupled, allowing operation down to arbitrarily low ac frequencies. It operates on a 3.3 V supply and consumes 3.5 mA. A disable mode reduces this current to 100 μA when a logic low is applied to the ENBL pin.

The ADL5904 is supplied in a 3 mm × 3 mm, 16-lead LFCSP for operation over the wide temperature range of −40°C to +105°C.

Applications

  • Transmitter signal strength indication (TSSI)
  • Wireless power amplifier input and output protection
  • Wireless receiver input protection
Part Models 1
1ku List Price Starting From $2.84

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADL5904ACPZN-R7
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADL5904

ADL5904 Evaluation Board

zoom

EVAL-ADL5904

ADL5904 Evaluation Board

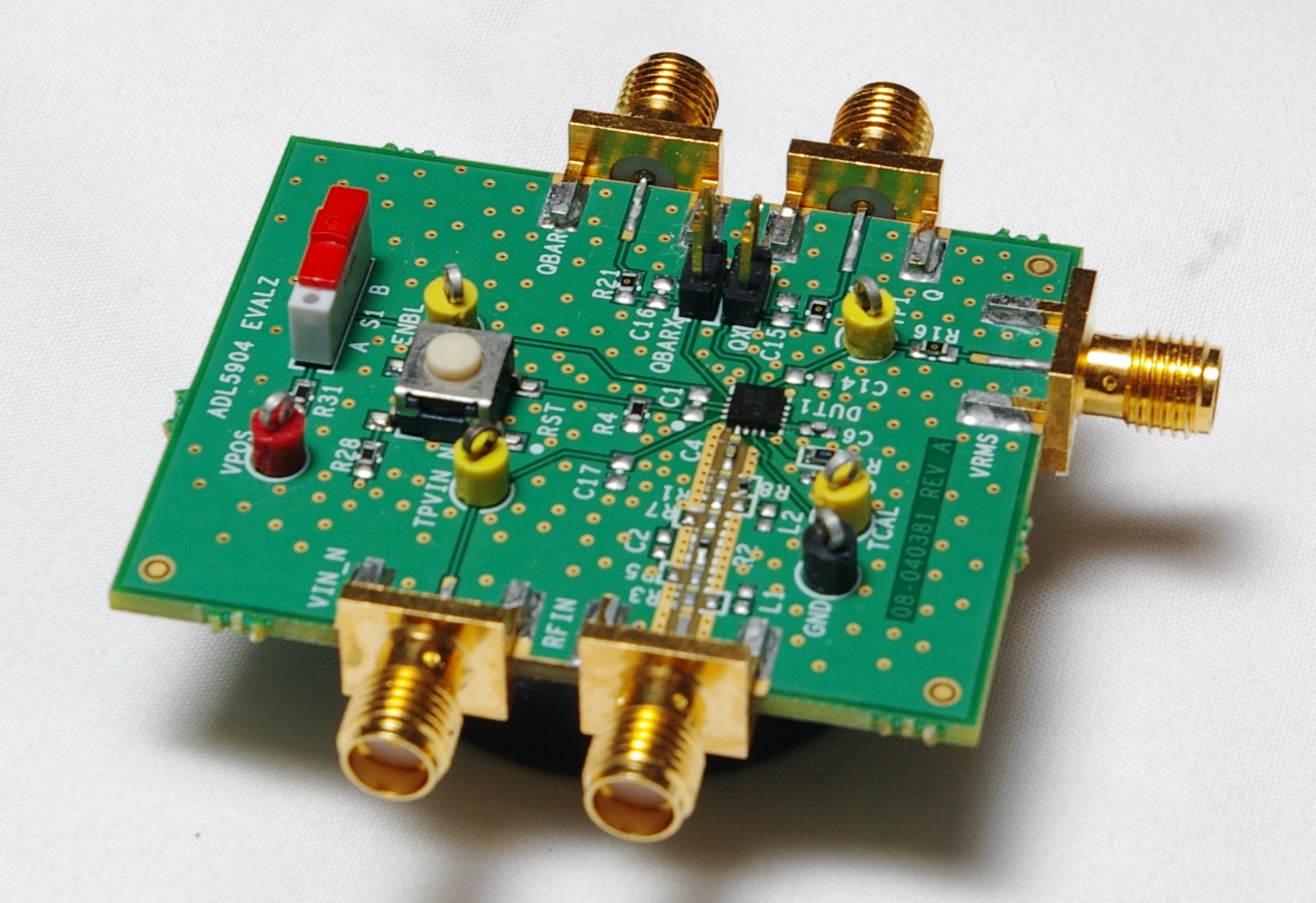

ADL5904 Evaluation Board

Product Detail

The ADL5904-EVALZ is a fully populated, 4-layer, FR4-based evaluation board. A power supply of either 3V or 5V should be applied to the VPOS and GND test loops. To exercise the RMS detector portion of the circuit, the RF signal to be measured should be applied to the RFIN SMA connector. The corresponding RMS output voltage is then available on the VRMS SMA connector and on the TP1 test point. To operate the Threshold Detect circuitry, the RF signal that is being monitored should again be applied to the RFIN SMA connector. The dc threshold voltage that should cause the circuit to trip should be applied to the VIN_N SMA connector or to the TPVIN_N yellow test point. The internal S/R flip-flop should be reset by pressing the RST button.

Resources

Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 5

Figure 1. Simplified Block Diagram of EVAL-CN0534-EBZ

USB Powered 5.8 GHz RF LNA Receiver with Output Power Protection

zoomopens a dialog

CN0534

USB Powered 5.8 GHz RF LNA Receiver with Output Power Protection

CN0534

Circuits from the lab

tooltip Info:Circuits from the lab
USB Powered 5.8 GHz RF LNA Receiver with Output Power Protection

Features and Benefits

  • 23.5 dB Gain
  • 5.8 GHz Optimized LNA
  • ISM Band Operation
  • USB Powered
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

2.72 M

Videos

Thumbnail Image

Jan 24, 2022

01:01

CN0534: USB Powered 5.8 GHz RF LNA w/ Output Power Protection

Figure 1. CN0521 Simplified Block Diagram

USB-Powered, 2.4 GHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

zoomopens a dialog

CN0521

USB-Powered, 2.4 GHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

CN0521

Circuits from the lab

tooltip Info:Circuits from the lab
USB-Powered, 2.4 GHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

Features and Benefits

  • +26 dB of Rx Signal Gain
  • 50 ohm Input and Output Impedance
  • Overvoltage Input Protection
  • SMA Input and Output Connectors
  • USB Powered
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

8.71 M

Figure 1. CN0518 Simplified Block Diagram

USB-Powered, 915 MHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

zoomopens a dialog

CN0518

USB-Powered, 915 MHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

CN0518

Circuits from the lab

tooltip Info:Circuits from the lab
USB-Powered, 915 MHz RF Low Noise Amplifier Receiver with Overpower Protection Circuit

Features and Benefits

  • +25 dB of Rx Signal Gain
  • 50 ohm Input and Output Impedance
  • Overvoltage Input Protection
  • SMA Input and Output Connectors
  • USB Powered
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

8.21 M

Figure 1. CN0555 Simplified Block Diagram

USB-Powered, 433.92 MHz RF Low Noise Amplifier Receiver with Overpower Protection

zoomopens a dialog

CN0555

USB-Powered, 433.92 MHz RF Low Noise Amplifier Receiver with Overpower Protection

CN0555

Circuits from the lab

tooltip Info:Circuits from the lab
USB-Powered, 433.92 MHz RF Low Noise Amplifier Receiver with Overpower Protection

Features and Benefits

  • Optimized to Receive the 433MHz ISM Band
  • Receive Gain of 40dB
  • Overvoltage Protection Circuit with Automatic Turn off/on
  • Powered from a USB cable
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

3.54 M

Portable RF Power Meter Evaluation Board Measurement Setup

Battery or USB Powered 9 kHz to 6 GHz RMS Power Measurement System
