LTC6991

TimerBlox: Resettable, Low Frequency Oscillator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 18
1ku List Price Starting From $1.72
Features
  • Period Range: 1ms to 9.5 Hours
  • Configured with 1 to 3 Resistors
  • <1.5% Maximum Frequency Error
  • Output Reset Function
  • 2.25V to 5.5V Single Supply Operation
  • 55µA to 80µA Supply Current
  • (2ms to 9.5hr Clock Period)
  • 500µs Start-Up Time
  • CMOS Output Driver Sources/Sinks 20mA
  • –55°C to 125°C Operating Temperature Range
  • Available in Low Profile (1mm) SOT-23 (ThinSOT) and 2mm × 3mm DFN Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LTC6991 is a silicon oscillator with a programmable period range of 1.024ms to 9.54 hours (29.1µHz to 977Hz), specifically intended for long duration timing events. The LTC6991 is part of the TimerBlox® family of versatile silicon timing devices.

A single resistor, RSET, programs the LTC6991’s internal master oscillator frequency. The output clock period is determined by this master oscillator and an internal frequency divider, NDIV, programmable to eight settings from 1 to 221.

In normal operation, the LTC6991 oscillates with a 50% duty cycle. A reset function is provided to truncate the pulse (reducing the duty cycle). The reset pin can also be used to prevent the output from oscillating.

The RST and OUT pins can be configured for active-low or active-high operation using a polarity function.

POL Bit RST Pin Output State
0 0 Oscillating
0 1 0 (reset)
1 0 1 (reset)
1 1 Oscillating

Applications

  • “Heartbeat” Timers
  • Watchdog Timers
  • Intervalometers
  • Periodic “Wake-Up” Call
  • High Vibration, High Acceleration Environments
  • Portable and Battery-Powered Equipment
Part Models 18
1ku List Price Starting From $1.72

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC6991CDCB#TRMPBF
  • HTML
  • HTML
LTC6991CDCB#TRPBF
  • HTML
  • HTML
LTC6991CS6#TRMPBF
  • HTML
  • HTML
LTC6991CS6#TRPBF
  • HTML
  • HTML
LTC6991HDCB#TRMPBF
  • HTML
  • HTML
LTC6991HDCB#TRPBF
  • HTML
  • HTML
LTC6991HS6#TRMPBF
  • HTML
  • HTML
LTC6991HS6#TRPBF
  • HTML
  • HTML
LTC6991HS6#WTRMPBF
  • HTML
  • HTML
LTC6991HS6#WTRPBF
  • HTML
  • HTML
LTC6991IDCB#TRMPBF
  • HTML
  • HTML
LTC6991IDCB#TRPBF
  • HTML
  • HTML
LTC6991IS6#TRMPBF
  • HTML
  • HTML
LTC6991IS6#TRPBF
  • HTML
  • HTML
LTC6991IS6#WTRMPBF
  • HTML
  • HTML
LTC6991IS6#WTRPBF
  • HTML
  • HTML
LTC6991MPS6#TRMPBF
  • HTML
  • HTML
LTC6991MPS6#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 30, 2020

- 20_0244

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC6991CDCB#TRMPBF

PRODUCTION

LTC6991CDCB#TRPBF

PRODUCTION

LTC6991CS6#TRMPBF

PRODUCTION

LTC6991CS6#TRPBF

PRODUCTION

LTC6991HDCB#TRMPBF

PRODUCTION

LTC6991HDCB#TRPBF

PRODUCTION

LTC6991HS6#TRMPBF

PRODUCTION

LTC6991HS6#TRPBF

PRODUCTION

LTC6991HS6#WTRMPBF

LTC6991HS6#WTRPBF

LTC6991IDCB#TRMPBF

PRODUCTION

LTC6991IDCB#TRPBF

PRODUCTION

LTC6991IS6#TRMPBF

PRODUCTION

LTC6991IS6#TRPBF

PRODUCTION

LTC6991IS6#WTRMPBF

LTC6991IS6#WTRPBF

LTC6991MPS6#TRMPBF

PRODUCTION

LTC6991MPS6#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 30, 2020

- 20_0244

arrow down

Notification of Wafer Fab Location Change for 0.6µm CMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC6991CDCB#TRMPBF

PRODUCTION

LTC6991CDCB#TRPBF

PRODUCTION

LTC6991CS6#TRMPBF

PRODUCTION

LTC6991CS6#TRPBF

PRODUCTION

LTC6991HDCB#TRMPBF

PRODUCTION

LTC6991HDCB#TRPBF

PRODUCTION

LTC6991HS6#TRMPBF

PRODUCTION

LTC6991HS6#TRPBF

PRODUCTION

LTC6991HS6#WTRMPBF

LTC6991HS6#WTRPBF

LTC6991IDCB#TRMPBF

PRODUCTION

LTC6991IDCB#TRPBF

PRODUCTION

LTC6991IS6#TRMPBF

PRODUCTION

LTC6991IS6#TRPBF

PRODUCTION

LTC6991IS6#WTRMPBF

LTC6991IS6#WTRPBF

LTC6991MPS6#TRMPBF

PRODUCTION

LTC6991MPS6#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1562B-B

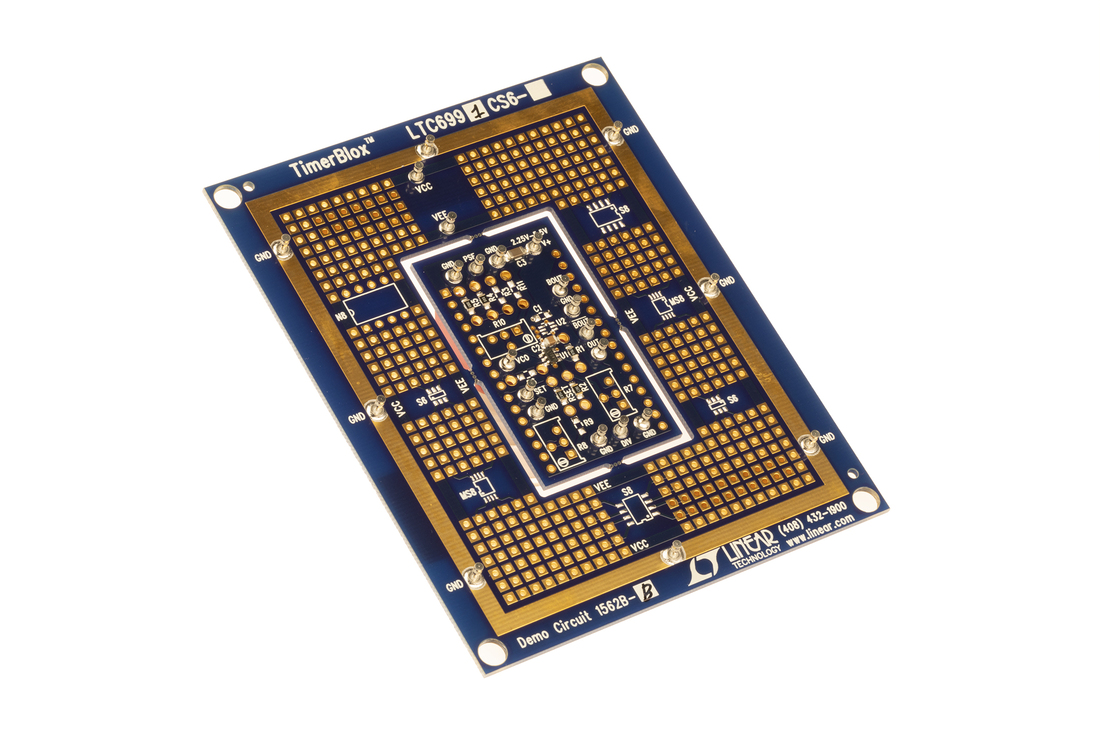

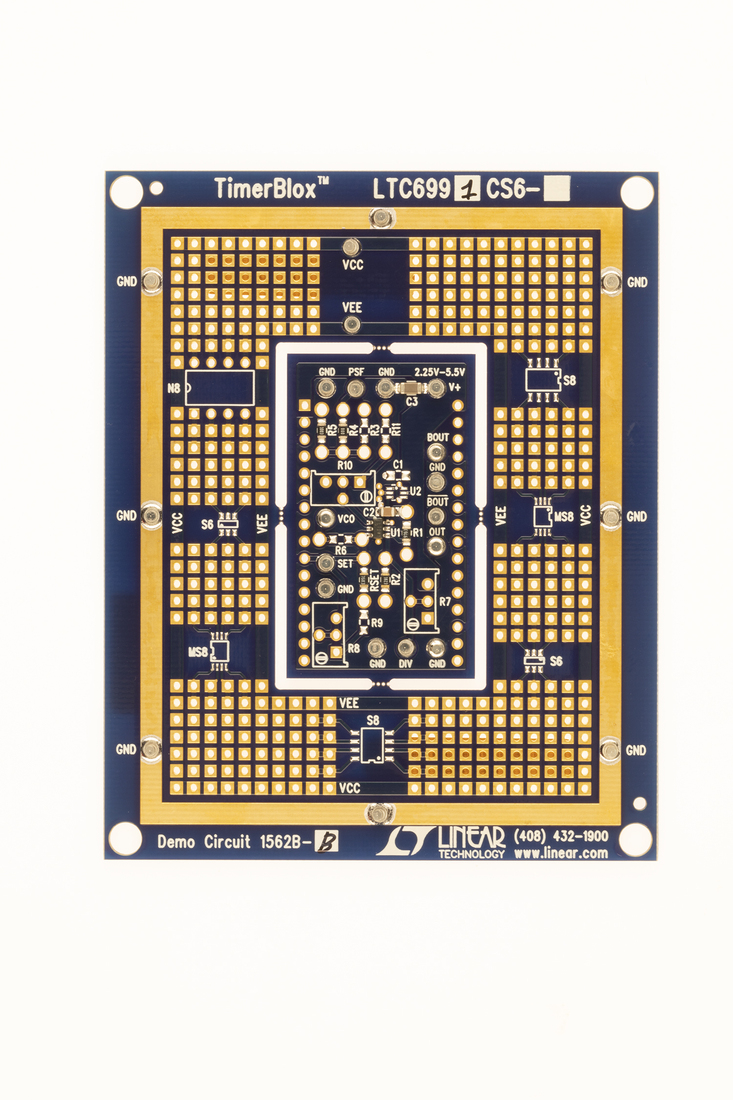

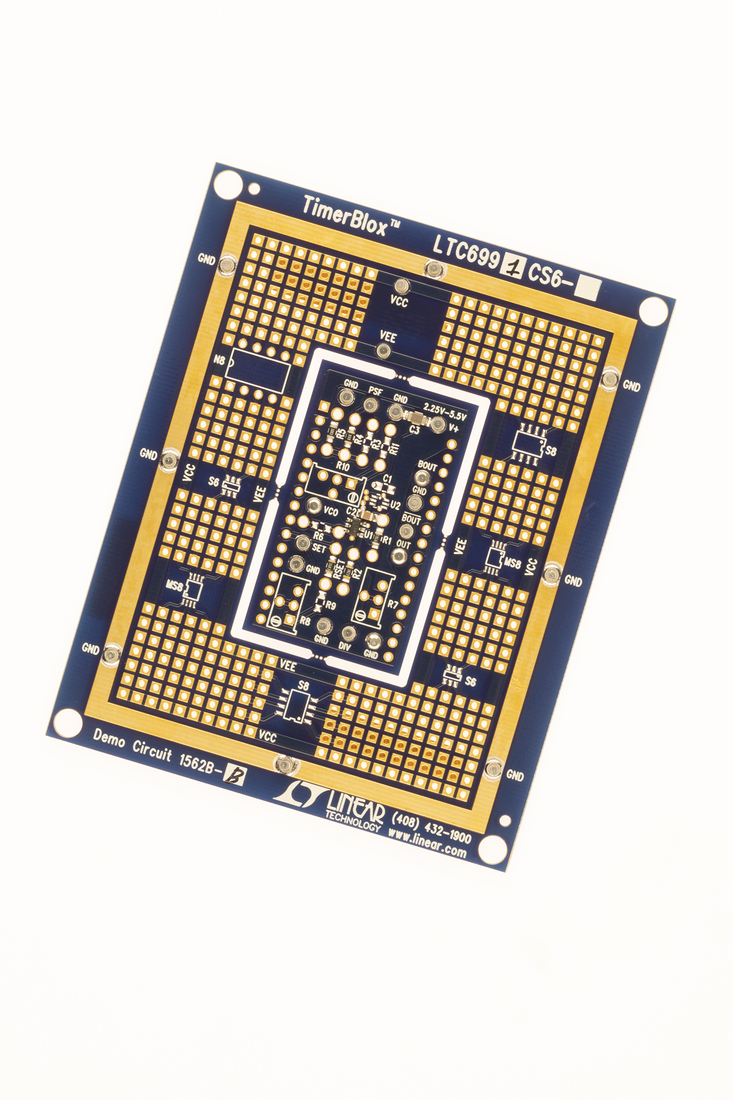

LTC6991 Demo Board | 1Hz (1s) Fixed Frequency

zoom

DC1562B-B

LTC6991 Demo Board | 1Hz (1s) Fixed Frequency

LTC6991 Demo Board | 1Hz (1s) Fixed Frequency

Product Detail

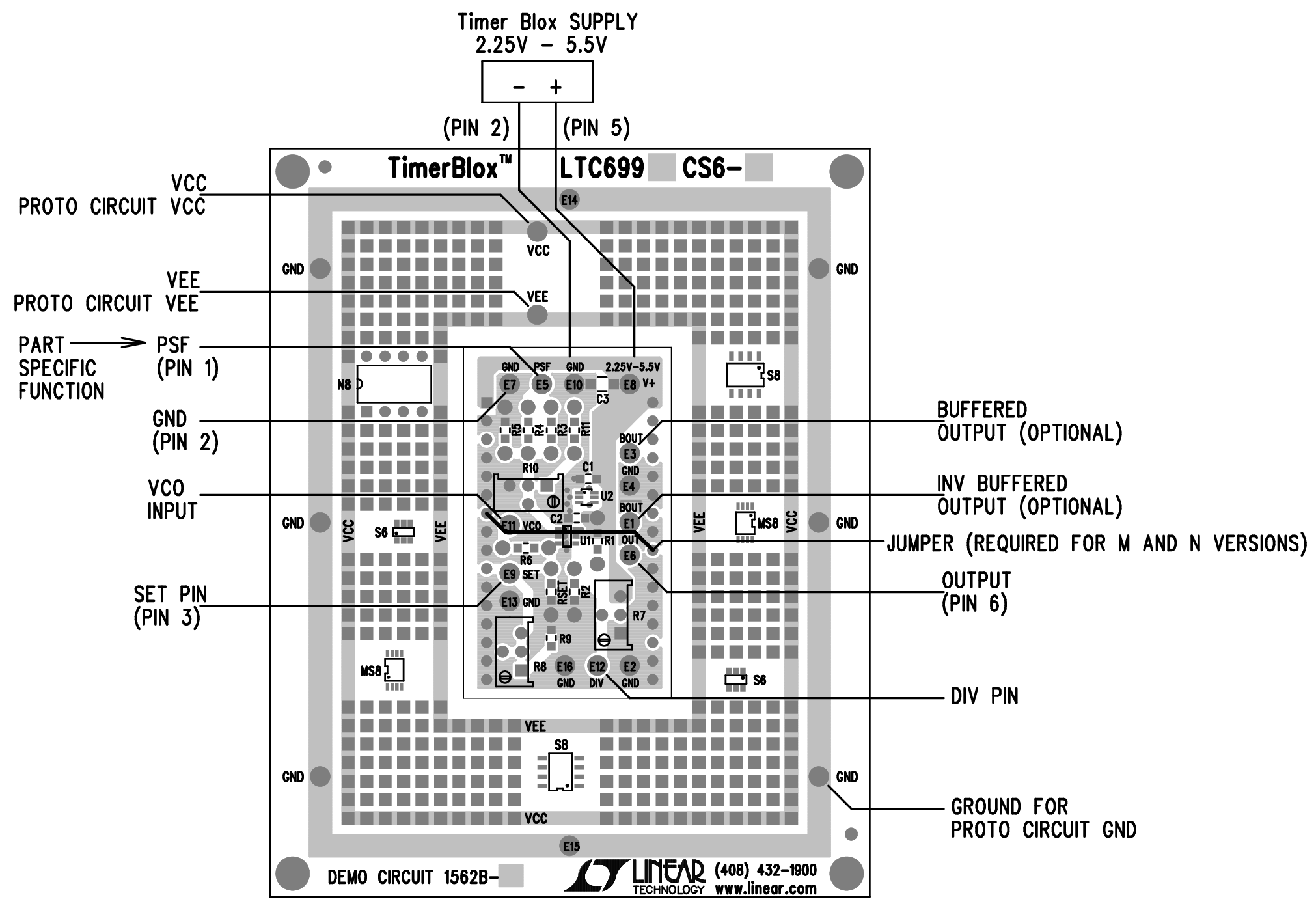

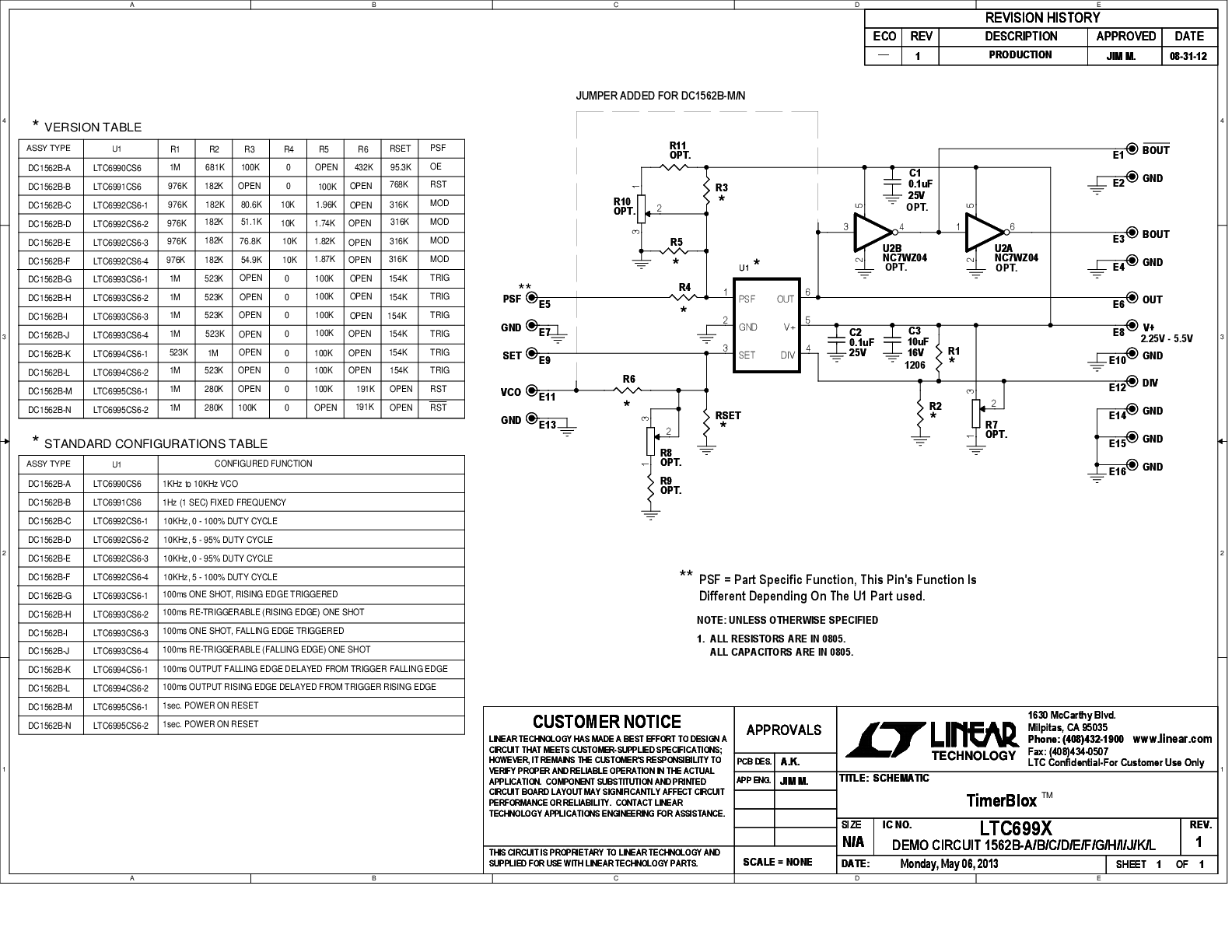

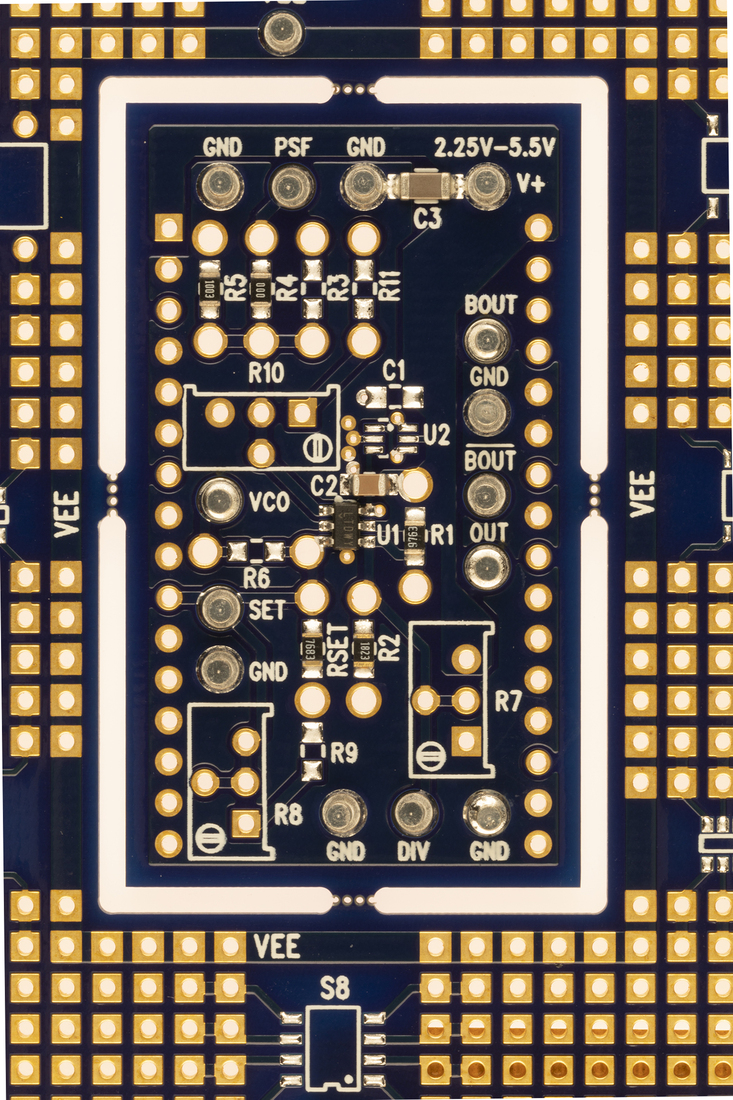

Demonstration circuit 1562B is an engineering tool to design and evaluate the LTC699X-X family of TimerBlox® circuits. The center section of the board contains a preconfigured TimerBlox function. DC1562B comes in twelve timing function variations as outlined in Table 1.
