Features
- Converts Remote Sensor or Internal Diode
- Temperature to Analog Voltage
- ±1°C Remote Temperature Accuracy
- ±1.5°C Internal Temperature Accuracy
- Built-In Series Resistance Cancellation
- 2.5V to 5.5V Supply Voltage
- 1.8V Reference Voltage Output
- 3.5ms VPTAT Update Time
- 4mV/°K Output Gain
- 170μA Quiescent Current
- Available in 6-Pin 2mm × 3mm DFN Package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The LTC2997 is a high-accuracy analog output temperature sensor. It converts the temperature of an external sensor or its own temperature to an analog voltage output. A built-in algorithm eliminates errors due to series resistance between the LTC2997 and the sensor diode.
The LTC2997 gives accurate results with low-cost diodeconnected NPN or PNP transistors or with integrated temperature transistors on microprocessors or FPGAs. Tying pin D+ to VCC configures the LTC2997 to measure its internal temperature.
The LTC2997 provides an additional 1.8V reference voltage output which can be used as an ADC reference input or for generating temperature threshold voltages to compare against the VPTAT output.
The LTC2997 provides a precise and versatile micropower solution for accurate temperature sensing.
Applications
- Temperature Measurement
- Remote Temperature Measurement
- Environmental Monitoring
- System Thermal Control
- Desktop and Notebook Computers
- Network Servers
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2997
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
Data Sheet
-
User Guide
-
Technical Articles
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
151.77 K
User Guide
1
323.00K
Technical Articles
1
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Technical Articles 1
Product Selector Card 2
Video
1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2997CDCB#TRMPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
|
| LTC2997CDCB#TRPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
|
| LTC2997HDCB#TRMPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
|
| LTC2997HDCB#TRPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
|
| LTC2997IDCB#TRMPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
|
| LTC2997IDCB#TRPBF |
6-Lead DFN (2mm x 3mm w/ EP)
|
|
- LTC2997CDCB#TRMPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2997CDCB#TRPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2997HDCB#TRMPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2997HDCB#TRPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2997IDCB#TRMPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2997IDCB#TRPBF
- Pin/Package Drawing
-
6-Lead DFN (2mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Evaluation Kits 1
DC1767A
LTC2997 | Internal/Remote Temperature Sensor
Product Detail

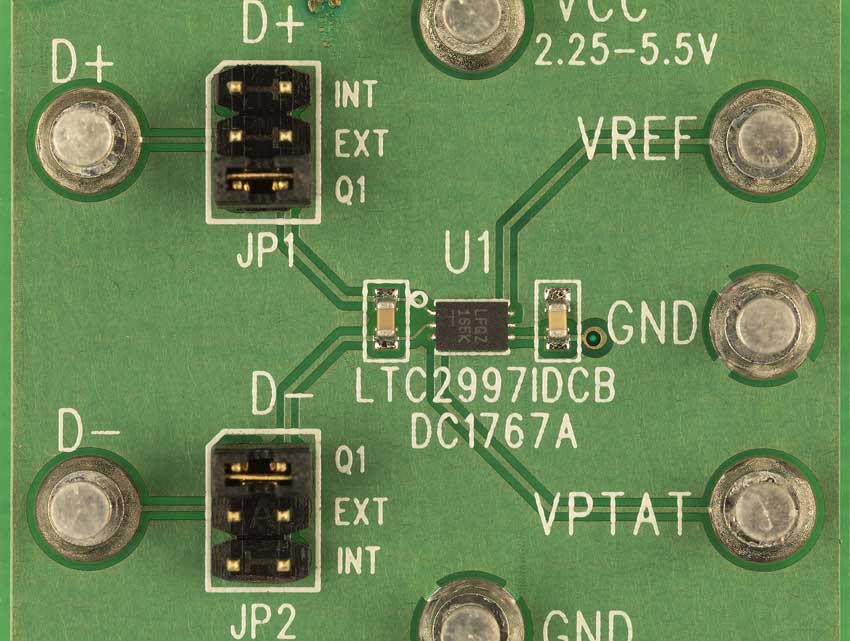

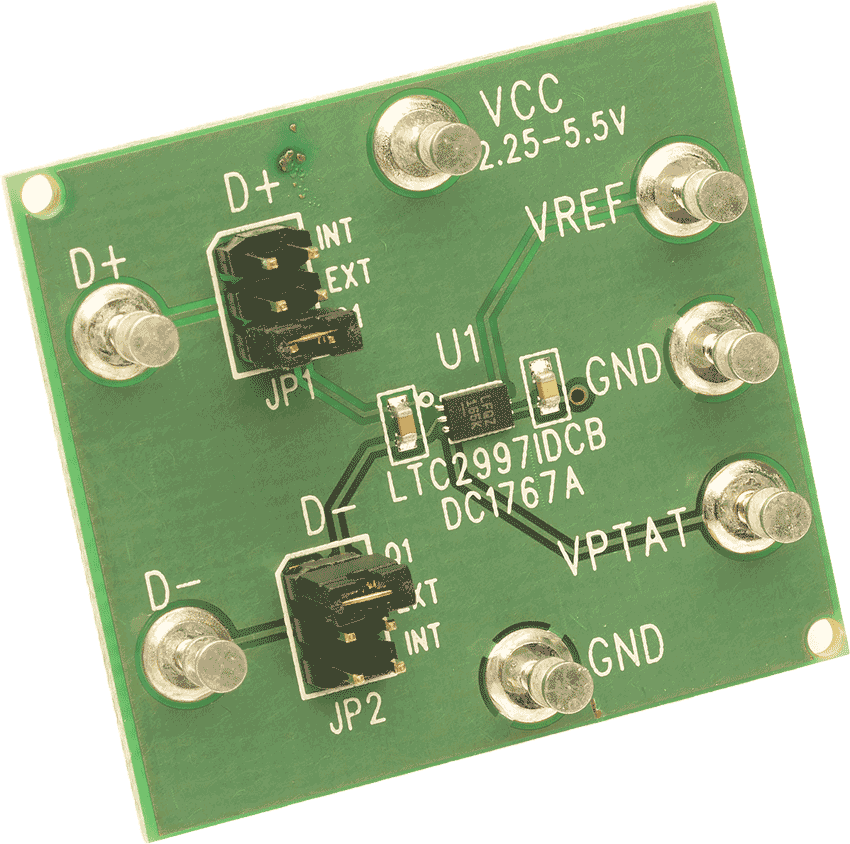

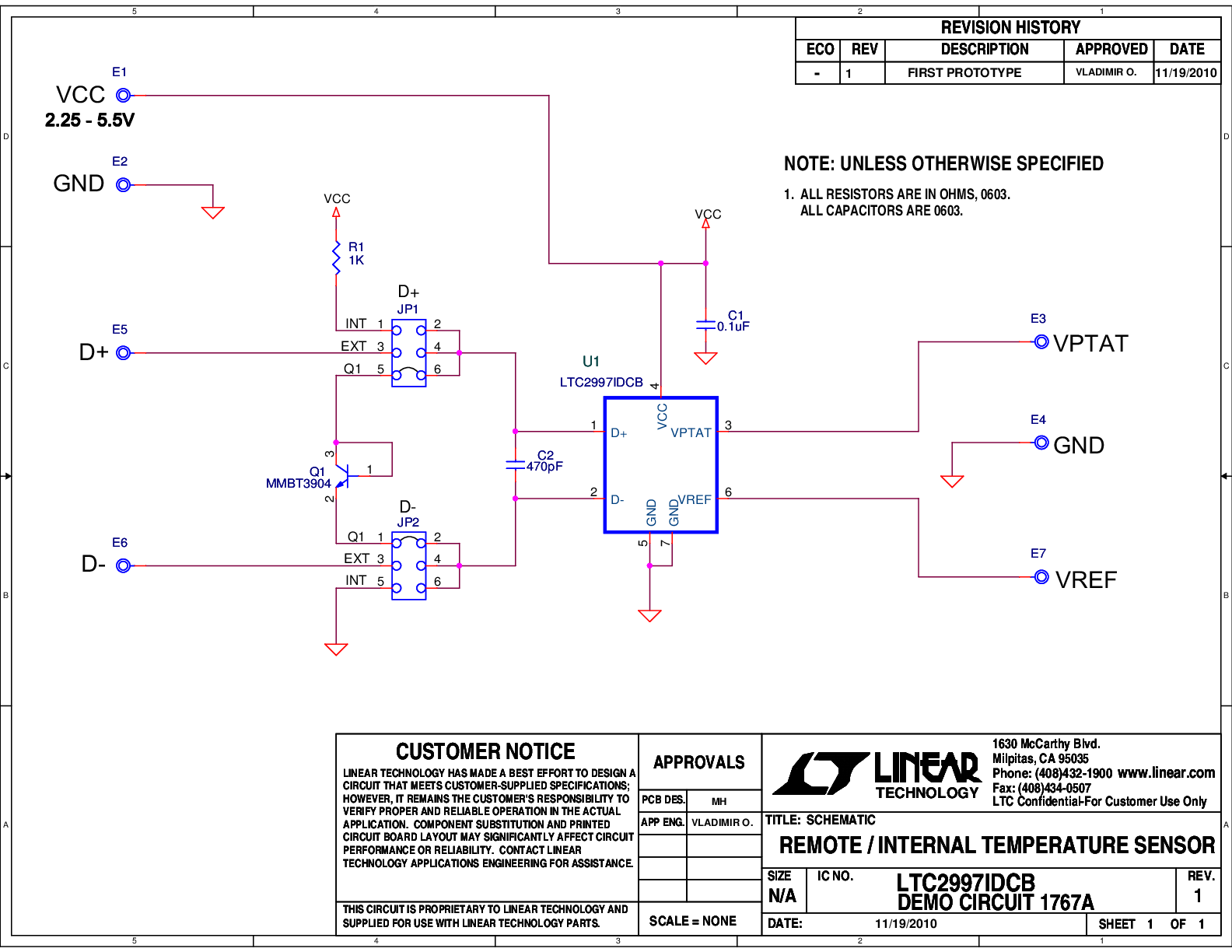

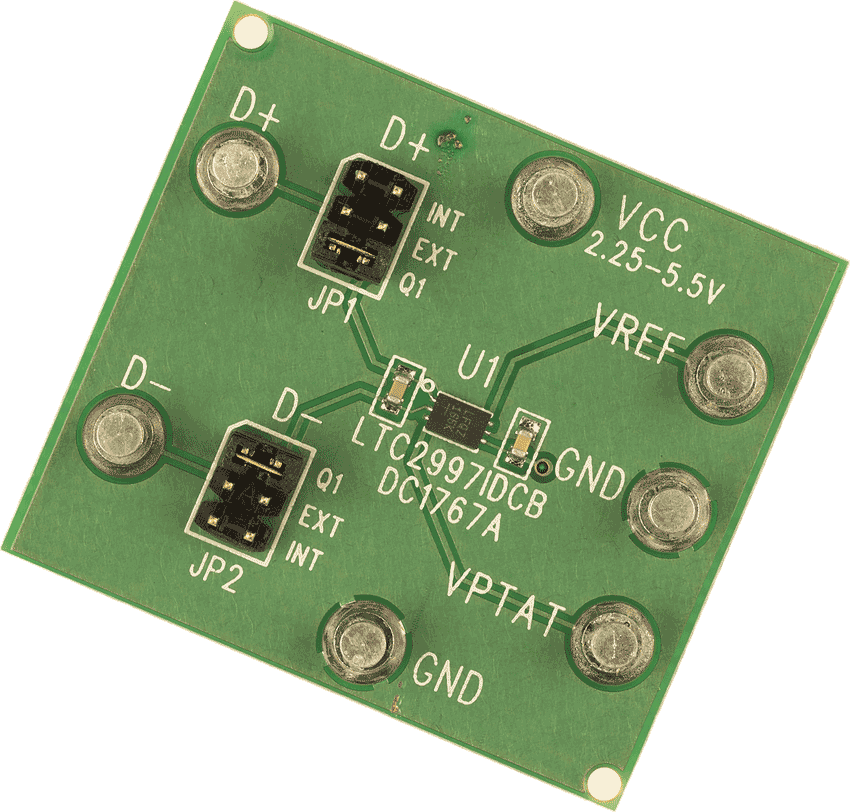

DC1767A: Demo Board for the LTC2997 Remote/Internal Temperature Sensor.
