LT8335

Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch

Show More showmore-icon

warning : LAST TIME BUY tooltip
warning : LAST TIME BUY tooltip
Part Details
Part Models 4
1ku List Price Starting From $3.01
Features
  • 3V to 25V Input Voltage Range
  • Ultralow Quiescent Current and Low Ripple Burst Mode® Operation: IQ = 6μA
  • 2A, 28V Power Switch
  • Positive or Negative Output Voltage Programming with a Single Feedback Pin
  • Fixed 2MHz Switching Frequency
  • Programmable Undervoltage Lockout (UVLO)
  • Internal Compensation and Soft-Start
  • Low Profile (0.75mm) 8-Lead (3mm × 2mm) DFN Package
Additional Details
show more Icon

The LT8335 is a current mode DC/DC converter capable of generating either positive or negative output voltages using a single feedback pin. It can be configured as a boost, SEPIC or inverting converter consuming as low as 6μA of quiescent current. Low ripple Burst Mode operation maintains high efficiency down to very low output currents while keeping the output ripple below 15mV in a typical application. The internally compensated current mode architecture results in stable operation over a wide range of input and output voltages. Integrated soft-start and frequency foldback functions are included to control inductor current during start-up. The 2MHz operation combined with the small 8-lead DFN package, enables low cost, area efficient solutions.

Applications

  • Industrial and Automotive
  • Telecom
  • Medical Diagnostic Equipment
  • Portable Electronics
Part Models 4
1ku List Price Starting From $3.01

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8335EDDB#TRMPBF
  • HTML
  • HTML
LT8335EDDB#TRPBF
  • HTML
  • HTML
LT8335IDDB#TRMPBF
  • HTML
  • HTML
LT8335IDDB#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8335EDDB#TRMPBF

LAST TIME BUY

LT8335EDDB#TRPBF

LAST TIME BUY

LT8335IDDB#TRMPBF

LAST TIME BUY

LT8335IDDB#TRPBF

LAST TIME BUY

Mar 15, 2022

- 22_0027

Obsolescence of LT8335

LT8335EDDB#TRMPBF

LAST TIME BUY

LT8335EDDB#TRPBF

LAST TIME BUY

LT8335IDDB#TRMPBF

LAST TIME BUY

LT8335IDDB#TRPBF

LAST TIME BUY

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8335EDDB#TRMPBF

LAST TIME BUY

LT8335EDDB#TRPBF

LAST TIME BUY

LT8335IDDB#TRMPBF

LAST TIME BUY

LT8335IDDB#TRPBF

LAST TIME BUY

Mar 15, 2022

- 22_0027

arrow down

Obsolescence of LT8335

LT8335EDDB#TRMPBF

LAST TIME BUY

LT8335EDDB#TRPBF

LAST TIME BUY

LT8335IDDB#TRMPBF

LAST TIME BUY

LT8335IDDB#TRPBF

LAST TIME BUY

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC2449A-B

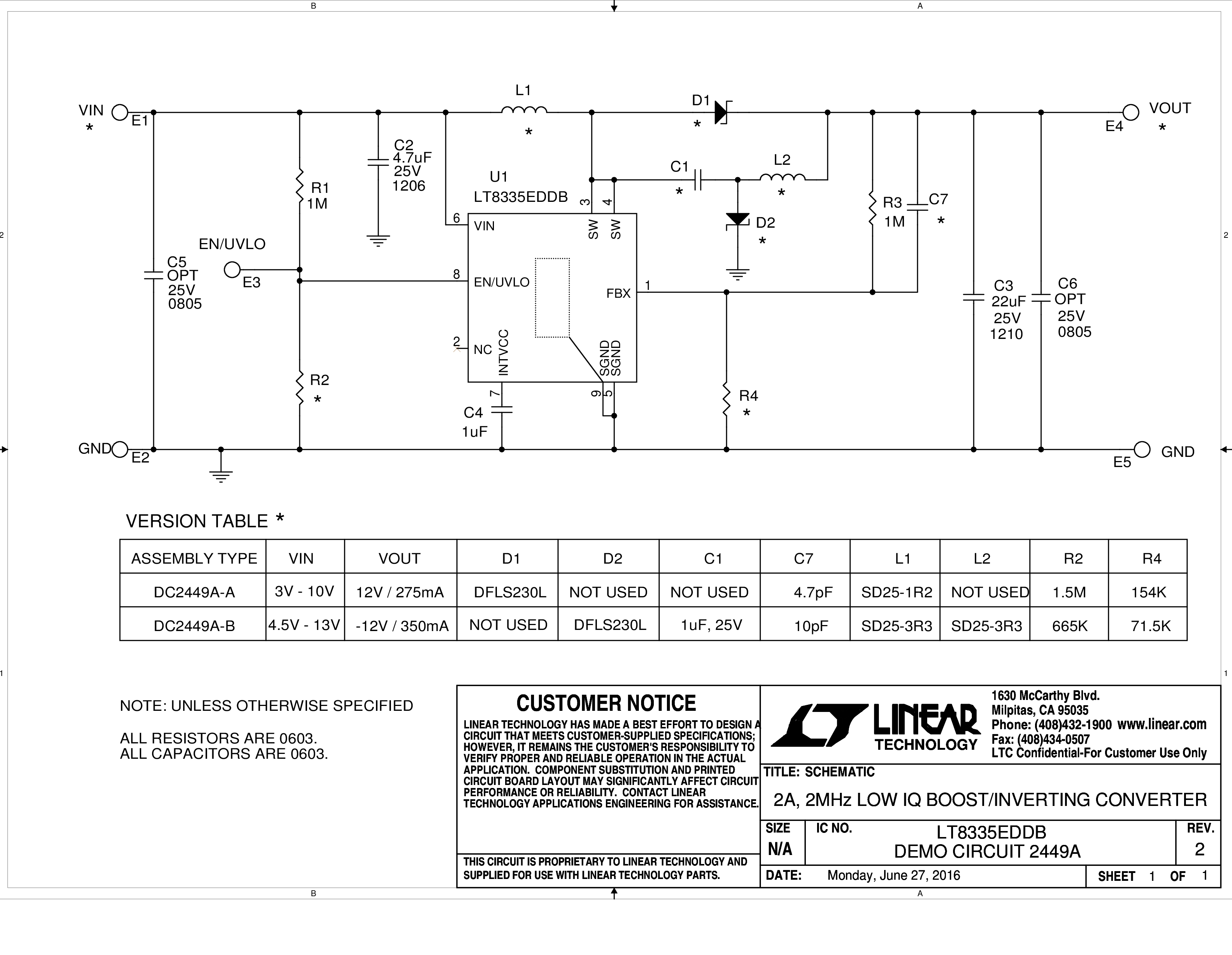

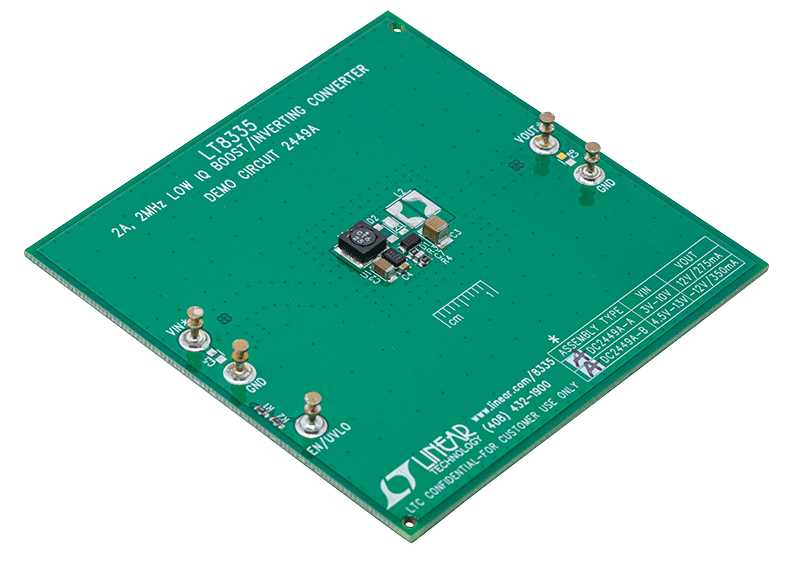

LT8335 Demo Board | Micropower Inverter, 4.5V ≤ VIN ≤ 13V, VOUT = -12V @ 350mA, 2MHz fSWITCH
