LT3042

20V, 200mA, Ultralow Noise, Ultrahigh PSRR RF Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 22
1ku List Price Starting From $2.72
Features
  • Ultralow RMS Noise: 0.8μVRMS (10Hz to 100kHz)
  • Ultralow Spot Noise: 2nV/√Hz at 10kHz

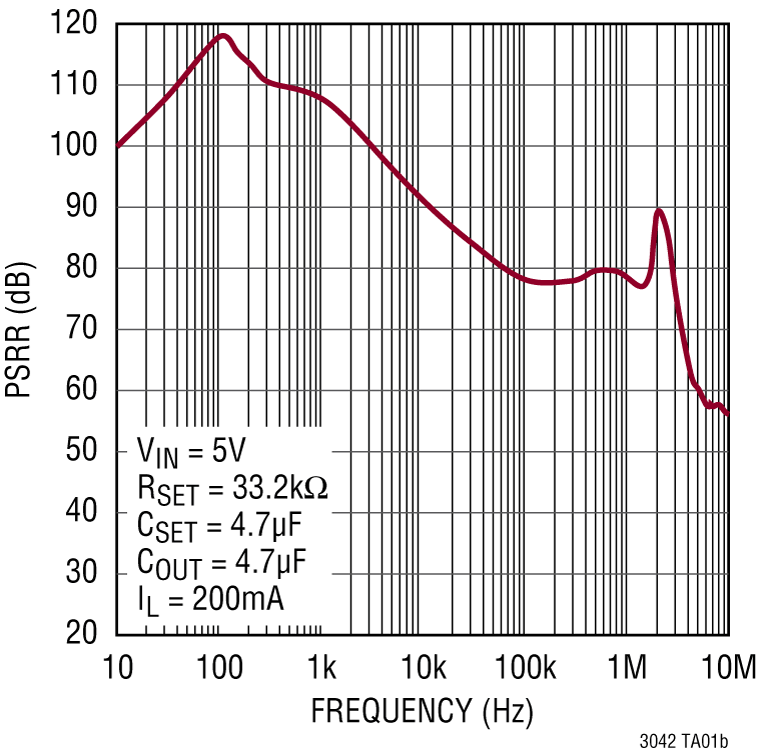

  • Ultrahigh PSRR: 79dB at 1MHz
  • Output Current: 200mA
  • Wide Input Voltage Range: 1.8V to 20V
  • Single Capacitor Improves Noise and PSRR
  • 100μA SET Pin Current: ±1% Initial Accuracy
  • Single Resistor Programs Output Voltage
  • High Bandwidth: 1MHz
  • Programmable Current Limit
  • Low Dropout Voltage: 350mV
  • Output Voltage Range: 0V to 15V
  • Programmable Power Good
  • Fast Start-Up Capability
  • Precision Enable/UVLO
  • Parallelable for Lower Noise and Higher Current
  • Internal Current Limit with Foldback
  • Minimum Output Capacitor: 4.7μF Ceramic
  • Reverse Battery and Reverse Current Protection

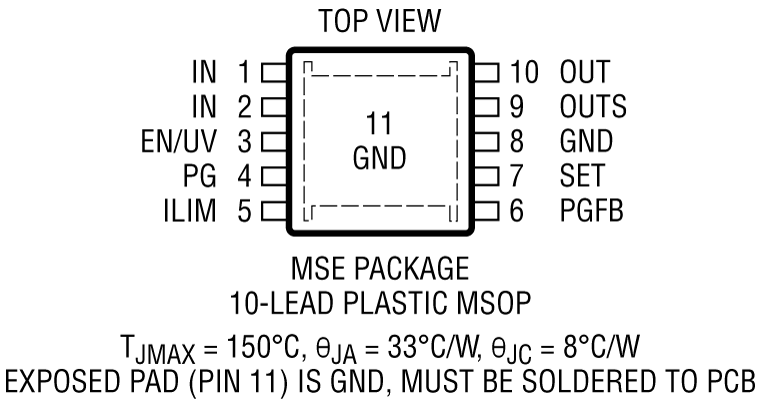

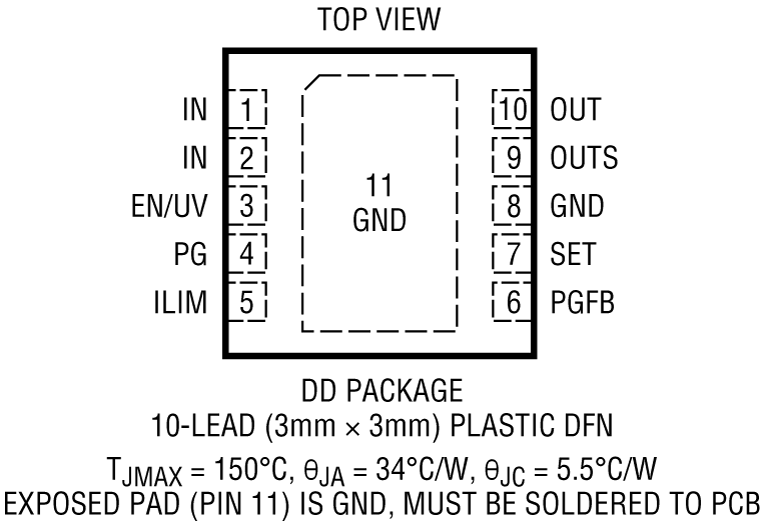

  • 10-Lead MSOP and 3mm × 3mm DFN Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3042 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive RF applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3042 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB.

The device supplies 200mA at a typical 350mV dropout voltage. Operating quiescent current is nominally 2mA and drops to <<1μA in shutdown. The LT3042’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.

The LT3042 is stable with a minimum 4.7μF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3042 is available in thermally enhanced 10-Lead MSOP and 3mm × 3mm DFN packages.

Applications

  • RF Power Supplies: PLLs, VCOs, Mixers, LNAs
  • Very Low Noise Instrumentation
  • High Speed/High Precision Data Converters
  • Medical Applications: Imaging, Diagnostics
  • Precision Power Supplies
  • Post-Regulator for Switching Supplies
Part Models 22
1ku List Price Starting From $2.72

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3042EDD#PBF
  • HTML
  • HTML
LT3042EDD#TRPBF
  • HTML
  • HTML
LT3042EMSE#PBF
  • HTML
  • HTML
LT3042EMSE#TRPBF
  • HTML
  • HTML
LT3042EMSE#WPBF
  • HTML
  • HTML
LT3042EMSE#WTRPBF
  • HTML
  • HTML
LT3042HDD#PBF
  • HTML
  • HTML
LT3042HDD#TRPBF
  • HTML
  • HTML
LT3042HMSE#PBF
  • HTML
  • HTML
LT3042HMSE#TRPBF
  • HTML
  • HTML
LT3042HMSE#WPBF
  • HTML
  • HTML
LT3042HMSE#WTRPBF
  • HTML
  • HTML
LT3042IDD#PBF
  • HTML
  • HTML
LT3042IDD#TRPBF
  • HTML
  • HTML
LT3042IMSE#PBF
  • HTML
  • HTML
LT3042IMSE#TRPBF
  • HTML
  • HTML
LT3042IMSE#WPBF
  • HTML
  • HTML
LT3042IMSE#WTRPBF
  • HTML
  • HTML
LT3042MPDD#PBF
  • HTML
  • HTML
LT3042MPDD#TRPBF
  • HTML
  • HTML
LT3042MPMSE#PBF
  • HTML
  • HTML
LT3042MPMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT3042EMSE#PBF

PRODUCTION

LT3042EMSE#TRPBF

PRODUCTION

LT3042HMSE#PBF

PRODUCTION

LT3042HMSE#TRPBF

PRODUCTION

LT3042IMSE#PBF

PRODUCTION

LT3042IMSE#TRPBF

PRODUCTION

LT3042MPMSE#PBF

PRODUCTION

LT3042MPMSE#TRPBF

PRODUCTION

Jun 21, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3042HMSE#WPBF

PRODUCTION

LT3042HMSE#WTRPBF

PRODUCTION

LT3042IMSE#WPBF

PRODUCTION

LT3042IMSE#WTRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT3042EMSE#PBF

PRODUCTION

LT3042EMSE#TRPBF

PRODUCTION

LT3042HMSE#PBF

PRODUCTION

LT3042HMSE#TRPBF

PRODUCTION

LT3042IMSE#PBF

PRODUCTION

LT3042IMSE#TRPBF

PRODUCTION

LT3042MPMSE#PBF

PRODUCTION

LT3042MPMSE#TRPBF

PRODUCTION

Jun 21, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT3042HMSE#WPBF

PRODUCTION

LT3042HMSE#WTRPBF

PRODUCTION

LT3042IMSE#WPBF

PRODUCTION

LT3042IMSE#WTRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

DC2246B

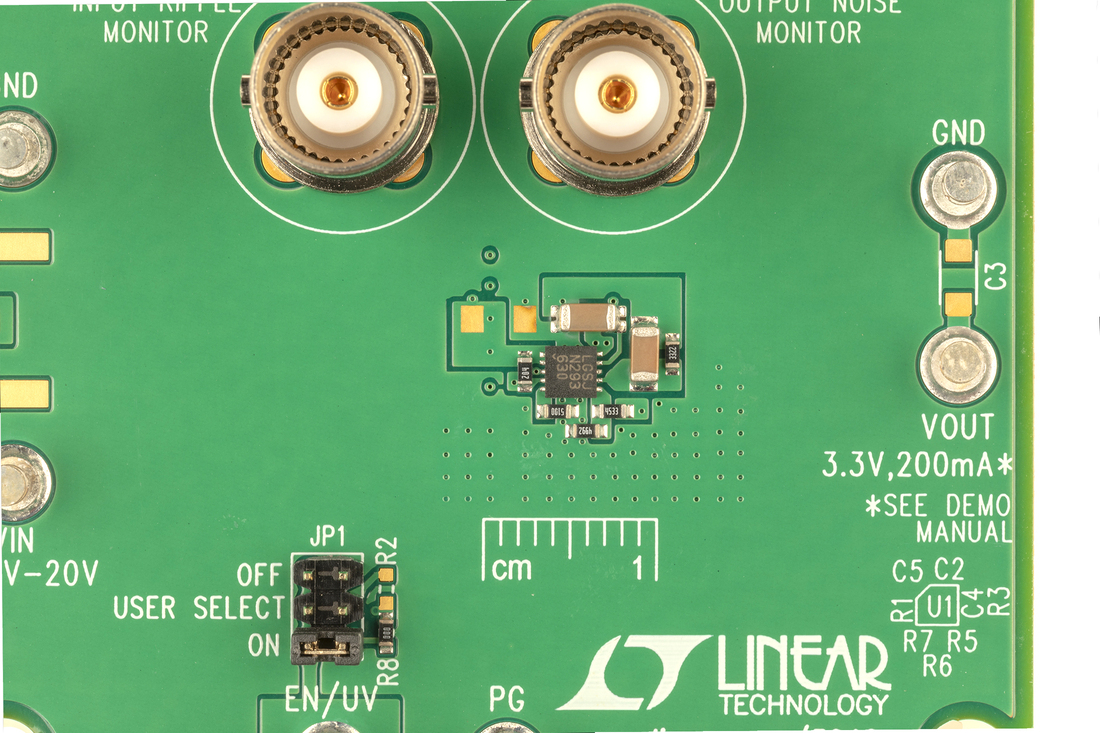

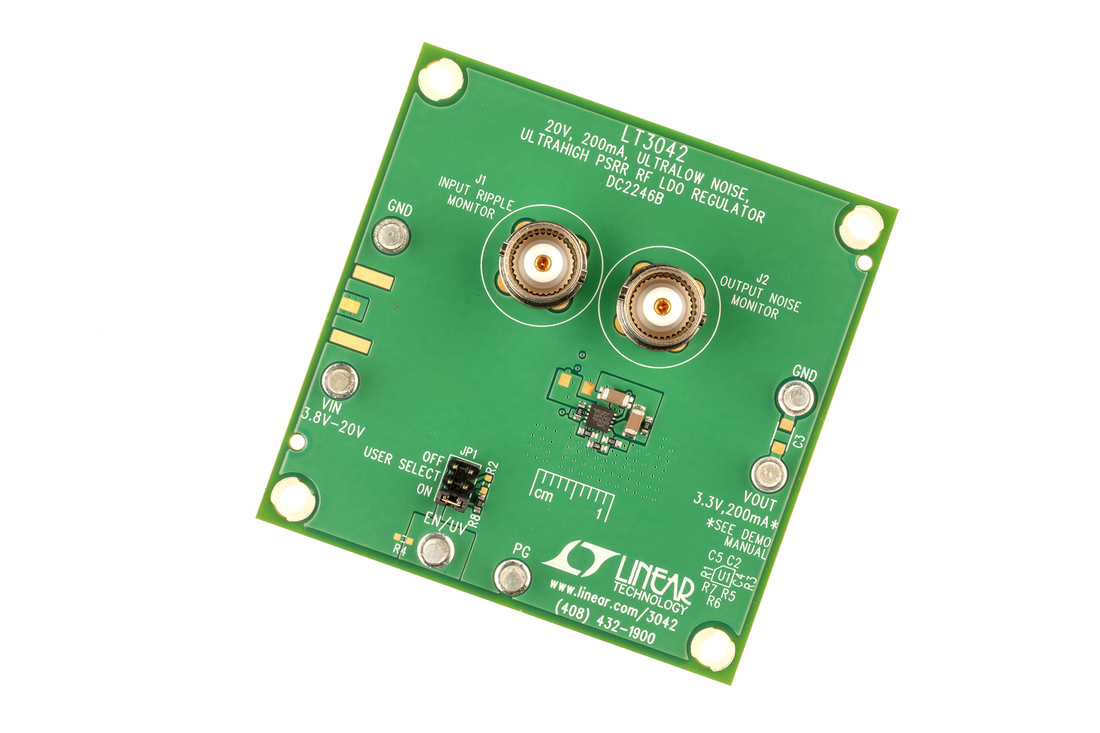

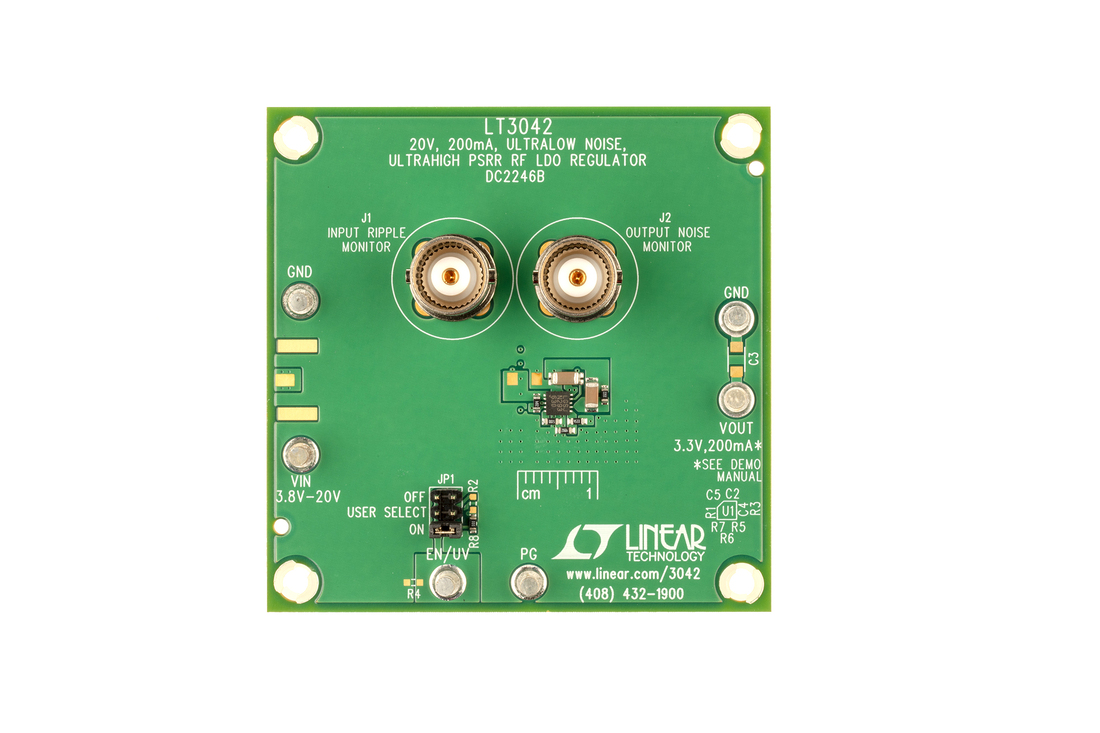

LT3042EDD Demo Board | Ultralow Noise, Ultrahigh PSRR RF LDO, 3.8V ≤ VIN ≤ 20V, VOUT = 3.3V @ 200mA

zoom

DC2246B

LT3042EDD Demo Board | Ultralow Noise, Ultrahigh PSRR RF LDO, 3.8V ≤ VIN ≤ 20V, VOUT = 3.3V @ 200mA

LT3042EDD Demo Board | Ultralow Noise, Ultrahigh PSRR RF LDO, 3.8V ≤ VIN ≤ 20V, VOUT = 3.3V @ 200mA

Product Detail

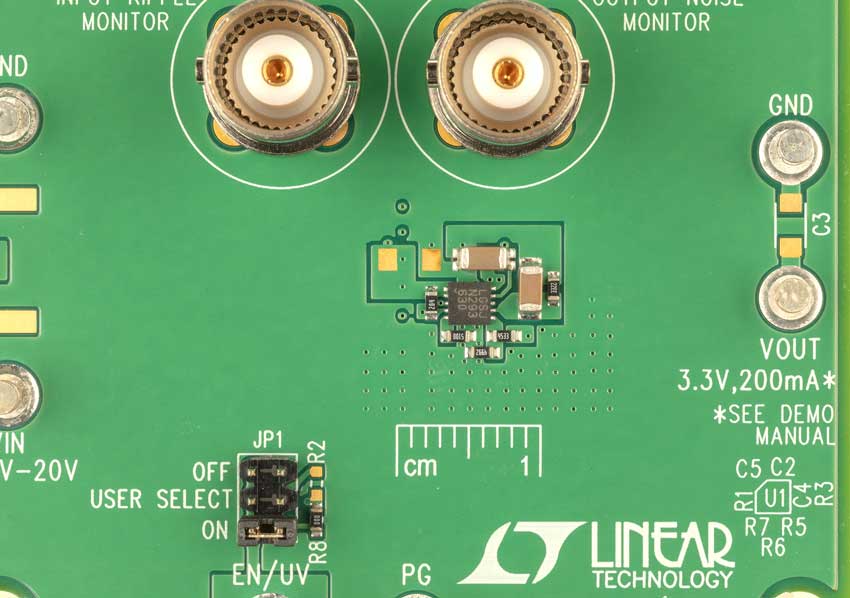

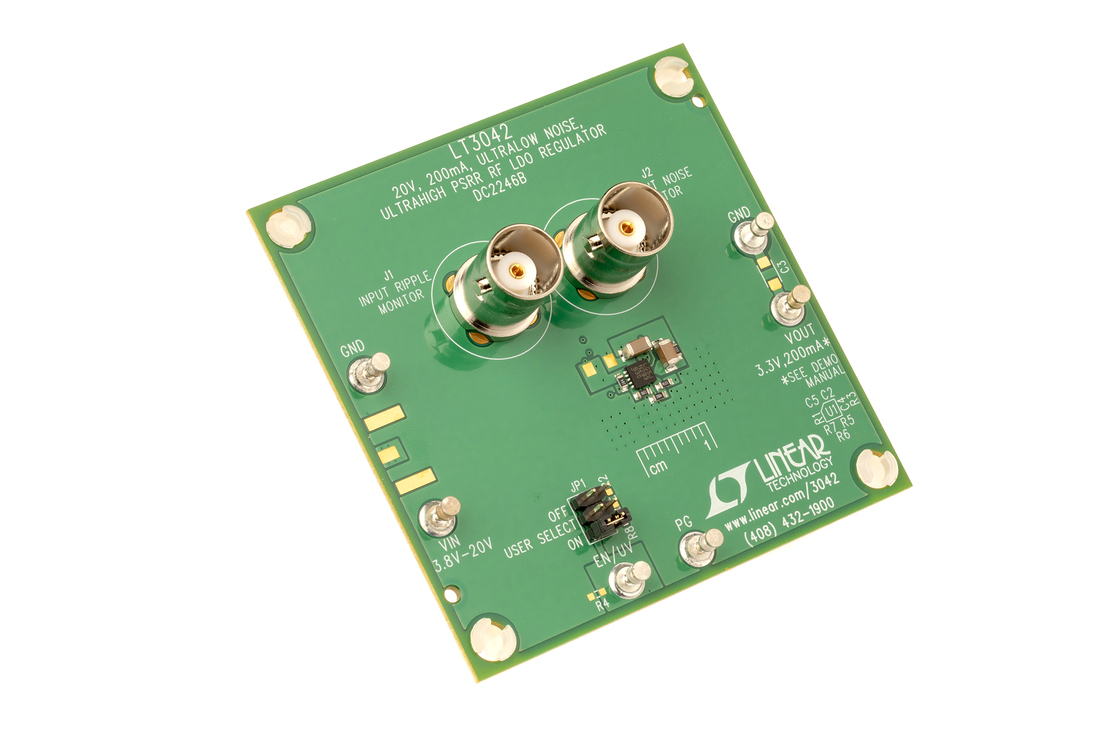

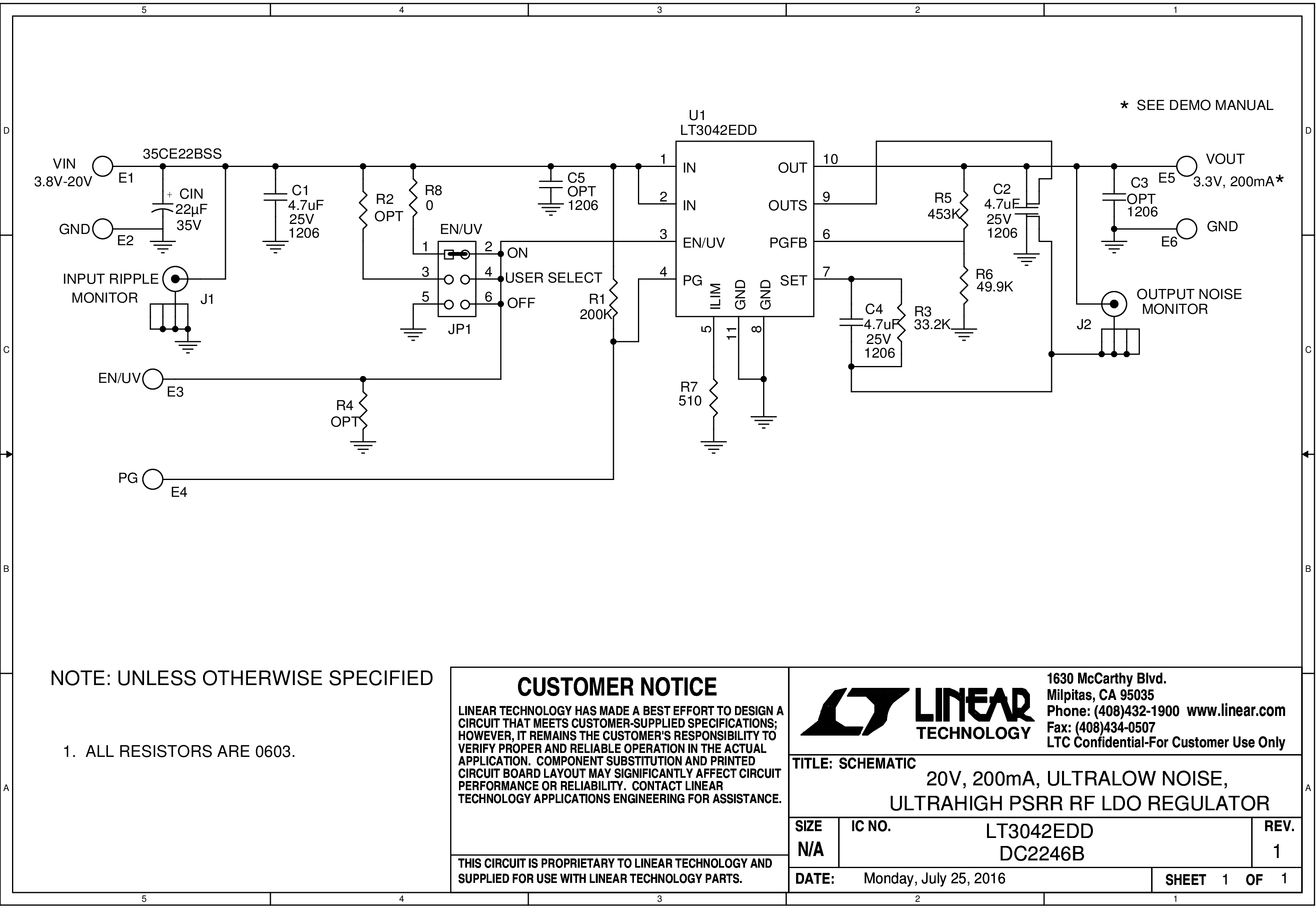

DC2246B is a linear regulator demonstration circuit featuring the LT3042EDD, which is a 200mA, ultralow noise, and ultrahigh power supply rejection ratio (PSRR) RF low dropout (LDO) regulator with programmable current limit.


DC2246B operates over an input voltage range of 3.8V to 20V and is configured for 3.3V at its output. It features ultralow output voltage noise (0.8µVRMS from 10Hz to 100kHz) and very high PSRR (79dB at 1MHz).

reference details image

AD-PAARRAY3552R-SL

RF Front-end GaN Power Amplifier Biasing, Protection, and Control Reference Design

zoom

AD-PAARRAY3552R-SL

RF Front-end GaN Power Amplifier Biasing, Protection, and Control Reference Design

RF Front-end GaN Power Amplifier Biasing, Protection, and Control Reference Design

Features and Benefits

  • Designed to cover full Tx signal chains with integrated MCU and user-friendly GUI for faster and easier integration
  • Supports fault event protection - overvoltage (OV), overcurrent (OC), and overtemperature (OT)
  • Supports ultrafast sub-µs GaN gate voltage switching ~ (<1 µs)
  • Supports ultrafast (<10 µs) fault event protection from detection up to GaN gate pinch-off
  • Wide range of gate bias voltages from -10 V to +10 V
  • Configurable power-up and power-down sequence

Product Detail

The AD-PAARRAY3552R-SL reference design provides control, protection, and proper biasing sequence for GaN power amplifier (PA) arrays. The design incorporates the AD3553R high-speed, dual-channel, 16-bit DAC to support the ultrafast sub-µs voltage settling time of GaN gates.

Key fault events, including overvoltage, overcurrent, and overtemperature, are effectively managed by the LTC7000, a static switch driver responsible for system fault protection.

The on-board MAX32666 ultralow-power ARM® Cortex®-M4 microprocessor provides essential debug and programming features for a comprehensive software development experience with the system. The system's firmware is built on ADI's open-source no-OS framework and includes a user-friendly graphical interface (GUI) for evaluation. Updates are easily applied through an SWD UART bootloader, streamlining prototyping.

The system can be powered by an external +48 V supply, requiring high current capabilities.

APPLICATIONS

  • 5G massive MIMOs
  • Macro base stations
Specifications
Fault Events
Fault Default Limit
Overvoltage +55 V
Overcurrent 3.5 A
Overtemperature 75°C
Output Ports
Port Name No. of ports
GaN gate ports 6
+48 V Gan drain ports 4
+5 V ports 5
Enable ports 2
Power Supply
External +48 V DC at 5 A
Operating Conditions
Temperature Range 45°C to +75°C
reference details image

DC2429A

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

zoom

DC2429A

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

LT3042 Low Noise PLL/VCO Power Supply Board with Onboard 100MHz Reference Frequency

Product Detail

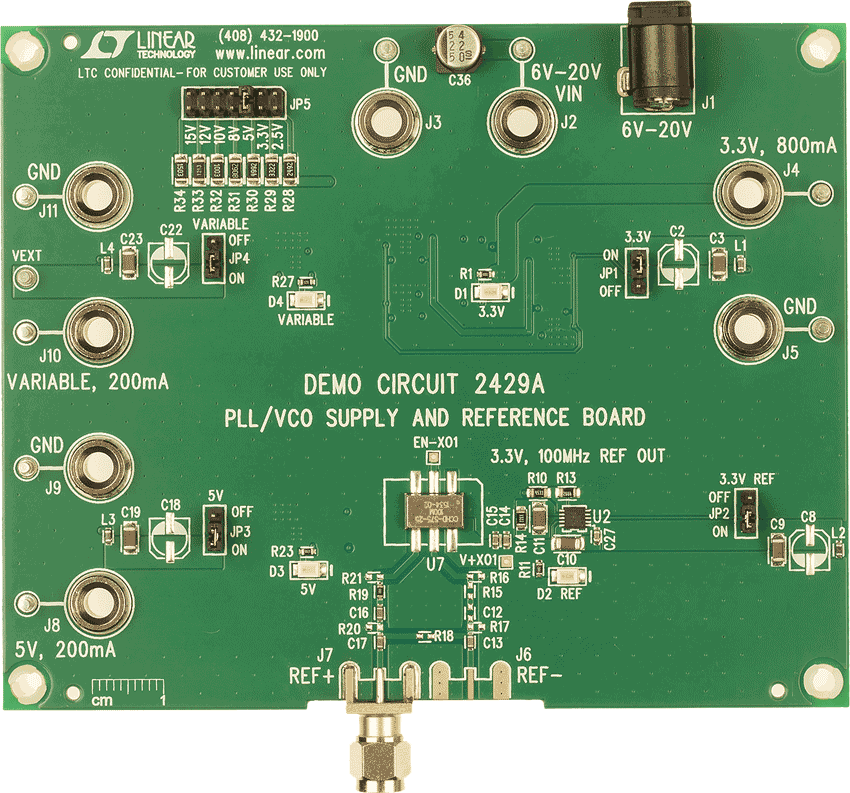

Demonstration Circuit 2429A is a PLL/VCO Supply and Reference Frequency Board that features the LT3042, an ultralow noise and ultrahigh PSRR RF linear regulator. When powered from a 6V to 20V lab or wall wart supply, the DC2429A produces four ultralow noise supplies using seven LT3042s. These supplies include a fixed 3.3V/800mA supply (four LT3042's in parallel), a fixed 5V/200mA supply, a fixed 3.3V/200mA supply that powers an onboard 100MHz ultralow jitter crystal oscillator, and an adjustable voltage (2.5V to 15V), 200mA supply ideal for powering external VCOs. The DC2429 ensures PLL/VCO evaluation meets data sheet performance.
