Overview

Features and Benefits

  • Enhanced system-level ESD performance per IEC 61000-4-x
  • Safety and regulatory approvals (RI-16 package)
    • UL recognition: 5000 V rms for 1 minute per UL 1577
    • CSA Component Acceptance Notice #5A
      • IEC 60601-1: 250 V rms (reinforced)
      • IEC 60950-1: 400 V rms (reinforced)
    • VDE Certificate of Conformity
    • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
      • VIORM = 846 V peak
  • Low power operation
    • 5 V operation
      • 1.4 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 4.3 mA per channel maximum @ 10 Mbps
      • 34 mA per channel maximum @ 90 Mbps
    • 3.3 V operation
      • 0.9 mA per channel maximum @ 0 Mbps to 2 Mbps
      • 2.4 mA per channel maximum @ 10 Mbps
      • 20 mA per channel maximum @ 90 Mbps
  • Bidirectional communication
  • 3.3 V/5 V level translation
  • High temperature operation: 105°C
  • High data rate: dc to 90 Mbps (NRZ)
  • Precise timing characteristics
    • 2 ns maximum pulse width distortion
    • 2 ns maximum channel-to-channel matching
  • High common-mode transient immunity: >25 kV/μs
  • Output enable function
  • 16-lead SOIC wide body package version (RW-16)
  • 16-lead SOIC wide body enhanced creepage version (RI-16)

Product Details

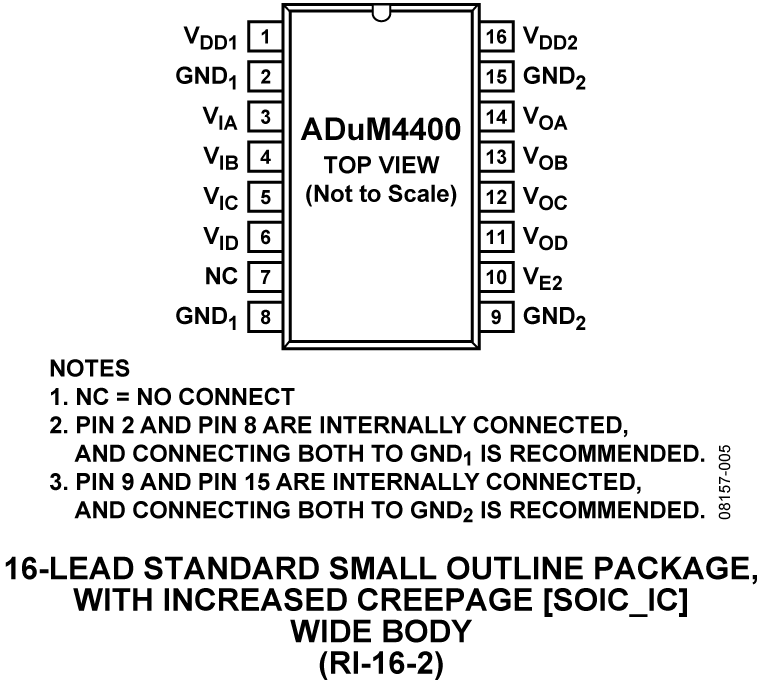

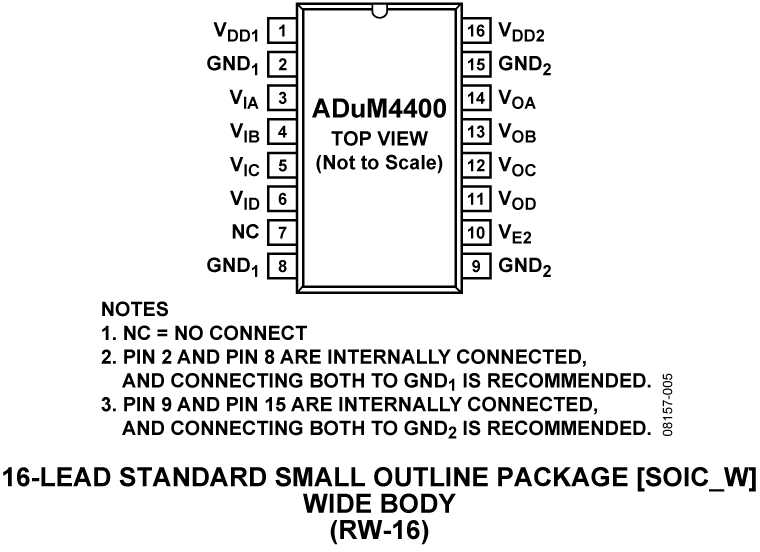

The ADuM440x are 4-channel digital isolators based on the Analog Devices, Inc., iCoupler® technology. Combining high speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics that are superior to the alternatives, such as optocoupler devices and other integrated couplers.

The ADuM440x isolators provide four independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). All models operate with the supply voltage on either side ranging from 3.0 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. The ADuM440x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and during power-up/power-down conditions.

This family of isolators, like many Analog Devices isolators, offers very low power consumption, consuming one-tenth to one-sixth the power of comparable isolators at comparable data rates up to 10 Mbps. All models of the ADuM440x provide low pulse width distortion (<2 ns for C grade). In addition, every model has an input glitch filter to protect against extraneous noise disturbances.

The ADuM440x contain circuit and layout enhancements to help achieve system-level IEC 61000-4-x compliance (ESD/burst/surge). The precise capability in these tests for the ADuM440x are strongly determined by the design and layout of the user’s board or module. For more information, see the AN-793 Application Note, ESD/Latch-Up Considerations with iCoupler Isolation Products.

Applications

  • General-purpose, high voltage, multichannel isolation
  • Medical equipment
  • Motor drives
  • Power supplies

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Documentation & Resources

  • View All (19)
  • Data Sheets (2)
  • Application Notes (1)
  • User Guides (2)
  • Frequently Asked Questions (1)
  • Safety and Regulatory Compliance (1)
  • Informational (1)
  • Product Selection Guide (2)
  • Solutions Bulletins & Brochures (1)
  • Circuit Note (1)
  • Technical Articles (5)
  • Videos (1)
  • Webcasts (1)
  • Frequently Asked Questions

    Reference Designs (1)

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADUM4400ARIZ Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400ARIZ-RL Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400ARWZ Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400ARWZ-RL Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400BRIZ Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400BRIZ-RL Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400BRWZ Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400BRWZ-RL Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400CRIZ Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400CRIZ-RL Material Declaration Reliability Data 16-Lead SOIC (Increased Creepage)
    ADUM4400CRWZ Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400CRWZ-RL Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400WARWZ Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400WARWZ-RL Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400WBRWZ Material Declaration Reliability Data 16-Lead SOIC Wide
    ADUM4400WBRWZ-RL Material Declaration Reliability Data 16-Lead SOIC Wide
