Low Noise, High Speed Amplifier for 16-Bit Systems

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 6

1ku List Price Starting From $1.54

Features

Low noise
2.1 nV/√Hz input voltage noise
2.1 pA/√Hz input current noise
Custom compensation
Constant bandwidth from G = -1 to G = -10
High speed
200 MHz (G = -1)
190 MHz (G = -10)
Low power
34 mW or 6.7 mA typ for 5 V supply
34 mW or 6.7 mA typ for 5 V supply
Low distortion
-93 dBc second harmonic, fc = 1 MHz
-108 dBc third harmonic, fc = 1 MHz
DC precision
1 mV max input offset voltage
0.5 µV/°C input offset voltage drift
Wide supply range, 5 V to 24 V
Low price
Small packaging Available in SOIC-8 and MSOP-8

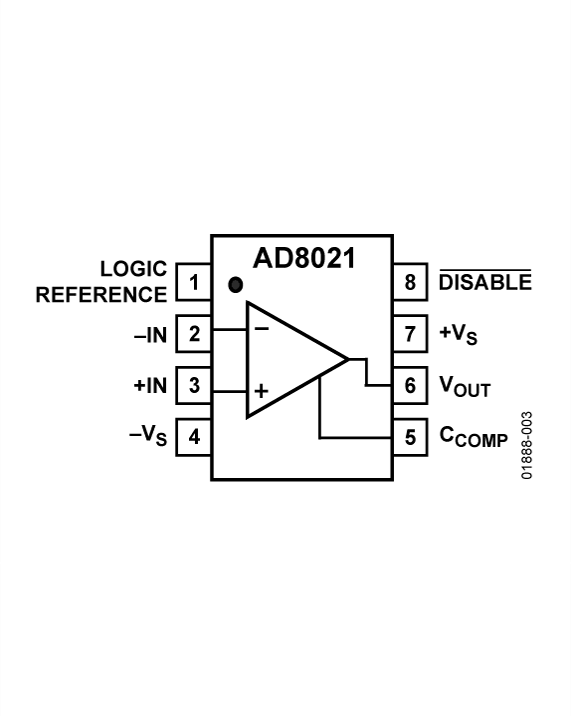

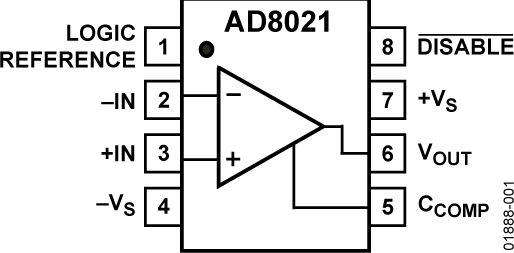

Additional Details

The AD8021 is an exceptionally high performance, high speed voltage feedback amplifier that can be used in 16-bit resolution systems. It is designed to have both low voltage and low current noise (2.1 nV/√Hz typical and 2.1 pA/√Hz typical) while operating at the lowest quiescent supply current (7 mA @ ±5 V) among today's high speed, low noise op amps. The AD8021 operates over a wide range of supply voltages from ±2.25 V to ±12 V, as well as from single 5 V supplies, making it ideal for high speed, low power instruments. An output disable pin allows further reduction of the quiescent supply current to 1.3 mA.

The AD8021 is both technically superior and priced considerably less than comparable amps drawing much higher quiescent current. The AD8021 is a high speed, general-purpose amplifier, ideal for a wide variety of gain configurations, and can be used throughout a signal processing chain and in control loops. The AD8021 is available in both standard 8-lead SOIC and MSOP packages in the industrial temperature range of -40°C to +85°C.
