OP193

Precision, Micropower Single Operational Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $2.34
Features
  • Operates from +1.7 V to ±18 V
  • Low supply current: 15 μA/amplifier
  • Low offset voltage: 100 μV maximum
  • Outputs sink and source: ±8 mA
  • No phase reversal
  • Single- or dual-supply operation
  • High open-loop gain: 600 V/mV
  • Unity-gain stable
Additional Details
show more Icon

The OP193/OP293 are single-supply operational amplifiers that feature a combination of high precision, low supply current, and the ability to operate at low voltages. For high performance in single-supply systems, the input and output ranges include ground, and the outputs swing from the negative rail to within 600 mV of the positive supply. For low voltage operation, the OP193/OP293 can operate down to +1.7 V or ±0.85 V.

The combination of high accuracy and low power operation make the OP193/OP293 useful for battery-powered equipment. The part’s low current drain and low voltage operation allow it to continue performing long after other amplifiers have ceased functioning either because of battery drain or headroom.

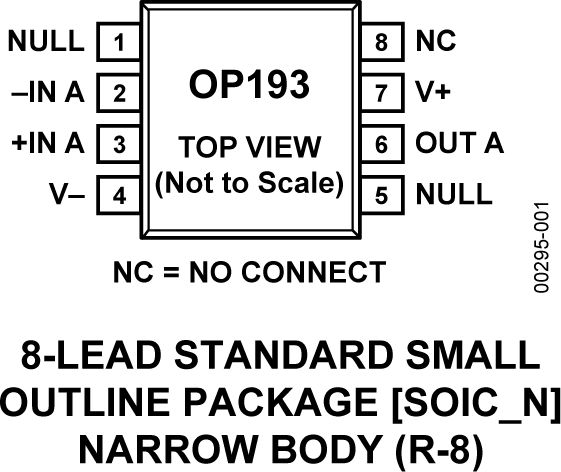

The OP193/OP293 are specified for single +2 V through dual ±15 V operation over the extended (−40°C to +125°C) temperature range. They are available in SOIC surface-mount packages.

Applications

  • Digital scales
  • Strain gages
  • Portable medical equipment
  • Battery-powered instrumentation
  • Temperature transducer amplifier
Part Models 3
1ku List Price Starting From $2.34

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
OP193FSZ
  • HTML
  • HTML
OP193FSZ-REEL
  • HTML
  • HTML
OP193FSZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2015

- 15_0008

OP193 / OP293 Data Sheet Change

OP193FSZ

PRODUCTION

OP193FSZ-REEL

PRODUCTION

OP193FSZ-REEL7

PRODUCTION

Nov 9, 2011

- 11_0182

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

OP193FSZ

PRODUCTION

OP193FSZ-REEL

PRODUCTION

OP193FSZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jan 20, 2015

- 15_0008

arrow down

OP193 / OP293 Data Sheet Change

OP193FSZ

PRODUCTION

OP193FSZ-REEL

PRODUCTION

OP193FSZ-REEL7

PRODUCTION

Nov 9, 2011

- 11_0182

arrow down

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

OP193FSZ

PRODUCTION

OP193FSZ-REEL

PRODUCTION

OP193FSZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

EVAL-OPAMP-1

EVAL-OPAMP-1 Evaluation Board

zoom

EVAL-OPAMP-1

EVAL-OPAMP-1 Evaluation Board

EVAL-OPAMP-1 Evaluation Board

Product Detail

The Universal Precision Op Amp Evaluation Boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.

  • EVAL-PRAOPAMP-1KSZ (Single 5-Lead SC70) KS-5
  • EVAL-PRAOPAMP-1RJZ (Single 5-Lead SOT 23) RJ-5
  • EVAL-PRAOPAMP-1RMZ (Single 8-Lead MSOP) RM-8
  • EVAL-PRAOPAMP-1RZ (Single 8-Lead SOIC) R-8
Reference Designs

Reference Designs 3

ADuC7060/ADuC7061 As a Temperature Monitor Controller with a Thermocouple Interface

USB - Based Thermocouple Temperature Measurement System Using ARM7

zoomopens a dialog

CN0214

USB - Based Thermocouple Temperature Measurement System Using ARM7

CN0214

Circuits from the lab

tooltip Info:Circuits from the lab
USB - Based Thermocouple Temperature Measurement System Using ARM7

Features and Benefits

  • Typical temperature range of -200 C to +400 C
  • T-type thermocouple measurement system
  • Single chip solution with an ARM 7 processing core
  • Cold junction compensation using an RTD
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

477 kB

ADuC7061 Controlling 4 mA-to-20 mA Loop-Based Temperature Monitor Circuit

4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

zoomopens a dialog

CN0145

4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

CN0145

Circuits from the lab

tooltip Info:Circuits from the lab
4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

Features and Benefits

  • Temperature monitoring solution
  • Interfaces with 4-20 mA controller
  • 24 bit precision conversion with integrated processor
View Detailed Reference Design external link
ADuCM360 Controlling 4 mA-to-20 mA Loop-Based Temperature Monitor Circuit

14-Bit, 4-20 mA, Loop Powered, Thermocouple Temperature Measurement System Using ARM Cortex-M3

zoomopens a dialog

CN0319

14-Bit, 4-20 mA, Loop Powered, Thermocouple Temperature Measurement System Using ARM Cortex-M3

CN0319

Circuits from the lab

tooltip Info:Circuits from the lab
14-Bit, 4-20 mA, Loop Powered, Thermocouple Temperature Measurement System Using ARM Cortex-M3

Features and Benefits

  • 4-20mA thermocouple temperature monitor
  • Cold junction compensation
  • Loop powered
View Detailed Reference Design external link
