ADUC7060

Low-Power, Precision Analog Microcontroller, Dual Σ-Δ ADCs, Flash/EE, ARM7TDMI

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $5.33
Features
  • Analog input/output - See data sheet for additional information.
  • Microcontroller
    ARM7TDMI core, 16-/32-bit RISC architecture
    JTAG port supports code download and debug
    Multiple clocking options
  • Memory
    32 kB (16 kB × 16) Flash/EE memory
    4 kB (1 kB × 32) SRAM
  • Tools
    In-circuit download, JTAG based debug
    Low cost, QuickStart development system
  • Communications interfaces
  • SPI interface (5 Mbps)
    4-byte Rx and Tx FIFOs
  • UART serial I/O and I2C (master/slave)
  • See Data Sheet for Additional Information
Additional Details
show more Icon

The ADuC7060/ADuC7061 are fully integrated, 8 kSPS, 24-bit data acquisition systems incorporating high performance multi-channel sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), 16-bit/ 32-bit ARM7TDMI® MCU, and Flash/EE memory on a single chip.

The ADCs consists of a 5-channel primary ADC and up to an 8-channel auxiliary ADC. The ADCs operate in single-ended or differential input modes. A single channel buffered voltage output DAC is available on-chip. The DAC output range is programmable to one of two voltage ranges.

The devices operate from an on-chip oscillator and a PLL gene-rating an internal high frequency clock up to 10.24 MHz. The microcontroller core is an ARM7TDMI, 16-bit/32-bit RISC machine offering up to 10 MIPS peak performance. 4 kB of SRAM and 32 kB of nonvolatile Flash/EE memory are provided on-chip. The ARM7TDMI core views all memory and registers as a single linear array.

The ADuC7060/ADuC7061 contain four timers. Timer 1 is wake-up timer with the ability to bring the part out of power saving mode. Timer 2 may be configured as a watchdog timer. A 16-bit PWM with six output channels is also provided.

The ADuC7060/ADuC7061 contain an advanced interrupt controller. The vectored interrupt controller (VIC) allows every interrupt to be assigned a priority level. It also supports nested interrupts to a maximum level of eight per IRQ and FIQ. When IRQ and FIQ interrupt sources are combined, a total of 16 nested interrupt levels are supported. On-chip factory firmware supports in-circuit serial download via the UART serial interface ports and nonintrusive emulation via the JTAG interface.

The parts operate from 2.375 V to 2.625 V over an industrial temperature range of −40°C to +125°C.

APPLICATIONS

  • Industrial automation and process control
  • Intelligent, precision sensing systems, 4 mA to 20 mA loop-based smart sensors
Part Models 4
1ku List Price Starting From $5.33

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUC7060BCPZ32
  • HTML
  • HTML
ADUC7060BCPZ32-RL
  • HTML
  • HTML
ADUC7060BSTZ32
  • HTML
  • HTML
ADUC7060BSTZ32-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 7, 2014

- 14_0163

Data Sheet & Silicon Anomaly Sheet updates for ADuC7023, ADuC7121, ADuC7122, ADuC7124/6, ADuC7060/61, ADuCM360/1, ADuCM350 product

ADUC7060BCPZ32

PRODUCTION

ADUC7060BCPZ32-RL

PRODUCTION

ADUC7060BSTZ32

PRODUCTION

ADUC7060BSTZ32-RL

PRODUCTION

May 23, 2014

- 13_0233

Assembly Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China.

Feb 1, 2010

- 09_0250

Revision of Idd Specification in ADuC7060 and ADuC7061 Data Sheet

ADUC7060BCPZ32

PRODUCTION

ADUC7060BCPZ32-RL

PRODUCTION

ADUC7060BSTZ32

PRODUCTION

ADUC7060BSTZ32-RL

PRODUCTION

Oct 18, 2016

- 16_0034

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

Jan 5, 2009

- 07_0077

Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 7, 2014

- 14_0163

arrow down

Data Sheet & Silicon Anomaly Sheet updates for ADuC7023, ADuC7121, ADuC7122, ADuC7124/6, ADuC7060/61, ADuCM360/1, ADuCM350 product

ADUC7060BCPZ32

PRODUCTION

ADUC7060BCPZ32-RL

PRODUCTION

ADUC7060BSTZ32

PRODUCTION

ADUC7060BSTZ32-RL

PRODUCTION

May 23, 2014

- 13_0233

arrow down

Assembly Transfer of Select 6x6 and 7x7mm LFCSP Products to STATS ChipPAC China.

Feb 1, 2010

- 09_0250

arrow down

Revision of Idd Specification in ADuC7060 and ADuC7061 Data Sheet

ADUC7060BCPZ32

PRODUCTION

ADUC7060BCPZ32-RL

PRODUCTION

ADUC7060BSTZ32

PRODUCTION

ADUC7060BSTZ32-RL

PRODUCTION

Oct 18, 2016

- 16_0034

arrow down

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

Jan 5, 2009

- 07_0077

arrow down

Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages

Evaluation Kit

Evaluation Kits 1

reference details image

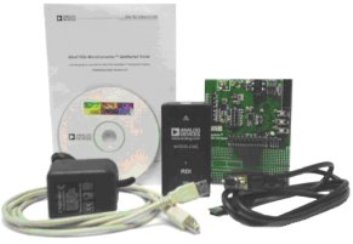

EVAL-ADUC7060

ADuC7060 and ADUC7061 Development Systems

zoom

EVAL-ADUC7060

ADuC7060 and ADUC7061 Development Systems

ADuC7060 and ADUC7061 Development Systems

Features and Benefits

  • 2-layer PCB (4 in. × 5 in. form factor)
  • 9 V power supply regulated to 3.3 V and 2.5 V on board
  • 4-pin UART header to connect to RS-232 interface cable
  • 20-pin standard JTAG connector
  • Demonstration circuit
  • 32.768 kHz watch crystal to drive the PLL clock
  • ADR280 1.2 V external reference chip
  • Reset/download/IRQ0 push buttons
  • Power indicator/general-purpose LEDs
  • Access to all ADC inputs and DAC output from external header; all device ports are brought out to external header pins
  • Surface-mount and through-hole general-purpose prototype area

Product Detail

Development systems for the evaluation of the ADuC7060 and ADuC7061 Precision Analog Microcontrollers incorporating high performance multi-channel 24 bit sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), 16-bit/ 32-bit ARM7TDMI® MCU, and Flash/EE memory.

The QuickStart Plus Kits for the ADuC706x Precision Analog Microcontrollers feature true non-intrusive JTAG emulation and an assembly & C-source debugging environment. This kit is intended for any new users who want to have a comprehensive hardware development environment.

ADI also provides a MiniKit for the ADuC7061. This kit is ideal for system prototyping, student projects or university labs.

Reference Designs

Reference Designs 4

ADuC7060/ADuC7061 As a Temperature Monitor Controller with a Thermocouple Interface

USB - Based Thermocouple Temperature Measurement System Using ARM7

zoomopens a dialog

CN0214

USB - Based Thermocouple Temperature Measurement System Using ARM7

CN0214

Circuits from the lab

tooltip Info:Circuits from the lab
USB - Based Thermocouple Temperature Measurement System Using ARM7

Features and Benefits

  • Typical temperature range of -200 C to +400 C
  • T-type thermocouple measurement system
  • Single chip solution with an ARM 7 processing core
  • Cold junction compensation using an RTD
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

477 kB

ADuC7061 Controlling 4 mA-to-20 mA Loop-Based Temperature Monitor Circuit

4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

zoomopens a dialog

CN0145

4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

CN0145

Circuits from the lab

tooltip Info:Circuits from the lab
4 mA-to-20 mA Loop-Powered Temperature Monitor Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

Features and Benefits

  • Temperature monitoring solution
  • Interfaces with 4-20 mA controller
  • 24 bit precision conversion with integrated processor
View Detailed Reference Design external link
ADuC7060/ADuC7061 as a Temperature Monitor Controller with a Thermocouple Interface

Automotive SENT Interface-Based Thermocouple Temperature Sensor with Cold Junction Compensation Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

zoomopens a dialog

cn0281

Automotive SENT Interface-Based Thermocouple Temperature Sensor with Cold Junction Compensation Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

cn0281

Circuits from the lab

tooltip Info:Circuits from the lab
Automotive SENT Interface-Based Thermocouple Temperature Sensor with Cold Junction Compensation Using the ADuC7060/ADuC7061 Precision Analog Microcontroller

Features and Benefits

  • Thermocouple sensor with cold junction compensation
  • Automotive SENT interface
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

zip

619 kB

Low Power, Long Range, ISM Wireless Measurement Node

Low Power, Long Range, ISM Wireless Measuring Node
