Features and Benefits

  • 2-layer PCB (4 in. × 5 in. form factor)
  • 9 V power supply regulated to 3.3 V and 2.5 V on board
  • 4-pin UART header to connect to RS-232 interface cable
  • 20-pin standard JTAG connector
  • Demonstration circuit
  • 32.768 kHz watch crystal to drive the PLL clock
  • ADR280 1.2 V external reference chip
  • Reset/download/IRQ0 push buttons
  • Power indicator/general-purpose LEDs
  • Access to all ADC inputs and DAC output from external header; all device ports are brought out to external header pins
  • Surface-mount and through-hole general-purpose prototype area

Product Details

Development systems for the evaluation of the ADuC7060 and ADuC7061 Precision Analog Microcontrollers incorporating high performance multi-channel 24 bit sigma-delta (Σ-Δ) analog-to-digital converters (ADCs), 16-bit/ 32-bit ARM7TDMI® MCU, and Flash/EE memory.

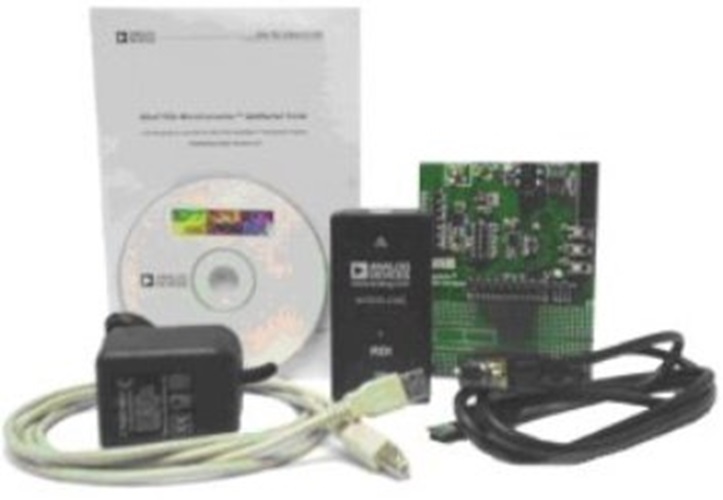

The QuickStart Plus Kits for the ADuC706x Precision Analog Microcontrollers feature true non-intrusive JTAG emulation and an assembly & C-source debugging environment. This kit is intended for any new users who want to have a comprehensive hardware development environment.

ADI also provides a MiniKit for the ADuC7061. This kit is ideal for system prototyping, student projects or university labs.


Code Examples

Evaluation Software

Keil MDKARM evaluation version integrated software development tool.
1.17 M
Tool to assist in using the peripheral function libraries
1.29 M
supporting in-circuit serial programming. (zip)

Product Downloads

IAR EWARM evaluation version integrated software development tool.
