Overview

Features and Benefits

  • Generates Two Independent Low Noise Bias Supplies
  • Boost Regulator:
    • Wide Input Voltage Range: 3V to 20V
    • Adjustable Switching Frequency: 450kHz to 2MHz
    • Synchronizable to External Clock
    • 950mA Power Switches
    • Integrated Schottky Diodes
    • Internal Frequency Compensation
  • Linear Regulator:
    • Wide Output Voltage Range: 1V to 20V
    • SET Pin Reference Current: 50μA
    • Low Noise: 4μVRMS (10Hz to 100kHz)
    • High Frequency PSRR: 72dB at 1MHz
  • Independent Precision-Threshold Enable Pins
  • Symmetric Pinout Simplifies PCB Layout
  • Thermally Enhanced 3mm × 5mm 24-Lead QFN Package

Product Details

The LT3095 generates two low-noise bias supplies from a common input voltage ranging from 3V to 20V. Each channel includes a fixed frequency, peak current-mode step-up switching regulator and a low-noise, singleresistor- programmable 50mA linear regulator. The linear regulator’s high power supply ripple rejection (PSRR) combined with its low-noise performance results in less than 100μVP-P output ripple and noise.

Each boost regulator adjusts its output voltage to 2V above the corresponding linear regulator’s output voltage, optimizing power dissipation, PSRR and transient response. This tracking scheme, along with internal boost regulator frequency compensation and integrated Schottky diodes, minimizes external component count and simplifies system design. Each linear regulator includes internal current limit and thermal limit protection circuitry.

The LT3095 switching frequency is externally programmable with a single resistor from 450kHz to 2MHz. A SYNC pin allows synchronization to an external clock. The LT3095 is available in a thermally enhanced, low profile (0.75mm) 24-lead 3mm × 5mm QFN package.

Applications

  • Noise-Sensitive USB Powered Applications
  • Data Conversion, Industrial Supplies, RF
  • Instrumentation Amplifiers

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

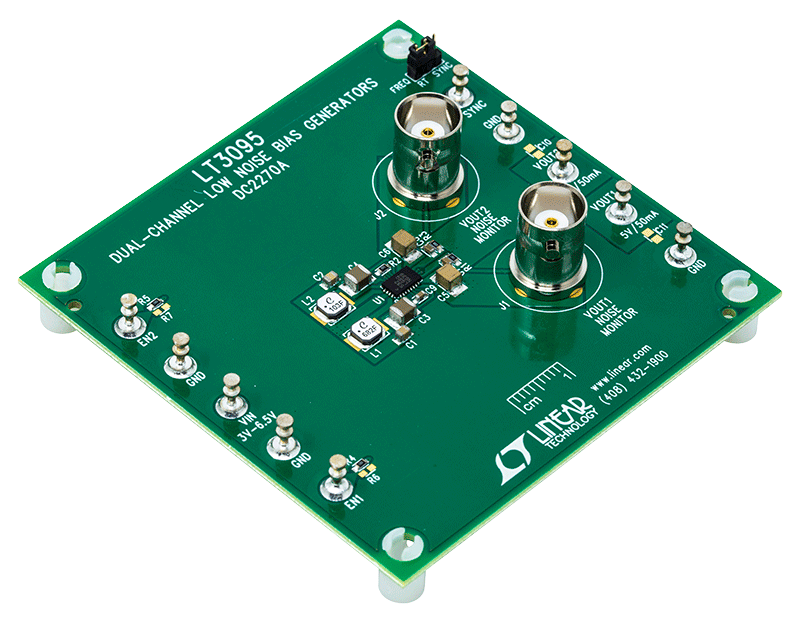

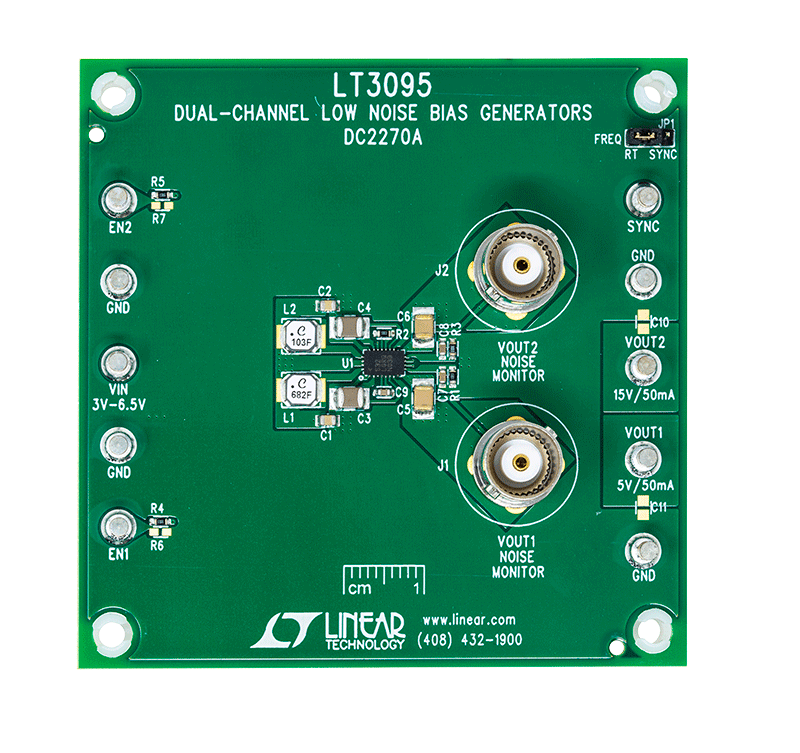

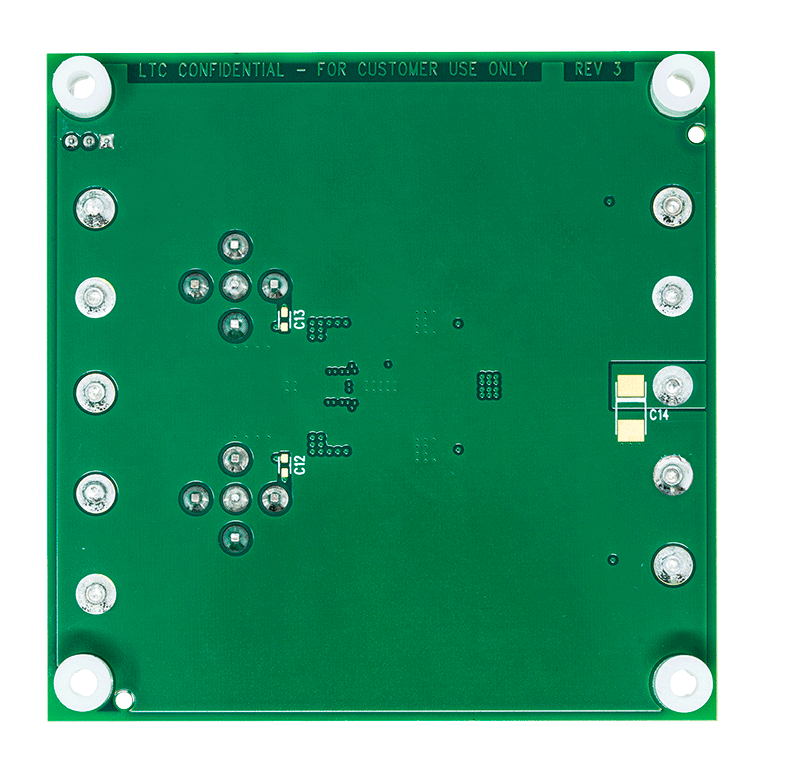

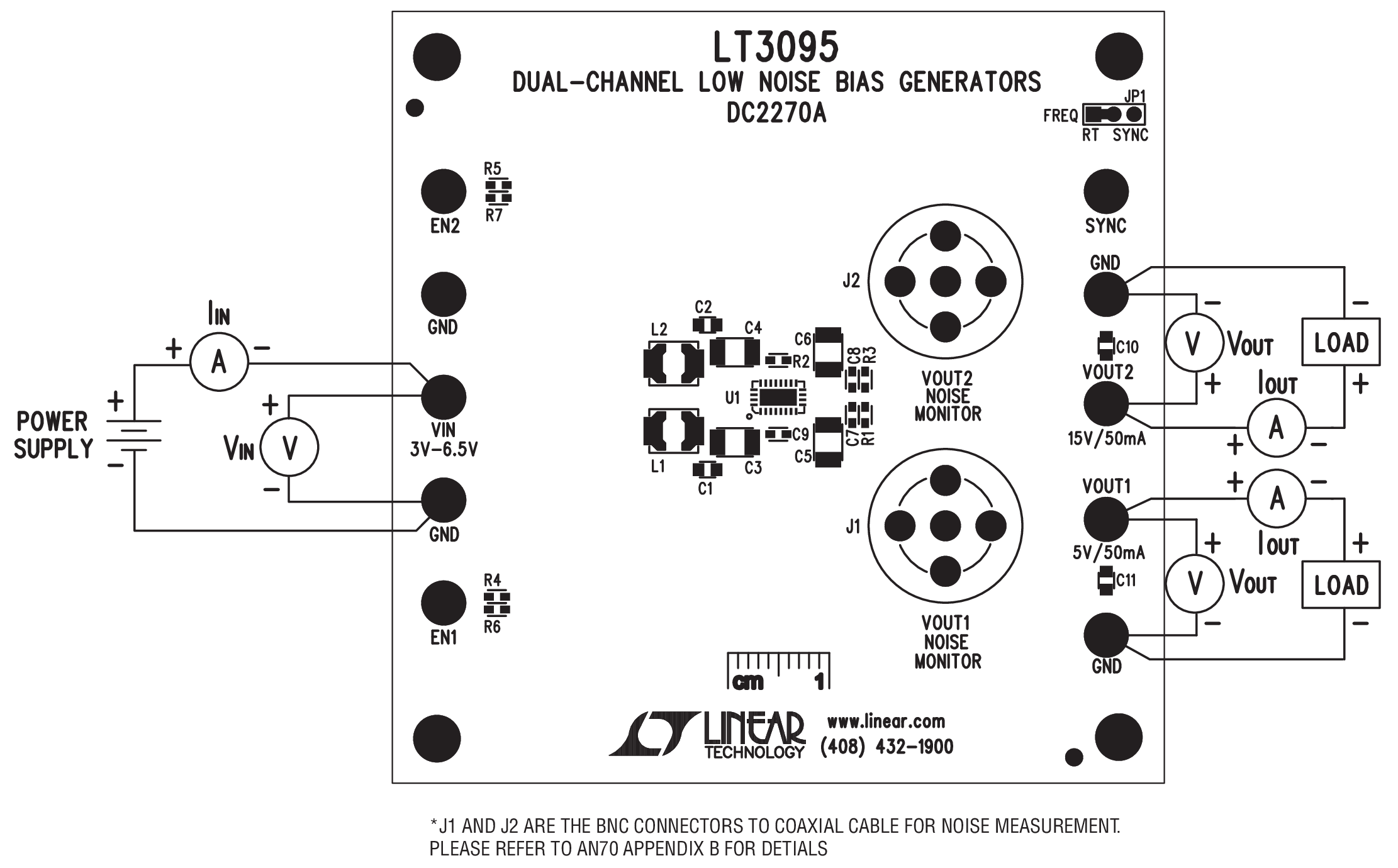

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • 3rd Party Solutions (1)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Press Releases (1)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

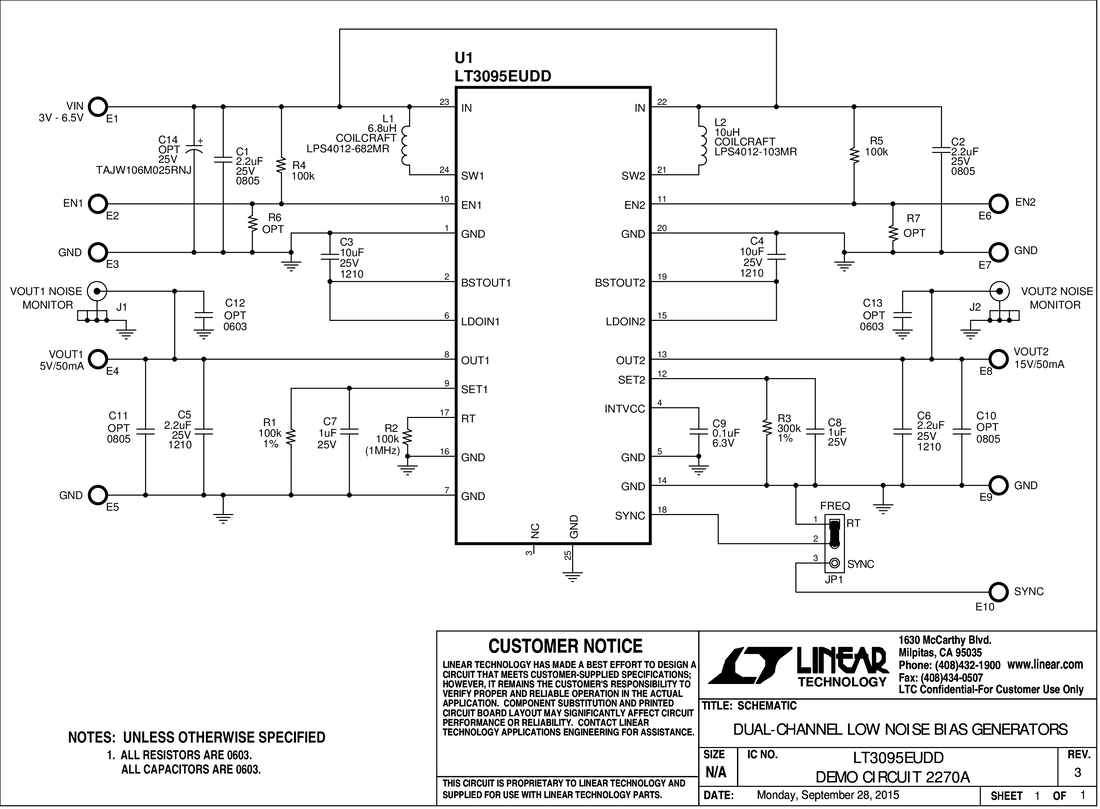

    LT3095 Demo Circuit - Dual Low Noise, Low Ripple Bias Generator (3-20V to 5V & 15V @ 50mA)

    Models for the following parts are available in LTspice:

    LT3095

    Reference Designs (1)

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT3095EUDD#PBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    LT3095EUDD#TRPBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    LT3095IUDD#PBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    LT3095IUDD#TRPBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    LT3095MPUDD#PBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    LT3095MPUDD#TRPBF Material Declaration Reliability Data 24-Lead QFN (3mm x 5mm x 0.75mm w/ EP)
    Wafer Fabrication Data R531 Reliability Data
