AD8065

PRODUCTION

High Performance, 145 MHz FastFET^™ Op Amps

Data Sheet (Rev. L) Product Selection Table

Part Models: 8
1ku List Price: Starting From $2.08

Viewing:

Part Details

Qualified for automotive applications
FET input amplifier
1 pA input bias current
Low cost
High speed: 145 MHz, −3 dB bandwidth (G = +1)
180 V/µs slew rate (G = +2)
Low noise
- 7 nV/√Hz (f = 10 kHz)
- 0.6 fA/√Hz (f = 10 kHz)
Wide supply voltage range: 5 V to 24 V

Single-supply and rail-to-rail output
Low offset voltage 1.5 mV maximum
High common-mode rejection ratio: −100 dB
Excellent distortion specifications
SFDR −88 dBc @ 1 MHz
Low power: 6.4 mA/amplifier typical supply current
No phase reversal
Small packaging: SOIC-8, SOT-23-5, and MSOP-8
Download AD8065-KGD-CHIPS Data Sheet

Part Models: 8
1ku List Price: Starting From $2.08

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8065-KGD-CHIP	None Available	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARTZ-R2	5-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARTZ-REEL	5-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARTZ-REEL7	5-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARZ	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data	Ultra Librarian SamacSys
AD8065WARTZ-R7	5-Lead SOT-23	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 4, 2010 - 10_0009 Halogen Free Material Change for SOT_23 Products
		Material_Report PCN10_0009_Form SOT23 Qualification Data
AD8065ARTZ-REEL	PRODUCTION
AD8065ARTZ-REEL7	PRODUCTION
Oct 11, 2022 - 22_0253 Addition of UTAC Thailand as an Alternate Assembly Site for SOT23, SC70 and TSOT Packages/Devices
		PCN22_0253_Form Material_Report Detailed Change Description Qualification Results Summary
AD8065ARTZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADA4817-1	PRODUCTION	Single, Low Noise, 1 GHz FastFET Op Amplifier
ADA4817-2	PRODUCTION	Dual, Low Noise, 1 GHz FastFET Op Amplifier

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8065

SPICE Model 1

AD8065 SPICE Macro Model

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

VRMS/dBm/dBu/dBV calculators

A utility to convert between standard units of power measurement and signal strength.

Open Tool

Power Dissipation vs Die Temp

This tool estimates die temperature and power dissipation based on the supply voltages, ambient temperature, load characteristics, and package thermal data.

Open Tool

Signal Chain Designer

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

High-Performance Precision Impedance Analyzer Measurement Module

Buy Now View Details

Features and Benefits

Complex impedance measurements
- DC, 0.2Hz to 10MHz
0.05% Basic Relative Accuracy
Wide measurement range
- Resistance from 100μΩ to 20MΩ
- Capacitance from 100aF to 160F
- Inductance from 1nH to 1600H
Programmable test signal
- 16-bit amplitude adjustment up to 2.25Vpk
- Frequency resolution of 0.2Hz
- 16-bit DC bias setting up to ±2.5V
DC resistance measurements
18 impedance measurement formats for C, R, L, Z and Y
Automated multi-point and parametric sweeps
Calibration and fixture compensation functions
- Automated calibration routines for measurement traceability
- Calibration coefficient storage in non-volatile memory
- Compensation eliminates the effect of fixture parasitics

For a complete evaluation solution, both boards must be purchased:

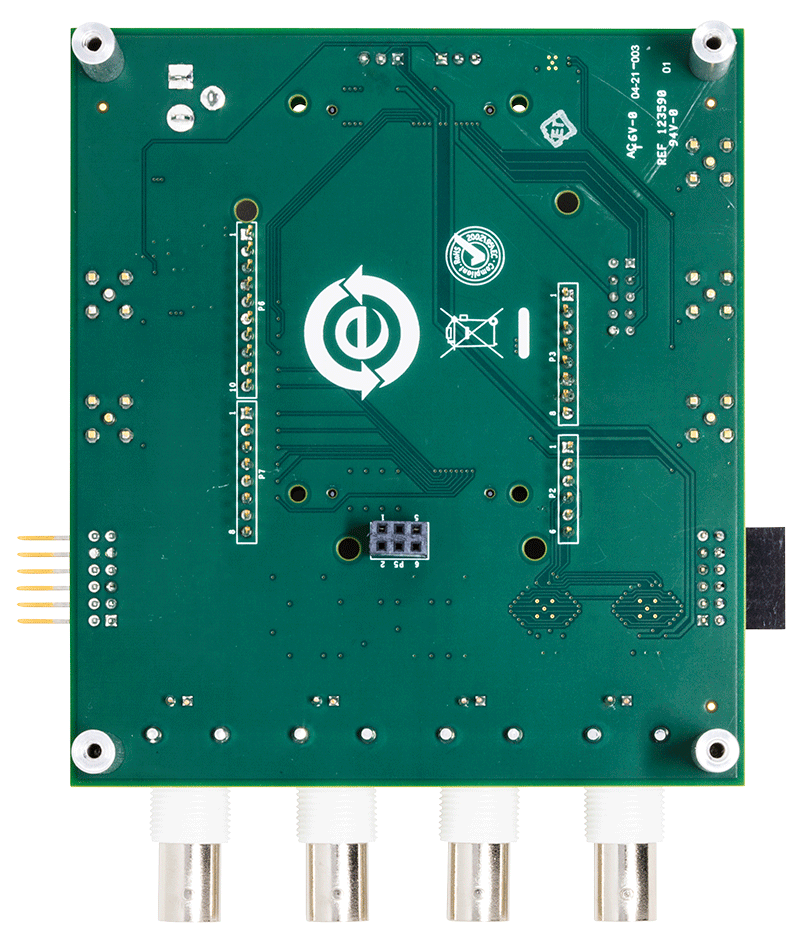

ADMX2001B
