ADF4159

RECOMMENDED FOR NEW DESIGNS

ADF4159

Direct Modulation/Fast Waveform Generating, 13 GHz, Fractional-N Frequency Synthesizer

RECOMMENDED FOR NEW DESIGNS

RECOMMENDED FOR NEW DESIGNS

ADF4159-fbl slide

ADF4159-pc slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $9.21

Features

RF bandwidth to 13 GHz
High and low speed FMCW ramp generation
25-bit fixed modulus allows subhertz frequency resolution
PFD frequencies up to 110 MHz
Normalized phase noise floor of −224 dBc/Hz
FSK and PSK functions
Sawtooth, triangular, and parabolic waveform generation
Ramp superimposed with FSK
Ramp with 2 different sweep rates
Ramp delay, frequency readback, and interrupt functions
Programmable phase control
2.7 V to 3.45 V analog power supply
1.8 V digital power supply
Programmable charge pump currents
3-wire serial interface
Digital lock detect
ESD performance: 3000 V HBM, 1000 V CDM
Qualified for automotive applications

Additional Details

The ADF4159 is a 13 GHz, fractional-N frequency synthesizer with modulation and both fast and slow waveform generation capability. The part uses a 25-bit fixed modulus, allowing subhertz frequency resolution.

The ADF4159 consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. The Σ-Δ-based fractional interpolator allows programmable fractional-N division. The INT and FRAC registers define an overall N divider as N = INT + (FRAC/2²⁵).

The ADF4159 can be used to implement frequency shift keying (FSK) and phase shift keying (PSK) modulation. Frequency sweep modes are also available to generate various waveforms in the frequency domain, for example, sawtooth and triangular waveforms. Sweeps can be set to run automatically, or each step manually triggered by an external pulse. The ADF4159 features cycle slip reduction circuitry, which enables faster lock times without the need for modifications to the loop filter.

Control of all on-chip registers is via a simple 3-wire interface. The ADF4159 operates with an analog power supply in the range of 2.7 V to 3.45 V and a digital power supply in the range of 1.62 V to 1.98 V. The device can be powered down when not in use.

Applications

Communications infrastructure
Communications test equipment
Instrumentation
FMCW radars

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 4

1ku List Price Starting From $9.21

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 8

ADF4159: Direct Modulation/Fast Waveform Generating, 13 GHz, Fractional-N Frequency Synthesizer Data Sheet (Rev.E) 05/01/2013

Show More

UG-476: PLL Software Installation Guide 08/10/2015

UG-383: Evaluating the ADF4159 Frequency Synthesizer for Phase-Locked Loops 08/08/2013

Show More

High Performance Integrated 24 GHz FMCW Radar Transceiver Chipset for Auto and Industrial Sensor Applications 11/01/2015

24 GHz Demorad Radar Solutions Enable New Contactless Sensors for Emerging Industrial Mass Market 06/01/2017

Technological Solutions to Overcoming Hurdles in Unmanned Aerial Vehicles and Systems Market 01/10/2018

Radar Basics: How to Build a 24 GHz FMCW Radar System 01/24/2023

Show More

Enabling Smart Traffic with Advanced Traffic Control Systems 07/18/2018

Show More

Reference Materials 19

ADF4159 Device Driver 04/03/2024

Enabling Smart Traffic with Advanced Traffic Control Systems 07/18/2018

CN-0302: Ultra-Fast Settling PLL with RF to 13 GHz 11/01/2013

Elevate Surveillance with Cameras that See, Sense and Think 09/15/2022

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Latest Developments in Analog Devices PLL Portfolio 02/01/2018

Getting the Most from ADI PLL Products 07/19/2016

Signal Integrity: Optimizing RF Signal Chains 12/17/2020

Advances In Unmanned Systems Technology Electronics Solutions 05/25/2017

Fundamentals of Frequency Synthesis, Part 2: Direct Digital Synthesis (DDS) 04/10/2017

Fundamentals of Frequency Synthesis, Part 1: Phased Locked Loops 04/10/2017

Video

8

Thumbnail Image

Video

2016-06-13

02:29

24GHz Multi-channel Radar and Sensor Solution at IMS 2016

Learn More

Thumbnail Image

Video

2016-05-23

02:32

24 GHz Radar Provides Safety via Obstacle Detection and Ranging

Learn More

Thumbnail Image

Video

2017-02-27

06:35

High Performance 76-81GHz 28nm RF CMOS Automotive RADAR

Learn More

Thumbnail Image

Video

2017-08-30

02:43

miRadar 8: 24GHz FMCW MIMO Radar Platform by Sakura Tech

Learn More

Thumbnail Image

Video

2017-06-30

02:09

Demorad - 24GHz Radar Demonstration Platform

Learn More

video thumbnail

Video

0001-01-01

Learn More

Thumbnail Image

Video

2012-09-18

09:06

Using ADIsimPLL to Simulate Frequency Ramps on the ADF4158

Learn More

Thumbnail Image

Video

2017-06-30

03:02

High Integration SiGe Solutions for Freq. Generation & Conversion

Learn More

Show More

Design Resources 4

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4159CCPZ	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4159CCPZ-RL7	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4159WCCPZ	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4159WCCPZ-RL7	24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADF4159CCPZ
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4159CCPZ-RL7
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4159WCCPZ
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4159WCCPZ-RL7
Pin/Package Drawing
24-Lead LFCSP (4mm x 4mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software 1

ADF4159 Device Driver

View Evaluation Software

external link

Companion Parts 11

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
I/Q Demodulators1
ADL5380	RECOMMENDED FOR NEW DESIGNS	400 MHz TO 6000 MHz Quadrature Demodulator
I/Q Modulators1
ADL5375	PRODUCTION	400 MHz TO 6 GHz Broadband Quadrature Modulator
Internal Power Switch Boost Regulators1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Low Input Bias Current Op Amps (≤100 pA)1
AD8065	PRODUCTION	High Performance, 145 MHz FastFET^™ Op Amps
Positive Linear Regulators (LDO)3
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier
Single, Double, and Triple Balanced Mixers2
ADL5801	RECOMMENDED FOR NEW DESIGNS	High IP3, 10 MHz TO 6 GHz, Active Mixer
ADL5802	RECOMMENDED FOR NEW DESIGNS	Dual Channel High IP3 100 MHz TO 6 GHz Active Mixer

Evaluation Software 1

zip ADF4158 and ADF4159 Evaluation Board Software

reference details image

EVAL-TINYRAD

Evaluating the TINYRAD 24 GHz Demonstration Platform

EV-TINYRAD24GANGLE-web

EV-TINYRAD24GTOP-web

EV-TINYRAD24GBOTTOM-ruler

EVAL-TINYRADANGLE-web

EVAL-TINYRADTOP-web

EVAL-TINYRADBOTTOM-web

EVAL-TINYRADCASE-web

Evaluating the TINYRAD 24 GHz Demonstration Platform

Download

Print

EV-TINYRAD24GANGLE-web

EV-TINYRAD24GTOP-web

EV-TINYRAD24GBOTTOM-ruler

EVAL-TINYRADANGLE-web

EVAL-TINYRADTOP-web

EVAL-TINYRADBOTTOM-web

EVAL-TINYRADCASE-web

EV-TINYRAD24GANGLE-web

EV-TINYRAD24GTOP-web

EV-TINYRAD24GBOTTOM-ruler

EVAL-TINYRADANGLE-web

EVAL-TINYRADTOP-web

EVAL-TINYRADBOTTOM-web

EVAL-TINYRADCASE-web

EVAL-TINYRAD

Evaluating the TINYRAD 24 GHz Demonstration Platform

Features and Benefits

24 GHz to 24.25 GHz MIMO FMCW radar
Flexible FMCW measurement timing
Suitable for target detection and tracking
Range resolution of 60 cm, range = 100 m (for RCS = 1 m²)
3 dB beam width = 75° in azimuth and 15° in elevation, azimuth resolution using MIMO angle estimation = 20°
1 PCB, 85 mm × 55 mm
2 front side transmit antennas
4 front side receive antennas

Reverse side ADF5901 24 GHz transmit monolithic microwave integrated circuit (MMIC)
Reverse side ADF5904 24 GHz receive MMIC
Reverse side ADF4159 13 GHz phase-locked loop (PLL)
Reverse side ADAR7251 16-bit, 4-channel ADC
Reverse side ADSP-BF706 Blackfin DSP
Accompanying software controls all functions from a PC
Externally powered via the USB connection

Buy Now View Details

Product Detail

The EV-TINYRAD24G is a radar evaluation module that allows the implementation and testing of radar sensing applications in the 24 GHz industrial, scientific, and medical (ISM) band. The EV-TINYRAD24G uses frequency modulated continuous wave (FMCW) radio signals and an integrated antenna array in a multiple input multiple output (MIMO) radar scheme. The combined antennas, similar to digital beamforming (DBF), allow the TINYRAD module to detect the distance, speed, and angular position of multiple targets simultaneously. The raw analog-to-digital converter (ADC) data is forwarded by the onboard Blackfin^® ADSP-BF706 digital signal processor (DSP) to the PC. The PC evaluation software, with an included graphical user interface (GUI), performs radar signal processing steps to yield radar point clouds that can be visualized as range doppler or range angle plots. The radar algorithms are also available as MATLAB^™ and Python^™ code and enable quick development of user defined, application specific code.

Resources

PDF

UG-1709: Evaluating the TinyRad 24 GHz Demonstration Platform (Rev.0)

0.98 M

Show More

Software

ZIP

EV-TINYRAD24G Evaluation Software

reference details image

EVAL-ADF4159

ADF4159 Evaluation Board

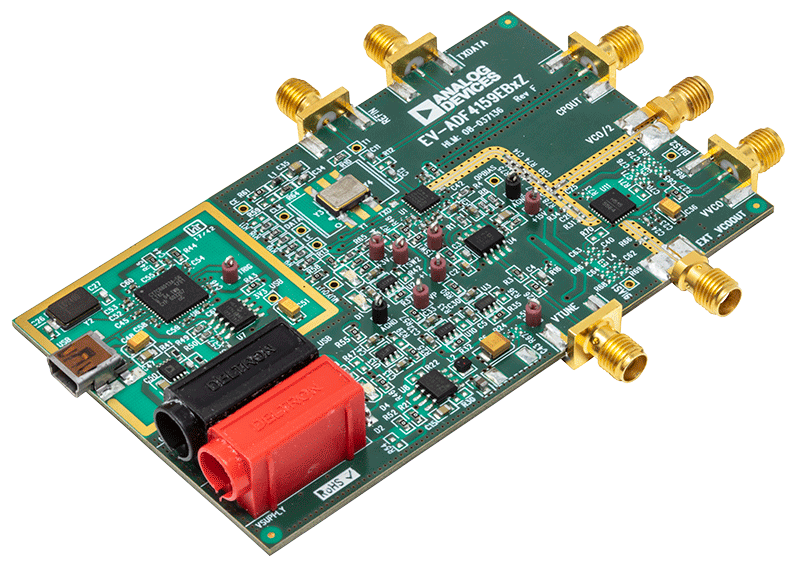

ADF4159 Evaluation Board

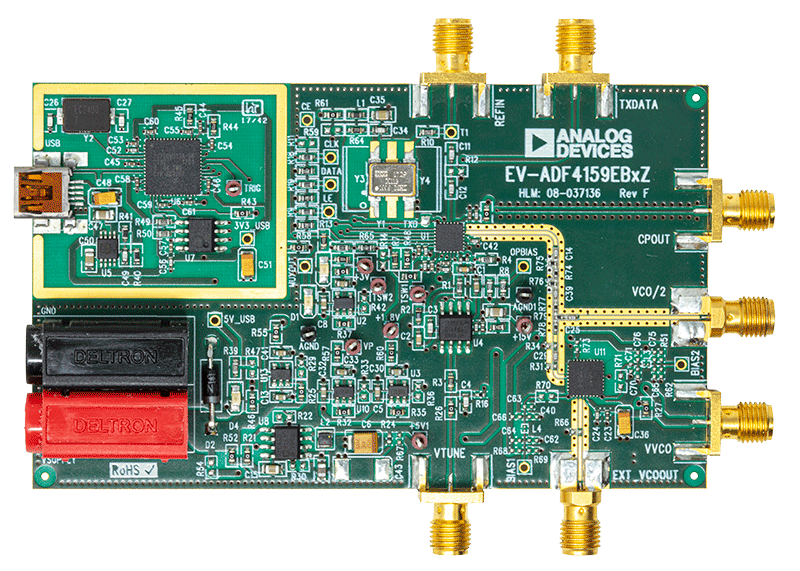

ADF4159 Evaluation Board - Top View

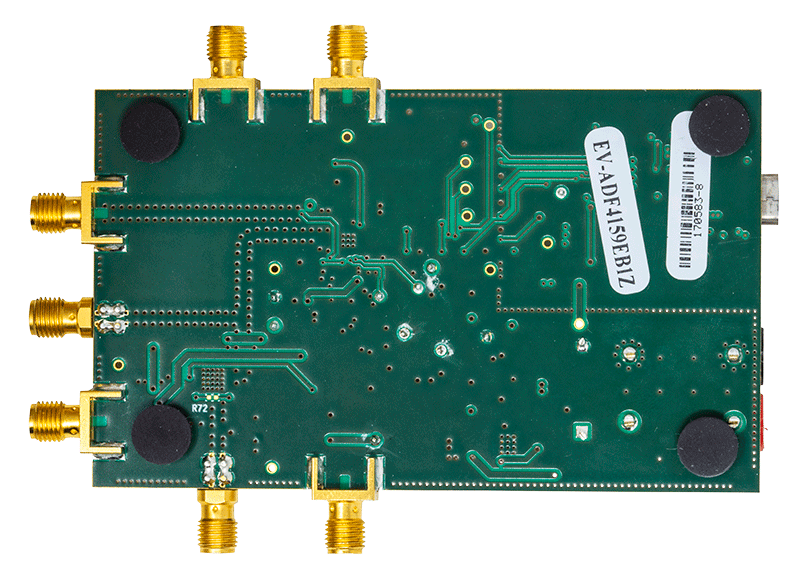

ADF4159 Evaluation Board - Bottom View

ADF4159 Evaluation Board

Download

Print

ADF4159 Evaluation Board

ADF4159 Evaluation Board - Top View

ADF4159 Evaluation Board - Bottom View

ADF4159 Evaluation Board

ADF4159 Evaluation Board - Top View

ADF4159 Evaluation Board - Bottom View

EVAL-ADF4159

ADF4159 Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for the evaluation board used to evaluate the ADF4159 Direct Modulation/Fast Waveform Generating, 13 GHz, Fractional-N Frequency Synthesizer.

Resources

pdf

UG-476: PLL Software Installation Guide

520 kB

pdf

UG-383: Evaluating the ADF4159 Frequency Synthesizer for Phase-Locked Loops

757 kB

PDF

UG-476: PLL Software Installation Guide

421.58 K

ZIP

ADF4159 Design Files

1.98 M

Show More

Software

ZIP

ADF4158 and ADF4159 Evaluation Board Software

1227 kB

evaluation kit item images

EVAL-TINYRAD

Evaluating the TINYRAD 24 GHz Demonstration Platform

evaluation kit item images

EVAL-ADF4159

ADF4159 Evaluation Board

ADIsimPLL™

ADIsimPLL™

ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

IBIS Model 1

Simulation Model

IBIS Model

ADF4159 IBIS Model

88.8 KB

Figure 1. CN0566 Simplified Block Diagram

CN0566

Phased Array (Phaser) Development Platform

Figure 1. CN0566 Simplified Block Diagram

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ KIT - Angle View

EVAL-CN0566-RPIZ KIT - Angle View

zoomopens a dialog

Phased Array (Phaser) Development Platform

Download

Print

Figure 1. CN0566 Simplified Block Diagram

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ KIT - Angle View

EVAL-CN0566-RPIZ KIT - Angle View

Figure 1. CN0566 Simplified Block Diagram

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ Phased Array Development Kit

EVAL-CN0566-RPIZ KIT - Angle View

EVAL-CN0566-RPIZ KIT - Angle View

CN0566

Circuits from the lab

Phased Array (Phaser) Development Platform

Features and Benefits

10 GHz to 10.5 GHZ Beamsteering Platform
360 degree Phase Shift w/ 2.8 Degree Resolution
31 dB Amplitude Tuning Range w/ 0.5 dB Resolution.
8-Element Linear Array Antenna
Digitized with PlutoSDR
Runs directly on a Raspberry Pi

View Detailed Reference Design

Part Used 16

AD8065

ADAR1000

ADF4159

ADL8107

ADM7150

ADM7170

ADP7118

ADP7158

ADRF5019

HMC652-Die

HMC654-Die

HMC735

LT3460

LT8609S

LTC4217

LTC5548

Resources

WIKI

ADAR1000 Linux Device Driver

WIKI

ADF4159 Linux Device Driver

Show More

Design & Integration Tools

ZIP

CN0566 Design Files

15.27 M

Block Diagram of ADF4159, AD8065 Active Loop Filter, and 11.4 GHz to 12.8 GHz VCO

CN0302

Ultra-Fast Settling PLL with RF to 13 GHz

Block Diagram of ADF4159, AD8065 Active Loop Filter, and 11.4 GHz to 12.8 GHz VCO

ADF4159 Evaluation Board

ADF4159 Evaluation Board - Top View

ADF4159 Evaluation Board - Bottom View

zoomopens a dialog

Ultra-Fast Settling PLL with RF to 13 GHz

Download

Print

Block Diagram of ADF4159, AD8065 Active Loop Filter, and 11.4 GHz to 12.8 GHz VCO

ADF4159 Evaluation Board

ADF4159 Evaluation Board - Top View

ADF4159 Evaluation Board - Bottom View

Block Diagram of ADF4159, AD8065 Active Loop Filter, and 11.4 GHz to 12.8 GHz VCO

ADF4159 Evaluation Board

ADF4159 Evaluation Board - Top View

ADF4159 Evaluation Board - Bottom View

CN0302

Circuits from the lab

Ultra-Fast Settling PLL with RF to 13 GHz

Features and Benefits

Up to 13GHz RF output PLL
5μs settling time for 200MHz frequency jump

View Detailed Reference Design

Part Used 2

AD8065

ADF4159

Design & Integration Tools

zip

CN0302 Design & Integration Files

1992 kB

Figure 1. CN0566 Simplified Block Diagram

CN0566

Phased Array (Phaser) Development Platform

Block Diagram of ADF4159, AD8065 Active Loop Filter, and 11.4 GHz to 12.8 GHz VCO

CN0302

Ultra-Fast Settling PLL with RF to 13 GHz

4 Days Ago

RE: PCB substrate information for ADF4159 Eval

4 Days Ago

RE: Regarding RF OUTPUT

View related discussion on EngineerZone

Software & Part Ecosystem

Tools & Simulations

Reference Designs

Latest Discussions
