Overview
Features and Benefits
- Dual Output: Fo = 10.5 - 12.2 GHz
Fo/4 = 2.625 - 3.05 GHz - Pout: +17 dBm
- Phase Noise: -100 dBc/Hz @ 100 kHz Typ.
- No External Resonator Needed
- 32 Lead 5x5 mm QFN Package: 25 mm2
Product Details

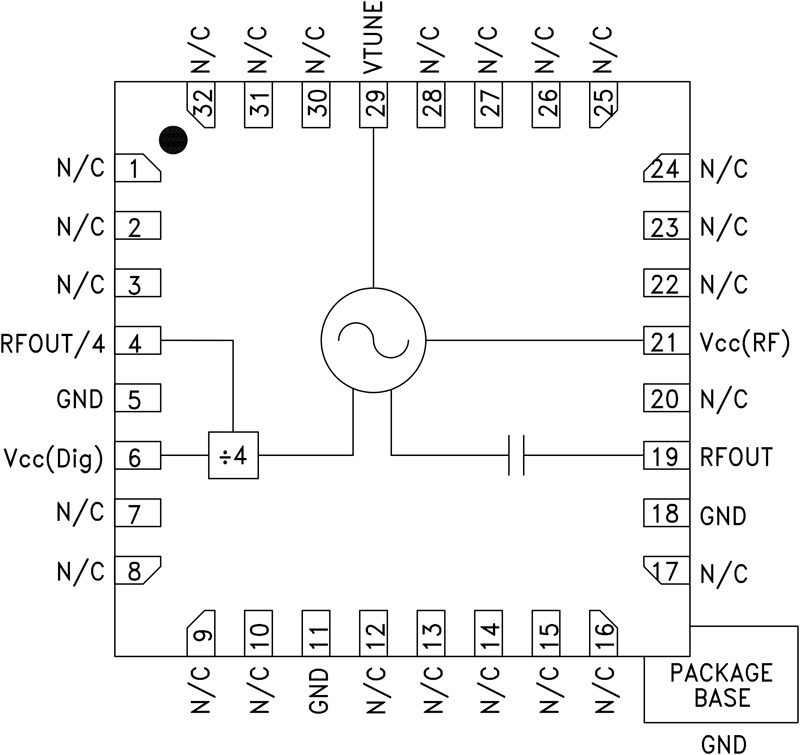

The HMC735 is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC735 integrates resonators, negative resistance devices, varactor diodes and features a divide-by-4 frequency output. The VCO's phase noise performance is excellent over temperature, shock, and process due to the oscillator's monolithic structure. Power output is +17 dBm typical from a +5V supply voltage. The prescaler function can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.
APPLICATIONS
- Point-to-Multi-Point Radios
- Test Equipment & Industrial Controls
- SATCOM
- Military End-Use
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
RF, Microwave, and Millimeter Wave Product Selection Guide7/13/2018PDF9M
-
Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02)4/25/2017PDF0 M
-
Package/Assembly Qualification Test Report: 32L 5x5mm QFN Package (QTR: 10009 REV: 05)11/4/2015PDF1 M
-
Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228)10/29/2015PDF762 K
-
Package/Assembly Qualification Test Report: LP3, LP4, LP5 & LP5G (QTR: 2014-00145)4/22/2015PDF810 K
-
5 x 5 mm QFN Tape Specification (LP5, LC5, LH5)10/28/2015PDF459 K
Tools & Simulations
Design Tools
ADIsimPLL™
ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
Reference Designs (1)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| HMC735LP5E | Material Declaration | Reliability Data | 32-Lead QFN (5mm x 5mm w/ EP) | |
| HMC735LP5ETR | Material Declaration | Reliability Data | 32-Lead QFN (5mm x 5mm w/ EP) | |
| Wafer Fabrication Data |
