ADL8107
GaAs, pHEMT, MMIC, Low Noise Amplifier, 6 GHz to 18 GHz
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single positive supply (self biased)
- Gain: 24 dB typical at 7 GHz to 16 GHz
- OIP3: 29 dBm typical at 7 GHz to 16 GHz
- Noise figure: 1.3 dB typical at 7 GHz to 16 GHz
- 8-lead, 2 mm × 2 mm, LFCSP (see the Outline Dimensions section in the data sheet)
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

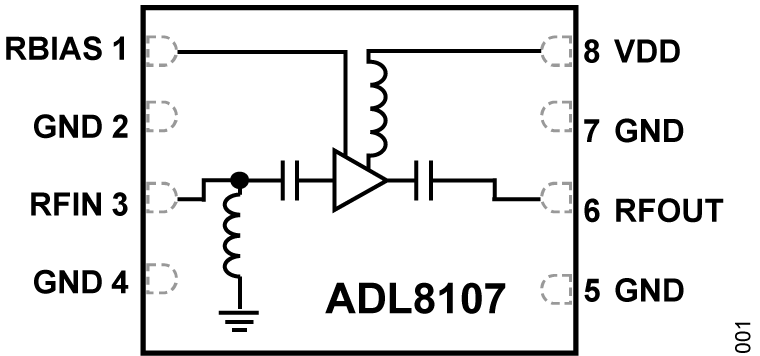

The ADL8107 is a gallium arsenide (GaAs), monolithic microwave IC (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise, wideband, high linearity amplifier that operates from 6 GHz to 18 GHz.
The ADL8107 provides a typical gain of 24 dB at 7 GHz to 16 GHz, a 1.3 dB typical noise figure at 7 GHz to 16 GHz, a 18.5 dBm typical output power for 1 dB compression (OP1dB) at 7 GHz to 16 GHz, and a typical output third-order intercept (OIP3) of 29 dBm at 7 GHz to 16 GHz, requiring only 90 mA from a 5 V drain supply voltage. This low noise amplifier has a high output second-order intercept (OIP2) of 30.5 dBm typical at 7 GHz to 16 GHz, making the ADL8107 suitable for military and test instrumentation applications.
The ADL8107 also features inputs and outputs that are internally matched to 50 Ω. The RFIN and RFOUT pins are internally ac-coupled, and the bias inductor is also integrated, making the ADL8107 ideal for surface-mounted technology (SMT)-based, high density applications.
The ADL8107 is housed in a RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP.
APPLICATIONS
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL8107
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Documentation
Product Selection Guide 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL8107ACPZN |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
|
| ADL8107ACPZN-R7 |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
- ADL8107ACPZN
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8107ACPZN-R7
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 22, 2024
- 24_0237
External RBIAS Resistor (R2) Revision for ADL8107
ADL8107ACPZN
PRODUCTION
ADL8107ACPZN-R7
PRODUCTION
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8107ACPZN
PRODUCTION
ADL8107ACPZN-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 22, 2024
- 24_0237
External RBIAS Resistor (R2) Revision for ADL8107
ADL8107ACPZN
PRODUCTION
ADL8107ACPZN-R7
PRODUCTION
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8107ACPZN
PRODUCTION
ADL8107ACPZN-R7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL8107
Evaluating the ADL8107 GaAs, pHEMT, MMIC, Low Noise Amplifier, 6 GHz to 18 GHz
Product Detail

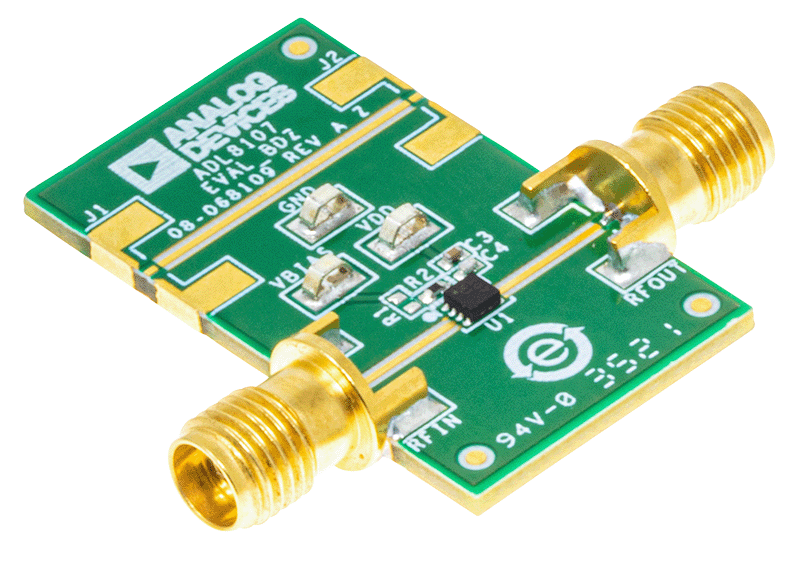

The ADL8107-EVALZ consists of a 4-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B and Isola 370HR, copper clad, forming a nominal thickness of 62 mils. The RFIN and RFOUT ports on the ADL8107-EVALZ are populated with 2.92 mm, female coaxial connectors, and the corresponding RF traces have a 50 Ω characteristic impedance. The ADL8107-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL8107. To calibrate board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Table 1 and Figure 3, in the user guide, for the through calibration path performance.

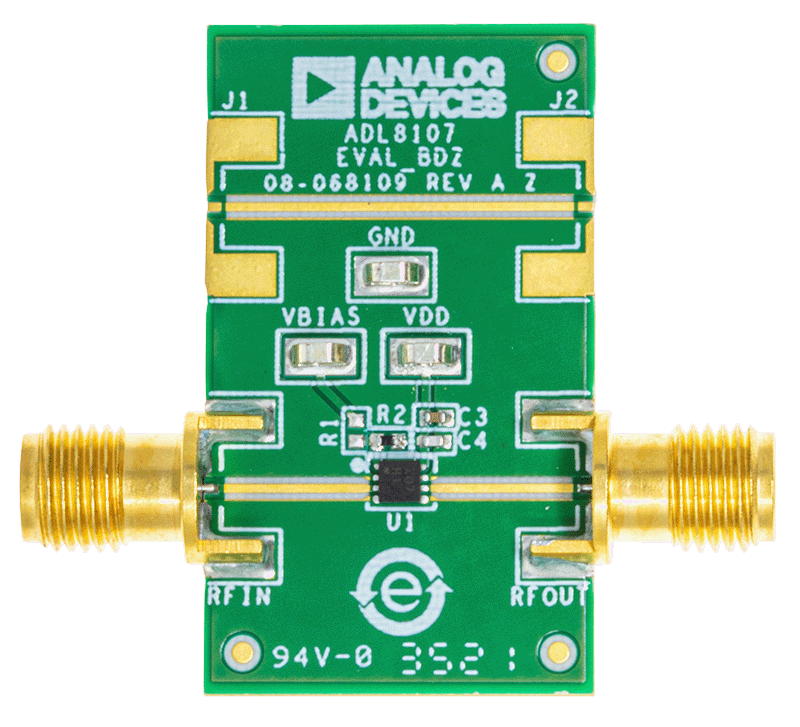

Access the ADL8107-EVALZ ground path and VDD pin through the surface-mount technology (SMT) test point connectors, GND and VDD. A supplementary test point for VBIAS is included for simple access on the RBIAS pin (see Figure 5, in the user guide, for the test point locations).

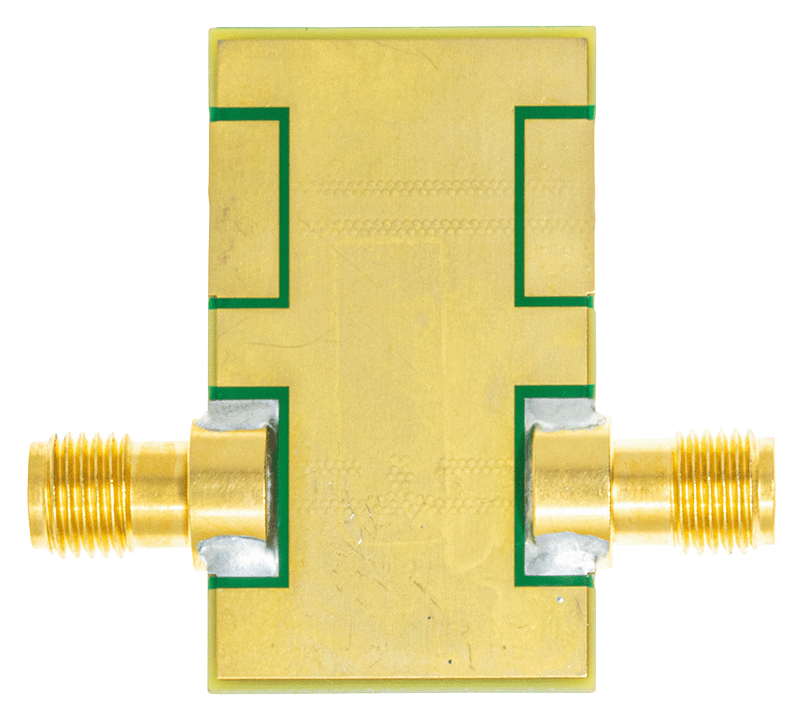

The RF traces on the ADL8107-EVALZ are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground paddle to provide adequate electrical conduction and thermal conduction to the heat sink.
