ADRF5019

RECOMMENDED FOR NEW DESIGNS

Silicon, SPDT Switch, Nonreflective, 100 MHz to 13 GHz

Viewing:

Overview

  • Nonreflective 50 Ω design
  • Low insertion loss: 0.8 dB at 8 GHz
  • High isolation: 45 dB at 8 GHz
  • High input linearity
    • P1dB: 39 dBm
    • IP3: 60 dBm typical
  • High power handling
    • 35 dBm insertion loss path
    • 27 dBm hot switching
  • ESD rating: 2 kV (Class 2) HBM
  • No low frequency spurious
  • 0.05 dB RF settling time: 375 ns
  • 0.1 dB RF settling time: 300 ns
  • 16-lead, 3 mm × 3 mm LFCSP
  • Pin-compatible with HMC1118, low frequency cutoff version

The ADRF5019 is a nonreflective, single pole, double throw (SPDT) RF switch manufactured in a silicon process.

The ADRF5019 operates from 100 MHz to 13 GHz with better than 0.8 dB insertion loss and 45 dB of isolation at 8 GHz. The ADRF5019 has a nonreflective design, and the RF ports are internally terminated to 50 Ω.

The ADRF5019 switch requires a dual supply voltage of +3.3 V and −2.5 V and positive control voltage inputs. This switch employs complementary metal-oxide semiconductor (CMOS)-compatible and low voltage transistor transistor logic (LVTTL)-compatible controls.

The ADRF5019 can also operate with a single positive supply voltage (VDD) applied. The negative supply voltage (VSS) is tied to ground. Even in single-supply operation mode, the ADRF5019 can cover the 100 MHz to 13 GHz operating frequency and maintain good power handling performance. See the Applications Information section for more details.

The ADRF5019 is pin-compatible with the HMC1118, the low frequency cutoff version, which operates from 9 kHz to 13.0 GHz.

The ADRF5019 comes in a 16-lead, lead frame chip scale package (LFCSP) and operates from −40°C to +105°C.

Applications

  • Test instrumentation
  • Microwave radios and very small aperture terminals (VSATs)
  • Military radios, radars, and electronic counter measures (ECMs)
  • Fiber optics and broadband telecommunications

ADRF5019
Silicon, SPDT Switch, Nonreflective, 100 MHz to 13 GHz

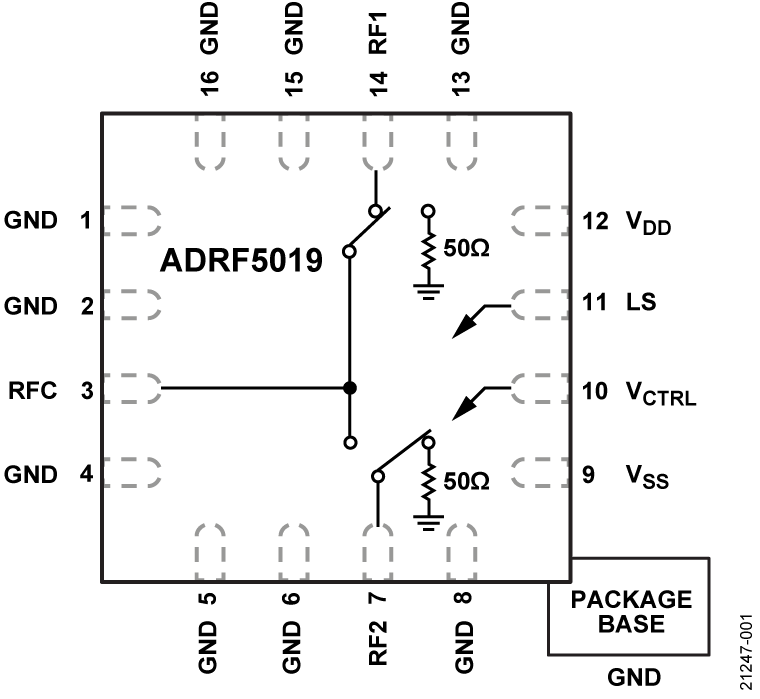

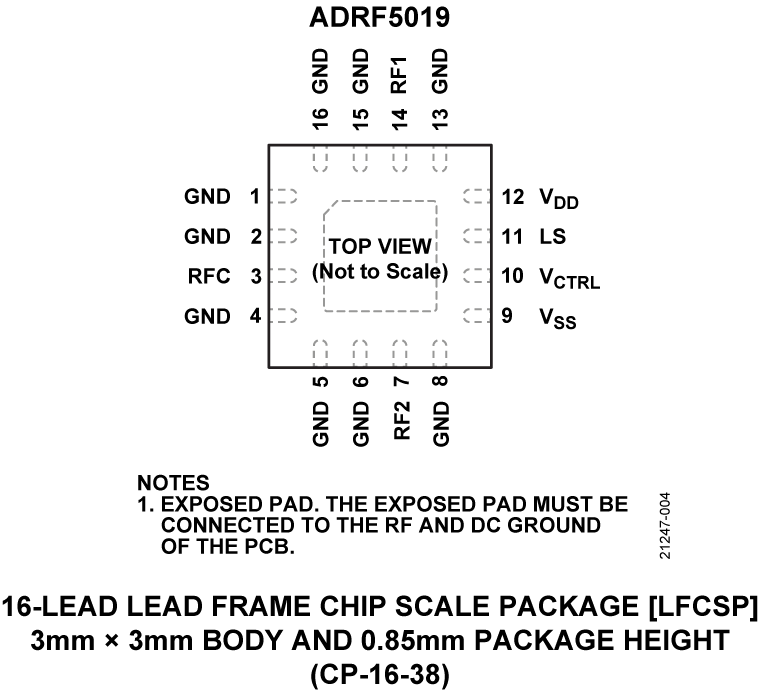

ADRF5019 Functional Block Diagram ADRF5019 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
HMC1118 RECOMMENDED FOR NEW DESIGNS High Isolation, Silicon SPDT, Nonreflective Switch, 9 kHz to 13.0 GHz
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

S-Parameter 1

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool

Evaluation Kits

eval board
EVAL-ADRF5019

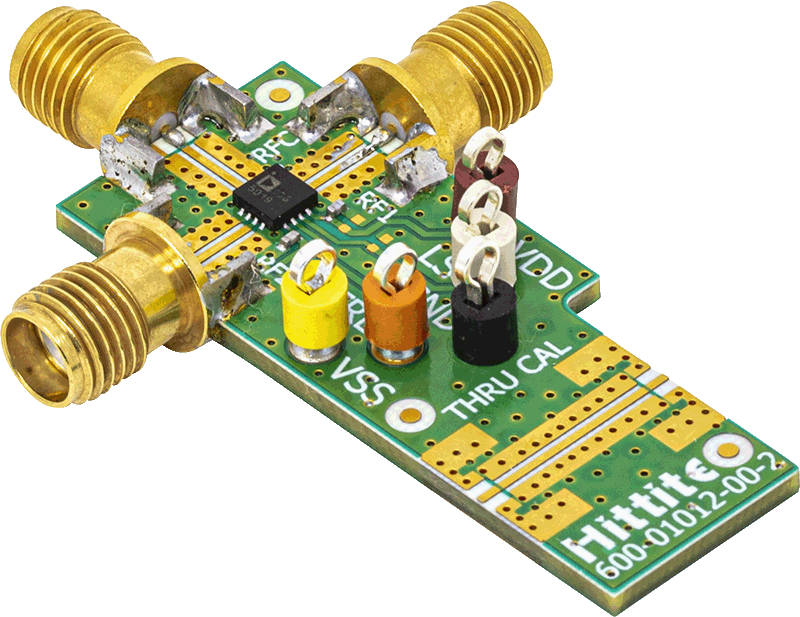

ADRF5019 Evaluation Board

Features and Benefits

  • Contains ADRF5019 device and external components
  • RF SMA connectors
  • Through line for calibration

Product Details

The ADRF5019-EVALZ is designed to evaluate the features and performance of the ADRF5019 100 MHz to 13 GHz, single-pole double throw (SPDT) switch manufactured in a silicon process.

For full details on the ADRF5019, see the ADRF5019 data sheet, which must be consulted in conjunction with this user guide when using the ADRF5019-EVALZ.

EVAL-ADRF5019
ADRF5019 Evaluation Board

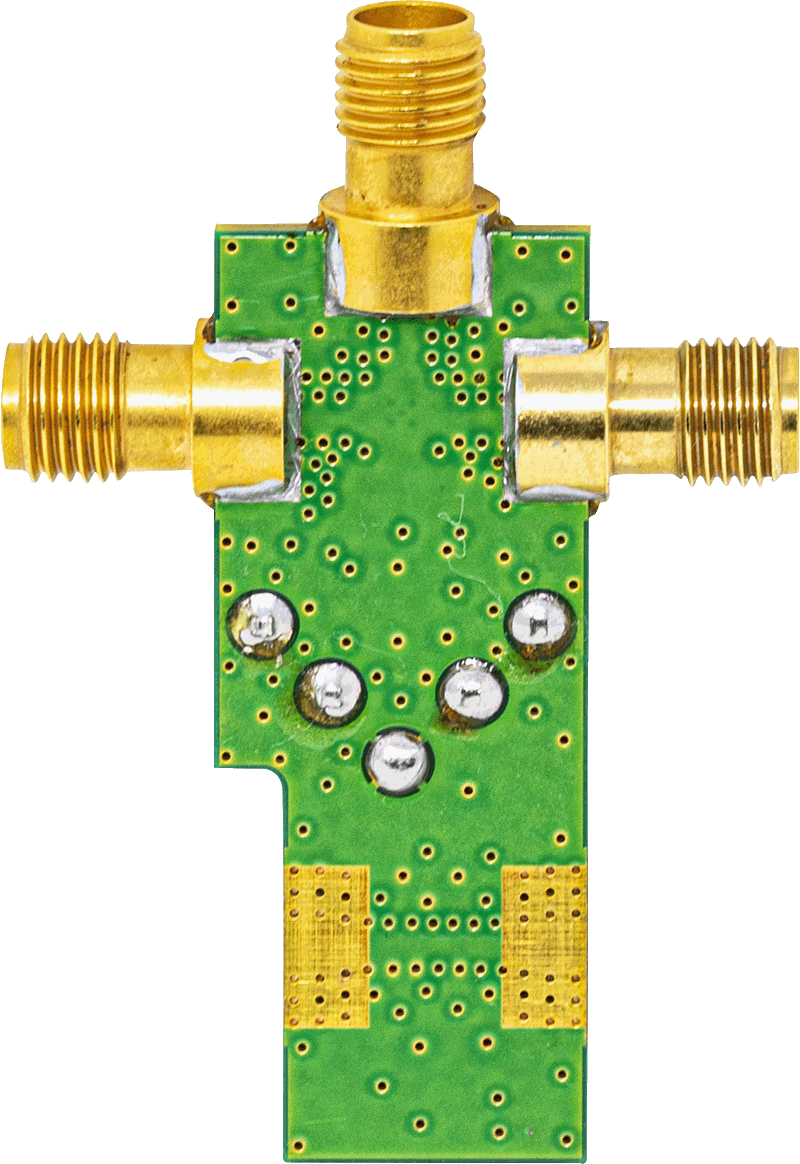

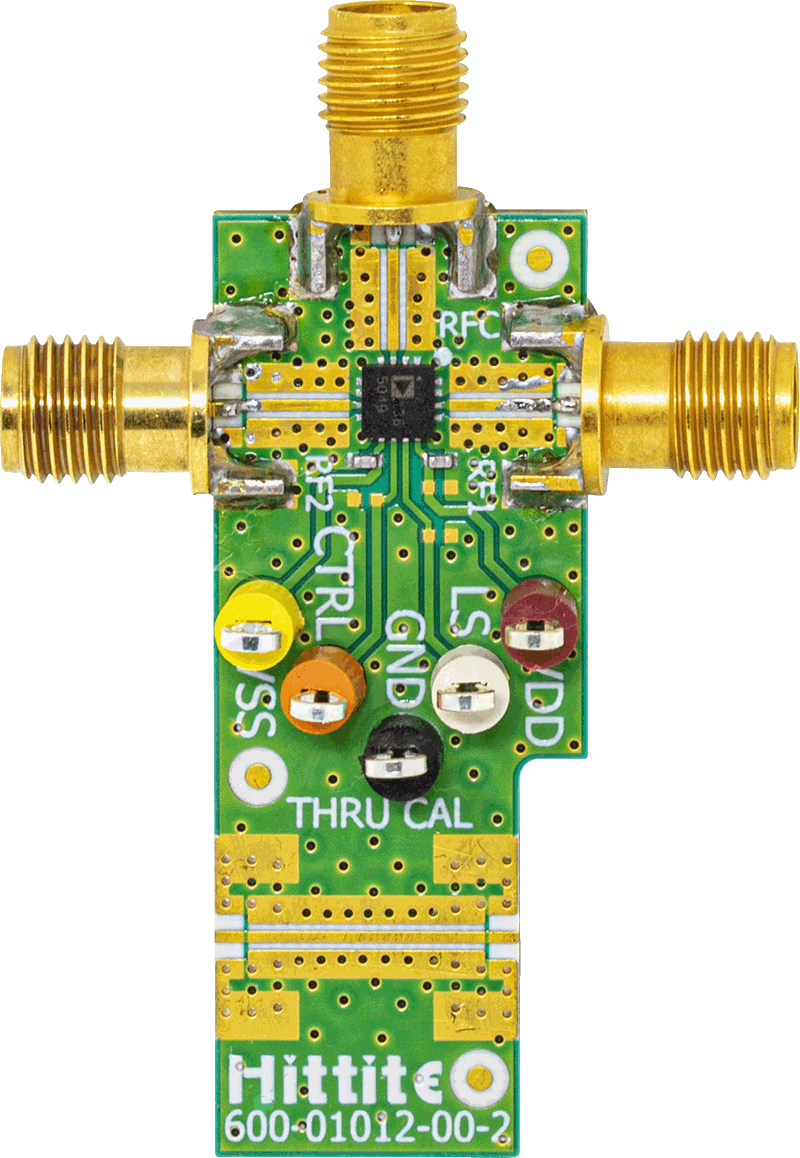

ADRF5019-EVALZANGLE-web ADRF5019-EVALZBOTTOM-web ADRF5019-EVALZTOP-web
