LT8606
LT8606B

42V, 350mA Synchronous Step-Down Regulator with 2.5μA Quiescent Current

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 34
1ku List Price Starting From $1.41
Features
  • Wide Input Voltage Range: 3.0V to 42V
  • Ultralow Quiescent Current Burst Mode® Operation:
    • <3μA IQ Regulating 12VIN to 3.3VOUT
    • Output Ripple <10mVP-P
  • High Efficiency 2MHz Synchronous Operation:
    • >92% Efficiency at 0.35A, 12VIN to 5VOUT
  • 350mA Maximum Continuous Output
  • Fast Minimum Switch-On Time: 35ns
  • Adjustable and Synchronizable: 200kHz to 2.2MHz
  • Spread Spectrum Frequency Modulation for Low EMI
  • Allows Use of Small Inductors
  • Low Dropout
  • Peak Current Mode Operation
  • Accurate 1V Enable Pin Threshold
  • Internal Compensation
  • Output Soft-Start and Tracking
  • Small Thermally Enhanced 10-Lead MSOP Package or 8-Pin 2mm × 2mm DFN Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT8606 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7μA of non-switching quiescent current. The LT8606 can deliver 350mA of continuous current. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mVP-P. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8606. The PG pin signals when VOUT is within ±8.5% of the programmed output voltage as well as fault conditions.

The MSOP package includes a SYNC pin to synchronize to an external clock, or to select Burst Mode operation or pulse-skipping with or without spread-spectrum; the TR/SS pin programs soft-start or tracking. The DFN package omits these pins and can be purchased in pulse-skipping or Burst Mode operation variety.

Applications

  • General Purpose Step-Down Converter
  • Low EMI Step Down
Part Models 34
1ku List Price Starting From $1.41

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8606BEDC#TRMPBF
  • HTML
  • HTML
LT8606BEDC#TRPBF
  • HTML
  • HTML
LT8606BHDC#TRMPBF
  • HTML
  • HTML
LT8606BHDC#TRPBF
  • HTML
  • HTML
LT8606BIDC#TRMPBF
  • HTML
  • HTML
LT8606BIDC#TRPBF
  • HTML
  • HTML
LT8606EDC#TRMPBF
  • HTML
  • HTML
LT8606EDC#TRPBF
  • HTML
  • HTML
LT8606EDC#WTRMPBF
  • HTML
  • HTML
LT8606EDC#WTRPBF
  • HTML
  • HTML
LT8606EMSE#PBF
  • HTML
  • HTML
LT8606EMSE#TRPBF
  • HTML
  • HTML
LT8606EMSE#WPBF
  • HTML
  • HTML
LT8606EMSE#WTRPBF
  • HTML
  • HTML
LT8606HDC#TRMPBF
  • HTML
  • HTML
LT8606HDC#TRPBF
  • HTML
  • HTML
LT8606HDC#WTRMPBF
  • HTML
  • HTML
LT8606HDC#WTRPBF
  • HTML
  • HTML
LT8606HMSE#PBF
  • HTML
  • HTML
LT8606HMSE#TRPBF
  • HTML
  • HTML
LT8606HMSE#WPBF
  • HTML
  • HTML
LT8606HMSE#WTRPBF
  • HTML
  • HTML
LT8606IDC#TRMPBF
  • HTML
  • HTML
LT8606IDC#TRPBF
  • HTML
  • HTML
LT8606IDC#WTRMPBF
  • HTML
  • HTML
LT8606IDC#WTRPBF
  • HTML
  • HTML
LT8606IMSE#PBF
  • HTML
  • HTML
LT8606IMSE#TRPBF
  • HTML
  • HTML
LT8606IMSE#WPBF
  • HTML
  • HTML
LT8606IMSE#WTRPBF
  • HTML
  • HTML
LT8606JDC#WTRMPBF
  • HTML
  • HTML
LT8606JDC#WTRPBF
  • HTML
  • HTML
LT8606JMSE#WPBF
  • HTML
  • HTML
LT8606JMSE#WTRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8606BEDC#TRMPBF

PRODUCTION

LT8606BEDC#TRPBF

PRODUCTION

LT8606BHDC#TRMPBF

PRODUCTION

LT8606BHDC#TRPBF

PRODUCTION

LT8606BIDC#TRMPBF

PRODUCTION

LT8606BIDC#TRPBF

PRODUCTION

LT8606EDC#TRMPBF

PRODUCTION

LT8606EDC#TRPBF

PRODUCTION

LT8606EMSE#PBF

PRODUCTION

LT8606EMSE#TRPBF

PRODUCTION

LT8606HDC#TRMPBF

PRODUCTION

LT8606HDC#TRPBF

PRODUCTION

LT8606HMSE#PBF

PRODUCTION

LT8606HMSE#TRPBF

PRODUCTION

LT8606IDC#TRMPBF

PRODUCTION

LT8606IDC#TRPBF

PRODUCTION

LT8606IMSE#PBF

PRODUCTION

LT8606IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT8606EMSE#PBF

PRODUCTION

LT8606EMSE#TRPBF

PRODUCTION

LT8606HMSE#PBF

PRODUCTION

LT8606HMSE#TRPBF

PRODUCTION

LT8606IMSE#PBF

PRODUCTION

LT8606IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8606BEDC#TRMPBF

PRODUCTION

LT8606BEDC#TRPBF

PRODUCTION

LT8606BHDC#TRMPBF

PRODUCTION

LT8606BHDC#TRPBF

PRODUCTION

LT8606BIDC#TRMPBF

PRODUCTION

LT8606BIDC#TRPBF

PRODUCTION

LT8606EDC#TRMPBF

PRODUCTION

LT8606EDC#TRPBF

PRODUCTION

LT8606EMSE#PBF

PRODUCTION

LT8606EMSE#TRPBF

PRODUCTION

LT8606HDC#TRMPBF

PRODUCTION

LT8606HDC#TRPBF

PRODUCTION

LT8606HMSE#PBF

PRODUCTION

LT8606HMSE#TRPBF

PRODUCTION

LT8606IDC#TRMPBF

PRODUCTION

LT8606IDC#TRPBF

PRODUCTION

LT8606IMSE#PBF

PRODUCTION

LT8606IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT8606EMSE#PBF

PRODUCTION

LT8606EMSE#TRPBF

PRODUCTION

LT8606HMSE#PBF

PRODUCTION

LT8606HMSE#TRPBF

PRODUCTION

LT8606IMSE#PBF

PRODUCTION

LT8606IMSE#TRPBF

PRODUCTION

Software and Part Ecosystem

Software and Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

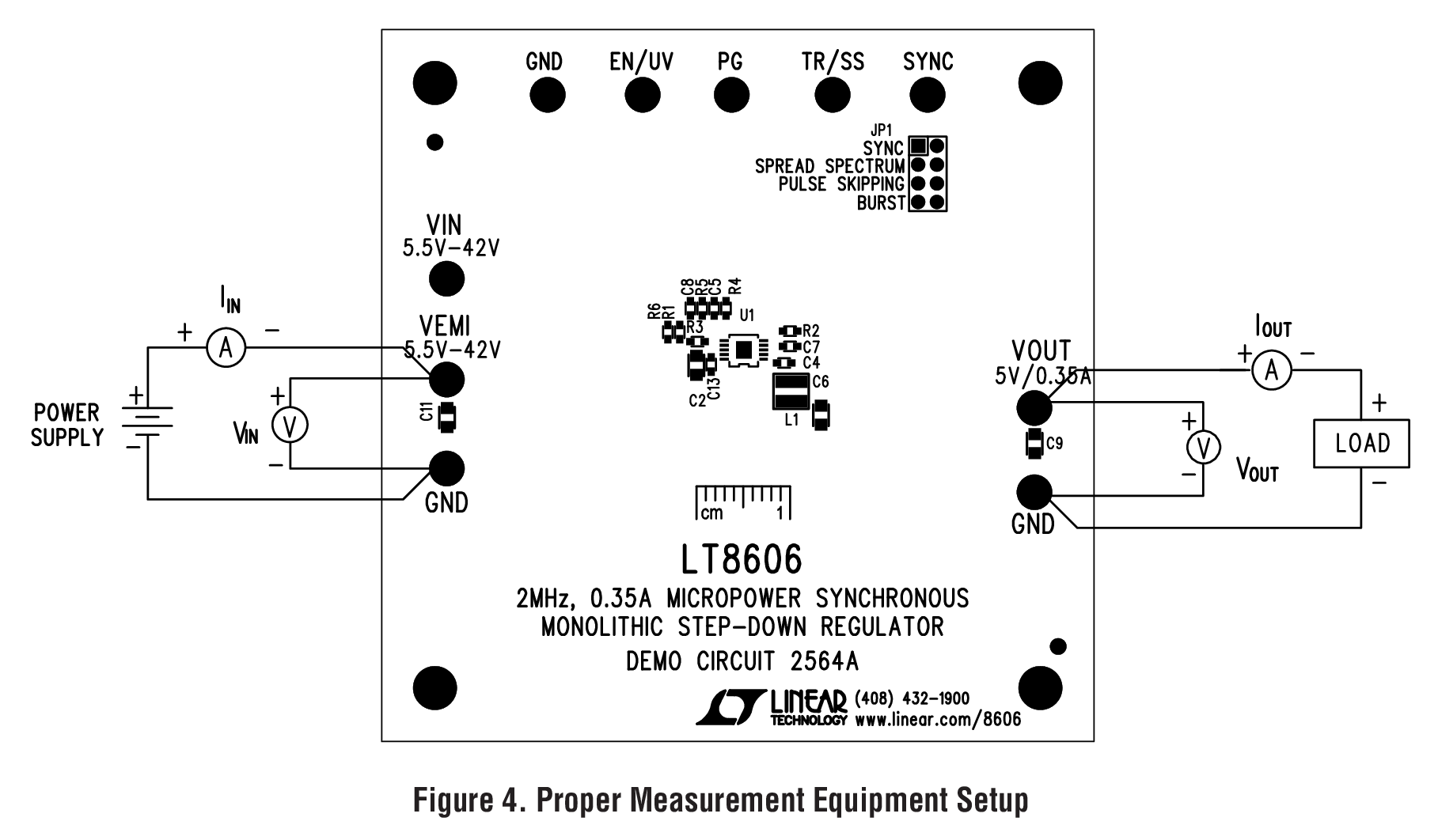

DC2564A

LT8606EMSE Demo Board │ Synchronous Buck, 5.5V ≤ VIN ≤ 42V; VOUT = 5V @ 350mA, fSW = 2MHz

zoom

DC2564A

LT8606EMSE Demo Board │ Synchronous Buck, 5.5V ≤ VIN ≤ 42V; VOUT = 5V @ 350mA, fSW = 2MHz

LT8606EMSE Demo Board │ Synchronous Buck, 5.5V ≤ VIN ≤ 42V; VOUT = 5V @ 350mA, fSW = 2MHz

Product Detail

Demonstration Circuit 2564A is a 42V, 0.35A micropower synchronous step-down regulator featuring the LT8606. The demo board is designed for 5V output from a 5.5V to 42V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8606 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes less than 3μA of quiescent current when output is regulated at 5V. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8606 to minimize external components and simplify design.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
