ADUM1301

PRODUCTION

Triple-Channel Digital Isolator

Data Sheet (Rev. M) Product Selection Table

Part Models: 15
1ku List Price: Starting From $2.39

Viewing:

Overview

Qualified for automotive applications
Low power operation
- 5 V operation
- 3 V operation
Bidirectional communication
3 V/5 V level translation
High temperature operation: 125°C
High data rate: dc to 90 Mbps (NRZ)

Precise timing characteristics
- 2 ns maximum pulse width distortion
- 2 ns maximum channel-to-channel matching
High common-mode transient immunity: >25 kV/μs
Output enable function

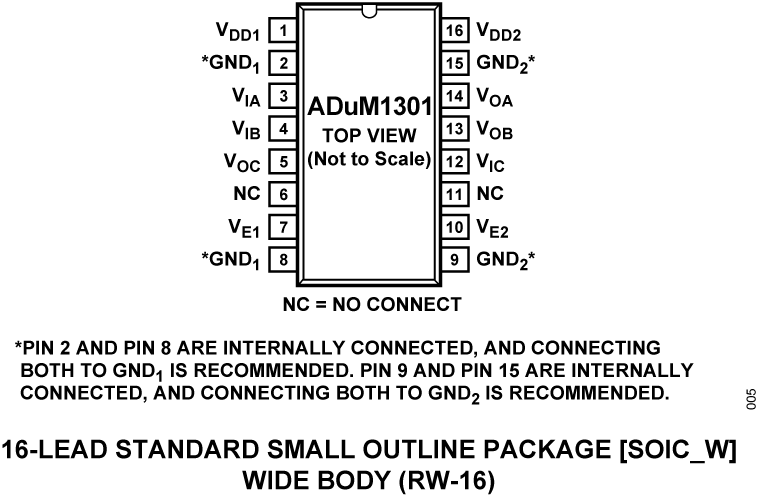

16-lead SOIC wide body package
RoHS-compliant models available
Safety and regulatory approvals

UL 1577:

V_ISO = 2500 V_rms for 1 minute

IEC/EN/CSA 62368-1
EN 60950-1
IEC/CSA 60601-1
IEC/CSA 61010-1
CQC GB4943.1
DIN EN IEC 60747-17 (VDE 0884-17)

V_IORM = 560 V_peak

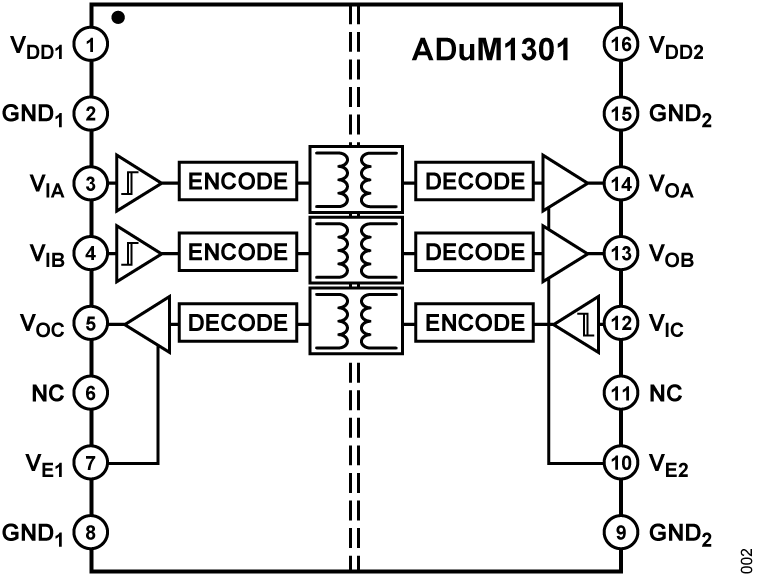

The ADuM130x are triple-channel digital isolators based on the Analog Devices, Inc., iCoupler^® technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives, such as optocouplers.

By avoiding the use of LEDs and photodiodes, iCoupler devices remove the design difficulties commonly associated with optocouplers. The typical optocoupler concerns regarding uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance characteristics. The need for external drivers and other discrete components is eliminated with these iCoupler products. Furthermore, iCoupler devices consume one-tenth to one-sixth of the power of optocouplers at comparable signal data rates.

The ADuM130x isolators provide three independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide in the data sheet). Both models operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. In addition, the ADuM130x provide low pulse width distortion (<2 ns for CRW grade) and tight channel-to-channel matching (<2 ns for CRW grade). Unlike other optocoupler alternatives, the ADuM130x isolators have a patented refresh feature that ensures dc correctness in the absence of input logic transitions and when power is not applied to one of the supplies.

APPLICATIONS

General-purpose multichannel isolation
SPI interface/data converter isolation
RS-232/RS-422/RS-485 transceivers
Industrial field bus isolation
Automotive systems

Part Models: 15
1ku List Price: Starting From $2.39

Documentation

Frequently Asked Question 1

FAQ 05/17/2017

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADUM1301ARW	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301ARW-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301ARWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301ARWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301BRW	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301BRW-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301BRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301BRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301CRW	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301CRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301CRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301WSRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301WSRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301WTRWZ	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
ADUM1301WTRWZ-RL	16-Lead SOIC Wide	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 9, 2022 - 22_0002 Notification of Qualification of Alternate Fab Foundry at ADI Limerick for IC die in Digital Isolator products.
		PCN22_0002_Form Material_Report Qualification Results Summary Detailed Change Description
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRW
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
Jan 21, 2015 - 14_0209 ADUM1300/01 Die Revision
		PCN14_0209_Form Material_Report Qualification Results Summary
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRW
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
May 15, 2014 - 14_0065 Datasheet Revision to iCoupler Digital Isolators UL 1577 Protection Level
		PCN14_0065_Form Material_Report Detailed Change Description
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRW
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
ADUM1301WSRWZ	PRODUCTION
ADUM1301WSRWZ-RL	PRODUCTION
ADUM1301WTRWZ	PRODUCTION
ADUM1301WTRWZ-RL	PRODUCTION
Feb 27, 2012 - 11_0066 Qualification of Alternate Fab Foundry Gold Plating Process Site for Isolation Products at ADI Limerick.
		PCN11_0066_Form Material_Report Qualification Plan Summary Flow Chart
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRW
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
ADUM1301WSRWZ	PRODUCTION
ADUM1301WSRWZ-RL	PRODUCTION
ADUM1301WTRWZ	PRODUCTION
ADUM1301WTRWZ-RL	PRODUCTION
Jan 4, 2021 - 20_0320 Alternate Assembly Site of Select Isolator Products in SO Packages
		PCN20_0320_Form Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary Other
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
Sep 22, 2015 - 15_0135 Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli
		PCN15_0135_Form Material_Report Detailed Change Description Qualification Results Summary
ADUM1301ARWZ	PRODUCTION
ADUM1301ARWZ-RL	PRODUCTION
ADUM1301BRWZ	PRODUCTION
ADUM1301BRWZ-RL	PRODUCTION
ADUM1301CRWZ	PRODUCTION
ADUM1301CRWZ-RL	PRODUCTION
Dec 9, 2016 - 16_0208 ADuM1300W/ADuM1301W Die Revision, Assembly Site Transfer, Data Sheet and MSL Rating Change
		PCN16_0208_Form Material_Report Qualification Results Summary Detailed Change Description
ADUM1301WSRWZ	PRODUCTION
ADUM1301WSRWZ-RL	PRODUCTION
ADUM1301WTRWZ	PRODUCTION
ADUM1301WTRWZ-RL	PRODUCTION
May 21, 2025 - 25_0033 Carsem SnPb Packaging End of Life
		PDN25_0033_Form Material_Report
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301CRW
Nov 21, 2017 - 17_0038 Obsolescence of Lead (Pb)-Bearing Packages
		PDN17_0038_Form Material_Report
ADUM1301ARW
ADUM1301ARW-RL
ADUM1301BRW
ADUM1301BRW-RL
ADUM1301CRW

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADUM342E	RECOMMENDED FOR NEW DESIGNS	5.7 kV/3.0 kV rms Quad Digital Isolators

Tools & Simulations

IBIS Model 1

ADuM1301 IBIS Model (All Speed Grades)

Evaluation Kits

EVAL-ADUMQS

Buy Now View Details

Features and Benefits

Convenient connections for power through screw terminal blocks
Add-on BNC connector for 50 Ω signal sources
On-board signal routing
Support for signal wrap back
Simple signal paths to reduce transmission line effects
Pull-up and pull-down provided for control lines
Support for isoPower
Project area that supports surface-mount and through-hole devices

Product Details

EVAL-ADuMQSEBZ can be used with most iCoupler^® and isoPower(R) isolation products in the 16-lead, wide-body SOIC and QSOP packages. The evaluation board supports the common pad positions for power, ground, and I/O pins.

Supported iCoupler^® Products
