Overview

Features and Benefits

  • 8-channel, configurable ADC/DAC/GPIO
    • Configurable as any combination of
      • 8 12-bit DAC channels
      • 8 12-bit ADC channels
      • 8 general-purpose I/O pins
  • Integrated temperature sensor

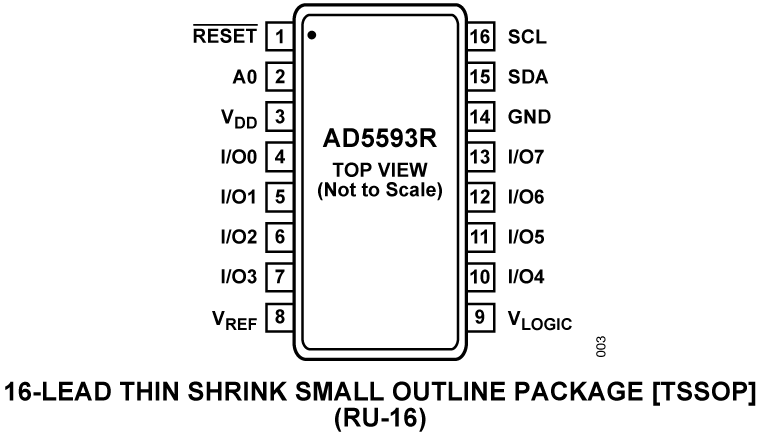

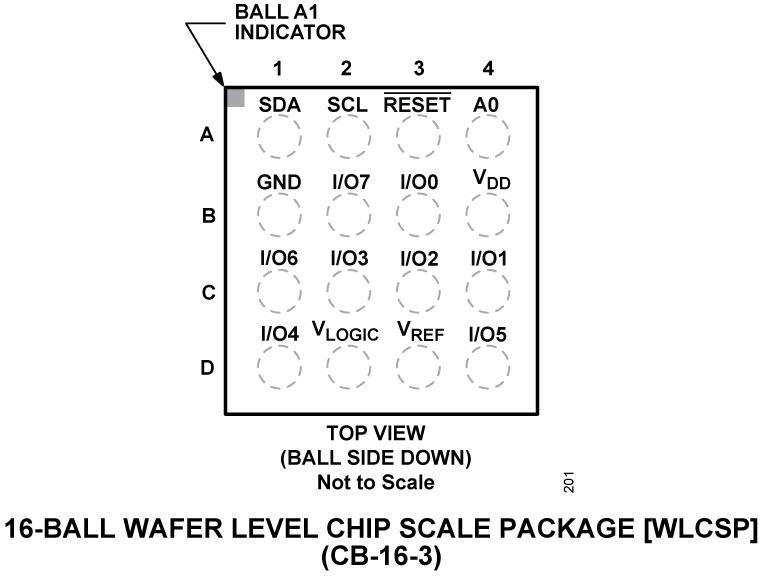

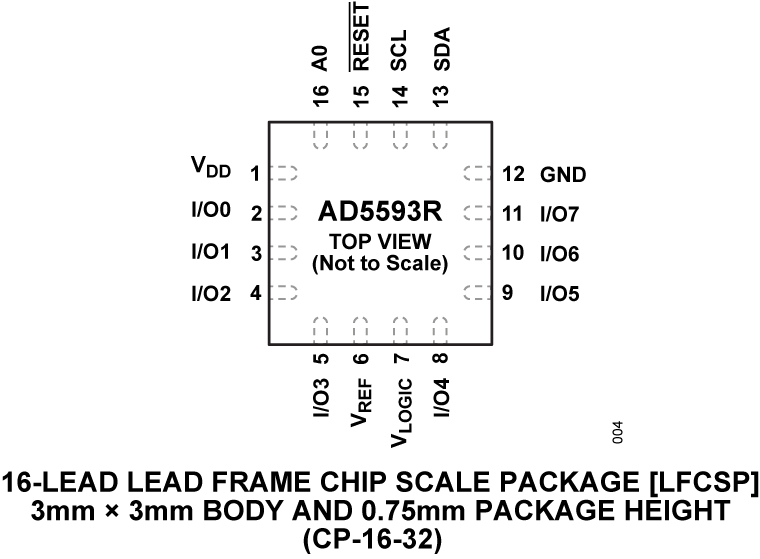

  • 16-lead TSSOP and LFCSP and 16-ball WLCSP packages
  • I2C interface

Product Details

The AD5593R has eight input/output (I/O) pins, which can be independently configured as digital-to-analog converter (DAC) outputs, analog-to-digital converter (ADC) inputs, digital outputs, or digital inputs. When an I/O pin is configured as an analog output, it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2 × VREF. When an I/O pin is configured as an analog input, it is connected to a 12-bit ADC via an analog multiplexer. The input range of the ADC is 0 V to VREF or 0 V to 2 × VREF. The I/O pins can also be configured to be general-purpose, digital input or output (GPIO) pins. The state of the GPIO pins can be set or read back by accessing the GPIO write data register and GPIO read configuration registers, respectively, via an I2C write or read operation.

The AD5593R has an integrated 2.5 V, 20 ppm/°C reference that is turned off by default and an integrated temperature indicator that gives an indication of the die temperature. The temperature value is read back as part of an ADC read sequence.

The AD5593R is available in 16-lead TSSOP and LFCSP, as well as a 16-ball WLCSP, and operates over a temperature range of −40°C to +105°C.

APPLICATIONS

  • Control and monitoring
  • General-purpose analog and digital I/O

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

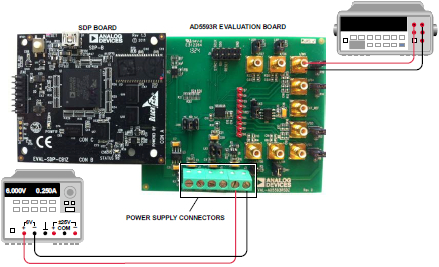

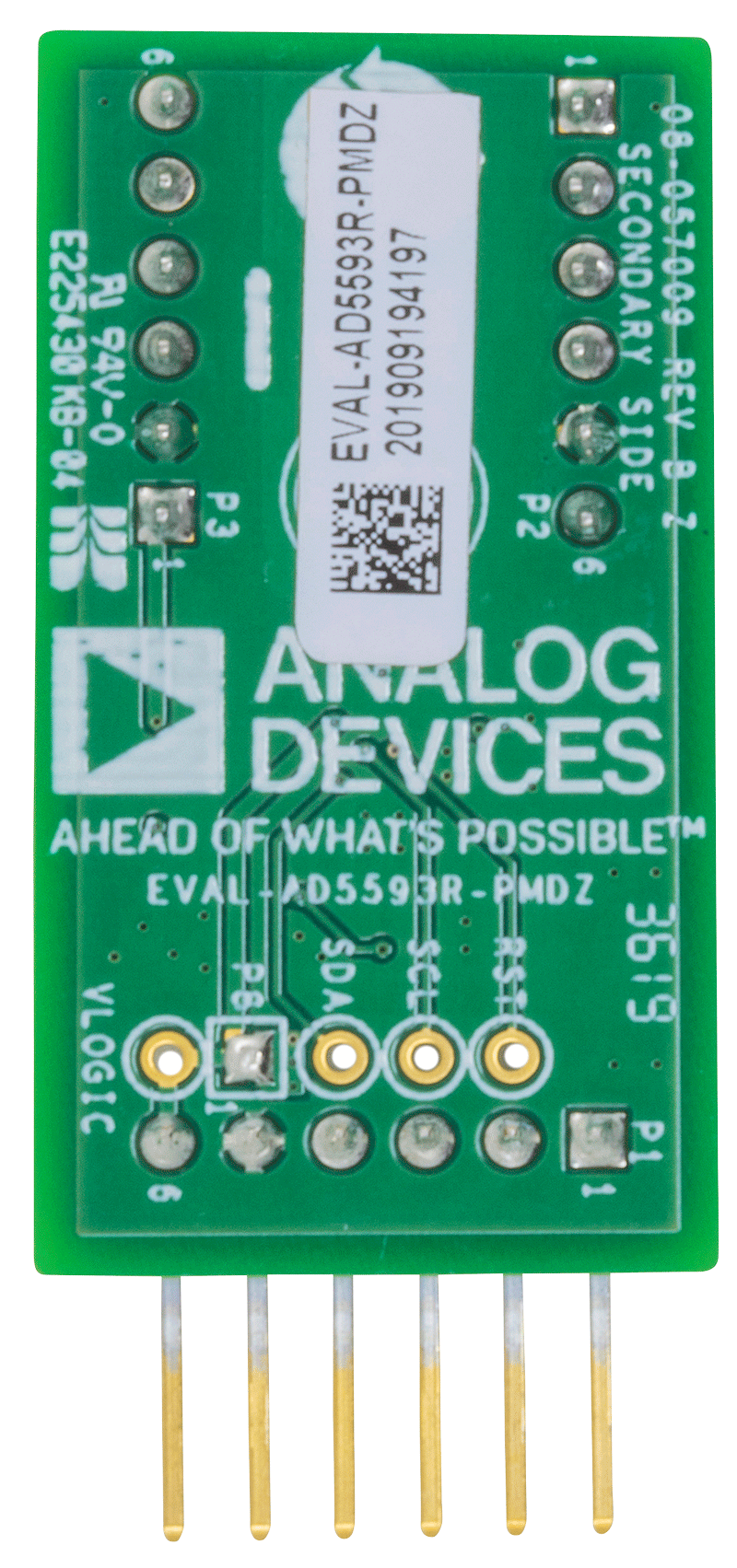

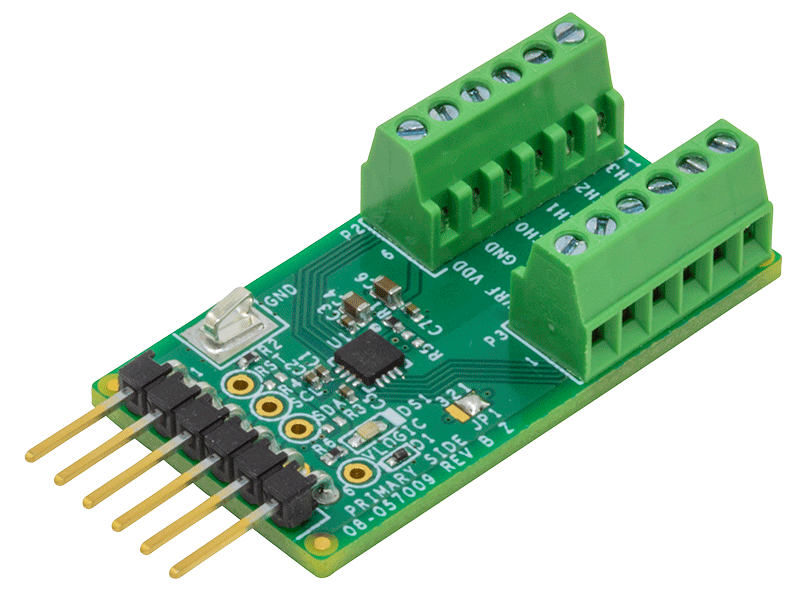

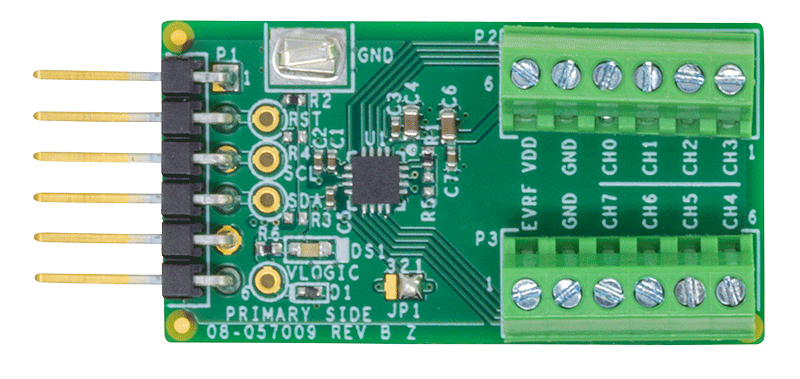

Evaluation Kits (2)

Documentation & Resources

  • View All (4)
  • 3rd Party Solutions (1)
  • Data Sheets (1)
  • User Guides (1)
  • Webcasts (1)
    • Document Type

    Software & Systems Requirements

    Product Downloads

    AD5593R Win10 IoT Command Line Tool

    Device Drivers

    WIKI

    AD5593R IIO DAC/ADC Linux Driver

    Mbed Support

    EVAL-AD5592R Mbed Code
    WIKI

    AD5592R/AD5593R Mbed Example
    WIKI

    Learn how to get started with Mbed
    Mbed is an open source, development environment for ARM microcontrollers.
    WIKI

    More Mbed supported ADI Products

    Tools & Simulations

    IBIS Models

    Reference Designs (1)

    Product Recommendations

    AD5593R Companion Parts

    Recommended External References

    Recommended Low Dropout Regulators

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    AD5593RBCBZ-RL7 Material Declaration Reliability Data 16-Ball WLCSP (1.96mm x 1.96mm)
    AD5593RBCPZ-RL7 Material Declaration Reliability Data 16-Lead LFCSP (3mm x 3mm x 0.75mm)
    AD5593RBRUZ Material Declaration Reliability Data 16-Lead TSSOP
    AD5593RBRUZ-RL7 Material Declaration Reliability Data 16-Lead TSSOP
