AD5592R
8-Channel, 12-Bit, Configurable ADC/DAC with On-Chip Reference, SPI Interface
Top
Overview
Features and Benefits
- Download AD5592R-1-KGD Data Sheet. Available as Known Good Die and fully guaranteed to data sheet specifications.
- 8-channel, configurable ADC/DAC/GPIO
- Configurable as any combination of
- 8 × 12-bit DAC channels
- 8 × 12-bit ADC channels
- 8 × general-purpose digital input/output pins
- Integrated temperature sensor
- SPI interface
- 2.7 V to 5.5 V power supply
- 1.8 V logic compatibility (AD5592R-1)
- Available in
- 16-ball, 2 mm × 2 mm WLCSP
- 16-lead, 3 mm × 3 mm LFCSP
- 16-lead TSSOP
- AEC-Q100 qualified for automotive applications
Product Details

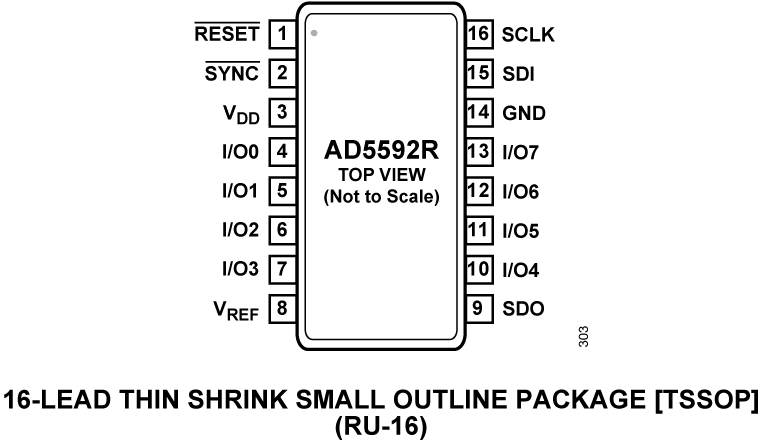

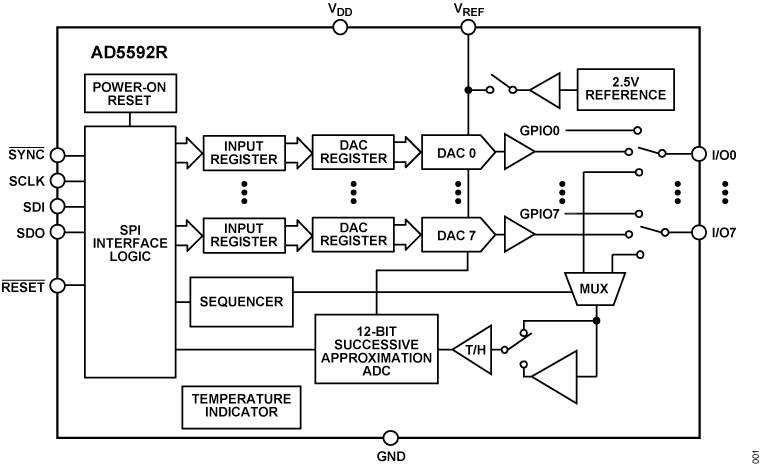

The AD5592R/AD5592R-1 have eight I/Ox pins (I/O0 to I/O7) that can be independently configured as digital-to-analog converter (DAC) outputs, analog-to-digital converter (ADC) inputs, digital outputs, or digital inputs. When an I/Ox pin is configured as an analog output, it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2 × VREF. When an I/Ox pin is configured as an analog input, it is connected to a 12-bit ADC via an analog multiplexer. The input range of the ADC is 0 V to VREF or 0 V to 2 × VREF. The ADC has a total throughput rate of 400 kSPS. The I/Ox pins can also be configured as digital, general-purpose input or output (GPIO) pins. The state of the GPIO pins can be set or read back by accessing the GPIO write data register or the GPIO read configuration register, respectively, via a serial peripheral interface (SPI) write or read operation.
The AD5592R/AD5592R-1 have an integrated 2.5 V, 20 ppm/°C reference, which is turned off by default, and an integrated temperature indicator, which gives an indication of the die temperature. The temperature value is read back as part of an ADC read sequence.
The AD5592R/AD5592R-1 are available in 16-ball, 2 mm × 2 mm WLCSP, 16-lead, 3 mm × 3 mm LFCSP, and 16-lead TSSOP. The AD5592R/AD5592R-1 operate over a temperature range of −40 °C (TA) to +125 °C (TJ).
APPLICATIONS
- Control and monitoring
- General-purpose analog and digital inputs/outputs
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

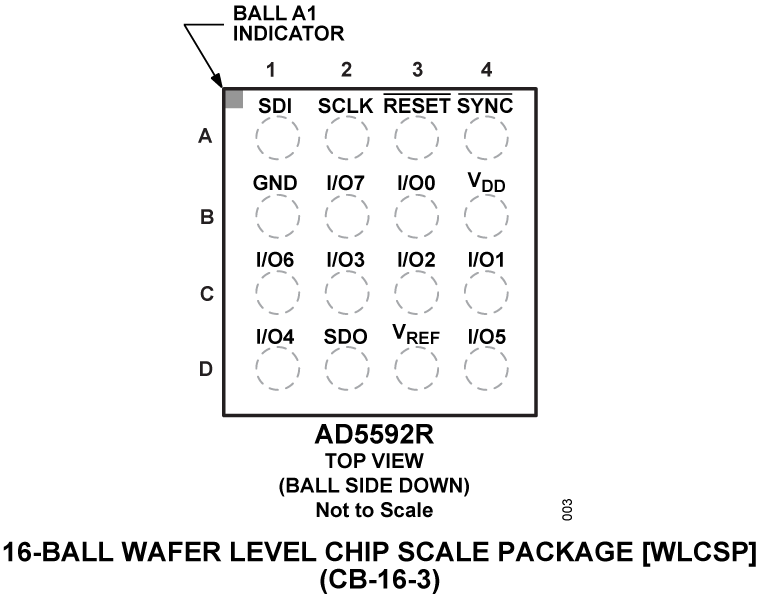

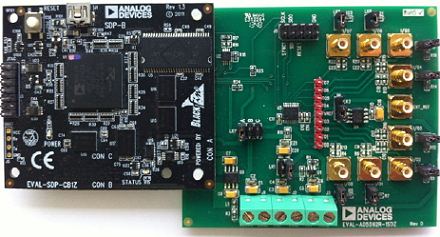

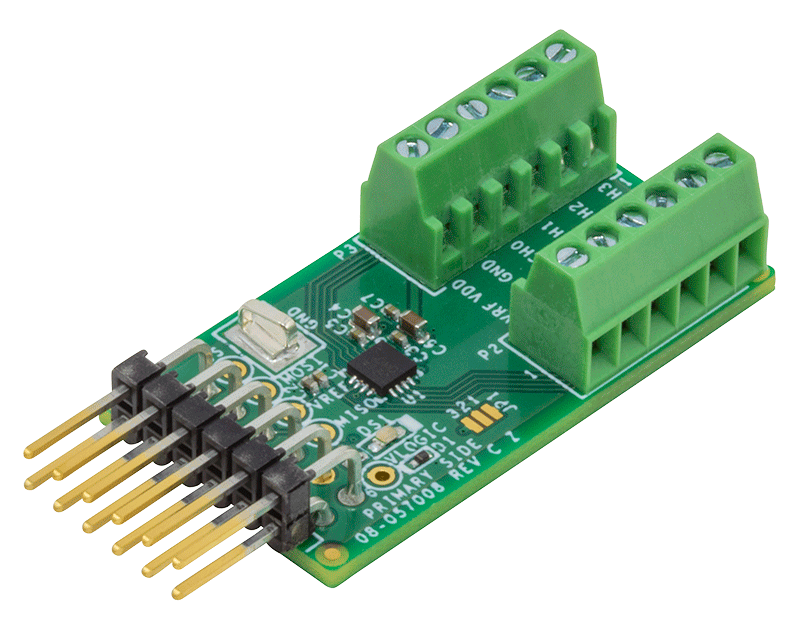

Evaluation Kits (2)
Documentation & Resources
-
Five Things You Don't Know about DACs10/4/2017
Software & Systems Requirements
Mbed Support
WIKI
Learn how to get started with Mbed
Mbed is an open source, development environment for ARM microcontrollers.
Tools & Simulations
IBIS Models
IBS
AD5592R-1 IBIS Model
39.95 K
Reference Designs (1)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD5592R-1-KGD-PT | Material Declaration | Reliability Data | CHIPS OR DIE | |
| AD5592RBCBZ-1-RL7 | Material Declaration | Reliability Data | 16-Ball WLCSP (1.96mm x 1.96mm) | |
| AD5592RBCBZ-RL7 | Material Declaration | Reliability Data | 16-Ball WLCSP (1.96mm x 1.96mm) | |
| AD5592RBCPZ-1-RL7 | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| AD5592RBCPZ-RL7 | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| AD5592RBRUZ | Material Declaration | Reliability Data | 16-Lead TSSOP | |
| AD5592RBRUZ-RL7 | Material Declaration | Reliability Data | 16-Lead TSSOP | |
| AD5592RWBCPZ-1-RL7 | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| AD5592RWBCPZ-RL7 | Material Declaration | Reliability Data | 16-Lead LFCSP (3mm x 3mm x 0.75mm) | |
| Wafer Fabrication Data |
