AD2S1210

Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $13.49
Features
  • Chinese data sheet available
  • Complete monolithic resolver-to-digital converter
  • 3125 rps maximum tracking rate (10-bit resolution and CLKIN = 10.24 MHz)
  • ±2.5 (+ 1 LSB) arc minutes of angular accuracy (B and D grades)
  • 10-/12-/14-/16-bit resolution, set by user
  • Parallel and serial 10-bit to 16-bit data ports
  • Absolute position and velocity outputs
  • System fault detection
  • Programmable fault detection thresholds
  • Differential inputs
  • Incremental encoder emulation
  • Programmable sinusoidal oscillator on-board
  • Compatible with DSP and SPI standards
  • 5 V supply with 2.3 V to 5.25 V logic interface
  • −40°C to +125°C temperature rating (C, D, and W grades)
  • AEC-Q100 qualified for automotive applications
  • ASIL B safety assessment certificate available
  • Safety manual available
AD2S1210-EP supports defense and aerospace applications (AQEC standard)
  • Download AD2S1210-EP Data Sheet (pdf)
  • Military temperature range: (−55°C to +125°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Enhanced product change notification
  • Qualification data available upon request
  • V62/11604 DSCC Drawing Number

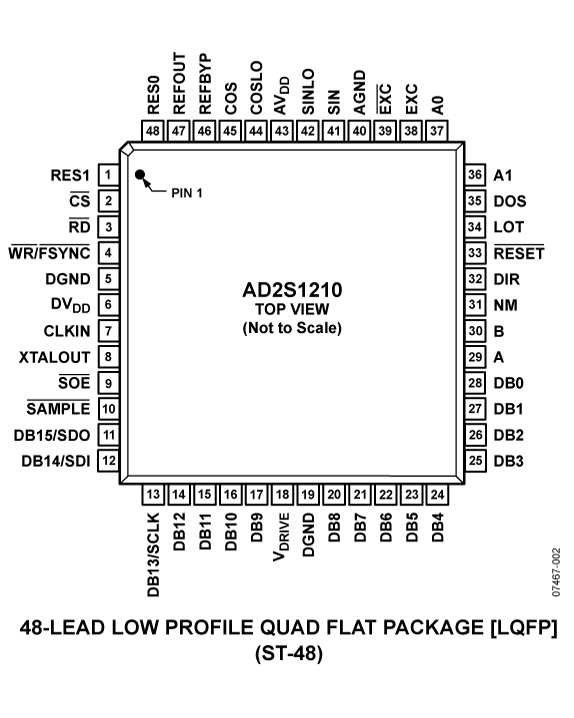

Additional Details
show more Icon

The AD2S1210 is a complete 10-bit to 16-bit resolution tracking resolver-to-digital converter, integrating an on-board programmable sinusoidal oscillator that provides sine wave excitation for resolvers.

The converter accepts 3.15 V p-p ± 27% input signals, in the range of 2 kHz to 20 kHz on the sine and cosine inputs. A Type II servo loop is employed to track the inputs and convert the input sine and cosine information into a digital representation of the input angle and velocity. The maximum tracking rate is 3125 rps.

The AD2S1210WDSTZ and the AD2S1210WDSTZRL7 models have been approved by an independent accredited body for use in Automotive Safety Integrity Level B rated applications according to ISO 26262. Contact your local Analog Devices, Inc., sales office to obtain a copy of the safety manual and ASIL B safety assessment certificate.

PRODUCT HIGHLIGHTS

  1. Ratiometric tracking conversion. The Type II tracking loop provides continuous output position data without conversion delay. It also provides noise immunity and tolerance of harmonic distortion on the reference and input signals.
  2. System fault detection. A fault detection circuit can sense loss of resolver signals, out-of-range input signals, input signal mismatch, or loss of position tracking. The fault detection threshold levels can be individually programmed by the user for optimization within a particular application.
  3. Input signal range. The sine and cosine inputs can accept differential input voltages of 3.15 V p-p ± 27%.
  4. Programmable excitation frequency. Excitation frequency is easily programmable to a number of standard frequencies between 2 kHz and 20 kHz.
  5. Triple format position data. Absolute 10-bit to 16-bit angular position data is accessed via either a 16-bit parallel port or a 4-wire serial interface. Incremental encoder emulation is in standard A-quad-B format with direction output available.
  6. Digital velocity output. 10-bit to 16-bit signed digital velocity accessed via either a 16-bit parallel port or a 4-wire serial interface.

APPLICATIONS

  • DC and ac servo motor control
  • Encoder emulation
  • Electric power steering
  • Electric vehicles
  • Integrated starter generators/alternators
  • Automotive motion sensing and control
Part Models 10
1ku List Price Starting From $13.49

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD2S1210-KGD-CHIPS
  • HTML
  • HTML
AD2S1210-KGD-WS
  • HTML
  • HTML
AD2S1210ASTZ
  • HTML
  • HTML
AD2S1210ASTZ-RL7
  • HTML
  • HTML
AD2S1210BSTZ
  • HTML
  • HTML
AD2S1210CSTZ
  • HTML
  • HTML
AD2S1210DSTZ
  • HTML
  • HTML
AD2S1210SSTZ-EPRL7
  • HTML
  • HTML
AD2S1210WDSTZ
  • HTML
  • HTML
AD2S1210WDSTZRL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 18, 2016

- 16_0034

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

AD2S1210ASTZ

PRODUCTION

AD2S1210ASTZ-RL7

PRODUCTION

AD2S1210BSTZ

PRODUCTION

AD2S1210CSTZ

PRODUCTION

AD2S1210DSTZ

PRODUCTION

AD2S1210WDSTZ

PRODUCTION

AD2S1210WDSTZRL7

PRODUCTION

Jan 5, 2009

- 07_0077

Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages

May 20, 2024

- 23_0143

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 18, 2016

- 16_0034

arrow down

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

AD2S1210ASTZ

PRODUCTION

AD2S1210ASTZ-RL7

PRODUCTION

AD2S1210BSTZ

PRODUCTION

AD2S1210CSTZ

PRODUCTION

AD2S1210DSTZ

PRODUCTION

AD2S1210WDSTZ

PRODUCTION

AD2S1210WDSTZRL7

PRODUCTION

Jan 5, 2009

- 07_0077

arrow down

Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages

May 20, 2024

- 23_0143

arrow down

Qualification of an Alternate Wafer Fab Site for 0.5um TSMC CMOS Process

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 3

EVAL-AD2S1210

AD2S1210 Evaluation Kit

zoom

EVAL-AD2S1210

AD2S1210 Evaluation Kit

AD2S1210 Evaluation Kit

Product Detail

The EVAL-AD2S1210SDZ is a full featured evaluation board designed to allow the user to easily evaluate all the features of the AD2S1210 resolver-to-digital converter (RDC). The SDP board (EVAL-SDP-CB1Z) allows the evaluation board to be controlled through the USB port of a PC using the evaluation board software available for download from the AD2S1210 product page.
reference details image

FMCMOTCON2

OBSOLETE: AD-FMCMOTCON2-EBZ Evaluation Board

zoom

FMCMOTCON2

OBSOLETE: AD-FMCMOTCON2-EBZ Evaluation Board

OBSOLETE: AD-FMCMOTCON2-EBZ Evaluation Board

Features and Benefits

This evaluation board is obsolete and no longer recommended.


The FMCMOTCON2 evaluation kit enables users to:

  • Model and implement motor control algorithms rapidly for high performance servo systems, incorporating system modelling and design concepts using Mathworks model based design
  • Reduce time needed to move a motor control system from concept to production, by providing a prototyping system to verify the hardware and control algorithms before moving to production stage.

Product Detail

This evaluation board is obsolete and no longer recommended.


The AD-FMCMOTCON2-EBZ is a complete high performance servo system on an FPGA Mezzanine Card (FMC) board, the purpose of which is to provide a complete motor drive system demonstrating efficient and high dynamic control of three phase PMSM and induction motors up to 48V and 20A.

Two motors can be driven at the same time, each motor having its separate power supply. The system incorporates high quality power sources; reliable power, control, and feedback signals isolation; accurate measurement of motor current & voltage signals; high speed interfaces for control signals to allow fast controller response; industrial Ethernet high speed interfaces; single ended Hall, differential Hall, encoder and resolver interfaces; digital position sensors interface; flexible control with a FPGA/SoC interface.

The kit consists of two boards: a controller board and a drive board. An optional AD-DYNO2-EBZ dynamometer can also be purchased through Avnet and is intended to be an extension of the drive system.

Controller Board

  • Digital board for interfacing with the low and high voltage drive boards
  • Compatible with all Xilinx FPGA platforms with FMC LPC or HPC connectors
  • FMC signals voltage adaptation interface for seamless operation on all FMC voltage levels
  • Fully isolated digital control and feedback signals
  • Isolated Xilinx XADC interface
  • 2 x Gbit Ethernet PHYs for high speed industrial communication, with 3rd party EtherCAT support
  • Single ended Hall, Differential Hall, Encoder, Resolver interfaces
  • Digital sensors interfaces
    • EnDat
    • BISS Interface

Drive Board

  • Drives motors up to 48V @ 20A
  • Drives 2 motors simultaneously
  • High frequency drive stage implemented with ADI isolated gate drivers
  • Supported motor types
    BLDC
    PMSM
    Brushed DC
    Stepper (bipolar / unipolar)
  • Integrated over current protection
  • Reverse voltage protection
  • Current and Voltage measurement using isolated ADCs
  • BEMF zero cross detection for sensorless control of PMSM or BLDC motors
  • Separate voltage supplies for the 2 motors so that the motors don't influence each other

Dynamometer System with Embedded Control

  • Two BLDC motors connected by a rigid couple in a dyno setup, which can be used to test real-time motor control performance.
  • One BLDC motor acts as an electronically adjustable load and is driven by the embedded control system. This motor can be directly connected to the FMC motor drive to get complex / active loads. The load can be driven also by the AD-FMCMOTCON2-EBZ to implement dynamic load profiles.
  • The other BLDC motor is driven by the FMC motor drive.
  • Measurement and display of load motor current
  • Measurement and display of load motor speed
  • External control using Analog Discovery and MathWorks Instrumentation Control Toolbox

Software:

Example reference designs showing how to use the platform with Xilinx® FPGAs or SoCs and high performance control algorithms from Mathworks® are provided together with the hardware. Information on the FMC board, and how to use it, the design package that surrounds it, and the software which can make it work, can be found by clicking the software link.

reference details image

FLEXMC MOTOR CONTROL UNIVERSAL AC KIT

Evaluation board for evaluating FlexMC Motor Control Universal AC Kit

zoom

FLEXMC MOTOR CONTROL UNIVERSAL AC KIT

Evaluation board for evaluating FlexMC Motor Control Universal AC Kit

Evaluation board for evaluating FlexMC Motor Control Universal AC Kit

Features and Benefits

The FlexMC Kit enables users to:
  • Model and implement motor control algorithms rapidly with sensored and sensorless operation
  • Minimize setup time with out-of-the-box functionality and begin testing quickly
  • Leverage the high-performance modeling environment to develop, debug, and test new control loops
  • Prototype rapidly and then deploy with the FlexMC Kit

Product Detail

The FlexMC Motor Control Development PlatformTM is a rapid development system for any motor control solution. The FlexMC KitTM enables you to accelerate time-to-market and increase performance with powerful model-based design tools. The ADI/Boston Engineering solution combines hardware and software with out-of-the-box functionality for permanent magnet synchronous motor (PMSM) with hall sensor, encoder, or sensorless feedback.

Solution Overview

 The FlexMC Kit has the hardware and software required to spin the motor under open or closed loop speed control. With the FlexMC Kit, you model your system in MATLAB and Simulink, generate the C code, and then deploy. Utilizing system modeling and design concepts, the FlexMC Kit also contains libraries in MATLAB and Simulink for additional access to proven methodologies. The FlexMC Kit hardware includes a PMSM motor with encoder and a Boston Engineering universal AC input drive board that connects directly to an Analog Devices ADSP-CM408 Mixed-Signal Control Processor EZ Kit. Users can prototype with PC power using MATLAB and Simulink, then deploy with the FlexMC Kit. Easy connection to motors and the ADSP-CM408 EZ Kit make this system perfect for your prototyping needs.

Universal AC Kit Contents

Hardware:

  • Universal AC Voltage Motor Control Board, 95-250VAC, 400W
  • 3-phase Brushless  PMSM
  • Quadrature Incremental Encoder'
  • SOLD SEPERATELY: ADSP-CM408 EZ-KIT
Software:
  • Simulink Libraries
  • C Libraries
  • Demo Application

Note: The FlexMC  Motor Control Universal AC Kit is manufactured, distributed and supported by Boston Engineering (BE) exclusively. BE assumes all responsibility for the proper installation and operation of the kit.

Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 2

High Performance Resolver-to-Digital (RDC) Circuit

High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter

zoomopens a dialog

CN0276

High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter

CN0276

Circuits from the lab

tooltip Info:Circuits from the lab
High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter

Features and Benefits

  • 10-bit to 16-bit resolver to digital converter
  • High and low voltage drive options
  • Maximum tracking rate of 3125 rps
View Detailed Reference Design external link
High Current Buffer Using the AD8397 for the AD2S1210 RDC Excitation Signal Output

Integrated High Current Driver for 10-Bit to 16-Bit Resolver-to-Digital Converter
