AD8397

Rail-to-Rail, High Output Current Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
SPICE Model AD8397 SPICE Macro Model Download 4.43 KB
Part Models 6
1ku List Price Starting From $2.73
Features
  • Dual operational amplifier
  • Voltage feedback
  • Wide supply range from 3 V to 24 V
  • Rail-to-rail output
    • Output swing to within 0.5 V of supply rails
  • High linear output current
    • 310 mA peak into 32 Ω on ±12 V supplies while maintaining −80 dBc SFDR
  • Low noise
    • 4.5 nV/√Hz voltage noise density at 100 kHz
    • 1.5 pA/√Hz current noise density at 100 kHz
  • High speed
    • 69 MHz bandwidth (G = 1, −3 dB)
    • 53 V/μs slew rate (RLOAD = 25 Ω)
Additional Details
show more Icon

The AD8397 comprises two voltage feedback operational amplifiers capable of driving heavy loads with excellent linearity. The common-emitter, rail-to-rail output stage surpasses the output voltage capability of typical emitter-follower output stages and can swing to within 0.5 V of either rail while driving a 25 Ω load. The low distortion, high output current, and wide output dynamic range make the AD8397 ideal for applications that require a large signal swing into a heavy load.

Fabricated with Analog Devices, Inc., high speed extra fast complementary bipolar high voltage (XFCB-HV) process, the high bandwidth and fast slew rate of the AD8397 keep distortion to a minimum. The AD8397 is available in a standard 8-lead SOIC_N package and, for higher power dissipating applications, a thermally enhanced 8-lead SOIC_N_EP package. Both packages can operate from −40°C to +85°C.

Applications

  • Twisted-pair line drivers
  • Audio applications
  • General-purpose ac applications
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
SPICE Model AD8397 SPICE Macro Model Download 4.43 KB
Part Models 6
1ku List Price Starting From $2.73
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

AD8397

Documentation

11
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Application Note
  • Data Sheet
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

pdf

UPDATED 09/28/2006
English

AD8397: Rail-to-Rail, High Output Current Amplifier Data Sheet (Rev.B)

Open PDF File

redirect
373 kB
download

Download PDF

User Guide

2

PDF Vector

pdf

UPDATED 04/19/2010
English
UG-128: Universal Evaluation Board for Dual High Speed Op Amps in SOIC Packages redirect icon

208 kB

download

Download PDF

PDF Vector

pdf

UPDATED 01/11/2011
Chinese
UG-128：SOIC封装的双通道高速运算放大器通用评估板 redirect icon

316 kB

download

Download PDF

Application Note

8

PDF Vector

PDF

UPDATED 10/14/2016
English
AN-1429: Design Considerations and Solutions for Headphone Drivers in Mobile Phones (Rev.0) redirect icon

215.47 K

download

Download PDF

PDF Vector

PDF

UPDATED 10/14/2016
Chinese
AN-1429: 手机中耳机驱动的设计考虑和解决方案 (Rev.0) redirect icon

215.47 K

download

Download PDF

PDF Vector

PDF

UPDATED 01/03/2017
English
AN-1439: One-Stage Amplifier Design Consideration of a High Fidelity System (Rev.0) redirect icon

323.24 K

download

Download PDF

PDF Vector

PDF

UPDATED 01/03/2017
Chinese
AN-1439：高保真系统的单级放大器设计考虑 (Rev.0) redirect icon

323.24 K

download

Download PDF

PDF Vector

pdf

UPDATED 02/14/2015
English
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications (Rev.0) redirect icon

166 kB

download

Download PDF

PDF Vector

pdf

UPDATED 05/18/2009
Chinese
AN-581: 单电源应用中的偏置和去耦运算放大器 (Rev.0) redirect icon

0

download

Download PDF

PDF Vector

pdf

UPDATED 11/05/2002
Japanese
AN-581: 単電源アプリケーションでのオペアンプのバイアスとデカップリング (Rev.0) redirect icon

1132 kB

download

Download PDF

PDF Vector

HTML

UPDATED 08/07/2023
English
AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

AD8397: Rail-to-Rail, High Output Current Amplifier Data Sheet (Rev.B)

User Guide 1

UG-128: Universal Evaluation Board for Dual High Speed Op Amps in SOIC Packages

Application Note 4

AN-1429: Design Considerations and Solutions for Headphone Drivers in Mobile Phones (Rev.0)
AN-1439: One-Stage Amplifier Design Consideration of a High Fidelity System (Rev.0)
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications (Rev.0)
AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps

Tutorial 11

MT-056: High Speed Voltage Feedback Op Amps
MT-050: Op Amp Total Output Noise Calculations for Second-Order System
MT-032: Ideal Voltage Feedback (VFB) Op Amp
MT-053: Op Amp Distortion: HD, THD, THD + N, IMD, SFDR, MTPR
MT-047: Op Amp Noise
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth
MT-049: Op Amp Total Output Noise Calculations for Single-Pole System
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps
MT-060: Choosing Between Voltage Feedback and Current Feedback Op Amps
MT-033: Voltage Feedback Op Amp Gain and Bandwidth
MT-052: Op Amp Noise Figure: Don't Be Misled

Product Selection Guide 1

High Speed Amplifiers Selection Table

Circuit Note 1

CN0276: High Performance, 10-Bit to 16-Bit Resolver-to-Digital Converter

Solutions Bulletin & Brochure 1

Boost Manufacturing Productivity with Precise Position Encoder Solutions Brochure

Analog Dialogue 2

Precision Resolver-to-Digital Converter Measures Angular Position and Velocity
Composite Amplifiers: High Output Drive Capability with Precision

Webcast 1

A Stress-Free Method for Choosing High-Speed Op Amps

Video

1

Thumbnail Image

Video

2017-03-20

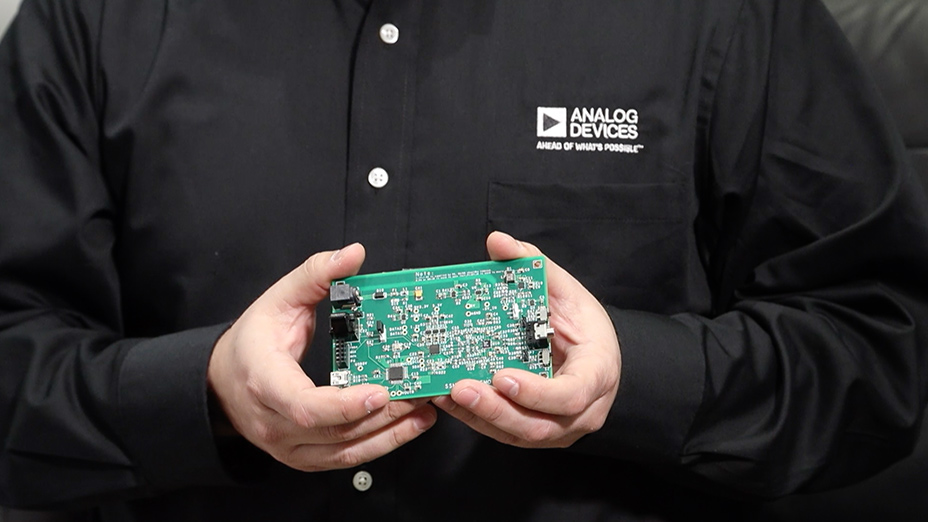

High Fidelity Headphone Amplifier Solution featuring SSM6322
