AD5258

Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $0.75
Features
  • Nonvolatile memory maintains wiper settings
  • 64-position digital potentiometer

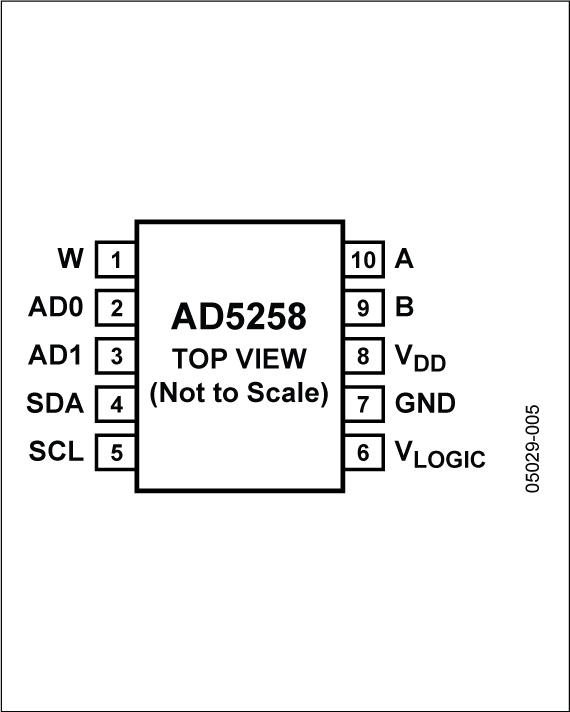

  • Compact MSOP-10 (3 mm × 4.9 mm)
  • I2C-compatible interface
  • VLOGIC pin provides increased interface flexibility
  • End-to-end resistance 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
  • Resistance tolerance stored in EEPROM (0.1% accuracy)
  • Power-on EEPROM refresh time <1 ms
  • Software write protect command
  • Address Decode Pin AD0 and Address Decode Pin AD1 allow four packages per bus
  • 100-year typical data retention at 55°C
  • Wide operating temperature
    −40°C to +85°C
Additional Details
show more Icon

The AD5258 provides a compact, nonvolatile 3 mm × 4.9 mm packaged solution for 64-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, but with enhanced resolution and solid-state reliability.

The wiper settings are controllable through an I2C-compatible digital interface that is also used to read back the wiper register and EEPROM content in addition, resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%. There is also a software write protection function that ensures data cannot be written to the EEPROM register.

A separate VLOGIC pin delivers increased interface flexibility. For users who need multiple parts on one bus, Address Bit AD0 and Address Bit AD1 allow up to four devices on the same bus.

APPLICATIONS

  • LCD panel VCOM adjustment
  • LCD panel brightness and contrast control
  • Mechanical potentiometer replacement in new designs
  • Programmable power supplies
  • RF amplifier biasing
  • Automotive electronics adjustment
  • Gain control and offset adjustment
  • Fiber to the home systems
  • Electronics level settings
Part Models 8
1ku List Price Starting From $0.75

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5258BRMZ1
  • HTML
  • HTML
AD5258BRMZ1-R7
  • HTML
  • HTML
AD5258BRMZ10
  • HTML
  • HTML
AD5258BRMZ10-R7
  • HTML
  • HTML
AD5258BRMZ100
  • HTML
  • HTML
AD5258BRMZ100-R7
  • HTML
  • HTML
AD5258BRMZ50
  • HTML
  • HTML
AD5258BRMZ50-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 30, 2017

- 15_0176

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

May 8, 2012

- 12_0013

AD5258 Metal Edit

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 30, 2017

- 15_0176

arrow down

Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

May 8, 2012

- 12_0013

arrow down

AD5258 Metal Edit

AD5258BRMZ1

PRODUCTION

AD5258BRMZ1-R7

PRODUCTION

AD5258BRMZ10

PRODUCTION

AD5258BRMZ10-R7

PRODUCTION

AD5258BRMZ100

PRODUCTION

AD5258BRMZ100-R7

PRODUCTION

AD5258BRMZ50

PRODUCTION

AD5258BRMZ50-R7

PRODUCTION

Evaluation Kit

Evaluation Kits 1

reference details image

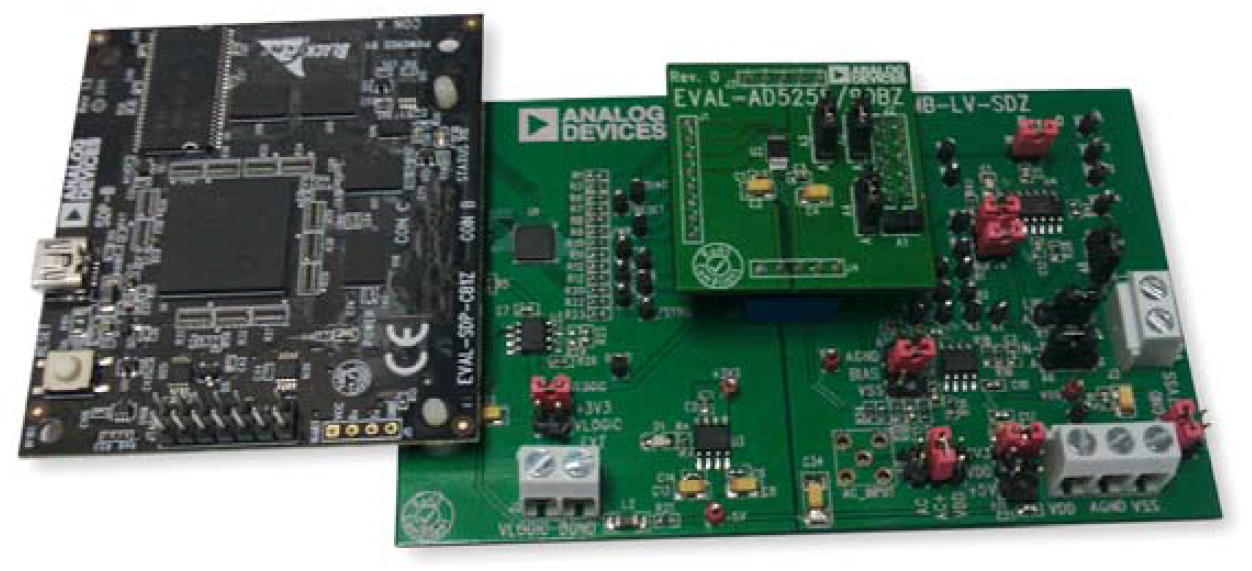

EVAL-AD5258

AD5258 Evaluation Board

zoom

EVAL-AD5258

AD5258 Evaluation Board

AD5258 Evaluation Board

Features and Benefits

  • Full-featured in conjunction with low voltage digiPOT motherboard (EVAL-MB-LV-SDZ)
  • Various test circuits
  • Various ac/dc input signals
  • PC control via a separately purchased system demonstration platform (SDP-B or SDP-S)
  • PC software for control

Product Detail

The AD5258 supports single-supply 2.7 V to 5.5 V operation, making the device suited for battery-powered applications and many other applications with superior low temperature coefficient performance.

In addition, the AD5258 uses a versatile I2C serial interface that operates in fast mode, allowing speeds of up to 400 kHz. This interface can be used to read back the wiper register and EEPROM content.

The EVAL-MB-LV-SDZ can operate in single-supply mode and incorporates an internal power supply from the USB.

Complete specifications for the AD5258 part can be found in the AD5258 data sheet.
