Overview

Features and Benefits

  • Fast settling filter option
  • 8 differential/16 pseudo differential input channels
  • RMS noise: 11 nV at 4.7 Hz (gain = 128)
  • 15.5 noise-free bits at 2.4 kHz (gain = 128)
  • Up to 22 noise-free bits (gain = 1)
  • Offset drift: ±5 nV/°C
  • Gain drift: ±1 ppm/°C
  • Programmable gain (1 to 128)
  • Output data rate: 4.7 Hz to 4.8 kHz
  • Internal or external clock
  • Simultaneous 50 Hz/60 Hz rejection
  • 4 general-purpose digital outputs
  • Power supply
    • AVDD: 3 V to 5.25 V
    • DVDD: 2.7 V to 5.25 V
  • Current: 4.65 mA
  • Temperature range: −40°C to +105°C

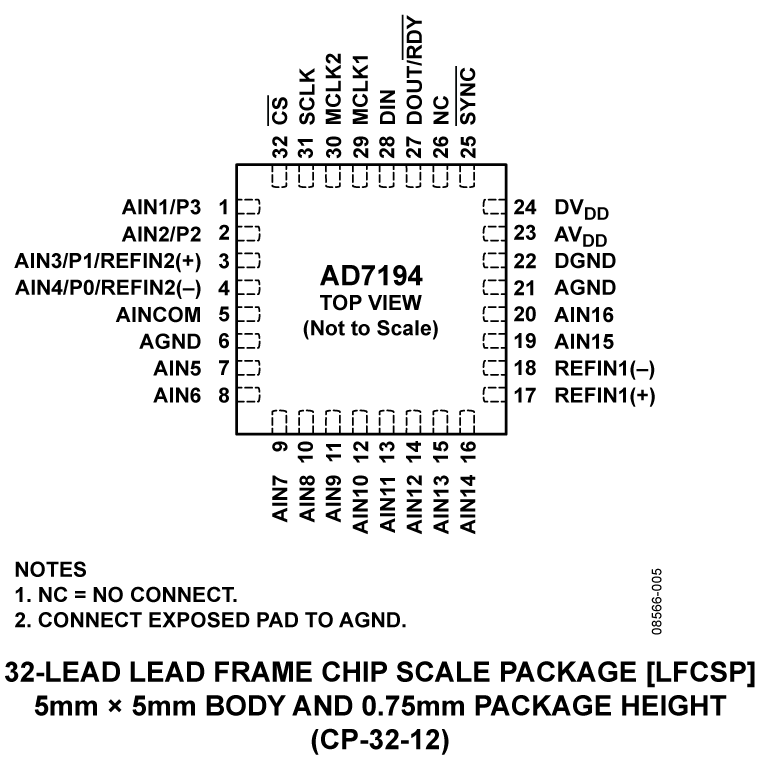

  • Package: 32-lead LFCSP
  • Interface
    • 3-wire serial
    • SPI, QSPI™, MICROWIRE, and DSP compatible
    • Schmitt trigger on SCLK

Product Details

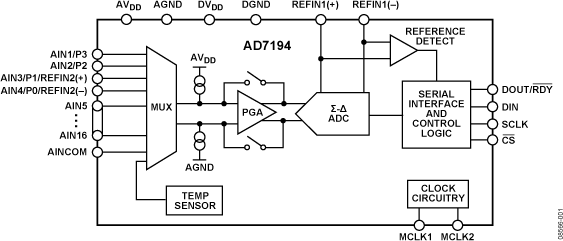

The AD7194 is a low noise, complete analog front end for high precision measurement applications. It contains a low noise, 24-bit sigma-delta (Σ-Δ) analog-to-digital converter (ADC). The on-chip low noise gain stage means that signals of small amplitude can interface directly to the ADC.

The device can be configured to have eight differential inputs or sixteen pseudo differential inputs. The on-chip 4.92 MHz clock can be used as the clock source to the ADC or, alternatively, an external clock or crystal can be used. The output data rate from the part can be varied from 4.7 Hz to 4.8 kHz.

The device has a very flexible digital filter, including a fast settling option. Variables such as output data rate and settling time are dependent on the option selected. For applications that require all conversions to be settled, the AD7194 includes zero latency.

The part operates with a power supply from 3 V to 5.25 V. It consumes a current of 4.65 mA, and it is housed in a 32-lead LFCSP package.

Applications

  • PLC/DCS analog input modules
  • Data acquisition
  • Strain gage transducers
  • Pressure measurement
  • Temperature measurement
  • Flow measurement
  • Weigh scales
  • Chromatography
  • Medical and scientific instrumentation

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Evaluation Kits (1)

Tools & Simulations

Virtual Eval - BETA

Virtual Eval is a web application to assist designers in product evaluation of ADCs, DACs, and other ADI products. Using detailed models on Analog’s servers, Virtual Eval simulates crucial part performance characteristics within seconds. Configure operating conditions such as input tones and external jitter, as well as device features like gain or digital down-conversion. Performance characteristics include noise, distortion, and resolution, FFTs, timing diagrams, response plots, and more.

VirtualEval

Design Tools

AD7193/AD7194 Digital Filter Models

These tools show the response of the digital filter section of the AD71xx and AD77xx devices based on input parameters.

Product Recommendations

AD7194 Companion Parts

Recommended Digital Isolators

Recommended Driver Amplifier

  • For a low noise, low distortion, rail-to-rail output, differential driver: ADA4940-1.
  • For a precision, general purpose, rail-to-rail, single-ended input: AD8628.

Recommended Precision Reference

  • For low noise, high accuracy, 2.5V reference: ADR421, ADR431.
  • For low noise, high accuracy, 5V reference: ADR425.

Recommended Linear Regulators

  • For powering the separate AVdd and DVdd supplies: ADP3303.
