AD9717

PRODUCTION

Dual, 14-Bit Low Power Digital-to-Analog Converters

Data Sheet (Rev. D) Product Selection Table

Part Models: 2
1ku List Price: Starting From $12.57

Viewing:

Overview

Power dissipation @ 3.3 V, 2 mA output

37 mW @ 10 MSPS
86 mW @ 125 MSPS

Sleep mode: <3 mW @ 3.3 V
Supply voltage: 1.8 V to 3.3 V
SFDR to Nyquist

84 dBc @ 1 MHz output
75 dBc @ 10 MHz output

AD9717: NSD @ 10 MHz output, 125 MSPS, 2 mA: −152 dBc/Hz
Differential current outputs: 1 mA to 4 mA
2 on-chip auxiliary DACs
CMOS inputs with single-port operation
Output common mode: adjustable 0 V to 1.2 V

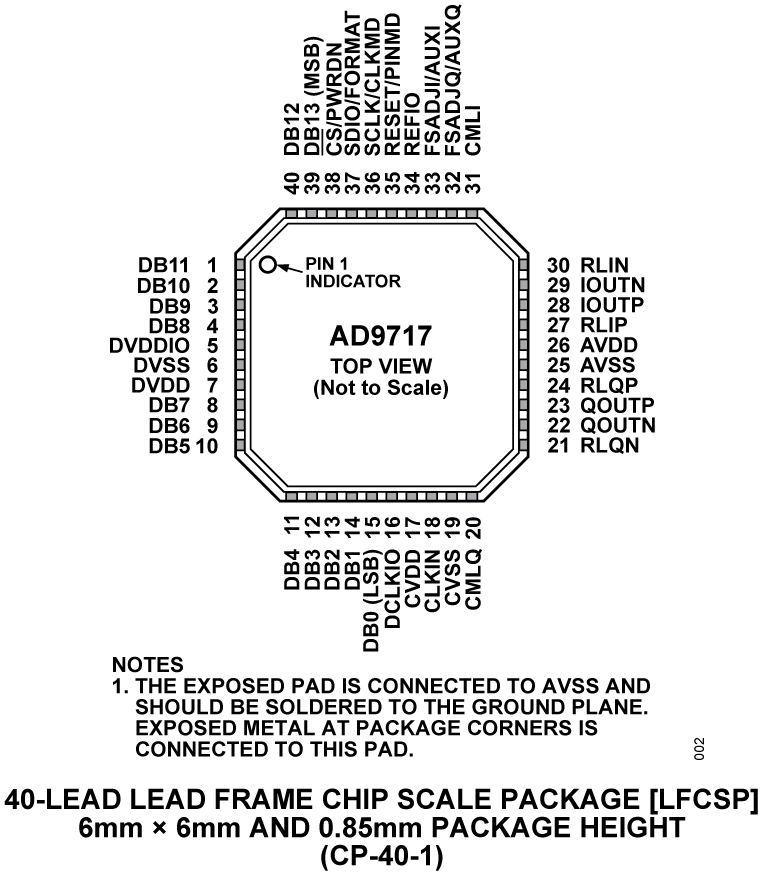

Small footprint 40-lead LFCSP RoHS-compliant package

The AD9714 / AD9715 / AD9716 / AD9717 are pin-compatible, dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC^® converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost.

The AD9714 / AD9715 / AD9716 / AD9717 offer exceptional ac and dc performance and support update rates up to 125 MSPS.

The flexible power supply operating range of 1.8 V to 3.3 V and low power dissipation of the AD9714 / AD9715 / AD9716 / AD9717 make them well-suited for portable and low power applications.

PRODUCT HIGHLIGHTS

Low Power.
DACs operate on a single 1.8 V to 3.3 V supply; total power consumption reduces to 35 mW at 125 MSPS with a 1.8 V supply. Sleep and power-down modes are provided for low power idle periods.
LVCMOS Clock Input.
High speed, single-ended LVCMOS clock input supports a 125 MSPS conversion rate.
Easy Interfacing to Other Components.
Adjustable output common mode from 0 V to 1.2 V allows easy interfacing to other components that accept common- mode levels greater than 0 V.

APPLICATIONS

Wireless infrastructures

Picocell, femtocell base stations

Medical instrumentation

Ultrasound transducer excitation

Portable instrumentation

Signal generators, arbitrary waveform generators

Part Models: 2
1ku List Price: Starting From $12.57

Documentation

Data Sheet 1

AD9714/AD9715/AD9716/AD9717: Dual, Low Power 8-/10-/12-/14-Bit TxDAC Digital-to-Analog Converters Data Sheet (Rev.D) 03/25/2009

User Guide 3

SDP-H1 for High-Speed DAC Evaluation 04/09/2021

AD971x/AD911x-DPG2 Evaluation Board Documentation 03/31/2021

UG-502: SDP-H1 Controller Board 04/05/2013

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD9717BCPZ	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD9717BCPZRL7	40-Lead LFCSP (6mm x 6mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 1, 2024 - 24_0009 Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
		PCN24_0009_Form Material_Report Qualification Results Summary
AD9717BCPZ	PRODUCTION
AD9717BCPZRL7	PRODUCTION
Jun 26, 2023 - 23_0025 Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
		PCN23_0025_Form Material_Report Package Outline Drawing Qualification Results Summary
AD9717BCPZ	PRODUCTION
AD9717BCPZRL7	PRODUCTION
Sep 13, 2017 - 16_0077 CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.
		PCN16_0077_Form Material_Report Detailed Parts List Detailed Parts List Package Outline Drawing Detailed Change Description Qualification Results Summary
AD9717BCPZ	PRODUCTION
AD9717BCPZRL7	PRODUCTION
Jan 6, 2012 - 11_0253 AD9717, AD9716, AD9715, AD9714 Minor Circuit and Die Attach Material Change
		PCN11_0253_Form Material_Report Qualification Report Summary
AD9717BCPZ	PRODUCTION
AD9717BCPZRL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

FPGA/HDL 1

AD971x/AD911x-DPG2 FMC Interposer & Evaluation Board / Xilinx ML-605 Reference Design

Can't find the software or driver you need?

Tools & Simulations

IBIS Model 1

AD9717 IBIS Model

Evaluation Kits

AD9717 Evaluation Board

Buy Now View Details

Features and Benefits

Full featured evaluation board for the AD9114/AD9115/AD9116/AD9117 (AD911x) and AD9714/AD9715/AD9716/AD9717 (AD971x)
Includes options to evaluate
DAC only
DAC and ADL5375 quadrature modulator
DAC and op amp performance
USB interface for configuration
Internal or external power supply regulation
On-board or external clock distribution
Data pattern generator and SPI software interfaces

Product Details

This page contains evaluation board documentation and ordering information for evaluating the AD9717.

Resources

UG-502: SDP-H1 Controller Board
4/5/2013

SDP-H1 for High-Speed DAC Evaluation
4/9/2021

AD971x/AD911x-DPG2 Evaluation Board Documentation
1/1/0001

High Speed Controller Board

Buy Now View Details

Features and Benefits

Xilinx^® Spartan 6
1 x FMC Low Pin Count ( LPC) connector
LVDS and single ended LVCMOS signaling
DDR2
JTAG header
Blackfin processor ADSP-BF527
1 x small Footprint 120 pin connector
Configurable Peripheral Interfaces SPI, SPORT, I²C, GPIO, Asynchronous Parallel, PPI, Timers
USB 2.0 interface to the PC

Product Details

The SDP-H1 is a high speed controller board for the System Demonstration Platform (SDP). The SDP-H1 has a Xilinx^® Spartan 6 and an ADSP-BF527 processor with connectivity to the PC through a USB 2.0 high speed port. Controller boards allow for the configuration and capture of data on daughter boards from the PC via USB.

The SDP-H1 has a FMC low pin count ( LPC) connector with full differential LVDS and singled ended LVCMOS support. It also has the 120 pin connector, found on the SDP-B which exposes the Blackfin processors peripherals. This connector provides a configurable Serial, Parallel I2C and SPI and GPIO communications lines to the attached daughter board. The PC side software application for controlling the attached daughter board is provided with each of the daughter product evaluation boards or Circuits from the Lab reference Circuits.

The System Demonstration Platform is a collection of controller boards, interposer boards, and daughter boards, used for easy, low cost evaluation of ADI components and reference circuits. For a general overview of the entire platform visit the System Demonstration Platform homepage www.analog.com/sdp

See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require the SDP-B. All SDP-S compatible daughter boards can be used with the SDP-B.
