Features
- Power dissipation @ 3.3 V, 2 mA output
- 37 mW @ 10 MSPS
- 86 mW @ 125 MSPS
- Sleep mode: <3 mW @ 3.3 V
- Supply voltage: 1.8 V to 3.3 V
- SFDR to Nyquist
- 84 dBc @ 1 MHz output
- 75 dBc @ 10 MHz output
- AD9715: NSD @ 10 MHz output, 125 MSPS, 2 mA: −141 dBc/Hz
- Differential current outputs: 1 mA to 4 mA
- 2 on-chip auxiliary DACs
- CMOS inputs with single-port operation
- Output common mode: adjustable 0 V to 1.2 V
- Small footprint 40-lead LFCSP RoHS-compliant package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD9714/AD9715/AD9716/AD9717 are pin-compatible, dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC® converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost.
The AD9714/AD9715/AD9716/AD9717 offer exceptional ac and dc performance and support update rates up to 125 MSPS.
The flexible power supply operating range of 1.8 V to 3.3 V and low power dissipation of the AD9714/AD9715/AD9716/AD9717 make them well-suited for portable and low power applications.
PRODUCT HIGHLIGHTS- Low Power.
DACs operate on a single 1.8 V to 3.3 V supply; total power consumption reduces to 35 mW at 125 MSPS with a 1.8 V supply. Sleep and power-down modes are provided for low power idle periods. - LVCMOS Clock Input.
High speed, single-ended LVCMOS clock input supports a 125 MSPS conversion rate. - Easy Interfacing to Other Components.
Adjustable output common mode from 0 V to 1.2 V allows easy interfacing to other components that accept common- mode levels greater than 0 V.
APPLICATIONS
- Wireless infrastructures
- Picocell, femtocell base stations
- Medical instrumentation
- Ultrasound transducer excitation
- Portable instrumentation
- Signal generators, arbitrary waveform generators
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD9715
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
3
1896 kB
WIKI
WIKI
Documentation
Solutions Bulletin & Brochure 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD9715BCPZ |

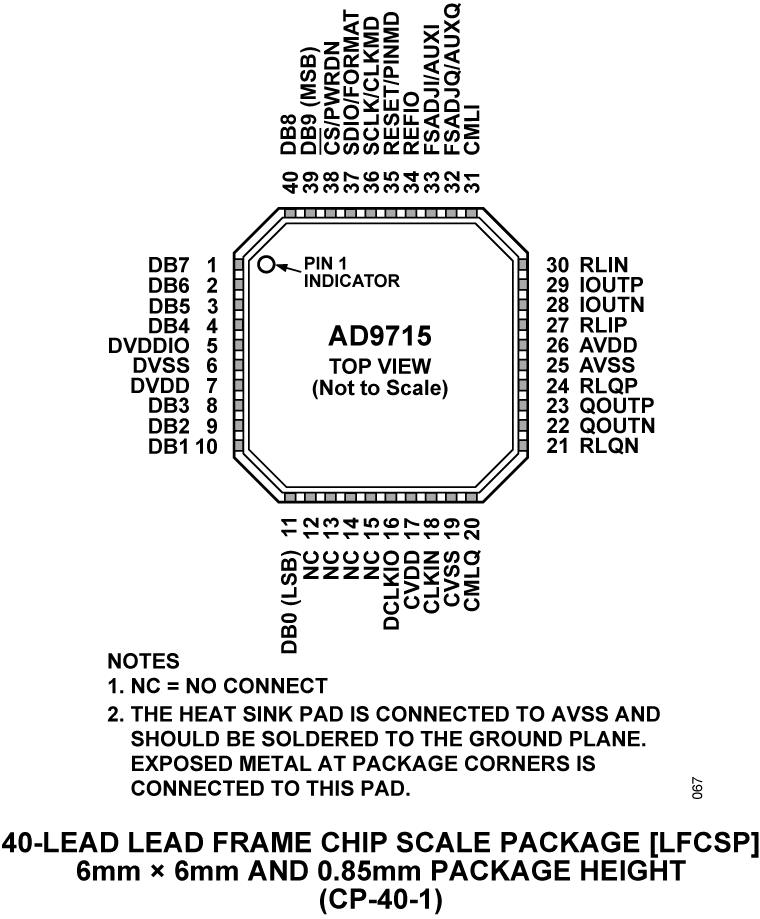

40-Lead LFCSP (6mm x 6mm w/ EP)
|
|
|
| AD9715BCPZRL7 |
40-Lead LFCSP (6mm x 6mm w/ EP)
|
|
- AD9715BCPZ
- Pin/Package Drawing
-
40-Lead LFCSP (6mm x 6mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD9715BCPZRL7
- Pin/Package Drawing
-
40-Lead LFCSP (6mm x 6mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 1, 2024
- 24_0009
Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Jun 26, 2023
- 23_0025
Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Sep 13, 2017
- 16_0077
CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Jan 6, 2012
- 11_0253
AD9717, AD9716, AD9715, AD9714 Minor Circuit and Die Attach Material Change
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 1, 2024
- 24_0009
Qualification of alternative Wafer Fab for TSMC 0.18um Mixed Signal CMOS Process
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Jun 26, 2023
- 23_0025
Package Outline Drawing and Data Sheet Revision for Select LFCSP Products in Amkor
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Sep 13, 2017
- 16_0077
CANCELLED: Conversion of Select 4x4, 5x5, 6x6 and 7x7mm LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE Korea.
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Jan 6, 2012
- 11_0253
AD9717, AD9716, AD9715, AD9714 Minor Circuit and Die Attach Material Change
AD9715BCPZ
PRODUCTION
AD9715BCPZRL7
PRODUCTION
Software & Part Ecosystem
FPGA/HDL
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2
SDP-H1
High Speed Controller Board
Features and Benefits
- Xilinx® Spartan 6
- 1 x FMC Low Pin Count ( LPC) connector
- LVDS and single ended LVCMOS signaling
- DDR2
- JTAG header
- Blackfin processor ADSP-BF527
- 1 x small Footprint 120 pin connector
- Configurable Peripheral Interfaces SPI, SPORT, I2C, GPIO, Asynchronous Parallel, PPI, Timers
- USB 2.0 interface to the PC
Product Detail
The SDP-H1 is a high speed controller board for the System Demonstration Platform (SDP). The SDP-H1 has a Xilinx® Spartan 6 and an ADSP-BF527 processor with connectivity to the PC through a USB 2.0 high speed port. Controller boards allow for the configuration and capture of data on daughter boards from the PC via USB.
The SDP-H1 has a FMC low pin count ( LPC) connector with full differential LVDS and singled ended LVCMOS support. It also has the 120 pin connector, found on the SDP-B which exposes the Blackfin processors peripherals. This connector provides a configurable Serial, Parallel I2C and SPI and GPIO communications lines to the attached daughter board. The PC side software application for controlling the attached daughter board is provided with each of the daughter product evaluation boards or Circuits from the Lab reference Circuits.
The System Demonstration Platform is a collection of controller boards, interposer boards, and daughter boards, used for easy, low cost evaluation of ADI components and reference circuits. For a general overview of the entire platform visit the System Demonstration Platform homepage www.analog.com/sdp
See the full list of compatible Product Evaluation Boards and Circuits from the Lab Reference Circuit Boards that require the SDP-B. All SDP-S compatible daughter boards can be used with the SDP-B.
Resources

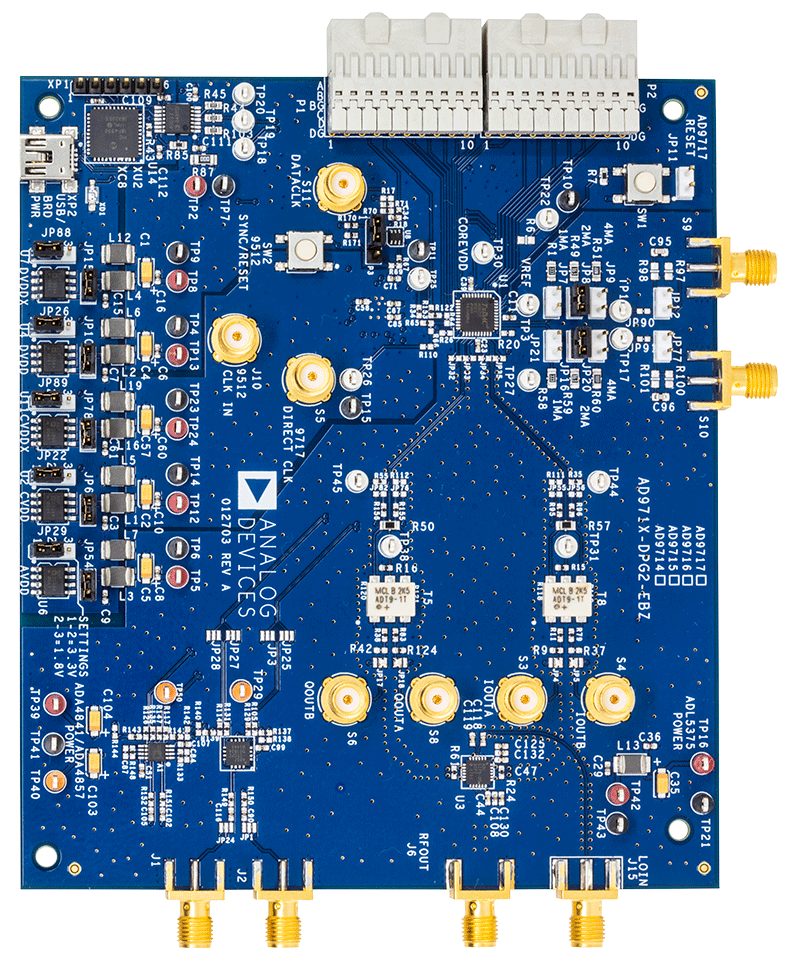

EVAL-AD9715
AD9715 Evaluation Board
Features and Benefits
- Full featured evaluation board for the AD9114/AD9115/AD9116/AD9117 (AD911x) and AD9714/AD9715/AD9716/AD9717 (AD971x)
- Includes options to evaluate
DAC only
DAC and ADL5375 quadrature modulator
DAC and op amp performance - USB interface for configuration
- Internal or external power supply regulation
- On-board or external clock distribution
- Data pattern generator and SPI software interfaces
Product Detail
This page contains evaluation board documentation and ordering information for evaluating the AD9715.
