Features and Benefits
- 12 MHz multiplying bandwidth
- Integral nonlinearity (INL) of ±0.25 LSB at 8-bit
- 8-lead TSOT and MSOP packages
- 2.5 V to 5.5 V supply operation
- Pin-compatible 8-/10-/12-/14-bit current output DACs
- ±10 V reference input
- 50 MHz serial interface
- 2.7 MSPS update rate
- Extended temperature range: –40°C to +125°C
- 4-quadrant multiplication
- Power-on reset with brownout detect
- <0.4 μA typical current consumption
- Guaranteed monotonic
- Qualified for automotive applications
The AD5450 / AD5451 / AD5452 / AD5453 are CMOS 8-/10-/ 12-/14-bit current output digital-to-analog converters (DACs), respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suited to several applications, including battery-powered applications.
As a result of manufacture on a CMOS submicron process, these DACs offer excellent 4-quadrant multiplication characteristics of up to 12 MHz.
These DACs use a double-buffered, 3-wire serial interface that is compatible with SPI®, QSPI™, MICROWIRE™, and most DSP interface standards. Upon power-up, the internal shift register and latches are filled with 0s, and the DAC output is at zero scale.
The applied external reference input voltage (VREF) determines the full-scale output current. These parts can handle ±10 V inputs on the reference, despite operating from a single-supply power supply of 2.5 V to 5.5 V. An integrated feedback resistor (RFB) provides temperature tracking and full-scale voltage output when combined with an external current-to-voltage precision amplifier.

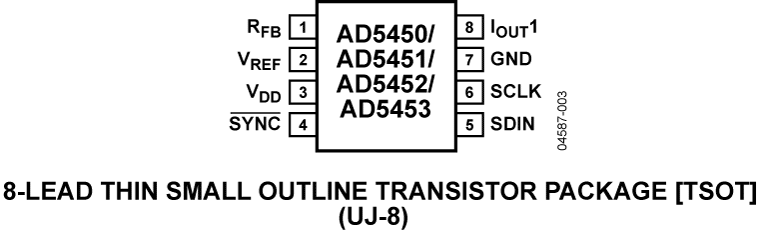

The AD5450 / AD5451 / AD5452 / AD5453 DACs are available in small 8-lead TSOT, and the AD5452 / AD5453 are also available in MSOP packages. The AD5453 also comes in 8-lead LFSCP.
- Portable battery-powered applications
- Waveform generators
- Analog processing
- Instrumentation applications
- Programmable amplifiers and attenuators
- Digitally controlled calibration
- Programmable filters and oscillators
- Composite video
- Gain, offset, and voltage trimming
- Qualified for automotive applications
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The evaluation board for the AD5453 contains a SDP connection and software which allows the AD5453 to be controlled from an SDP board.
The SDP controller board is a separate list item in the ordering guide below (EVAL-SDP-CS1Z). If you have not previously purchased an SDP controller board, please do so to ensure a full evaluation setup.
This evaluation board can be used to evaluate the AD5450, AD5451 and AD5452.
Documentation & Resources
AN-1510: Precision, Bipolar Configuration for the AD5450/AD5451/AD5452/AD5453 8-Bit, 10-Bit, 12-Bit, and 14-Bit Multiplying DACs (Rev. B)1/26/2018
AN-1509: Unipolar, Precision DC, Digital-to-Analog Conversion Using the AD5450/AD5451/AD5452/AD5453 8-/10-/12-/14-Bit DACs (Rev. B)1/15/2018
AN-1511: Programmable Gain Element Using the AD5450/AD5451/AD5452/AD5453 Current Output DAC Family (Rev. B)11/28/2017
AN-1235: AC Signal Processing Using the AD5450/AD5451/AD5452/AD5453 Current Output DACs (Rev. B)5/8/2013
AN-1094: Multiplying DACs—Fixed Reference, Waveform Generation Applications (Rev. 0)10/27/2010
AN-912: Driving a Center-Tapped Transformer with a Balanced Current-Output DAC (Rev. 0)5/21/2007
AN-320A: CMOS Multiplying DACs and Op Amps Combine to Build Programmable Gain Amplifier, Part 110/15/2004
AN-137: A Digitally Programmable Gain and Attenuation Amplifier Design9/26/2002
High-Speed DAC Controls Power Amplifier Ramp Profile6/1/2007 Analog Dialogue
Software & Systems Requirements
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
