ADG1236

Low Capacitance, Low Charge Injection, ±15 V/12 V iCMOS, Dual SPDT Switch

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price Starting From $2.35
Features
  • 1.3 pF off capacitance
  • 3.5 pF on capacitance
  • 1 pC charge injection
  • 33 V supply range
  • 120 Ω on resistance
  • Fully specified at +12 V, ±15 V
  • No VL supply required
  • 3 V logic-compatible inputs
  • Rail-to-rail operation
  • 16-lead TSSOP and 12-lead LFCSP packages
  • Typical power consumption: <0.03 µW
Additional Details
show more Icon

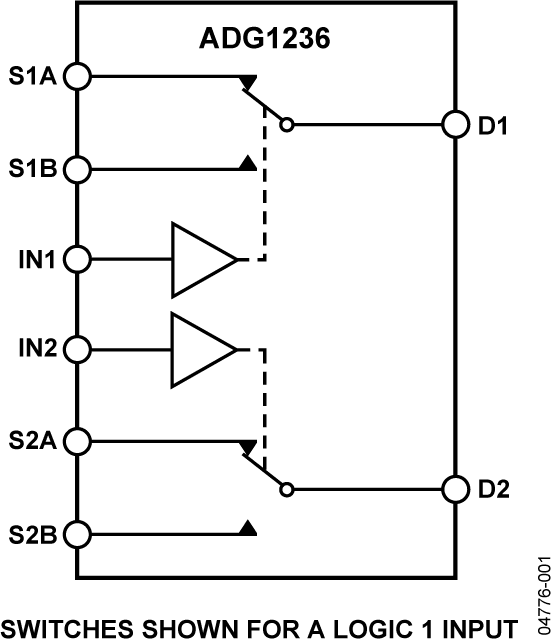

The ADG1236 is a monolithic CMOS device containing two independently selectable SPDT switches. It is designed on an iCMOS® process. iCMOS (industrial CMOS) is a modular manufacturing process combining high voltage complementary metal-oxide semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.

The ultralow capacitance and charge injection of the device make it an ideal solution for data acquisition and sample-and-hold applications, where low glitch and fast settling are required. Fast switching speed coupled with high signal bandwidth makes the device suitable for video signal switching. iCMOS construction ensures ultralow power dissipation, making the device ideally suited for portable and battery-powered instruments.

Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. Both switches exhibit break-before-make switching action for use in multiplexer applications.

Product Highlights

  1. 3 pF off capacitance (±15 V supply).
  2. 1 pC charge injection.
  3. 3 V logic-compatible digital inputs: VIH = 2.0 V, VIL = 0.8 V.
  4. No VL logic power supply required.
  5. Ultralow power dissipation: <0.03 µW.
  6. 16-lead TSSOP and 12-lead 3 mm × 3 mm LFCSP packages.

Applications

  • Automatic test equipment
  • Data acquisition systems
  • Battery-powered systems
  • Sample-and-hold systems
  • Audio/video signal routing
  • Communication systems
Part Models 5
1ku List Price Starting From $2.35

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADG1236YCPZ-500RL7
  • HTML
  • HTML
ADG1236YCPZ-REEL7
  • HTML
  • HTML
ADG1236YRUZ
  • HTML
  • HTML
ADG1236YRUZ-REEL
  • HTML
  • HTML
ADG1236YRUZ-REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 13, 2014

- 14_0038

Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.

Nov 16, 2009

- 06_0157

Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland

ADG1236YCPZ-500RL7

PRODUCTION

ADG1236YCPZ-REEL7

PRODUCTION

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Oct 26, 2009

- 09_0202

Inclusion of Banding Tape for LFCSP REEL7 parts.

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Jan 20, 2012

- 11_0218

Halogen Free Material Change for Certain TSSOP Products at Carsem

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 13, 2014

- 14_0038

arrow down

Conversion of 3x3mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.

Nov 16, 2009

- 06_0157

arrow down

Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland

ADG1236YCPZ-500RL7

PRODUCTION

ADG1236YCPZ-REEL7

PRODUCTION

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Oct 26, 2009

- 09_0202

arrow down

Inclusion of Banding Tape for LFCSP REEL7 parts.

Apr 5, 2021

- 21_0035

arrow down

Amkor Philippines as an Alternate Site for TSSOP_4.4

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Jan 20, 2012

- 11_0218

arrow down

Halogen Free Material Change for Certain TSSOP Products at Carsem

ADG1236YRUZ

PRODUCTION

ADG1236YRUZ-REEL

PRODUCTION

ADG1236YRUZ-REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

EVAL-ADMX1001

Ultra-low Distortion Signal Generator Measurement Module

zoom

EVAL-ADMX1001

Ultra-low Distortion Signal Generator Measurement Module

Ultra-low Distortion Signal Generator Measurement Module

Features and Benefits

  • Ultra-low distortion, high-resolution source
    • DC, 50Hz to 40kHz Frequency Range
    • Proprietary digital pre-distortion (DPD) algorithm
    • –130dBc THD @ 1kHz (typ.)
    • Arbitrary waveform generation (AWG) with on-board pattern memory
    • Differential (balanced) output up to 3.5VRMS
    • Fast pattern switching between multiple stored waveforms
  • Fully Differential input Acquisition Channel
  • Small form-factor (60mm x 40mm)
  • Low power, 1W typ. (quiescent)
  • SPI interface for integration into test and measurement systems

For a complete evaluation solution, all three boards must be purchased:

  1. ADMX1001B
  2. EVAL-ADMX100X-FMCZ,
  3. EVAL-SDP-CH1Z

Product Detail

The ADMX1001 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator with an acquisition channel. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. The signal generator and the acquisition channel can be individually controlled using separate, easy to use, SPI interfaces - combined with the module's small-form factor, the ADMX1001 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

  • High-end audio test
  • Analog-to-digital converter characterization and test
  • Sensor and transducer test
  • Frequency response and network analysis
  • ATE
reference details image

EVAL-ADMX1002

Ultra-low Distortion Signal Generator Measurement Module

zoom

EVAL-ADMX1002

Ultra-low Distortion Signal Generator Measurement Module

Ultra-low Distortion Signal Generator Measurement Module

Features and Benefits

  • Ultra-low distortion, high-resolution source
    • DC to 40kHz
    • Proprietary digital pre-distortion (DPD) algorithm
    • –130dBc THD @ 1kHz (typ.)
    • Arbitrary waveform generation (AWG) with on-board pattern memory
    • Differential (balanced) output up to 3.6VRMS
  • Fast pattern switching between multiple stored waveforms
  • Small form-factor (60mm x 40mm)
  • Low power, 1W typ. (quiescent)
  • SPI interface for integration into test and measurement systems

Product Detail

The ADMX1002 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. With an easy-to-use SPI interface and small-form factor, the ADMX1002 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

  • High-end audio test
  • Analog-to-digital converter characterization and test
  • Sensor and transducer test
  • Frequency response and network analysis
  • ATE
reference details image

EVAL-16TSSOP

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

zoom

EVAL-16TSSOP

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

Evaluation Board for 16 lead TSSOP Devices in the Switch/Mux Portfolio

Features and Benefits

  • 16 lead TSSOP evaluation board
  • Clamp to allow the main device to be changed easily
  • Gold pin connectors to allow the addition of passive components
  • SMB connectors for the input/output of signals
  • Additional space on board to allow for prototyping

Product Detail

The EVAL-16TSSOPEBZ evaluation board evaluates 16-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL-16TSSOPEBZ to secure a 16-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices.

A 16-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K16 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device. In addition, there is space available at the top of the board for prototyping.

Full specifications of the device under test (DUT) are available in the corresponding product data sheet, which should be consulted in conjunction with this user guide when using the evaluation board.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
