ADF4157

High Resolution 6 GHz Fractional-N Frequency Synthesizer

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 6

1ku List Price Starting From $3.95

Features

RF bandwidth to 6 GHz
25-bit fixed modulus allows subhertz frequency resolution
2.7 V to 3.3 V power supply
Separate VP allows extended tuning voltage
Programmable charge pump currents
3-wire serial interface
Digital lock detect
Power-down mode
Pin compatible with the following frequency synthesizers: ADF4110/ADF4111/ADF4112/ADF4113 ADF4106/ADF4153/ADF4154/ADF4156
Cycle slip reduction for faster lock times

Additional Details

The ADF4157 is a 6 GHz fractional-N frequency synthesizer with a 25-bit fixed modulus, allowing subhertz frequency resolution at 6 GHz. It consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. There is a Σ-Δ based fractional interpolator to allow programmable fractional-N division. The INT and FRAC values define an overall N divider, N = INT + (FRAC/225). The ADF4157 features cycle slip reduction circuitry, which leads to faster lock times without the need for modifications to the loop filter.

Control of all on-chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use.

Applications

Satellite communications terminals, radar equipment
Instrumentation equipment
Personal mobile radio (PMR)
Base stations for mobile radio
Wireless handsets

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 6

1ku List Price Starting From $3.95

Technical Documents 6

ADF4157: High Resolution 6 GHz Fractional-N Frequency Synthesizer Data Sheet (Rev.D) 10/08/2007

UG-476: PLL Software Installation Guide 08/10/2015

UG-393: Evaluation Board for the ADF4157 Fractional-N PLL Frequency Synthesizer 08/01/2012

UG-161: PLL Frequency Synthesizer Evaluation Board 09/14/2015

AN-1154: Optimizing Phase Noise and Spur Performance of the ADF4157 and ADF4158 PLLs Using Constant Negative Bleed 01/19/2024

FAQ 03/03/2022

Reference Materials 4

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

ADF4157 GitHub no-OS Driver Source Code 07/29/2024

Fundamentals of Frequency Synthesis, Part 2: Direct Digital Synthesis (DDS) 04/10/2017

Fundamentals of Frequency Synthesis, Part 1: Phased Locked Loops 04/10/2017

Design Resources 6

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

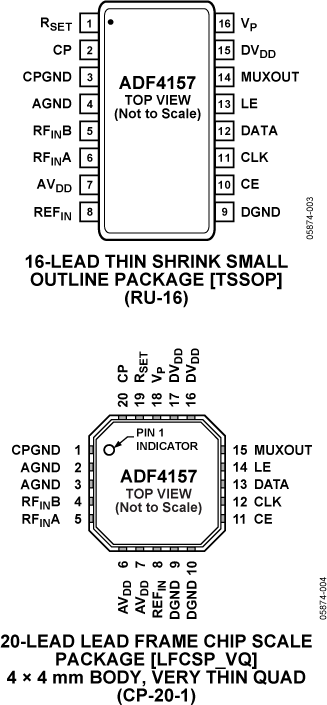

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADF4157BCPZ	20-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4157BCPZ-RL	20-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4157BCPZ-RL7	20-Lead LFCSP (4mm x 4mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4157BRUZ	16-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4157BRUZ-RL	16-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
ADF4157BRUZ-RL7	16-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

ADF4157BCPZ
Pin/Package Drawing
20-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4157BCPZ-RL
Pin/Package Drawing
20-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4157BCPZ-RL7
Pin/Package Drawing
20-Lead LFCSP (4mm x 4mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4157BRUZ
Pin/Package Drawing
16-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4157BRUZ-RL
Pin/Package Drawing
16-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

ADF4157BRUZ-RL7
Pin/Package Drawing
16-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Mar 23, 2012

- 11_0104

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

ADF4157BCPZ

PRODUCTION

ADF4157BCPZ-RL

Obsolete

ADF4157BCPZ-RL7

PRODUCTION

pdf

PCN11_0104_Form

xls

Material_Report

pdf

Qualification Report Summary

pdf

Detailed Change Description

pdf

Detailed Change Description

pdf

Package Outline Drawing

Feb 15, 2010

- 07_0061

LFCSP Package Manufacturing Line Transfer from Amkor Korea to Amkor PRC

ADF4157BCPZ-RL

Obsolete

ADF4157BCPZ-RL7

PRODUCTION

Material_Report.csv

xls

Material_Report

xls

PCN_07_0061_RevB_China

xls

PCN_07_0061_RevB_Korea

pdf

PCN07_0061_Form

Sep 26, 2012

- 11_0218

Halogen Free Material Change for Certain TSSOP Products at Carsem

ADF4157BRUZ

PRODUCTION

pdf

PCN11_0218_Form

xls

Material_Report

pdf

Qualification Report Summary

Jan 29, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

ADF4157BCPZ-RL

Obsolete

ADF4157BRUZ-RL

Obsolete

pdf

PDN14_0014_Form

xls

Material_Report

Filter by Model

Part Models

Product Lifecycle

PCN

Mar 23, 2012

- 11_0104

Conversion of Select Sizes of LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to ASE-Korea.

ADF4157BCPZ

PRODUCTION

ADF4157BCPZ-RL

Obsolete

ADF4157BCPZ-RL7

PRODUCTION

pdf

PCN11_0104_Form

xls

Material_Report

pdf

Qualification Report Summary

pdf

Detailed Change Description

pdf

Detailed Change Description

pdf

Package Outline Drawing

Feb 15, 2010

- 07_0061

LFCSP Package Manufacturing Line Transfer from Amkor Korea to Amkor PRC

ADF4157BCPZ-RL

Obsolete

ADF4157BCPZ-RL7

PRODUCTION

Material_Report.csv

xls

Material_Report

xls

PCN_07_0061_RevB_China

xls

PCN_07_0061_RevB_Korea

pdf

PCN07_0061_Form

Sep 26, 2012

- 11_0218

Halogen Free Material Change for Certain TSSOP Products at Carsem

ADF4157BRUZ

PRODUCTION

pdf

PCN11_0218_Form

xls

Material_Report

pdf

Qualification Report Summary

Jan 29, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

ADF4157BCPZ-RL

Obsolete

ADF4157BRUZ-RL

Obsolete

pdf

PDN14_0014_Form

xls

Material_Report

Software 3

BeMicro FPGA Project for ADF4157 with Nios driver

ADF4157 FMC-SDP Interposer & Evaluation Board / Xilinx KC705 Reference Design

ADF4157 GitHub no-OS Driver Source Code NEW

View Evaluation Software

Companion Parts 6

Parts	Product Life Cycle	Description
Frequency Dividers, Prescalers, and Counters1
ADF5001	PRODUCTION	4 GHz TO 18 GHz Divide-by-4 Prescaler
Internal Power Switch Boost Regulators1
ADP1613	PRODUCTION	650 kHz /1.3 MHz Step-Up PWM DC-to-DC Switching Converter with 2.0 A Current Limit
Positive Linear Regulators (LDO)3
ADP3334	NOT RECOMMENDED FOR NEW DESIGNS	High Accuracy Low I_Q, 500 mA anyCAP^® Adjustable Low Dropout Regulator
ADP151	PRODUCTION	Ultralow Noise, 200 mA, CMOS Linear Regulator
ADP150	PRODUCTION	Ultralow Noise, 150 mA CMOS Linear Regulator
Precision Op Amps (Vos ≤1mV & TCVos ≤2uV/C)1
OP184	PRODUCTION	Single-Supply Rail-to-Rail Input/Output Operational Amplifier

Evaluation Software 1

zip Fractional-N Software

EVAL-ADF4157

ADF4157 Evaluation Board

ADF4157 Evaluation Board

Download

EVAL-ADF4157

ADF4157 Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for the evaluation board used to evaluate the ADF4157 High Resolution 6 GHz Fractional-N Frequency Synthesizer.

This evaluation board requires an SDP Controller board for connection to the PC. The SDP controller board connects to the PC via USB 2.0. The evaluation board will connect to the SDP controller board. The evaluation board cannot be connected directly to the PC. The evaluation software running on the PC will communicate through the SDP Controller board, to the evaluation board. The SDP Controller board is a separate list item in the ordering guide below (EVAL-SDP-CS1Z). If you have not previously purchased an SDP Controller board, please do so to ensure a full evaluation setup.
