ADIsimRF

Download ADIsimRF

*Requires Windows 7 or later and Microsoft .NET Framework 4 Client Profile (x86 and x64).

Key Features

  • Mix and match RF components to easily visualize signal levels, distortion, and noise for complex RF signal chains
  • Powerful frequency-dependent models of most ADI RF components
  • Quickly view data and visualize design trade-offs

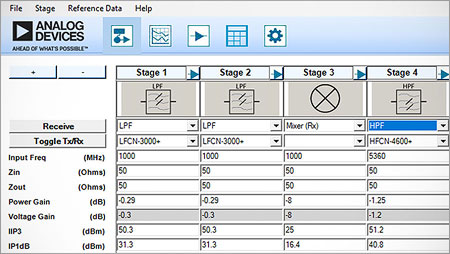

ADIsimRF Chart 1

Select from a wide variety of RF components to create a complex signal chain. Modeled components include LNA, filters, amplifiers, attenuators, and more.

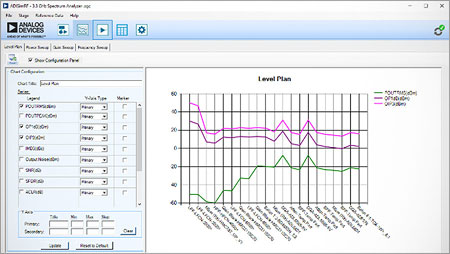

adisimrf-img2-450

Instantly view level plan, power sweep, gain sweep, or frequency sweep data. Data can be exported to Excel for further analysis.

Documentation

Introduction to ADIsimRF

To watch more educational videos on how to use ADIsimRF, visit the ADIsimRF video series page.
