Features
- 256-position
- End-to-end resistance 5 kΩ, 10 kΩ, 50 kΩ, 100 kΩ

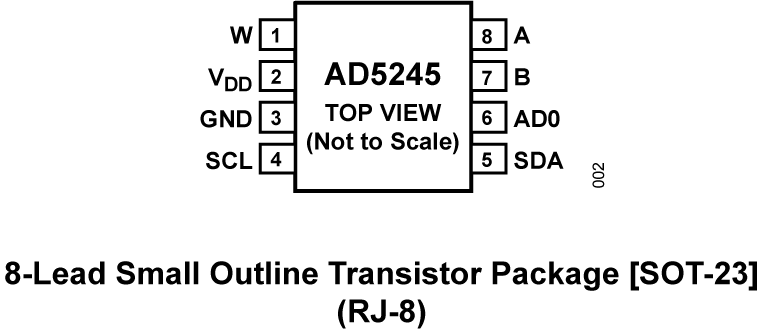

- Compact SOT-23-8 (2.9 mm × 3 mm) package
- Fast settling time: tS = 5 µs typ on power-up
- Full read/write of wiper register
- Power-on preset to midscale
- Extra package address decode pin AD0
- Computer software replaces microcontroller in factory programming applications
- Single supply: 2.7 V to 5.5 V
- Low temperature coefficient 45 ppm/°C
- Low power: IDD = 8 µA
- Wide operating temperature: –40°C to +125°C
- Evaluation board available
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

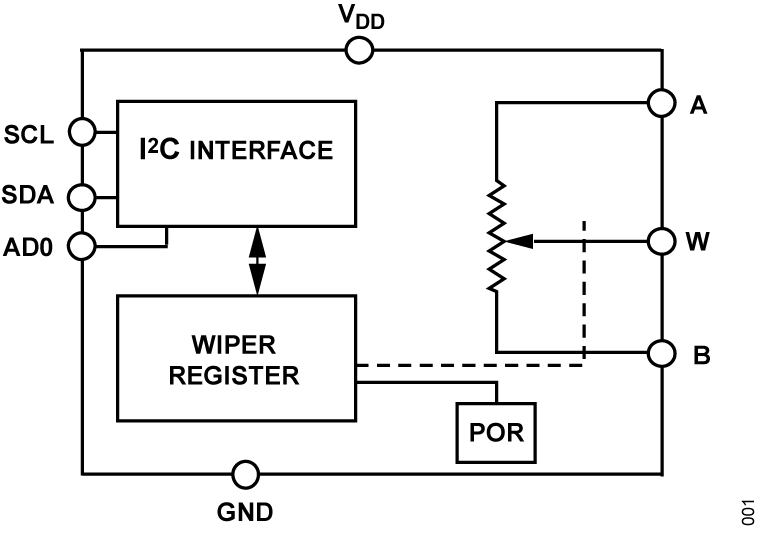

The AD5245 provides a compact 2.9 mm × 3 mm packaged solution for 256-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, with enhanced resolution, solid-state reliability, and superior low temperature coefficient performance.
The wiper settings are controllable through an I2C-compatible digital interface, which can also be used to read back the wiper register content. AD0 can be used to place up to two devices on the same bus. Command bits are available to reset the wiper position to midscale or to shut down the device into a state of zero power consumption.
Operating from a 2.7 V to 5.5 V power supply and consuming less than 8 µA allows usage in portable battery-operated applications.
Note that the terms digital potentiometer, VR, and RDAC are used interchangeably.
APPLICATIONS
- Mechanical potentiometer replacement in new designs
- LCD panel VCOM adjustment
- LCD panel brightness and contrast control
- Transducer adjustment of pressure, temperature, position, chemical, and optical sensors
- RF amplifier biasing
- Automotive electronics adjustment
- Gain control and offset adjustment
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5245
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
Application Note
-
Frequently Asked Question
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
2
User Guide
1
Application Note
3
263 kB
288 kB
Frequently Asked Question
1
HTML
Documentation
Data Sheet 1
User Guide 1
Application Note 1
Frequently Asked Question 1
Product Selection Guide 1
Device Drivers 1
Webcast 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD5245BRJZ10-R2 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ10-RL7 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ100-R2 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ100-RL7 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ5-R2 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ5-RL7 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ50-R2 |
8-Lead SOT-23
|
|
|
| AD5245BRJZ50-RL7 |
8-Lead SOT-23
|
|
- AD5245BRJZ10-R2
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ10-RL7
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ100-R2
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ100-RL7
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ5-R2
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ5-RL7
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ50-R2
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD5245BRJZ50-RL7
- Pin/Package Drawing
-
8-Lead SOT-23
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5245BRJZ10-R2
AD5245BRJZ10-RL7
PRODUCTION
AD5245BRJZ100-R2
AD5245BRJZ100-RL7
PRODUCTION
AD5245BRJZ5-R2
AD5245BRJZ5-RL7
PRODUCTION
AD5245BRJZ50-R2
AD5245BRJZ50-RL7
PRODUCTION
Feb 4, 2010
- 10_0009
Halogen Free Material Change for SOT_23 Products
AD5245BRJZ10-RL7
PRODUCTION
AD5245BRJZ100-RL7
PRODUCTION
AD5245BRJZ5-RL7
PRODUCTION
AD5245BRJZ50-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Feb 8, 2010
- 04_0080
Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
AD5245BRJZ10-R2
AD5245BRJZ10-RL7
PRODUCTION
AD5245BRJZ100-R2
AD5245BRJZ100-RL7
PRODUCTION
AD5245BRJZ5-R2
AD5245BRJZ5-RL7
PRODUCTION
AD5245BRJZ50-R2
AD5245BRJZ50-RL7
PRODUCTION
Feb 4, 2010
- 10_0009
Halogen Free Material Change for SOT_23 Products
AD5245BRJZ10-RL7
PRODUCTION
AD5245BRJZ100-RL7
PRODUCTION
AD5245BRJZ5-RL7
PRODUCTION
AD5245BRJZ50-RL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD5245
AD5245 Evaluation Board
Product Detail
The AD5245 supports single-supply 2.7 V to 5.5 V operation, making the device suitable for battery-powered applications and many applications requiring superior low temperature coefficient performance.
In addition, the AD5245 uses a versatile I2C-compatible serial interface that operates in fast mode, allowing speeds of up to 400 kHz. This interface can be used to read back the wiper register.
The EVAL-AD5245DBZ daughter board and the EVAL-MB-LV-SDZ motherboard can operate in single-supply mode and incorporate an internal power supply from the USB.
Complete specifications for the AD5245 can be found in the AD5245 data sheet.
