ADP165

Very Low Quiescent Current, 150 mA, with Output Discharge LDO Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 19
1ku List Price Starting From $0.42
Features
  • Very low quiescent current
    IQ = 590 nA with 0 µA load
    IQ = 890 nA with 1 µA load
  • Maintains very low quiescent current in dropout (pass through mode):
    IQ_DROP = 720 nA with 0 µA load
    IQ_DROP = 1200 nA with 1 µA load
  • Stable with 1 µF ± 30% ceramic input and output capacitors
  • Maximum load current: ILOAD_MAX: 150 mA
  • Input voltage range: 2.2 V to 5.5 V
  • Low shutdown current: 50 nA typical
  • Low dropout voltage: 120 mV at 150 mA load
  • Initial output voltage accuracy: ±1%
  • Accuracy over line, load, and temperature: ±3.5%
  • 7 fixed output voltage options: 1.2 V to 3.3 V
  • Adjustable output option can be set from 1.2 V to 4.2 V
  • See data sheet for additional features

Additional Details
show more Icon

The ADP165/ADP166 are very low quiescent current, low dropout, linear regulator that operate from 2.2 V to 5.5 V and provides up to 150 mA of output current. The low 120 mV dropout voltage at 150 mA load improves efficiency and allows operation over a wide input voltage range.

The ADP165/ADP166 are specifically designed for stable operation with a tiny 1 µF ± 30% ceramic input and output capacitors to meet the requirements of high performance, space-constrained applications.

The ADP165/ADP166 are available in seven fixed output voltage options, ranging from 1.2 V to 3.3 V, and an adjustable output option. The ADP165 also include a switched resistor to discharge the output automatically when the LDO is disabled. The ADP166 is identical to the ADP165, but does not include the output discharge function.

Short-circuit and thermal overload protection circuits prevent damage in adverse conditions. The ADP165/ADP166 are available in a tiny 5-lead TSOT, a 6-lead LFCSP and a 4-ball, 0.5 mm pitch WLCSP package for the smallest footprint solution to meet a variety of portable power applications.

Applications

  • Portable and battery-powered equipment
  • Post dc-to-dc regulation
  • Portable medical devices
  • Wireless sensor network (WSN) devices
Part Models 19
1ku List Price Starting From $0.42

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP165ACBZ-1.2-R7
  • HTML
  • HTML
ADP165ACBZ-1.8-R7
  • HTML
  • HTML
ADP165ACBZ-2.2-R7
  • HTML
  • HTML
ADP165ACBZ-2.3-R7
  • HTML
  • HTML
ADP165ACBZ-2.85-R7
  • HTML
  • HTML
ADP165ACBZ-3.0-R7
  • HTML
  • HTML
ADP165ACBZ-3.3-R7
  • HTML
  • HTML
ADP165ACPZN-1.2-R7
  • HTML
  • HTML
ADP165ACPZN-1.8-R7
  • HTML
  • HTML
ADP165ACPZN-2.3-R7
  • HTML
  • HTML
ADP165ACPZN-3.0-R7
  • HTML
  • HTML
ADP165ACPZN-3.3-R7
  • HTML
  • HTML
ADP165ACPZN-R7
  • HTML
  • HTML
ADP165AUJZ-1.2-R7
  • HTML
  • HTML
ADP165AUJZ-1.8-R7
  • HTML
  • HTML
ADP165AUJZ-2.3-R7
  • HTML
  • HTML
ADP165AUJZ-3.0-R7
  • HTML
  • HTML
ADP165AUJZ-3.3-R7
  • HTML
  • HTML
ADP165AUJZ-R7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADP165ACPZN-1.2-R7

PRODUCTION

ADP165ACPZN-1.8-R7

PRODUCTION

ADP165ACPZN-2.3-R7

PRODUCTION

ADP165ACPZN-3.0-R7

PRODUCTION

ADP165ACPZN-3.3-R7

PRODUCTION

ADP165ACPZN-R7

PRODUCTION

Oct 18, 2016

- 16_0036

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

ADP165ACPZN-1.2-R7

PRODUCTION

ADP165ACPZN-1.8-R7

PRODUCTION

ADP165ACPZN-2.3-R7

PRODUCTION

ADP165ACPZN-3.0-R7

PRODUCTION

ADP165ACPZN-3.3-R7

PRODUCTION

ADP165ACPZN-R7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 8, 2022

- 22_0192

arrow down

Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages

ADP165ACPZN-1.2-R7

PRODUCTION

ADP165ACPZN-1.8-R7

PRODUCTION

ADP165ACPZN-2.3-R7

PRODUCTION

ADP165ACPZN-3.0-R7

PRODUCTION

ADP165ACPZN-3.3-R7

PRODUCTION

ADP165ACPZN-R7

PRODUCTION

Oct 18, 2016

- 16_0036

arrow down

Assembly Relocation to Stats ChipPAC Jiangyin and Test Transfer to Stats ChipPAC Singapore of Select LFCSP Products

ADP165ACPZN-1.2-R7

PRODUCTION

ADP165ACPZN-1.8-R7

PRODUCTION

ADP165ACPZN-2.3-R7

PRODUCTION

ADP165ACPZN-3.0-R7

PRODUCTION

ADP165ACPZN-3.3-R7

PRODUCTION

ADP165ACPZN-R7

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 3

reference details image

EVAL-ADMX1001

Ultra-low Distortion Signal Generator Measurement Module with Fully Differential Input Acquisition Channel

zoom

EVAL-ADMX1001

Ultra-low Distortion Signal Generator Measurement Module with Fully Differential Input Acquisition Channel

Ultra-low Distortion Signal Generator Measurement Module with Fully Differential Input Acquisition Channel

Features and Benefits

  • Ultra-low distortion, high-resolution source
    • DC, 50Hz to 40kHz Frequency Range
    • Proprietary digital pre-distortion (DPD) algorithm
    • –130dBc THD @ 1kHz (typ.)
    • Arbitrary waveform generation (AWG) with on-board pattern memory
    • Differential (balanced) output up to 3.5VRMS
    • Fast pattern switching between multiple stored waveforms
  • Fully Differential input Acquisition Channel
  • Small form-factor (60mm x 40mm)
  • Low power, 1W typ. (quiescent)
  • SPI interface for integration into test and measurement systems

Product Detail

The ADMX1001 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator with an acquisition channel. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. The signal generator and the acquisition channel can be individually controlled using separate, easy to use, SPI interfaces - combined with the module's small-form factor, the ADMX1001 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

  • High-end audio test
  • Analog-to-digital converter characterization and test
  • Sensor and transducer test
  • Frequency response and network analysis
  • ATE
reference details image

EVAL-ADMX1002

Ultra-low Distortion Signal Generator Measurement Module

zoom

EVAL-ADMX1002

Ultra-low Distortion Signal Generator Measurement Module

Ultra-low Distortion Signal Generator Measurement Module

Features and Benefits

  • Ultra-low distortion, high-resolution source
    • DC, 50Hz to 40kHz Frequency Range
    • Proprietary digital pre-distortion (DPD) algorithm
    • –130dBc THD @ 1kHz (typ.)
    • Arbitrary waveform generation (AWG) with on-board pattern memory
    • Differential (balanced) output up to 3.6VRMS
  • Fast pattern switching between multiple stored waveforms
  • Small form-factor (60mm x 40mm)
  • Low power, 1W typ. (quiescent)
  • SPI interface for integration into test and measurement systems

Product Detail

The ADMX1002 is an ultra-low distortion sinewave and high-resolution arbitrary waveform generator. This high-performance module demonstrates a proprietary digital pre-distortion algorithm that reduces signal distortion below levels that can be achieved with high-performance digital-to-analog converters (DAC) and amplifiers alone. Its differential output can be set to common-mode levels often required to test high-performance analog-to-digital converters (ADC), audio codecs, and other audio ICs and systems. With an easy-to-use SPI interface and small-form factor, the ADMX1002 can be easily embedded into test systems, or simply used on the bench for measurement and characterization.

APPLICATIONS

  • High-end audio test
  • Analog-to-digital converter characterization and test
  • Sensor and transducer test
  • Frequency response and network analysis
  • ATE
reference details image

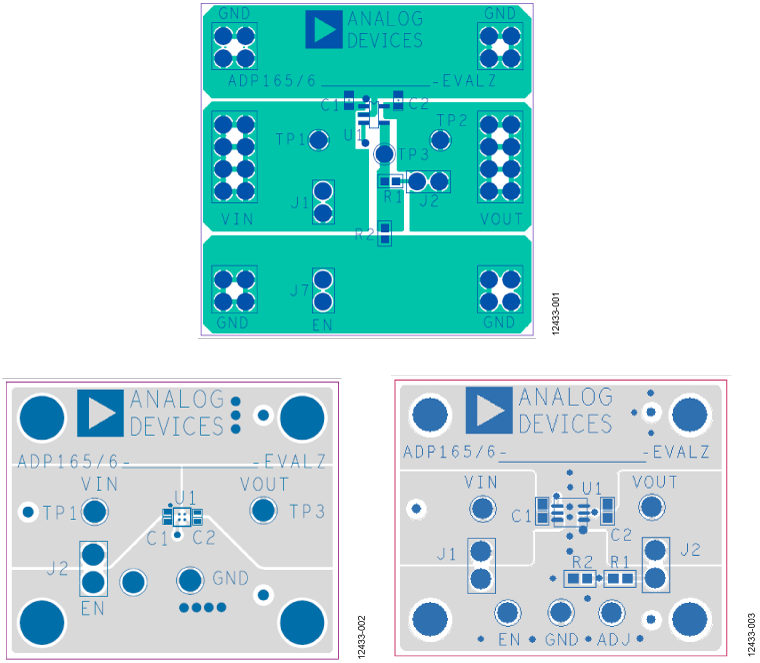

EVAL-ADP165-166

ADP165Z-REDYKIT/ADP166Z-REDYKIT

zoom

EVAL-ADP165-166

ADP165Z-REDYKIT/ADP166Z-REDYKIT

ADP165Z-REDYKIT/ADP166Z-REDYKIT

Features and Benefits

  • Input voltage range: 2.2 V to 5.5 V
  • Output current range: 0 mA to 150 mA
  • Output voltage accuracy: ±1%
  • Operating temperature range: −40°C to +125°C

Product Detail

The ADP165/ADP166 evaluation boards are used to demonstrate the functionality of the ADP165/ADP166 series of linear regulators.


Simple device measurements such as line and load regulation, dropout voltage, and ground current can be demonstrated with only a single voltage supply, a voltmeter, an ammeter, and load resistors.


Complete specifications for the ADP165/ADP166 linear regulators are available in the ADP165/ADP166 data sheet available from Analog Devices, Inc., and should be consulted in conjunction with this user guide when using the evaluation boards.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
