AD2S1205: 12-Bit RDC with Reference Oscillator Data Sheet (Rev. A)5/26/2010467 kB
Features and Benefits
- Complete monolithic resolver-to-digital converter (RDC)
- Parallel and serial 12-bit data ports
- System fault detection
- ±11 arc minutes of accuracy
- Input signal range: 3.15 VP-P ± 27%
- Absolute position and velocity outputs
- 1250 rps maximum tracking rate, 12-bit resolution
- Incremental encoder emulation (1024 pulses/rev)
- Programmable sinusoidal oscillator on board
- Single-supply operation (5.00 V ± 5%)
- −40°C to +125°C temperature rating
- 44-lead LQFP

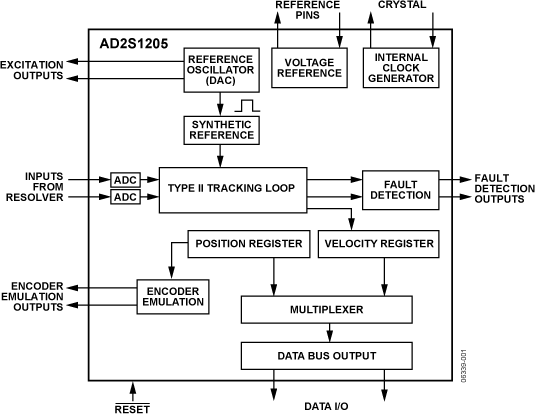

The AD2S1205 is a complete 12-bit resolution tracking resolver-to-digital converter that contains an on-board programmable sinusoidal oscillator providing sine wave excitation for resolvers.
The converter accepts 3.15 VP-P ± 27% input signals on the Sin and Cos inputs. A Type II tracking loop is employed to track the inputs and convert the input Sin and Cos information into a digital representation of the input angle and velocity. The maximum tracking rate is a function of the external clock frequency. The performance of the AD2S105 is specified across a frequency range of 8.192 MHz ± 25%, allowing a maximum tracking rate of 1250 rps.
- Ratiometric Tracking Conversion. The Type II tracking loop provides continuous output position data without conversion delay. It also provides noise immunity and tolerance of harmonic distortion on the reference and input signals.
- System Fault Detection. A fault detection circuit can sense loss of resolver signals, out-of-range input signals, input signal mismatch, or loss of position tracking.
- Input Signal Range. The Sin and Cos inputs can accept differential input voltages of 3.15 VP-P ± 27%.
- Programmable Excitation Frequency. Excitation frequency is easily programmable to 10 kHz, 12 kHz, 15 kHz, or 20 kHz by using the frequency select pins (the FS1 and FS2 pins).
- Triple Format Position Data. Absolute 12-bit angular position data is accessed via either a 12-bit parallel port or a 3-wire serial interface. Incremental encoder emulation is in standard A-quad-B format with direction output available.
- Digital Velocity Output. 12-bit signed digital velocity accessed via either a 12-bit parallel port or a 3-wire serial interface.
- Automotive motion sensing and control
- Hybrid-electric vehicles
- Electric power steering
- Integrated starter generator/alternator
- Industrial motor control
- Process control
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-AD2S1205SDZ is a fully featured evaluation kit for the AD2S1205. This board operates in stand alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.
