AD5144A
Quad Channel, 256-Position, I2C, Nonvolatile Digital Potentiometer
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- 10 kΩ and 100 kΩ resistance options
- Resistor tolerance: 8% maximum
- Wiper current: ±6 mA
- Low temperature coefficient: 35 ppm/°C
- Wide bandwidth: 3 MHz
- Fast start-up time < 75 μs
- Linear gain setting mode
- Single- and dual-supply operation
- Independent logic supply: 1.8 V to 5.5 V
- Wide operating temperature: −40°C to +125°C
- 4 mm × 4 mm package option
The AD5124 / AD5144 / AD5144A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.
The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.
The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAW and RWB string resistors, allowing very accurate resistor matching.
The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.
The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.
The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.
The AD5124 / AD5144 / AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.
Applications
- Portable electronics level adjustment
- LCD panel brightness and contrast controls
- Programmable filters, delays, and time constants
- Programmable power supplies
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5144A
Documentation
Filters
1 Applied
Data Sheet
2
Application Note
3
HTML
HTML
HTML
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

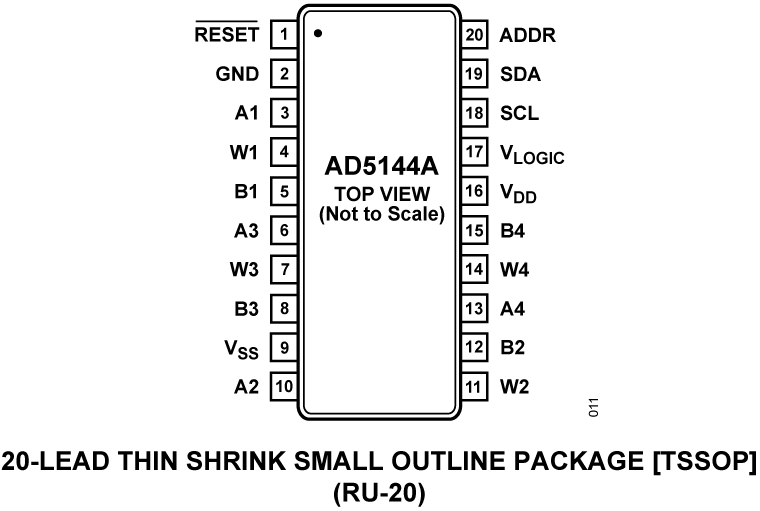

Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD5144ABRUZ10 | 20-Lead TSSOP |
|
|
AD5144ABRUZ10-RL7 | 20-Lead TSSOP |
|
|
AD5144ABRUZ100 | 20-Lead TSSOP |
|
|
AD5144ABRUZ100-RL7 | 20-Lead TSSOP |
|
- AD5144ABRUZ10
- Pin/Package Drawing
- 20-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5144ABRUZ10-RL7
- Pin/Package Drawing
- 20-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5144ABRUZ100
- Pin/Package Drawing
- 20-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5144ABRUZ100-RL7
- Pin/Package Drawing
- 20-Lead TSSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
AD5144ABRUZ10
PRODUCTION
AD5144ABRUZ10-RL7
PRODUCTION
AD5144ABRUZ100
PRODUCTION
AD5144ABRUZ100-RL7
PRODUCTION
May 25, 2017
- 17_0101
AD5124/AD5144/AD5144A Data Sheet Correction of Ilogic Maximum and Typical Specifications
AD5144ABRUZ10
PRODUCTION
AD5144ABRUZ10-RL7
PRODUCTION
AD5144ABRUZ100
PRODUCTION
AD5144ABRUZ100-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Apr 5, 2021
- 21_0035
Amkor Philippines as an Alternate Site for TSSOP_4.4
AD5144ABRUZ10
PRODUCTION
AD5144ABRUZ10-RL7
PRODUCTION
AD5144ABRUZ100
PRODUCTION
AD5144ABRUZ100-RL7
PRODUCTION
May 25, 2017
- 17_0101
AD5124/AD5144/AD5144A Data Sheet Correction of Ilogic Maximum and Typical Specifications
AD5144ABRUZ10
PRODUCTION
AD5144ABRUZ10-RL7
PRODUCTION
AD5144ABRUZ100
PRODUCTION
AD5144ABRUZ100-RL7
PRODUCTION
Evaluation Kits 1
EVAL-AD5144
AD5144 Evaluation Board
Product Detail
With versatile programmability, the AD5144 allows multiple modes of operation, including read/write access in the RDAC and EEMEM registers, increment / decrement of resistance, resistance changes in ±6 dB scales, wiper setting read-back, and extra EEMEM for storing user-defined information, such as memory data for other components or a lookup table.
The AD5144 supports a dual-supply ±2.25 V to ±2.75 V operation and a single-supply 2.3 V to 5.5 V operation, making the device suitable for battery-powered applications and many other applications. In addition, the AD5144 can be configured as a versatile I2C or SPI serial interface. The EVAL-AD5144DBZ can operate in single-supply or dual-supply mode and incorporates an internal power supply from the USB.
Complete specifications for the AD5144 part can be found in the AD5144 data sheet.
