AD5124

Quad Channel, 128-Position, SPI, Nonvolatile Digital Potentiometer

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 6
1ku List Price Starting From $2.94
Features
  • 10 kΩ and 100 kΩ resistance options
  • Resistor tolerance: 8% maximum
  • Wiper current: ±6 mA
  • Low temperature coefficient: 35 ppm/°C
  • Wide bandwidth: 3 MHz
  • Fast start-up time < 75 μs
  • Linear gain setting mode
  • Single- and dual-supply operation
  • Independent logic supply: 1.8 V to 5.5 V
  • Wide operating temperature: −40°C to +125°C
  • 4 mm × 4 mm package option
Additional Details
show more Icon

The AD5124/AD5144/AD5144A potentiometers provide a nonvolatile solution for 128-/256-position adjustment applications, offering guaranteed low resistor tolerance errors of ±8% and up to ±6 mA current density in the Ax, Bx, and Wx pins.

The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching.

The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAW and RWB string resistors, allowing very accurate resistor matching.

The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for ac signals, making these devices suitable for filter design.

The low wiper resistance of only 40 Ω at the ends of the resistor array allow for pin-to-pin connection.

The wiper values can be set through an SPI-/I2C-compatible digital interface that is also used to read back the wiper register and EEPROM contents.

The AD5124/AD5144/AD5144A are available in a compact, 24-lead, 4 mm × 4 mm LFCSP and a 20-lead TSSOP. The parts are guaranteed to operate over the extended industrial temperature range of −40°C to +125°C.

APPLICATIONS

  • Portable electronics level adjustment
  • LCD panel brightness and contrast controls
  • Programmable filters, delays, and time constants
  • Programmable power supplies
Part Models 6
1ku List Price Starting From $2.94

close icon
Documentation

Documentation

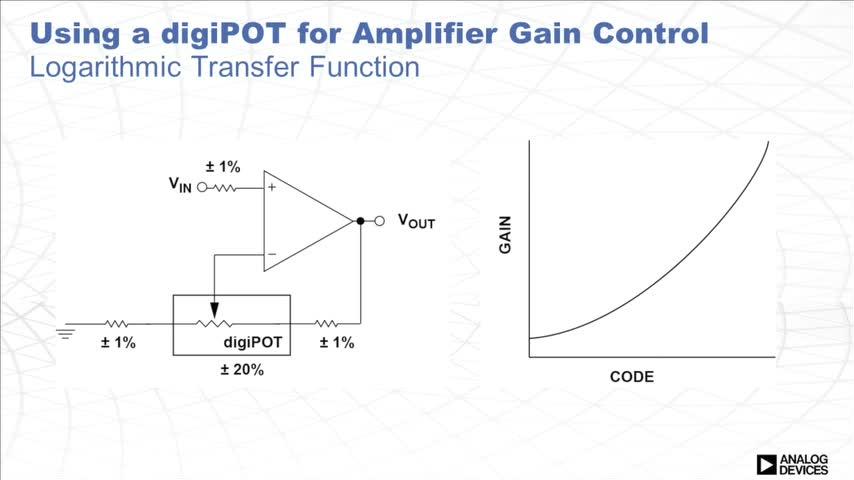

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD5124BCPZ10-RL7
  • HTML
  • HTML
AD5124BCPZ100-RL7
  • HTML
  • HTML
AD5124BRUZ10
  • HTML
  • HTML
AD5124BRUZ10-RL7
  • HTML
  • HTML
AD5124BRUZ100
  • HTML
  • HTML
AD5124BRUZ100-RL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 25, 2017

- 17_0101

AD5124/AD5144/AD5144A Data Sheet Correction of Ilogic Maximum and Typical Specifications

AD5124BCPZ10-RL7

PRODUCTION

AD5124BCPZ100-RL7

PRODUCTION

AD5124BRUZ10

PRODUCTION

AD5124BRUZ10-RL7

PRODUCTION

AD5124BRUZ100

PRODUCTION

AD5124BRUZ100-RL7

PRODUCTION

Aug 6, 2014

- 13_0230

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 25, 2017

- 17_0101

arrow down

AD5124/AD5144/AD5144A Data Sheet Correction of Ilogic Maximum and Typical Specifications

AD5124BCPZ10-RL7

PRODUCTION

AD5124BCPZ100-RL7

PRODUCTION

AD5124BRUZ10

PRODUCTION

AD5124BRUZ10-RL7

PRODUCTION

AD5124BRUZ100

PRODUCTION

AD5124BRUZ100-RL7

PRODUCTION

Aug 6, 2014

- 13_0230

arrow down

Assembly and Test Transfer of Select 3.5x3.5, 4x3, 4x4, and 5x5mm LFCSP Products to STATS ChipPAC China

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-AD5144

AD5144 Evaluation Board

zoom

EVAL-AD5144

AD5144 Evaluation Board

AD5144 Evaluation Board

Features and Benefits

  • Full featured evaluation board in conjunction with low voltage digiPOT motherboard (EVAL-MB-LV-SDZ)
  • Various test circuits
  • Various ac/dc input signals
  • PC control via a separately purchased system demonstration platform (SDP-B or SDP-S)
  • PC software for control

Product Detail

With versatile programmability, the AD5144 allows multiple modes of operation, including read/write access in the RDAC and EEMEM registers, increment / decrement of resistance, resistance changes in ±6 dB scales, wiper setting read-back, and extra EEMEM for storing user-defined information, such as memory data for other components or a lookup table.

The AD5144 supports a dual-supply ±2.25 V to ±2.75 V operation and a single-supply 2.3 V to 5.5 V operation, making the device suitable for battery-powered applications and many other applications. In addition, the AD5144 can be configured as a versatile I2C or SPI serial interface. The EVAL-AD5144DBZ can operate in single-supply or dual-supply mode and incorporates an internal power supply from the USB.

Complete specifications for the AD5144 part can be found in the AD5144 data sheet.
