Features and Benefits
- 16-Bits Resolution with No Missing 16-Bit Codes
- Throughput: 100 kSPS
- INL: ±1 LSB Typ, ±3 LSB Max
- Power Dissipation:
4 mW @ 5V/100 kSPS
150 µW @ 2.7 V/10 kSPS
- Pseudo-Differential Analog Input Range: 0 V to VREF with VREF up to VDD
- No Pipeline Delay
- Single Supply Operation 2.7 V to 5.5 V
- See Data Sheet for Additional Information
The AD7683 is a 16-bit, charge redistribution, successive approximation, PulSAR® analog-to-digital converter (ADC) that operates from a single power supply, VDD, between 2.7 V and 5.5 V. It contains a low power, high speed, 16-bit sampling ADC with no missing codes (B grade), an internal conversion clock, and a serial, SPI-compatible interface port. The part also contains a low noise, wide bandwidth, short aperture delay, track-and-hold circuit. On the CS falling edge, it samples an analog input, +IN, between 0 V to REF with respect to a ground sense, –IN. The reference voltage, REF, is applied externally and can be set up to the supply voltage. Its power scales linearly with throughput.

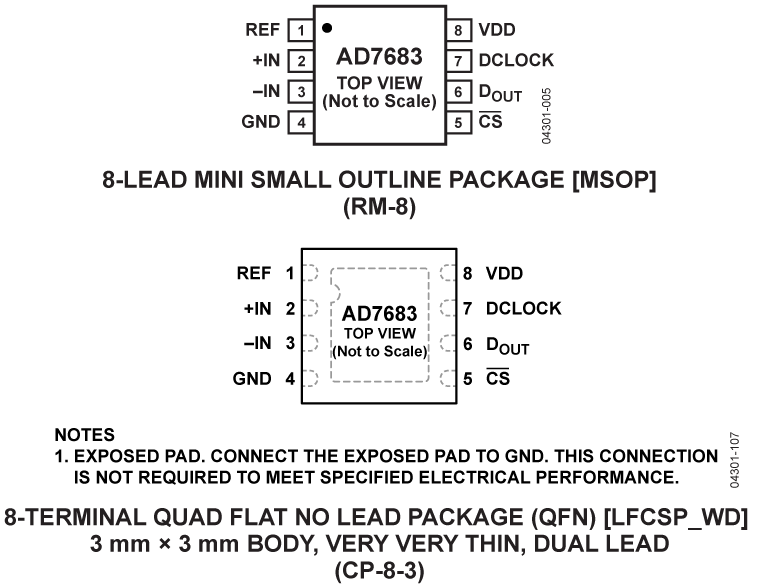

The AD7683 is housed in an 8-lead MSOP or an 8-lead QFN (LFCSP) package, with an operating temperature specified from −40°C to +85°C.
- Battery-powered equipment
- Data acquisition
- Medical instruments
- Process control
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-AD7683SDZ is a fully featured evaluation kit for the AD7683. This board operates in stand alone mode or in conjunction with the System Development Platform, EVAL-SDP-CB1Z . When operated with the System Development Platform software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the System Development Platform . When operated in standalone mode the ADZS-BRKOUT-EX3 break out board is recommended for access to various control pins.
Documentation & Resources
Software & Systems Requirements
Tools & Simulations
AD7683 Companion Parts
Recommended Driver Amplifiers
- For low power and a 5V single-supply: AD8605, AD8615.
- For low noise, low power and low frequency: OP184.
For precision, low power, low distortion applications
: ADA4805-1, ADA4805-2, ADA4841-1, ADA4841-2.
- For translating +/- 10V signals to 4V, low distortion, fast settling: AD8275.
- For low power and low frequency: AD8519.
High frequency, low noise, low distortion applications:ADA4807-1, ADA4807-2, ADA4897-1, ADA4897-2.
Recommended Voltage References
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD7683ACPZRL7||Material Declaration||Reliability Data||8-Lead LFCSP (3mm x 3mm w/ EP)|
|AD7683ARMZ||Material Declaration||Reliability Data||8-Lead MSOP|
|AD7683ARMZRL7||Material Declaration||Reliability Data||8-Lead MSOP|
|AD7683BCPZRL7||Material Declaration||Reliability Data||8-Lead LFCSP (3mm x 3mm w/ EP)|
|AD7683BRMZ||Material Declaration||Reliability Data||8-Lead MSOP|
|AD7683BRMZRL7||Material Declaration||Reliability Data||8-Lead MSOP|
|Wafer Fabrication Data|
