AD7606-6
6-Channel DAS with 16-Bit, Bipolar Input, Simultaneous Sampling ADC
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 8/6/4 simultaneously sampled inputs
- True bipolar analog input ranges: ±10 V, ±5 V
- Pin to pin compatible with the state-of-the-art AD7606B
- Single 5 V analog supply and 2.3 V to 5 V VDRIVE
- Fully integrated data acquisition solution
- Analog input clamp protection
- Input buffer with 1 MΩ analog input impedance
- Second-order antialiasing analog filter
- On-chip accurate reference and reference buffer
- 16-bit ADC with 200 kSPS on all channels
- Oversampling capability with digital filter
- Flexible parallel/serial interface
- SPI/QSPI™/MICROWIRE™/DSP compatible
- Performance
- 7 kV ESD rating on analog input channels
- 95.5 dB SNR, −107 dB THD
- ±0.5 LSB INL, ±0.5 LSB DNL
- Low power: 100 mW
- Standby mode: 25 mW
- Temperature range: −40°C to +85°C

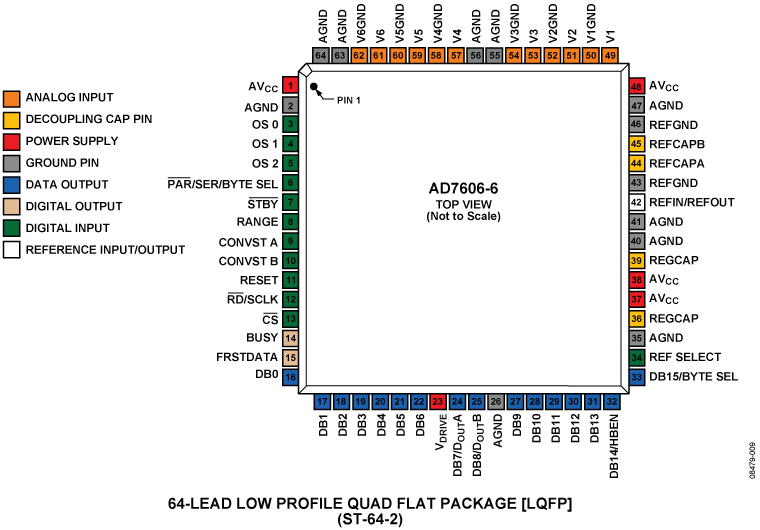

- 64-lead LQFP package
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD7606/AD7606-6/AD7606-4 are 16-bit, simultaneous sampling, analog-to-digital data acquisition systems (DAS) with eight, six, and four channels, respectively. Each part contains analog input clamp protection, a second-order antialiasing filter, a track-and-hold amplifier, a 16-bit charge redistribution successive approximation analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces.
The AD7606/AD7606-6/AD7606-4 operate from a single 5 V supply and can accommodate ±10 V and ±5 V true bipolar input signals while sampling at throughput rates up to 200 kSPS for all channels. The input clamp protection circuitry can tolerate voltages up to ±16.5 V. The AD7606 has 1 MΩ analog input impedance regardless of sampling frequency. The single supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies. The AD7606/AD7606-6/AD7606-4 antialiasing filter has a 3 dB cutoff frequency of 22 kHz and provides 40 dB antialias rejection when sampling at 200 kSPS. The flexible digital filter is pin driven, yields improvements in SNR, and reduces the 3 dB bandwidth.
Applications
- Power-line monitoring and protection systems
- Multiphase motor control
- Instrumentation and control systems
- Multiaxis positioning systems
- Data acquisition systems (DAS)
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD7606-6
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
Technical Articles
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
1
User Guide
1
Technical Articles
3
HTML
HTML
HTML
Documentation
Data Sheet 1
User Guide 1
Technical Articles 1
Circuit Note 1
Device Drivers 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD7606BSTZ-6 |
64-Lead LQFP (10mm x 10mm)
|
|
|
| AD7606BSTZ-6RL |
64-Lead LQFP (10mm x 10mm)
|
|
- AD7606BSTZ-6
- Pin/Package Drawing
-
64-Lead LQFP (10mm x 10mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD7606BSTZ-6RL
- Pin/Package Drawing
-
64-Lead LQFP (10mm x 10mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
AD7606BSTZ-6
PRODUCTION
AD7606BSTZ-6RL
PRODUCTION
Feb 1, 2011
- 11_0007
AD7606 and AD7607 minor edit to all layers
AD7606BSTZ-6
PRODUCTION
AD7606BSTZ-6RL
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Oct 18, 2016
- 16_0034
Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin
AD7606BSTZ-6
PRODUCTION
AD7606BSTZ-6RL
PRODUCTION
Feb 1, 2011
- 11_0007
AD7606 and AD7607 minor edit to all layers
AD7606BSTZ-6
PRODUCTION
AD7606BSTZ-6RL
PRODUCTION
Software & Part Ecosystem
FPGA/HDL
Mbed Support
Mbed is an open source, development environment for ARM microcontrollers.
Device Drivers
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
isoPower2 |
||||
|
PRODUCTION |
Isolated DC/DC Converter |
|||
|
PRODUCTION |
Quad-Channel, 2.5 kV Isolators with Integrated DC-to-DC Converter (2/2 channel directionality) |
|||
|
Series Voltage References2 |
||||
|
PRODUCTION |
Ultraprecision, Low Noise, 2.500 V XFET® Voltage References |
|||
|
PRODUCTION |
Ultralow Noise XFET® Voltage References with Current Sink and Source Capability |
|||
|
Standard Digital Isolators1 |
||||
|
PRODUCTION |
Quad-Channel Digital Isolator (2/2 Channel Directionality) |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD7606-6
AD7606-6 Evaluation Board
Product Detail
The EVAL-AD7606-6SDZ is a fully featured evaluation Kit for the AD7606-6. This board operates in standalone mode or in conjunction with the Evaluation Controller Board, EVAL-SDP-CB1Z. When operated with the Evaluation Controller Board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Evaluation Controller Board.
Evaluation Kits1
Reference Designs 1
CN0148
Layout Considerations for an Expandable Multichannel Simultaneous Sampling Data Acquisition System (DAS) Based on the AD7606 16-Bit, 8-Channel DAS
Circuits from the lab
Info:Circuits from the lab
